Showing 1–16 of 34 results
-
REQUEST A QUOTE
- Sensor Type: Capacitive Proximity (TRIPLESHIELD™ high noise immunity)
- Housing Diameter: M18 (18 mm metric thread)
- Housing Material: Grey Polyester / Plastic
- Mounting Type: Flush / Embeddable (can be mounted flush in metal)
- Output Type: PNP Transistor
- Output Function: Complementary 4-wire DC (Both Normally Open [NO] and Normally Closed [NC])
- Supply Voltage: 10 V DC to 40 V DC
- Connection Type: 2-meter PVC Leaded Cable
- Visual Indicator: Integrated LED status indication
- Brown (BN): + VDC Power Supply (10 to 40 VDC)
CARLO GAVAZZI CA18CLF08PA Capacitive Proximity Sensor (CA18 Series).
-

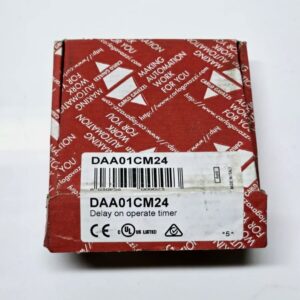

- Manufacturer: CARLO GAVAZZI
- Model / Part Number: DAA01CM24
- Function Type: Delay on Operate (On-Delay)
- Supply Voltage: Multi-voltage: 24 to 240 VAC (50/60 Hz) and 24 VDC
- Time Range: Fully adjustable from 0.1 seconds to 100 hours
- Output Type: SPDT (1 Form C) electro-mechanical relay
- Contact Rating: 8 A @ 250 VAC / 5 A @ 24 VDC
- Mounting Style: Standard 35mm DIN rail mount (22.5mm Euronorm housing)
- Connection: Screw terminals
- Time Tuning: Features two front dials. Use one knob to pick your scale (like seconds, minutes, or hours) and the other knob to fine-tune the exact countdown.
- Accuracy: Features a high level of repeatability (≤ 0.2% variance) to keep your industrial automated setups timing perfectly every cycle.
- Visual Status Indicators: Built-in LED lights show you exactly what is happening. A green LED signals the unit has power, and a yellow LED flashes during timing or stays solid when the output relay triggers.
-

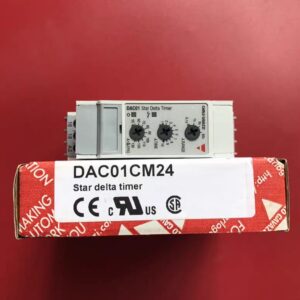

- Manufacturer: CARLO GAVAZZI
- Model / Part Number: DAC01CM24
- Main Function: Star-Delta motor starting control.
- Power Supply: Works with 24 to 240 VAC or VDC (45 to 65 Hz).
- Time Range (Star): Adjustable from 0.1 seconds to 600 seconds (10 minutes) using a front knob.
- Switching Time (Star to Delta): Fast transitions lasting 50 to 130 milliseconds to prevent electrical shorts.
- Output Relay: Single Pole Double Throw (SPDT) contact rated for 8A at 250 VAC.
- Mounting Style: Designed for an industrial DIN-rail.
- Housing Size: Standard Euronorm box measuring 22.5 mm wide.
-

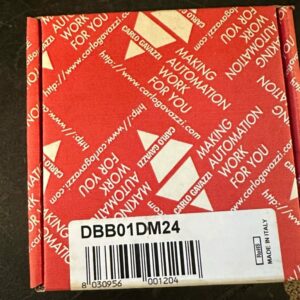

- Manufacturer: CARLO GAVAZZI
- Model / Part Number: DBB01DM24
- Product Type: True Delay on Release Timer (True Off-Delay).
- Time Range: 0.1 seconds to 600 seconds (10 minutes), divided into 4 selectable ranges using built-in DIP switches. You can fine-tune the exact time within your chosen range using a front knob.
- Supply Voltage: 24 to 240 VAC/DC, giving it a multi-voltage capability that works with both alternating current and direct current industrial power supplies.
- Output Configuration: DPDT (Double Pole Double Throw) relay output rated for 8 Amps at 250 VAC. This means it can control two separate electrical paths at the same time.
- Mounting style: Built for a standard 22.5 mm Euronorm industrial DIN-rail housing with secure screw terminal connections.
- Diagnostic Features: Includes a clear LED light indicator on the front panel to show when the power supply is actively on.
-
- Manufacturer: CARLO GAVAZZI
- Model / Part Number: DCB51CM24
- Wide Time Range: Adjusts anywhere from 0.1 seconds all the way up to 100 hours across 7 different selectable ranges.
- Universal Power Supply: Works with 24 V DC and 24 to 240 V AC, making it highly flexible for different electrical setups.
- Output Relay: Features 1 SPDT (Single Pole Double Throw) relay rated for 5 Amps.
-
REQUEST A QUOTE
- Input Current Range: 10 to 100 A AC (Knob-adjustable setpoint)
- Power Supply: Self-powered (Draws energy directly from the measured current; no external power supply required)
- Output Type: Solid state (NPN-PNP open collector, normally open, 100 mA max)
- Connection Style: 2-wire connection
- Time Delay: Instantaneous reaction (No adjustable delay)
- Housing & Mounting: 17.5 mm width, Mini DIN-rail mounting (DIN/EN 50 022 compliant)
- Indicators: Integrated LED status indicator for Output ON
- Zero External Power Needed: Because the device is fully self-powered via the monitored line, it simplifies panel wiring and eliminates the need for standalone auxiliary power drops.
- Adjustable Setpoint: An integrated front dial/knob allows technicians to precisely calibrate the target overcurrent limit within the 10–100 A window.
- Compact Footprint: At just 17.5 mm wide, it consumes minimal space on a standard DIN rail, making it ideal for crowded industrial control enclosures.
CARLO GAVAZZI DIA53S724100AF AC Overcurrent Monitoring Relay (DIA53 Series).
-
REQUEST A QUOTE
- Main Function: True RMS AC/DC Overcurrent or Undercurrent monitoring (selectable via DIP switches)
- Measuring Range: 1 to 10 A AC/DC (via integrated internal shunt)
- Supply Voltage: 115 / 230 V AC
- Output Type: 1 SPDT (Single Pole Double Throw) relay
- Contact Rating: 8 A @ 250 V AC
- Time Delay: Adjustable delay on alarm (0.1 to 30 seconds)
- Mounting Style: Standard DIN-rail mount (22.5mm housing)
- IP / NEMA Rating: IP20 (finger-safe protection)
- True RMS Measurement: Ensures highly accurate current reading and distortion protection, even when monitoring non-linear loads or electrical networks experiencing harmonic noise.
- Internal Shunt Design: Features a built-in shunt that permits direct current measurement up to 10 A without requiring external current transformers (CTs), minimizing enclosure wiring and complexity.
CARLO GAVAZZI DIB01CB2310A True RMS Current Monitoring Relay (DIB01 Series).
-

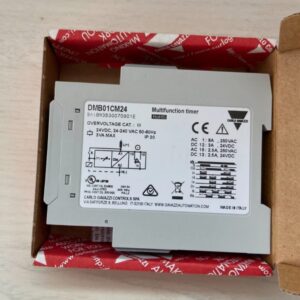

- Manufacturer: CARLO GAVAZZI
- Model / Part Number: DMB01CM24
- Wide Time Range: It can track time as short as 0.1 seconds or as long as 100 hours.
- Flexible Power: It works with many types of power, accepting anywhere from 24 to 240 Volts AC or 24 Volts DC.
- Output Relay: It uses a standard 8A SPDT (Single Pole Double Throw) switch to signal your other equipment.
- Status Lights: Built-in tiny LED lights quickly show you if the power is on and whether the internal switch is active.
-

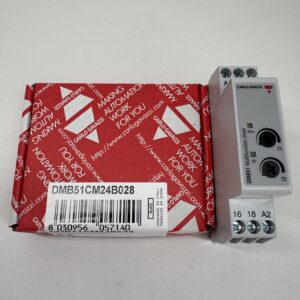

- Manufacturer: CARLO GAVAZZI
- Model / Part Number: DMB51CM24B028
- Op (Delay on Operate): Waits for a set time before turning on.
- In (Interval): Turns on right away, stays on for a set time, then shuts off.
- Io (Interval on Trigger Open): Starts a timed run after an external switch opens.
- Id (Double Interval): Turns on twice based on separate signal triggers.
- Dr (Delay on Release): Stays on for a set time after the control switch is opened.
- R (Symmetrical Recycler ON First): Blinks on and off repeatedly, starting with "on".
- Rb (Symmetrical Recycler OFF First): Blinks on and off repeatedly, starting with "off".
- Wide Time Range: It can time things as short as 0.1 seconds or as long as 100 hours.
- Flexible Power Supply: It works with both alternating current (AC) and direct current (DC) power networks (specifically 24 VDC and 24 to 240 VAC).
- Output Relay: It uses a Single Pole Double Throw (SPDT) relay rated for 5 Amps at 250 VAC.
-
REQUEST A QUOTE
- Mounting Type: Industrial DIN-rail (DIN/EN 50 022)
- Monitored Functions: Phase Sequence, Phase Loss
- Supply / Monitored Voltage: 208 to 480 V AC (+10% to -15%)
- Operating Frequency Range: 45 to 65 Hz (Nominal 50-60 Hz)
- Trip Range / Coil Voltage: 177 to 550 V AC
- Output Type: 1 x SPDT (Single Pole Double Throw) relay
- Contact Rating: 8 A @ 250 V AC
- Time Delay: No delay adjustment (Instantaneous reaction)
- Regenerated Voltage Detection: Detects up to 85% of nominal phase-to-phase voltage
- Operating Temperature: -20°C to 50°C (-4°F to 122°F)
CARLO GAVAZZI DPA01CM44 3-Phase Voltage Monitoring Relay (DPA01 Series).
-
REQUEST A QUOTE
- Monitored Functions: Phase Loss, Phase Sequence (Detection of total/partial loss)
- Voltage Range: 380 to 600 VAC (Measures its own power supply)
- Frequency Range: 50 to 60 Hz
- Output Configuration: 1 x SPDT (Single Pole Double Throw) Relay,
- Time Delay: None (No delay adjustment available)
- Housing Width: 22.5 mm Euronorm profile
- Mounting Type: DIN-rail mounting (DIN/EN 50 022)
- IP Rating: IP20 enclosure protection rating
- Certifications: CE, CSA, UL Listed
- Regenerated Voltage Detection: The device accurately detects regenerated voltages up to 85% of the nominal phase-to-phase voltage. This ensures it can reliably trigger an outage event even when a coasting motor generates back-EMF that mimics a live phase.
CARLO GAVAZZI DPA01CM60 3-Phase Industrial Monitoring Relay (DPA01 Series).
-
REQUEST A QUOTE
- Manufacturer: Carlo Gavazzi
- Product Series: DPA01 Series (Euronorm Housing)
- Monitoring Functions: Phase Sequence, Total/Partial Phase Loss
- Nominal Voltage Range: 380 to 480 V AC (3-Phase Delta)
- Operating Frequency: 50 to 60 Hz
- Output Configuration: DPDT (Double Pole Double Throw) — 2 Relays
- Housing Width: 22.5 mm (0.89 inches)
- Mounting Type: DIN-rail installation (DIN/EN 50 022)
- IP Rating: IP20 (Finger-safe screw terminals)
- Diagnostics: LED Status Indication (Green for Power, Yellow for Relay)
CARLO GAVAZZI DPA01DM48 3-Phase Power Monitoring Relay (DPA01 Series).
-
REQUEST A QUOTE
- Monitored Parameter: Phase Sequence & Phase Loss
- Supply/Monitoring Voltage: 380 to 415 V AC (± 15%, 50-60 Hz)
- Trip Range: 323 to 475 V AC
- Output Type: SPDT (1 Form C) relay, normally energized
- Housing Dimensions: 22.5 mm Euronorm industrial housing
- Mounting Style: DIN-rail mount (DIN/EN 50 022)
- Ingress Protection: IP20
- Operating Temperature: -20°C to 60°C (-4°F to 140°F)
- Visual Indicators: LED indicator for relay ON status
- Regenerated Voltage Detection: The DPA02CM40 can detect partial phase loss even if the spinning motor regenerates voltage back into the missing line (detects up to 85% of the nominal voltage).
CARLO GAVAZZI DPA02CM40 Phase Sequence and Loss Monitoring Relay (DPA02 Series).
-
REQUEST A QUOTE
- Monitored Mains Voltage: 208 to 480 V AC ± 15% (Auto-detecting range)
- Output Type: 1 × SPDT (Single Pole Double Throw / 1 Form C changeover relay)
- Contact Switching Current: Max 5 A at 250 V AC
- Frequency Range: 50 Hz to 60 Hz (± 10%) sinusoidal waveform
- Reaction Time: ≤ 200 ms (Phase loss) / ≤ 100 ms (Sequence error)
- Mounting Format: Ultra-compact 17.5 mm width profile for standard DIN-rail
- LED Indicators: Green LED: Power Supply ON / Yellow LED: Output Relay Active
- Certifications: CE, UL listed, CSA approved, RoHS compliant
- Meaning of the Part Number: DPA51CM44 B104
CARLO GAVAZZI DPA51CM44 B104 3-Phase Power Fault Monitoring Relay (DPA51 Series).
-
REQUEST A QUOTE
- Monitored Parameters: Phase Loss & Phase Sequence
- Mains Voltage Range: 208 to 480 VAC (±15%)
- Frequency Range: 50 to 60 Hz (±10%)
- Output Configuration: 1 x SPDT (Single Pole Double Throw / 1 Form C)
- Contact Rating: 5 A @ 250 VAC
- Mounting Type: DIN-rail (17.5 mm width)
- Time Delay: No delay adjustment (instantaneous reaction)
- IP Rating: IP20 (finger-safe protection)
- Safety Certifications: UL, CSA, CE
- Phase Loss Detection: If any one of the three phases goes dead or drops below the activation threshold (<85% of the rated phase-to-phase voltage), the relay immediately de-energizes. This prevents motors from running on two phases ("single-phasing"), which leads to rapid overheating, torque reduction, and eventual motor burnout.
CARLO GAVAZZI DPA51CM44 Compact 3-Phase Monitoring Relay (DPA51 Series).
-
REQUEST A QUOTE
- Primary Functions: Phase loss and incorrect phase sequence detection
- Voltage Supply Range: 208 VAC to 480 VAC (±15%)
- Output Type: SPDT (Single Pole Double Throw) relay
- Current Rating: 5 A
- Frequency Range: 50 Hz to 60 Hz
- Mounting Style: 17.5 mm Mini DIN-rail housing
- Time Delay: None (instantaneous trip)
- Visual Indicators: LED lights for power supply status and relay output ON
- Regenerated Voltage Detection: Safely senses phase failures even when a running motor tries to feed voltage back into the missing phase line.
- Plug-and-Play Setup: Operates automatically without needing manual configuration or NFC tuning parameters.
CARLO GAVAZZI DPA51CM44B011 3-Phase Monitoring Relay (DPA51 Series).
