Showing 17–32 of 34 results
-
- Manufacturer: Carlo Gavazzi

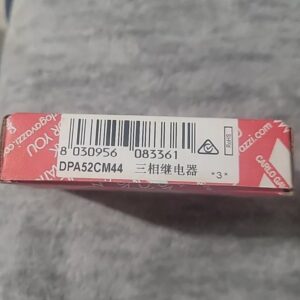

- Model / Part Number: DPA52CM44
- Function: 3-phase true RMS mains monitoring: phase loss and phase sequence (3P, 3-wire systems)
- Nominal line voltage range: 208-480 V AC L-L; working range 135-600 V AC (208-35% / 480+25%)
- Frequency: 50-60 Hz +/-10%, sinusoidal waveform
- Power supply: Supplied by monitored phases (L2, L3); consumption < 2.5 VA
- Output: 1 x SPDT electromechanical changeover relay (terminals 11, 12, 14); de-energised on alarm
- Contact rating: Ith 5 A @ 250 V AC; AC15 2.5 A @ 250 V AC; DC12 5 A @ 24 V DC; DC13 2.5 A @ 24 V DC
-
- Manufacturer: Carlo Gavazzi

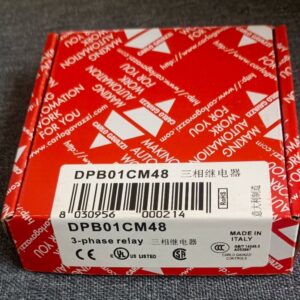

- Model / Part Number: DPB01CM48
- Voltage Range: Configured for 380 to 480 V AC grid lines.
- Output Type: Uses 1 SPDT (Single Pole Double Throw) relay rated for 8 Amps.
- Time Delay: Has an adjustable delay on alarm from 0.1 to 30 seconds to prevent false trips from temporary power blips.
- Mounting Type: Built for standard 22.5 mm DIN-rail electrical boxes.
- Adjustments: Built-in DIP-switches select the main measuring range, and front dials let you adjust specific trip limits on a relative scale.
- Status Lights: Includes clear LED indicators showing the status of the power supply, alarms, and relay output.
-
- Manufacturer: CARLO GAVAZZI

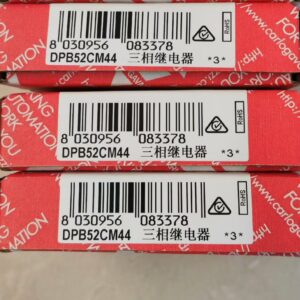

- Model / Part Number: DPB52CM44
- Voltage Range: Operates across systems from 208 to 480 V AC.
- Frequency Range: Built for standard 50 Hz to 60 Hz electrical systems.
- Output Type: Features 1 Single Pole Double Throw (SPDT) relay contact rated at 5 A.
- Housing Size: Designed with a space-saving 17.5 mm width to fit easily onto standard DIN rails.
- Noise Filter: Includes ultra-high harmonic immunity to perform reliably in noisy industrial environments.
-

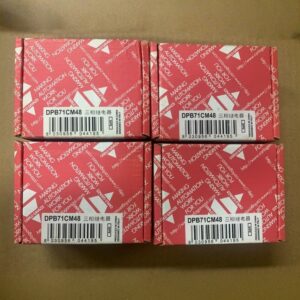

- Manufacturer: Carlo Gavazzi
- Model / Part Number: DPB71CM48
- Monitored Variables: Phase sequence, total/partial phase loss, over-voltage, and under-voltage (with separately adjustable setpoints).
- Supply / Monitoring Voltage: 380V AC to 480V AC nominal (handles 3-phase, 3-wire systems).
- Output Contact: SPDT (Single Pole Double Throw) relay.
- Contact Ratings: 5A @ 250V AC (Resistive) / 5A @ 24V DC.
- Features: Built-in adjustable time delay function, LED indicator for status, and True RMS measurement for accurate monitoring even under distorted wave conditions.
-
- Manufacturer: Carlo Gavazzi

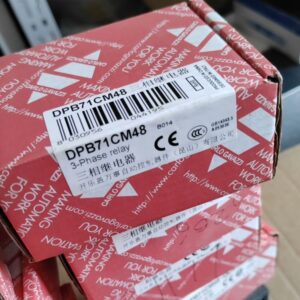

- Model / Part Number: DPB71CM48B014
- Core Functions: It protects systems by tracking under-voltage, over-voltage, phase sequence (making sure phases are in the right order), and phase loss (detecting if a phase stops working entirely).
- Voltage Range: It measures a nominal range of 380 to 480 VAC.
- Adjustability: Features separate dials to adjust upper and lower voltage limits, alongside an adjustable time-delay function (0.1 to 30 seconds) to prevent false alarms from brief power dips.
- Output Signal: Equipped with a 5A SPDT (Single Pole Double Throw) relay output.
- Mounting: Compact 35.5 mm housing built for easy snapping onto standard DIN rails.
- LED Status Lights: Built-in green (power supply ON), red (alarm flashing), and yellow (output relay status) LEDs provide immediate visual diagnostics.
-
- Manufacturer: CARLO GAVAZZI

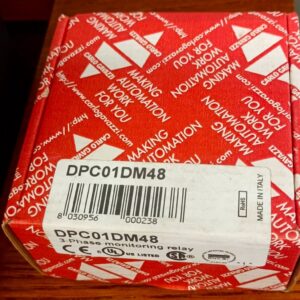

- Model / Part Number: DPC01DM48
- Nominal Voltage Range: 380 to 480 V AC (Measuring range spans 323 to 550 V AC).
- Adjustable Time Delay: Built-in alarm delay can be adjusted from 0.1 to 30 seconds to avoid false trips from temporary power dips.
- Outputs: 2 x SPDT (Single Pole Double Throw) electromechanical relays.
- Mounting: Standard 45mm housing designed for a DIN-rail.
- Visual Diagnostics: Includes colored built-in LED indicators to quickly verify power status, active alarms, and relay outputs.
-
REQUEST A QUOTE
- Sensor Type: Capacitive Proximity Switch (Plastic Housing)
- Housing Diameter: M30 (30.0 mm)
- Sensor Length: 63.6 mm
- Sensing Distance: 16 mm (Adjustable range)
- Output Type: NPN with Make & Break (NO + NC) switching
- Supply Voltage: 10 VDC to 40 VDC
- Current/Load Rating: 200 mA maximum
- Termination Type: Built-in PVC Cable
- Operating Temperature: -25°C to +80°C (-13°F to +176°F)
- Integrated Diagnostics: Features a built-in LED indicator to display object detection status rapidly for effortless troubleshooting and installation adjustments.
CARLO GAVAZZI EC3016NPAPL TRIPLESHIELD Capacitive Proximity Sensor (EC30 Series).
-
REQUEST A QUOTE
- Sensing Technology: Capacitive with TRIPLESHIELD™ Protection
- Sensing Range: 25 mm (Adjustable from 4 mm to 25 mm)
- Installation Mount: Non-Flush / Non-Embedded
- Housing Design: Threaded Barrel, M30 x 75.6 mm
- Housing Material: Grey Thermoplastic Polyester (PET)
- Supply Voltage: 20 V to 250 V AC (50/60 Hz)
- Output Type: 2-wire Thyristor (SCR)
- Output Function: Configurable / Dual Output (Normally Open + Normally Closed)
- Connection Type: 2-meter PVC Cable
- Response Frequency: 10 Hz
CARLO GAVAZZI EC3025TBAPL M30 Capacitive Proximity Sensor (EC30 Series).
-
REQUEST A QUOTE
- Sensor Type: Inductive Proximity
- Housing Diameter: M12
- Sensing Distance: 2 mm
- Mounting Profile: Flush (Shielded)
- Output Type: PNP
- Output Function: Normally Open (NO)
- Connection Type: Cable (CAB)
CARLO GAVAZZI IA12DLF02PO Inductive Proximity Sensor (IA12 Series).
-

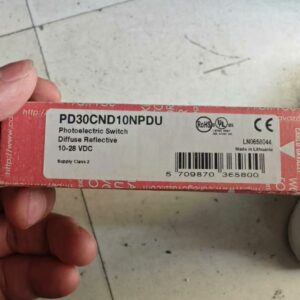

- Manufacturer: CARLO GAVAZZI
- Model / Part Number: PD30CND10NPDU
- Sensor Type: Photoelectric sensor
- Supply Voltage: 10–30 VDC
- Degree of Protection: IP67
-

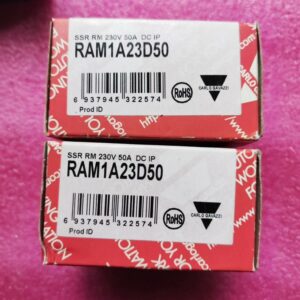

- Manufacturer: CARLO GAVAZZI
- Model / Part Number: RAM1A23D50
- Operating Voltage: 24 to 265 VAC (Volts Alternating Current)
- Rated Current: 50 Aac (Amps Alternating Current) max load
- Control Voltage: 3 to 32 VDC (Volts Direct Current)
- Switching Mode: Zero-cross switching (turns ON when the AC voltage waveform crosses zero, minimizing electrical noise and electrical stress)
- Number of Poles: 1-pole (Single Phase)
- Status Indicator: Equipped with an LED light to visually show the status of the control input.
- Safety Design: Includes a clip-on cover providing IP20 touch protection to keep users safe from accidental electric shocks.
-
- Manufacturer: CARLO GAVAZZI

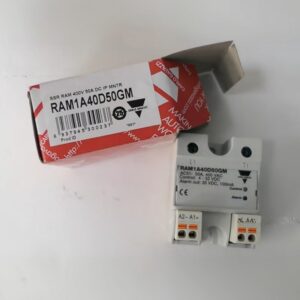

- Model / Part Number: RAM1A40D50GM
- Switching Mode: Zero Cross (switches ON when the AC power sine wave passes through 0V, minimizing electrical noise).
- Operating Voltage: 42 to 440 VAC.
- Rated Load Current: 50 Amps AC.
- Control Voltage Range (Input): 4 to 32 VDC.
- Mounting Style: Panel mount (often referred to as a "hockey puck" design).
- Terminal Type: Screw terminals with a captive clamp.
- IP Rating: IP20 touch protection with a clip-on cover.
- Visual Indicator: Integrated LED to display the input control status.
-

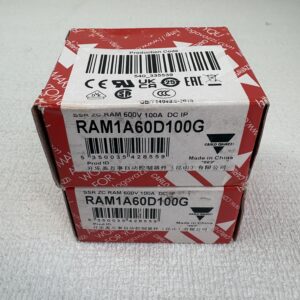

- Manufacturer: CARLO GAVAZZI
- Model / Part Number: RAM1A60D100G
- Relay Type: 1-Pole Panel Mount
- Operating Load Voltage: 42 to 660 Volts AC (VAC)
- Rated Current: 100 Amps AC
- Control Signal Voltage: 4 to 32 Volts DC (VDC)
- Peak Voltage Safety: 1200 Volts peak (Vp)
- Safety Certifications: Glow wire certified (EN60335-1)
-
- Manufacturer: CARLO GAVAZZI

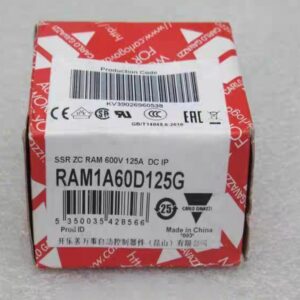

- Model / Part Number: RAM1A60D125G
- Output Switching Mode: Zero-cross switching.
- Contact Configuration: Single Pole Single Throw (SPST – Normally Open).
- Power Connection: Heavy-duty screw terminals with a captive clamp.
- Special Features: Built-in overvoltage protection and safety certified under the glow wire standard (EN60335-1).
- RAM: Product Series (Industrial Mount Relay)
-
- Manufacturer: CARLO GAVAZZI
- Model / Part Number: RAM1A60D50
- Rated Current: 50 Amps
- Operating Voltage: 42 to 660 Volts AC
- Control Input Voltage: 4 to 32 Volts DC
- Switching Mode: Zero-cross switching (turns on when the electrical wave crosses 0V, reducing power spikes)
- Mounting Style: Panel mount with screw terminals
- Versatility: Designed to handle resistive, inductive, and capacitive electrical loads.
- Built-in Protection: Includes an integrated snubber for overvoltage protection to stop power surges.
- Visual Indicator: Features a built-in LED light to show when the control input is active.
- Touch Safety: Equipped with a clip-on cover that provides an IP20 protection rating to keep fingers safe from electrical shocks.
-
- Manufacturer: CARLO GAVAZZI

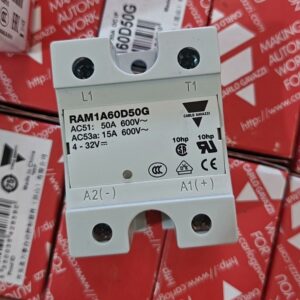

- Model / Part Number: RAM1A60D50G
- Output Type: Zero-cross switching (turns on when AC voltage crosses zero to protect electronics)
- Overvoltage Protection: Built-in varistor to absorb unexpected electrical spikes
- Safety Certification: Glow wire certified (EN60335-1 standard for household appliance safety)
- Connections & Design: Screw terminals with captive clamps, featuring a built-in LED indicator
- Solid State Design: Unlike mechanical relays, this has no moving parts. This means it lasts much longer and operates completely silently.
- Direct Copper Bonding (DCB): This internal technology helps pull heat away from the electronics quickly, making the relay highly reliable.
