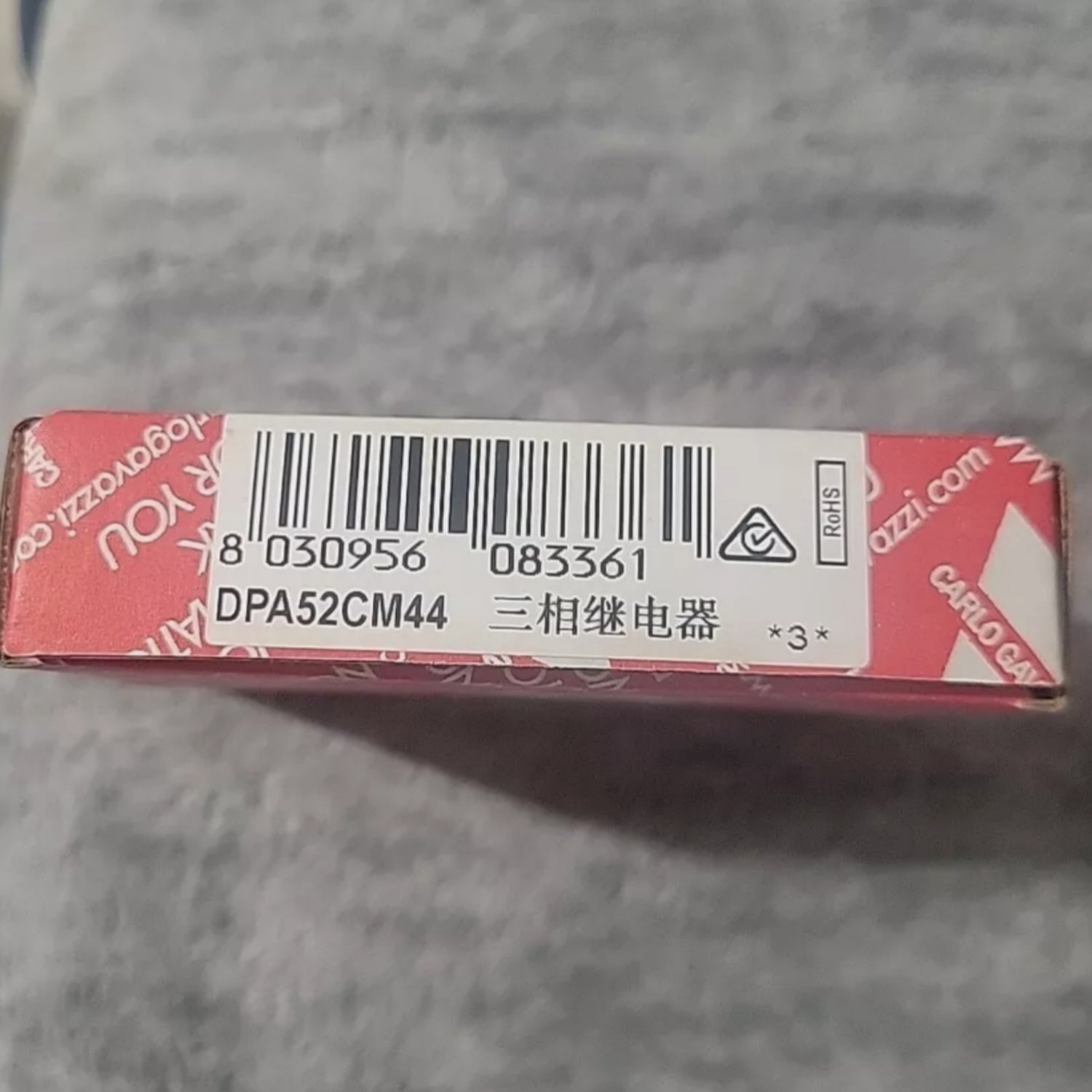

Carlo Gavazzi DPA52CM44 3-Phase Voltage / Phase Sequence Monitoring Relay (208-480 V AC, DIN Rail)

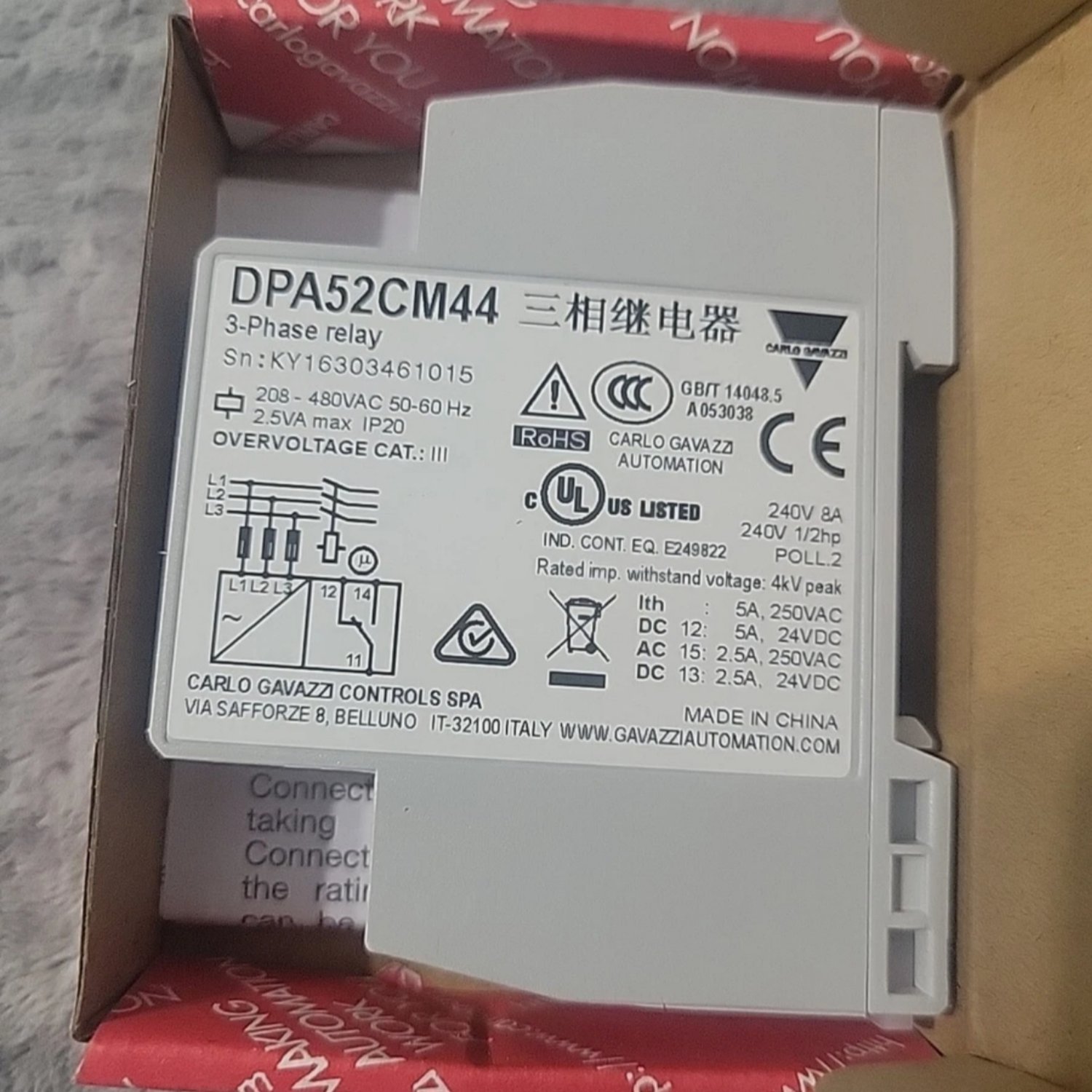

Carlo Gavazzi DPA52CM44 3-Phase Voltage / Phase Sequence Monitoring Relay (208-480 V AC, DIN Rail) - Image 2

Carlo Gavazzi DPA52CM44 3-Phase Voltage / Phase Sequence Monitoring Relay (208-480 V AC, DIN Rail)

Manufacturer: Carlo Gavazzi
Model / Part Number: DPA52CM44
Function: 3-phase true RMS mains monitoring: phase loss and phase sequence (3P, 3-wire systems)
Nominal line voltage range: 208-480 V AC L-L; working range 135-600 V AC (208-35% / 480+25%)
Frequency: 50-60 Hz +/-10%, sinusoidal waveform
Power supply: Supplied by monitored phases (L2, L3); consumption < 2.5 VA
Output: 1 x SPDT electromechanical changeover relay (terminals 11, 12, 14); de-energised on alarm
Contact rating: Ith 5 A @ 250 V AC; AC15 2.5 A @ 250 V AC; DC12 5 A @ 24 V DC; DC13 2.5 A @ 24 V DC

Availability & Delivery

Availability shown is for reference only and will be confirmed at the time the order is processed.
Published quantities may change without prior notice.
The customer is responsible for verifying part number and specifications before confirming the purchase.
Certain products may be considered special order items depending on availability.
