Showing 1–16 of 17 results
-
REQUEST A QUOTE
- Resolution: 1626 × 1236 Pixels (~2.0 Megapixels)
- Frame Rate: Up to 20 frames per second (fps) at full resolution
- Sensor Type: Sony ICX274 (Progressive Scan CCD)
- Sensor Size: 1/1.8" optical format
- Pixel Size: 4.4 μm × 4.4 μm
- Shutter Type: Global Shutter (ideal for fast-moving objects)
- Interface: Gigabit Ethernet (GigE Vision compatible, RJ45)
- Pixel Depth: 12-bit
- Lens Mount: C-mount / CS-mount options
- Power Input: Power over Ethernet (PoE) or 12 VDC via 6-pin Hirose/M8
Basler acA1600-20gm Machine Vision Camera (ace Series).
-
REQUEST A QUOTE
- Sensor Model: ams CMV2000 (Global Shutter, CMOS)
- Resolution: 2048 px × 1088 px (2.0 MP)
- Max Frame Rate: 340 frames per second
- Pixel Size: 5.5 μm × 5.5 μm
- Sensor Format: 2/3" (Diagonal: 12.75 mm)
- Monochrome/Color: Monochrome
- Data Interface: Camera Link (SDR 26-Pin receptacle)
- Pixel Bit Depth: 10 bits or 12 bits
- Quantum Efficiency: 63% typical (at visible spectrum)
- Dynamic Range: 56.5 dB typical
BASLER ACA2000-340KM 105702 High-Speed Monochrome Area Scan Camera (ace Classic Series).
-
REQUEST A QUOTE
- Manufacturer: Cognex
- Model / Part Number: DMR-262-EV-W-DM262QX
- Image Resolution: 1280 × 960 pixels
- Code Types: 1D and 2D codes, including QR Code and Data Matrix
- Image Rate: 45 frames per second
- Decode Rate: Up to 45 decodes per second
- Communication: Ethernet
- Protection Rating: IP65

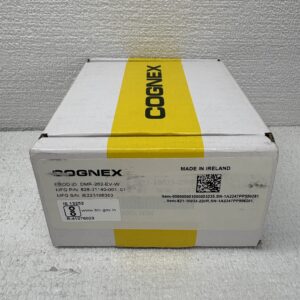

Cognex DMR-262-EV-W-DM262QX Scanner. Contact us for product information and quotation.
-
REQUEST A QUOTE
- Resolution & Sensor: 2 MP (1600 x 1200 pixels) UXGA resolution utilizing a 1/1.8" CMOS monochrome sensor with a global shutter.
- Performance: Capable of capturing images at speeds up to 53 frames per second (fps).
- Vision Software: Embedded with Cognex's proprietary PatMax geometric pattern matching software for precise part location.
- Form Factor: Extremely slim profile measuring just 31mm x 31.2mm x 75.1mm inside a die-cast zinc housing.
- Lens Mount: Standard C-mount.
- Memory: 512 MB non-volatile flash memory and 512 MB SDRAM.
- Connectivity & Power: 1x digital isolated trigger input, 2x digital outputs, and a Gigabit Ethernet (GigE) port supporting 48VDC Power over Ethernet (PoE Class 2).
- Protection Rating: IP40 certified.
Cognex IS8402M-363-50 Industrial Vision Camera (In-Sight 8000 Series).
-
REQUEST A QUOTE
- Manufacturer: KEYENCE Corporation
- Model Number: CA-DSW3
- Lighting Type: Back Light (Produces uniform background illumination)
- LED Color: White
- Input Voltage: 12 VDC
- Power Consumption: 5.8 W
- Illumination Area: 63 × 32 mm Rectangular
- Silhouette Inspection: Positioned directly underneath or behind a target object to block surface details and emphasize external silhouettes and profiles.
- Stable Image Processing: Integrates seamlessly with KEYENCE vision systems (such as the CV-X, XG-X, or VJ series) to ensure consistent, high-contrast visual evaluation.
- Target Inspections: Commonly used for verifying target dimensions, checking thread pitches, counting components, or detecting structural flash/burrs on manufacturing lines.
KEYENCE CA-DSW3 LED Lighting (CA-D Series).
-
REQUEST A QUOTE
- Image Element: Color CMOS, square-pixel with 11×/16× high-speed reading
- Valid Pixel Count: 4.99 Megapixels (2432 × 2050 pixels)
- Unit Cell Size: 3.45 μm × 3.45 μm (0.14 mil × 0.14 mil)
- Image Size: Equivalent to 2/3" optical format
- Scanning / Transfer System: Progressive; Digital serial transfer
- Frame Readout Rate: 11× Speed: 61.2 ms
- Pixel Transfer Frequency: 11× Speed: 132 MHz
- Electronic Shutter: 0.05 ms to 9000 ms (Interval parameters: 1/15 to 1/20,000 sec)
- Lens Mount Type: Standard C-mount
- Enclosure Rating: IP64 (Requires KEYENCE-specified IP64 lens and environment-resistant cable)
KEYENCE CA-H500C Camera Head (CA-H Series).
-
REQUEST A QUOTE
- Sensor Type: Standard distance, Color type
- Image Sensor: 1/3-inch color CMOS
- Installed Distance: 50 to 500 mm (1.97" to 19.69")
- Field of View (FOV): At 50 mm: 25 × 18 mm (0.98" × 0.71")
- Focus Adjustment: One-touch Automatic Focus (locked during operation)
- Internal Lighting: Integrated White LED (Pulse or DC lighting switchable)
- Exposure Time: 1/10 to 1/50,000 seconds
- Onboard Memory: Stores up to 32 discrete programs & 100 historical images
- Power Requirements: 24 VDC ± 10%, Current consumption max 0.6 A
- Shape Detection: Matches the structural outline of a master part to verify presence and orientation.
KEYENCE IV-500CA Vision Sensor (IV Series).
-
- Manufacturer: KEYENCE
- Model / Part Number: IV4-G500CA
- Image Sensor: 1/2.9-inch color CMOS sensor.
- Resolution: 1280 x 960 pixels (high-definition imaging).
- Focusing: Automatic focus system (configured during installation).
- Lighting: Built-in white LED illumination (supports pulse or continuous lighting modes).
- Installation Distance: 50 mm (1.97") up to 3000 mm (118.11").
- Field of View: Ranges from 22 x 16 mm (at 50 mm distance) up to 1184 x 888 mm (at 3000 mm distance).
- Power Consumption: 2.5 Watts typical (6.6 Watts if using an external AI imaging illumination unit).
- Ruggedness: IP67 enclosure rating (dust-tight and water-resistant).
- Weight: Approximately 75 grams (sensor head only).
- Specs: Vision Sensor with Built-in AI – IV4 series – Keyence
-
REQUEST A QUOTE
- Sensor & Resolution: CMOS monochrome sensor with 900×900 (2D) or 1280×900 (Barcode) resolution.
- Lighting & Focus: High-intensity red/blue LEDs with a fixed 30mm focal distance.
- Performance: Reads 2D (down to 0.127mm) and 1D barcodes (down to 0.1mm).
- Connectivity & Power: Bluetooth 2.1 + EDR (approx. 10m range) and USB 2.0. Offers ~10 hours (10,000 reads) of battery life.
- Durability: IP54 rating with 2.0-meter drop resistance (up to 50 times).
- Dimensions: 214 x 78.5 x 97.4 mm; Approx. 375g.
- Advanced Imaging: Utilizes automatic multi-lighting control (polarized, multi-angle) to manage glare on challenging surfaces.
- Smart Tuning: Features one-touch automatic calibration for exposure and decoding.
- Ergonomics: Designed with an optimized center-of-gravity for improved user comfort.
- Operating Conditions: 0 to +45 °C (32 to 113 °F) with 35–95% RH.
KEYENCE SR-G100 Code Reader (SR-G Series).
-
REQUEST A QUOTE
- Image Sensor: CMOS Image Sensor
- Resolution: 2.3 Megapixels (1920 × 1200 pixels)
- Focus Type: Automatic Tuning / Autofocus
- Reading Distance: 70 to 1000 mm (2.76 to 39.37 inches)
- Illumination Source: High-intensity Red/White LED built-in
- Pointer Source: High-intensity Green LED pointer
- Power Supply: 24 VDC Input (PoE models designated as SR-X300P)
- Operating Temp: 0 to +45°C (32 to 113°F)
- PROFINET: Direct connection support for Siemens S7-1200, S7-1500, and S7-300 systems.
- EtherNet/IP: Easy handshaking and data mapping directly into PLC tags.
KEYENCE SR-X300 AI Code Reader (SR-X Series).
-
REQUEST A QUOTE
- Impact Device: Type D (Tungsten carbide impact tip)
- Measurement Accuracy: ± 6 HL
- Repeatability: 6 HL
- Supported Scales: Leeb (HL), Vickers (HV), Brinell (HB), Shore (HS), Rockwell (HRA, HRB, HRC)
- Display: OLED screen
- Battery Type: Rechargeable 3.7V @ 250mAh Lithium battery
- Battery Life: ≥ 100 hours continuous operation / ≥ 5000 continuous measurements
- Charging Port: USB Type-C
- Dimensions: 148 × 34 × 24 mm (5.83 × 1.34 × 0.94 in)
- Weight: ~68 g (2.4 oz)
LINSHANG LS252D Level Sensor (LS Series).
-
REQUEST A QUOTE
- Manufacturer: Excelitas Technologies (Lumen Dynamics / EXFO)
- Part Number: 012-64000R (also referenced as P012-64000R)
- Lamp Type: High-Pressure Mercury Arc (UV Curing)
- Wattage: 200 Watts
- Estimated Lifespan: 2,000 Hours (Guaranteed)
- Key Technology: Intelli-Lamp technology communicates directly with the curing system to track and log accumulated lamp hours, monitor degradation, and optimize output parameter adjustments automatically over the life of the bulb.
- Weight: 0.44 lbs (0.20 kg)
LUMEN 012-64000R UV Lamp (LUMEN).
-
REQUEST A QUOTE
- Display Device: 3.5-inch TFT color LCD screen
- Resolution: 320 × 240 pixels
- Display Colors: 16.7 million colors
- Menu Languages: English, German, French, Italian, Spanish, Traditional Chinese, Simplified Chinese, Korean, Japanese
- Sensor Capacity: Can recognize and switch between up to 32 sensors max; displays up to 8 sensors simultaneously on the monitor.
- Storage Slot: Micro SD card slot for data logging (measurement results and images).
- Communication Interface: RJ45 (10BASE-T) connector.
- Supply Voltage: 24VDC nominal (Acceptable range: 21.6 Vdc to 26.4 Vdc)
- Housing Material: ABS resin, rectangular shape
- Operating Temperature: 0 to +50°C ambient
OMRON FQ2-D30 Touch Finder Monitor (FQ2 Smart Camera).
-
- Manufacturer: Omron
- Model / Part Number: FZ-S2M
- Resolution: 2.0 Megapixels (1600 x 1200 pixels UXGA)
- Image Sensor: 1/1.8" CCD Monochrome (greyscale)
- Frame Rate: 30 frames per second (fps)
- Shutter Type: Global electronic shutter (1/10 to 1/50,000 second speeds)
- Lens Mount: Standard C-mount
- Pixel Size: 4.4 µm
-
REQUEST A QUOTE
- Protected Field Range: Up to 5.5 meters.
- Warning Field Range: Up to 49 meters.
- Scanning Angle: 190°.
- Field Monitoring: Configurable up to 4 simultaneous protective fields and 12 fields total.
- Response Time: 60 ms.
- Resolution: Adjustable from 30 mm to 150 mm.
- Supply Voltage: 24 VDC.
- Enclosure Rating: IP65 (dust-tight and water-jet resistant).
- Safety Certifications: SIL 2 (IEC 61508), PL d / Category 3 (ISO 13849-1), Type 3 (IEC 61496-3).
- Simultaneous Monitoring: Supports the monitoring of up to four separate protective fields at the same time when integrated with a SICK safety controller via the built-in Enhanced Function Interface (EFI).
SICK S30A-6011CA 1023547 Safety Laser Scanner (S3000).
-
REQUEST A QUOTE
- Safety Integrity Level: SIL2 (IEC 61508)
- Performance Level: PLd
- Safety Category: Category 3 (IEC 61496)
- Sensor Type: Type 3 Laser Scanner
- Protective Field Range: 2 meters
- Distance Measuring Range: Up to 30 meters
- Scanning Angle: 270° wide coverage
- Field Configuration: 1 triple field set (3 fields total)
- Light Source: Pulsed laser diode (905 nm wavelength, Laser Class 1)
- Response Time: 80 ms (depending on sampling configuration)

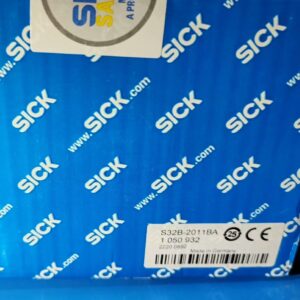

SICK S32B-2011BA Safety Laser Scanner (S300 Mini).
