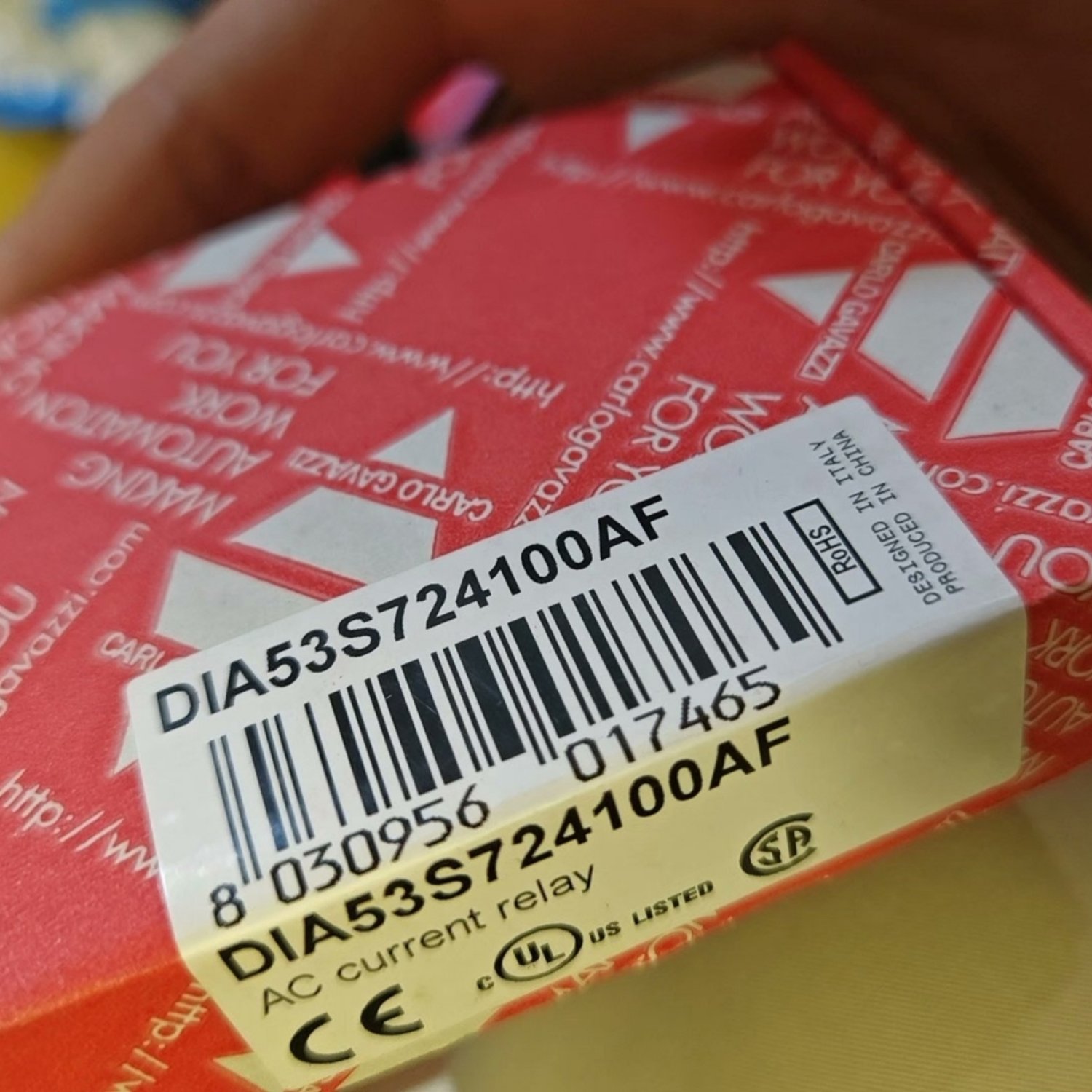

CARLO GAVAZZI DIA53S724100AF AC Overcurrent Monitoring Relay (DIA53 Series)

CARLO GAVAZZI DIA53S724100AF AC Overcurrent Monitoring Relay (DIA53 Series)

REQUEST A QUOTE

  • Input Current Range: 10 to 100 A AC (Knob-adjustable setpoint)
  • Power Supply: Self-powered (Draws energy directly from the measured current; no external power supply required)
  • Output Type: Solid state (NPN-PNP open collector, normally open, 100 mA max)
  • Connection Style: 2-wire connection
  • Time Delay: Instantaneous reaction (No adjustable delay)
  • Housing & Mounting: 17.5 mm width, Mini DIN-rail mounting (DIN/EN 50 022 compliant)
  • Indicators: Integrated LED status indicator for Output ON
  • Zero External Power Needed: Because the device is fully self-powered via the monitored line, it simplifies panel wiring and eliminates the need for standalone auxiliary power drops.
  • Adjustable Setpoint: An integrated front dial/knob allows technicians to precisely calibrate the target overcurrent limit within the 10–100 A window.
  • Compact Footprint: At just 17.5 mm wide, it consumes minimal space on a standard DIN rail, making it ideal for crowded industrial control enclosures.

CARLO GAVAZZI DIA53S724100AF AC Overcurrent Monitoring Relay (DIA53 Series).

  • SKU: DIA53S724100AF
  • New Original In Stock
  • 6 Months Warranty
  • shipping by DHL or UPS
  • Availability shown is for reference only and will be confirmed at the time the order is processed.
  • Published quantities may change without prior notice.
  • The customer is responsible for verifying part number and specifications before confirming the purchase.
  • Certain products may be considered special order items depending on availability.
  • Extensive experience in industrial automation.
  • We source hard-to-find or discontinued parts.
  • Network of international manufacturers and distributors.
  • Personalized support for urgent requirements.
