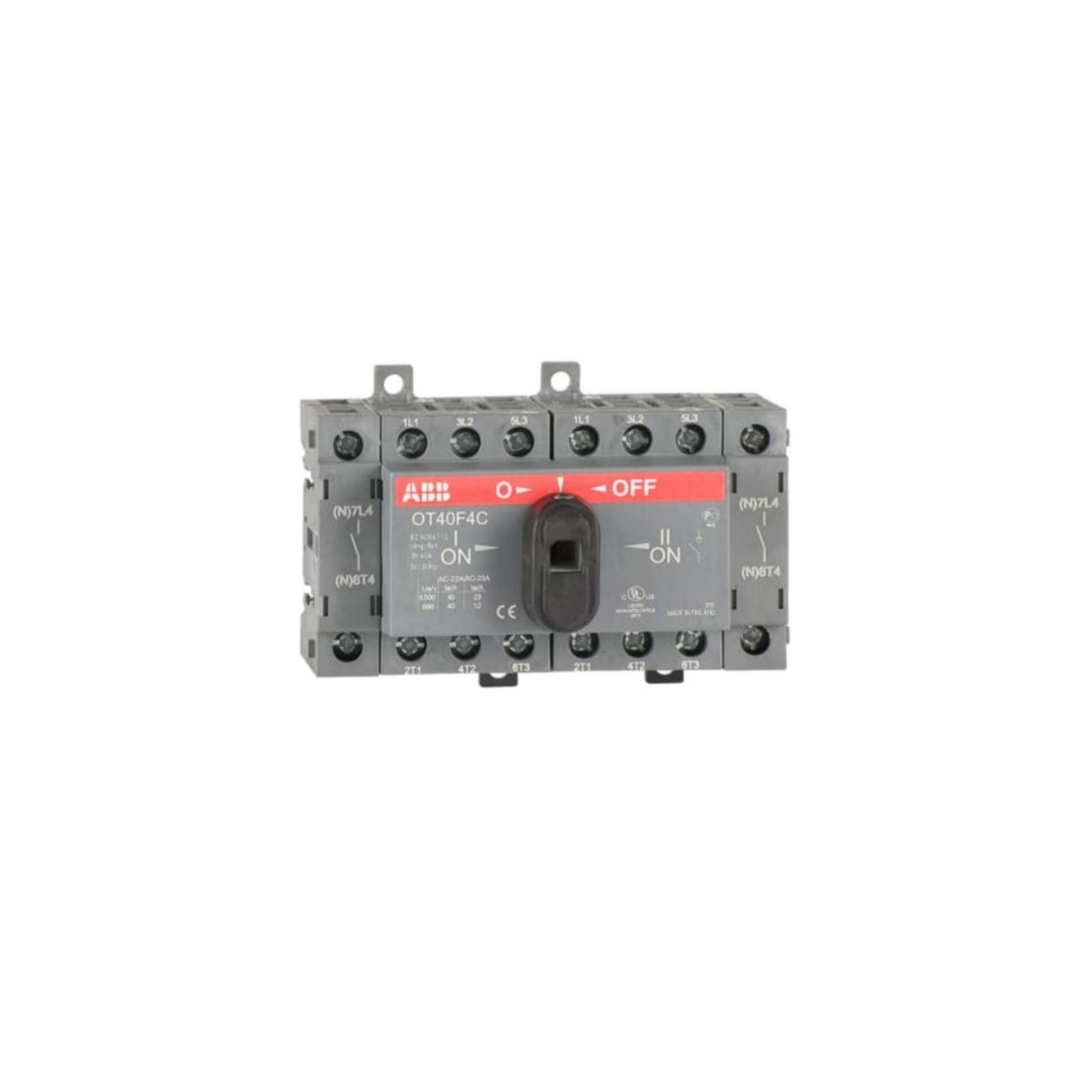

ABB OT40F4C Switch Disconnector

Manufacturer: ABB
Model / Part Number: OT40F4C
Current & Voltage: Rated operational current of 40 A across an operational voltage up to 750 V AC.
Configuration: 4 Poles. Line terminals feature a standard Top-In / Bottom-Out orientation.
Mounting Type: Dual capability supporting standard DIN Rail mount or traditional base mounting inside panels.
Enclosure Rating: Built-in IP20 finger-safe terminal protection.
Dimensions & Weight: Measures 96 mm width × 68 mm height × 68 mm depth and weighs approximately 0.27 to 0.31 kg.
Standards: Fully compliant with UL 98, CSA, and IEC 60947-3 for industrial automation safety.

ABB OT40F4C Switch Disconnector. Key specifications include Current & Voltage: Rated operational current of 40 A across an operational voltage up to 750 V AC.; Configuration: 4 Poles. Line terminals feature a standard Top-In / Bottom-Out orientation.; Mounting Type: Dual capability supporting standard DIN Rail mount or traditional base mounting inside panels.; Enclosure Rating: Built-in IP20 finger-safe terminal protection..
