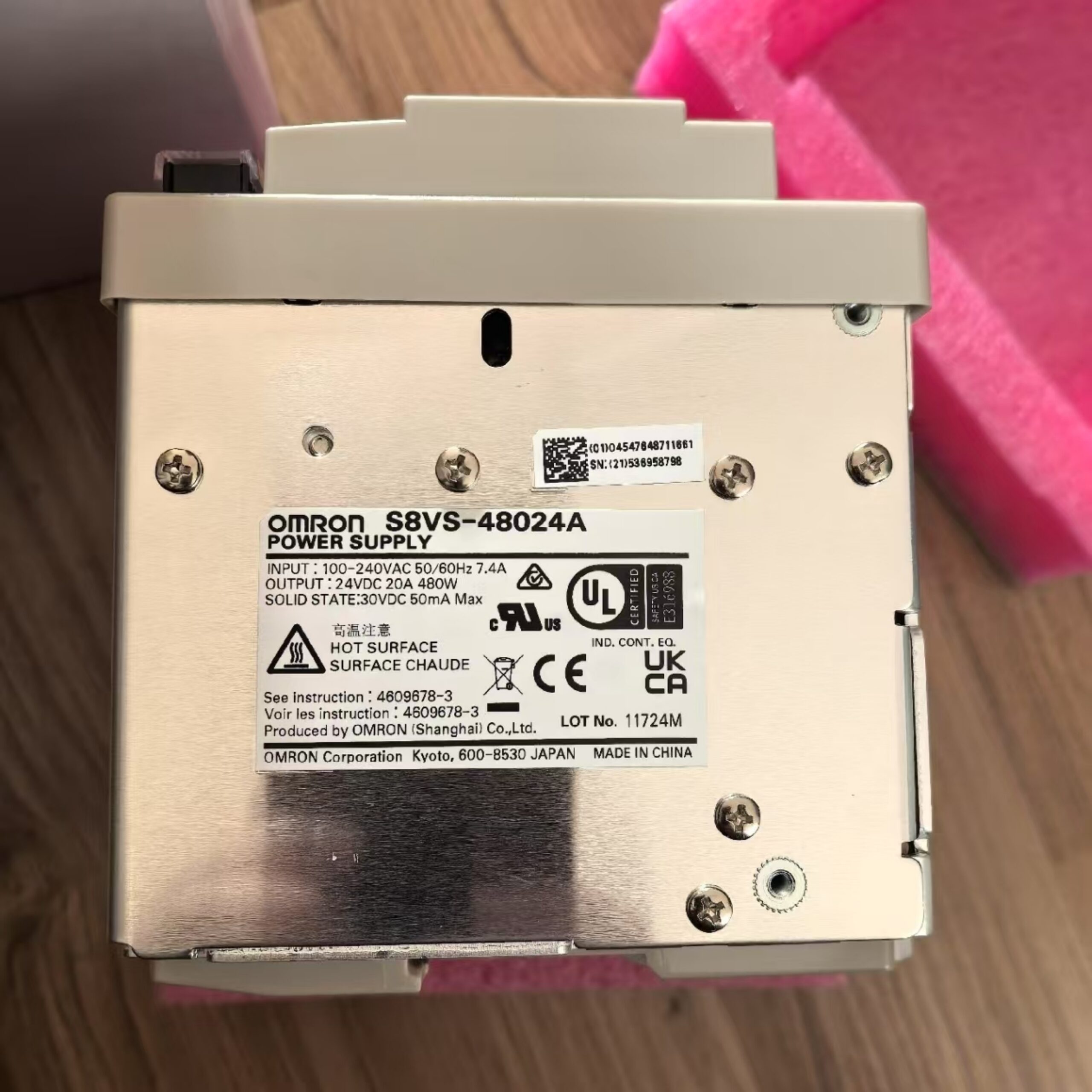

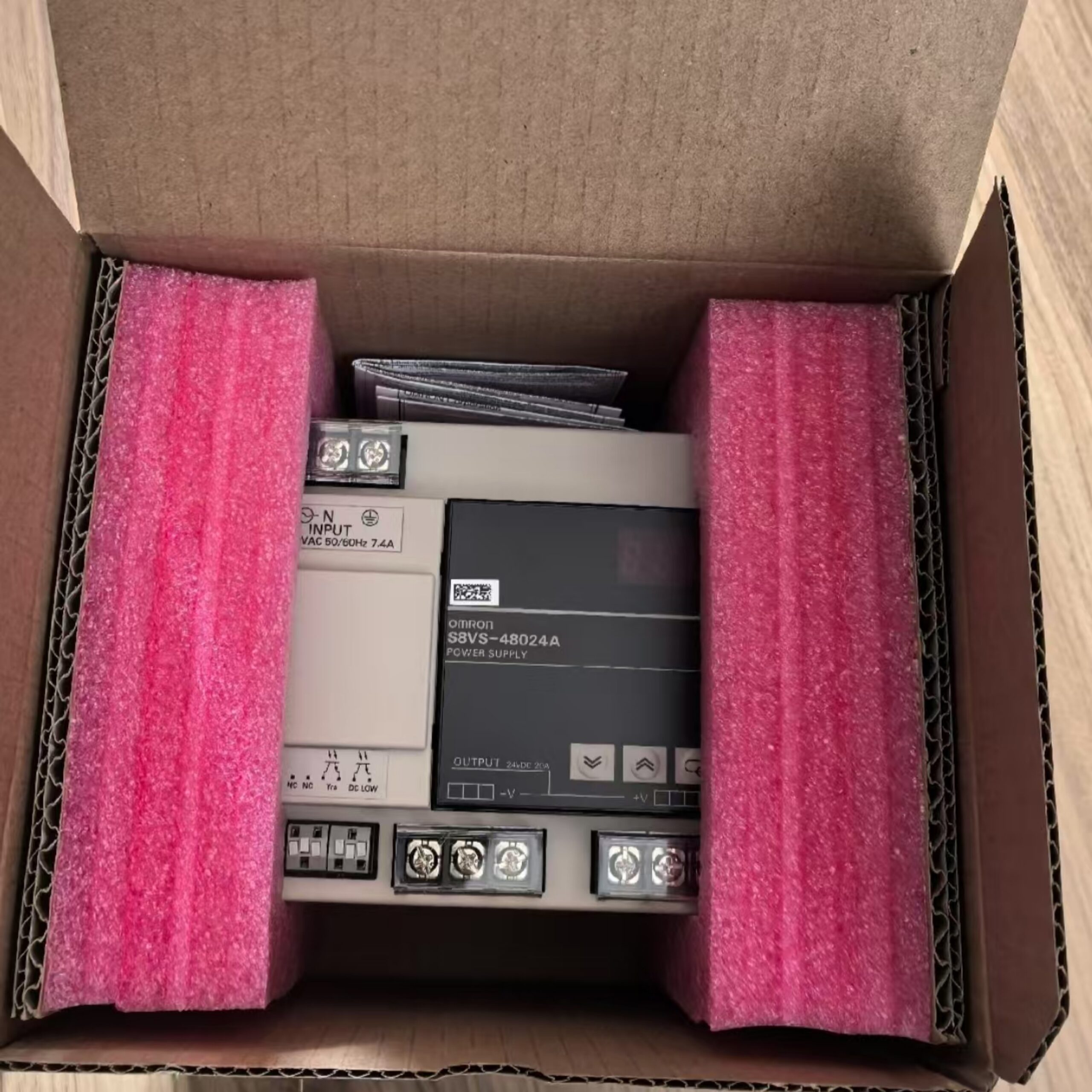

OMRON S8VS-48024A Switching Power Supply

OMRON S8VS-48024A Switching Power Supply

Manufacturer: OMRON
Model / Part Number: S8VS-48024A
Power Rating: 480 Watts
Output Profile: 24 VDC output voltage, adjustable from -10% to +15% using a built-in potentiometer. Continuous output current is 20 A, with a maximum peak capacity of 30 A.
Input Range: Universal 100 to 240 VAC nominal input voltage (with an operational variance range of 85 to 264 VAC). It can also accept an 80 to 370 VDC input under specific conditions.
Efficiency: Typically reaches 89% at 100 VAC input and scales up to 93% at 200 VAC input.
Form Factor & Dimensions: Measures roughly 5.01" L x 5.91" W x 4.53" H (127.2 mm x 150.1 mm x 115.0 mm) and mounts securely onto standard 35mm DIN rails.
Safety Certifications: UL 508 listed, cULus, cURus, CE, and VDE compliant. Includes built-in overvoltage and overload protection.

OMRON S8VS-48024A Switching Power Supply. Key specifications include Power Rating: 480 Watts; Output Profile: 24 VDC output voltage, adjustable from -10% to +15% using a built-in potentiometer. Continuous output current is 20 A, with a maximum peak capacity of 30 A.; Input Range: Universal 100 to 240 VAC nominal input voltage (with an operational variance range of 85 to 264 VAC). It can also accept an 80 to 370 VDC input under specific conditions.; Efficiency: Typically reaches 89% at 100 VAC input and scales up to 93% at 200 VAC input..

Availability & Delivery

Availability shown is for reference only and will be confirmed at the time the order is processed.
Published quantities may change without prior notice.
The customer is responsible for verifying part number and specifications before confirming the purchase.
Certain products may be considered special order items depending on availability.
