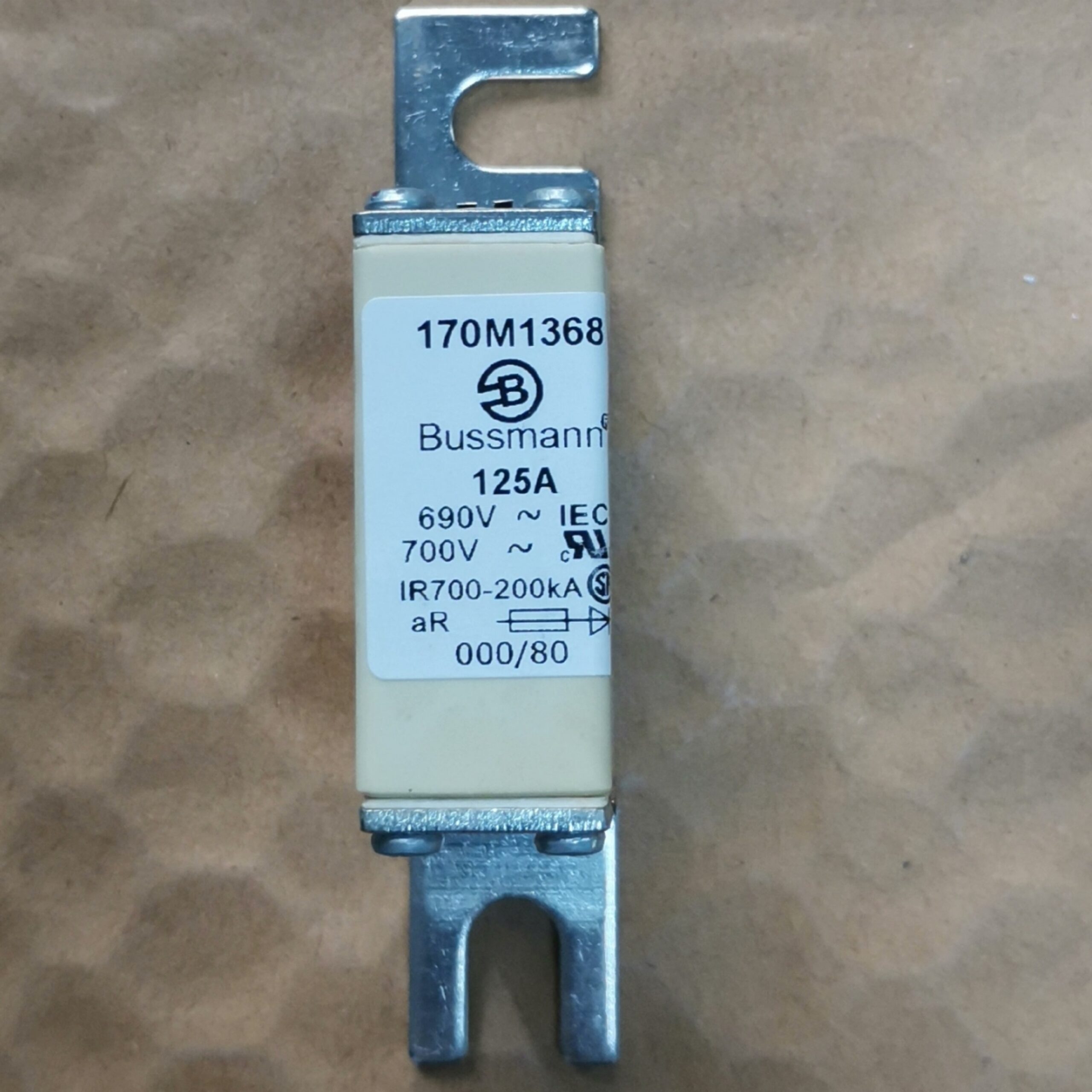

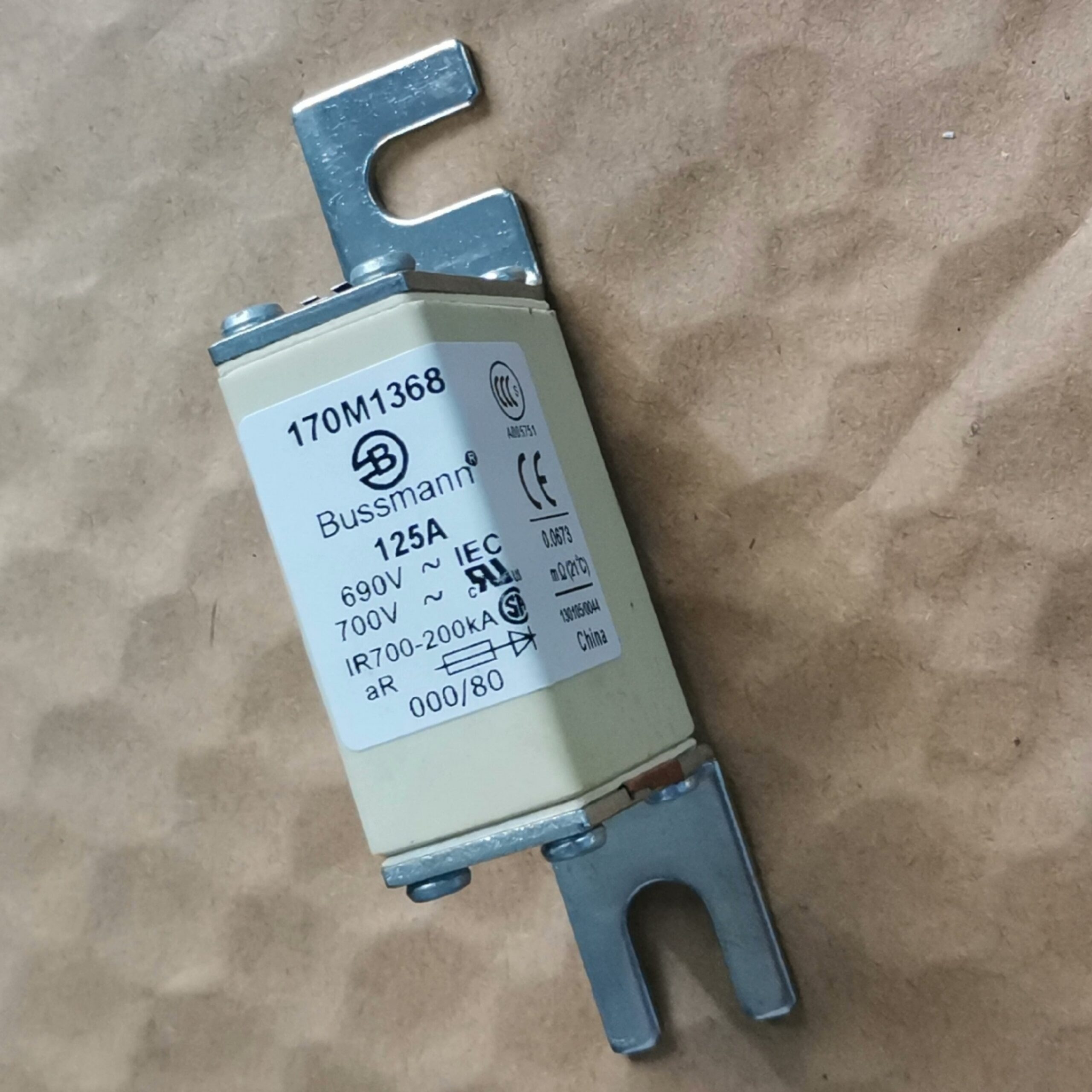

BUSSMANN 170M1368 Semiconductor Fuse

Manufacturer: BUSSMANN
Model / Part Number: 170M1368
Current Rating (Amperage): 125 Amps. This is the maximum amount of electricity that can safely flow through the fuse during normal operation.
Voltage Rating: 690 Volts AC under international rules (IEC) and 700 Volts AC under American standards (UL). It is built to handle very high-voltage industrial power.
Interrupting Rating: 200 kA (kiloamps). This means it can safely cut off a massive surge of up to 200,000 amps without exploding or failing dangerously.
Fuse Class: aR. This means it is a partial-range, ultra-fast acting fuse designed specifically to protect sensitive semiconductors (the "brains" inside modern electric motor drives).
Physical Shape: Square Body with Slotted Offset Bolted Tags (Size 000/80). It features flat, metal metal tabs with slots on each end so it can be securely bolted down inside an electrical cabinet.
Visual Indicator: Includes a top fuse status indicator. This is a tiny physical window or pop-up tab on top that lets a technician instantly see if the fuse has blown without needing tools to test it.
