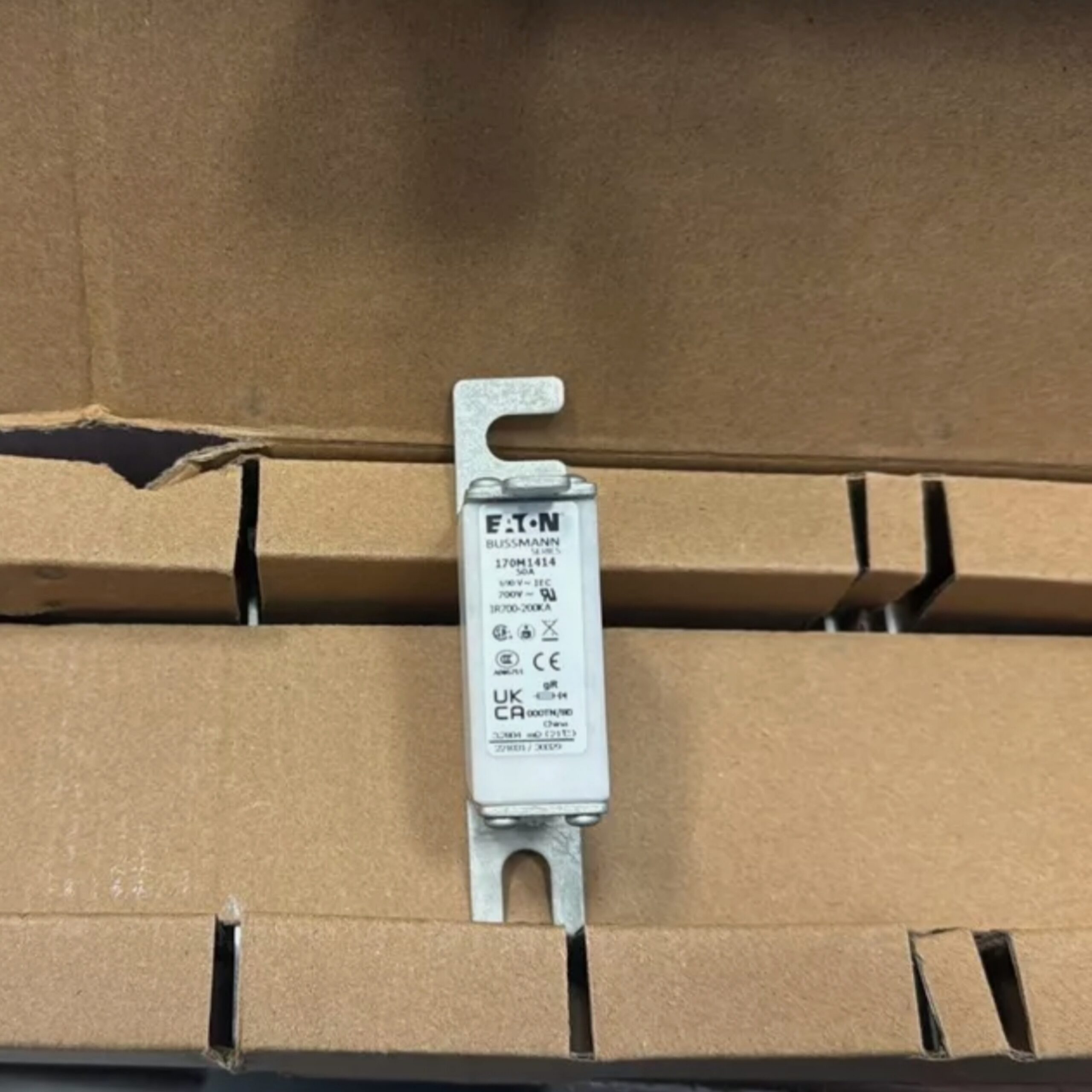

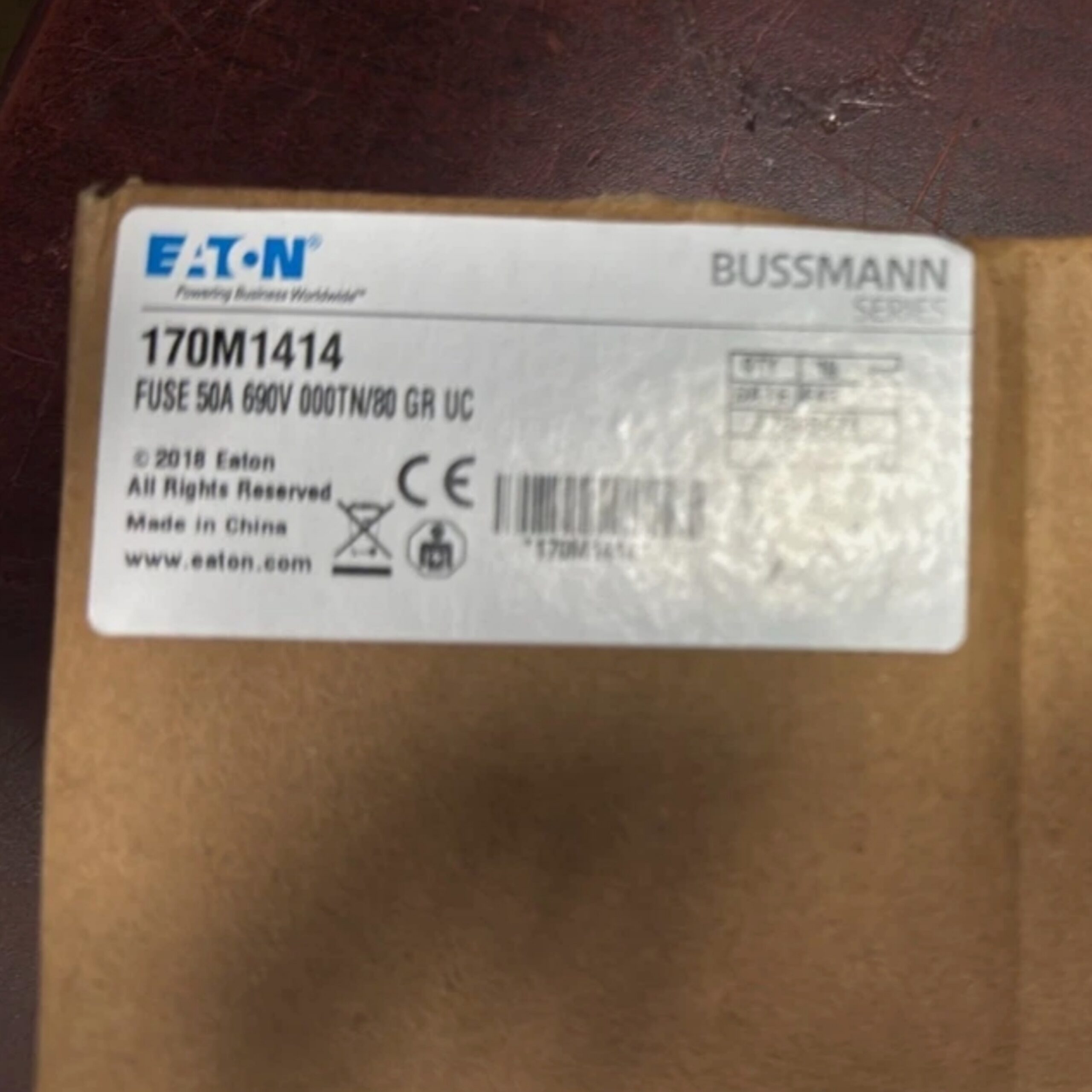

BUSSMANN 170M1414 50 Amp, 690 Volt AC, high-speed square body fuse
- Manufacturer: BUSSMANN
- Model / Part Number: 170M1414
- Current Rating: 50 A
- Voltage Rating: 690 V AC (IEC) / 700 V AC (UL)
- Breaking Capacity: 200 kA (Interrupting rating to safely stop major shorts)
- Utilization Category: gR (Full-range protection for semiconductor devices)
- Body Size: DIN 000 (Very compact square body shape)
- Mounting Style: Stud mount / Bolt-down tags with 80 mm center spacing
- Status Indicator: Single top visual indicator to show if the fuse has blown
- Gripping Lugs: Includes live gripping lugs (TN/80 type)
- Weight: 146.1 grams
- Compliance: CE marked, RoHS compliant, IEC 60269-4, and UL recognized.
- SKU: 170M1414
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
