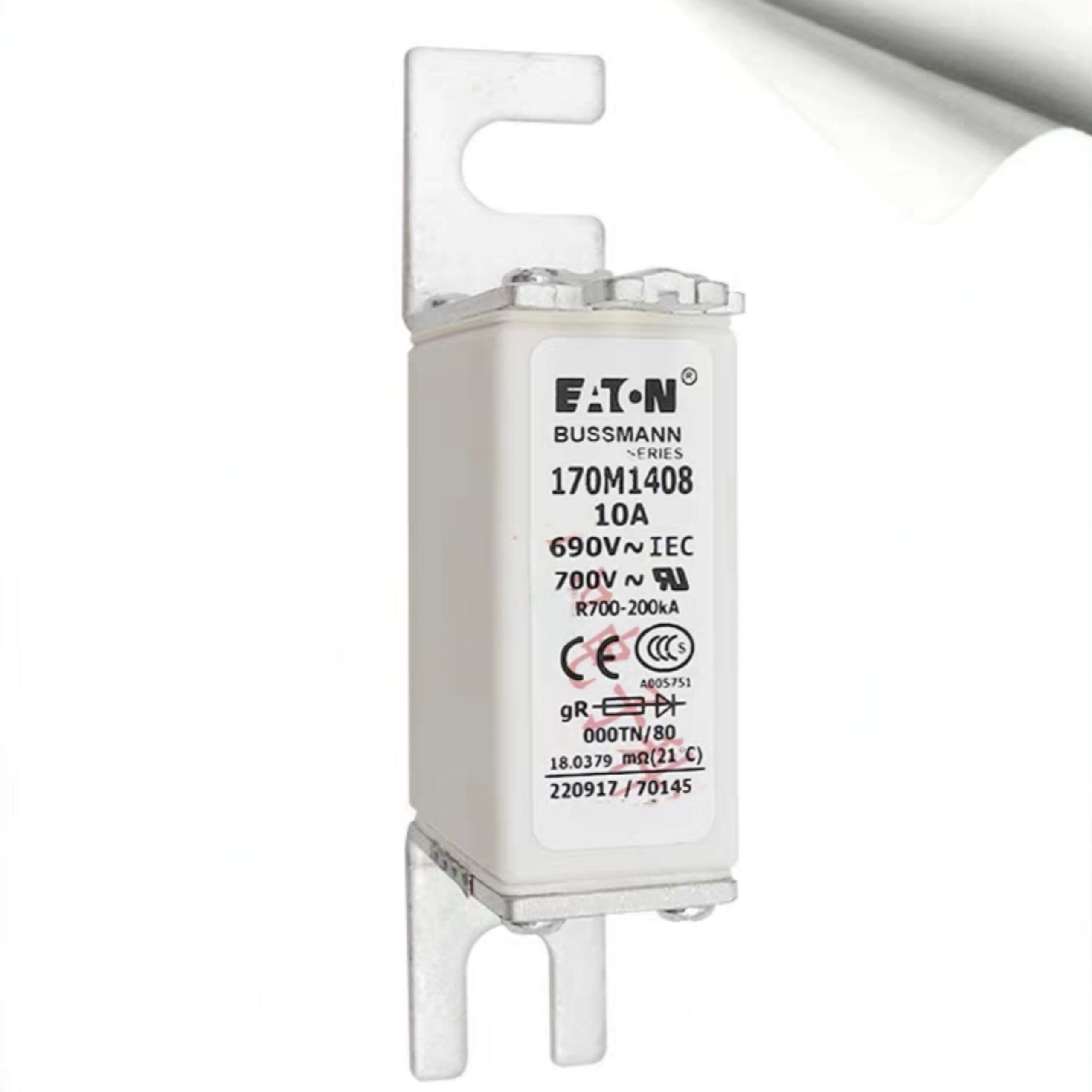

BUSSMANN 170M1408 High-Speed Semiconductor Fuse
- Manufacturer: BUSSMANN
- Model / Part Number: 170M1408
- Current Rating: 10 Amps
- Voltage Ratings: 690 Vac (IEC) / 700 Vac (UL) / 700 Vdc
- Interrupting Rating (Breaking Capacity): 200 kA RMS Symmetrical (AC) / 50 kA (DC)
- Operating Class: gR (full-range semiconductor protection)
- Power Loss: 3.0 Watts at rated current
- Body Size: Size 000 (Compact square body)
- Mounting Type: 80mm Bolted tags / Stud mount (DIN 43 653)
- Termination Style: Blade end to blade end (Bolt down)
- Status Indicator: Top visual "T" indicator (compatible with microswitches for remote signaling)
- Weight: 134 to 136.4 grams
- Standards & Certifications: CE Marked, UL Recognized, IEC Rated, and RoHS Compliant.
- SKU: 170M1408
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
