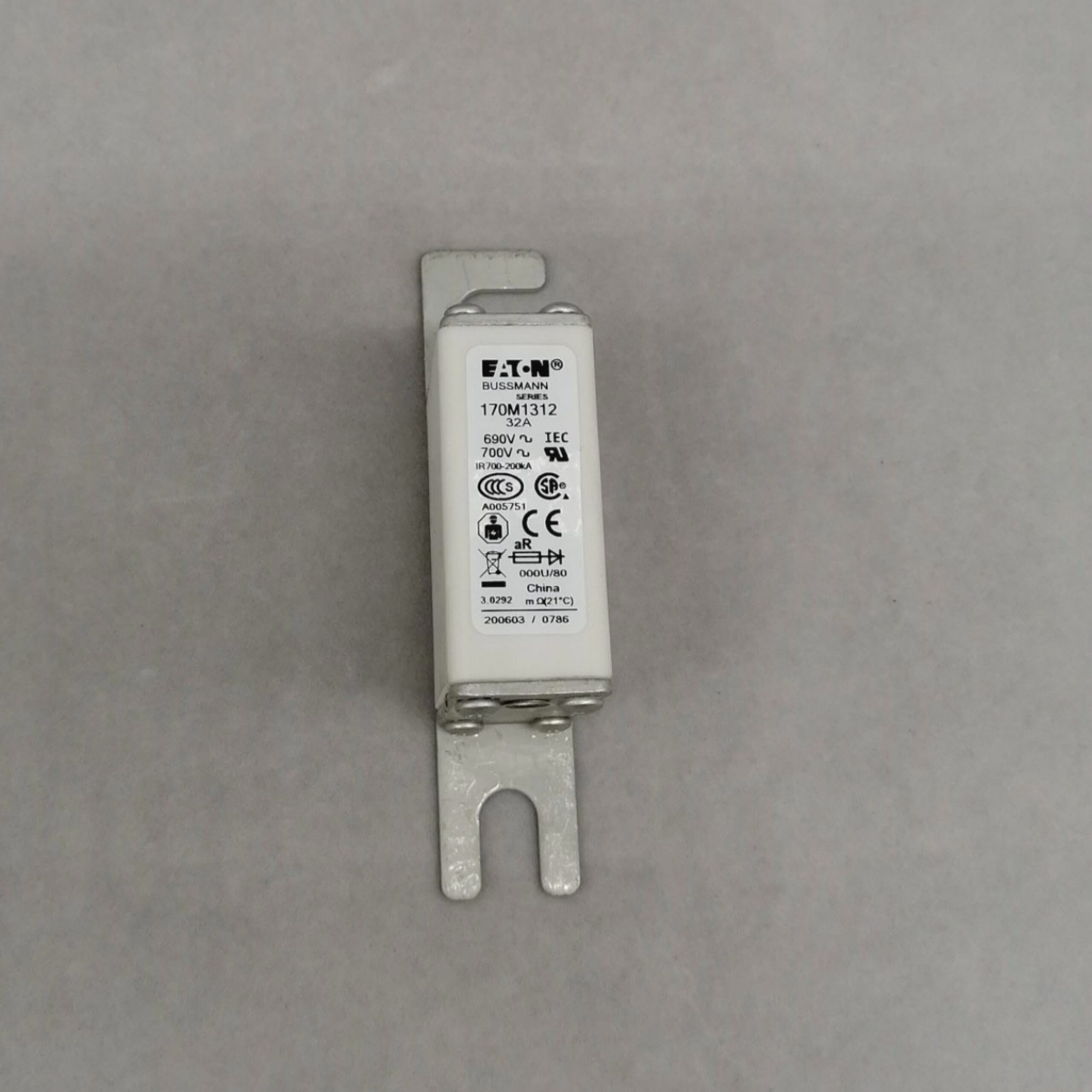

Bussmann 170M1312 High Speed Square Body Fuse
- Manufacturer: Bussmann
- Model / Part Number: 170M1312
- Rated current: 32 A
- Rated voltage: 690 V AC (IEC); 700 V (UL)
- Breaking capacity: 200 kA
- Utilization category: gR
- Fuse size: 000
- Connection: Blade end × blade end; slotted offset bolted tags
- Indicator: None
- Connection center distance: 76.7 mm
- Mounting dimension: M8
- Pre-arcing I²t: 40 A²s
- Clearing I²t: 270 A²s at 660 V
- Power loss: 10 W
- Dimensions: 100 × 40 × 21 mm (W × H × D)
- Weight: 139 g
- SKU: 170M1312
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
