Showing 17–32 of 42 results
-
REQUEST A QUOTE
- Nominal Output Voltage: 24 V DC
- Battery Capacity: 2.5 Ah
- Max Charging Current: 5 A
- Rated Output Current: 16 A (for 4.3 minutes)
- Short-Circuit Protection: Battery fuse 15 A / 32 V (blade-type fuse + support)
- Protection Class: Class III; IP00 rating
- Operating Temperature: -40°C to +60°C (Extended range for high/low temps)
- Dimensions: 151 mm (Height) x 265 mm (Width) x 91 mm (Depth)
- Weight: ~4 kg
- Mounting: DIN rail mounting or direct wall mounting
SIEMENS 6EP1935-6MD31 SITOP Battery Module (SITOP).
-
REQUEST A QUOTE
- Input Channels: 2 Digital Inputs (DI) Standard.
- Rated Voltage: 24 V DC (operational power drawn from the power module).
- Form Factor: Slim 15 mm width module housing.
- Address Space: Max 1 byte per module (2 bits when packed).
- Power Loss: Typical power dissipation is low at 0.4 W.
- Protection Features: Integrated reverse polarity protection.
- Connection Profile: Connects directly to Terminal Modules (TM-E).
- Lifecycle Status: This specific part number is officially designated as a Spare Part by Siemens, meaning it has been succeeded in newer system designs but remains highly active for system expansions, maintenance, and legacy line repairs.
SIEMENS 6ES7131-4BB01-0AA0 Digital Input Module (ET 200S).
-
REQUEST A QUOTE
- Inputs: 2 Digital Inputs (DI).
- Nominal Input Voltage: 24 V DC.
- Module Width: 15 mm.
- Dimensions & Weight: 9.00 x 8.00 x 6.50 cm; 0.174 Kg.
- Kempston Controls: New (Pack of 5)
SIEMENS 6ES7131-4BB01-0AB0 Digital Input Module (ET 200S).
-
REQUEST A QUOTE
- Module Type: Digital Input Module (4DI DC24V ST)
- Number of Inputs: 4 digital inputs
- Input Voltage: 24 V DC (with reverse polarity protection)
- Module Width: 15 mm
- Dimensions: 9.4 x 8.3 x 6.5 cm
- Weight: 0.174 Kg (approx. 0.38 lbs)
- Diagnostics: Green LED status indicator per channel; group fault (SF) LED
- Lifecycle Status: Product Phase-out began in October 2020, followed by complete product cancellation in October 2023.
SIEMENS 6ES7131-4BD01-0AA0 Digital Input Module (ET 200S).
-
REQUEST A QUOTE
- Series: SIMATIC DP / ET 200S Distributed I/O System
- Input Channels: 4 digital inputs
- Voltage Rating: 24V DC
- Module Type: High Feature (HF) with parameterized input delay
- Width: 15 mm
- Diagnostics: Short-circuit protection for encoders; integrated System Fault (SF) LED indicator for group faults.
- Power Loss: Approximately 0.7W
- Dimensions & Weight: 9.00 x 8.3 x 6.2 cm; 0.177 kg
SIEMENS 6ES7131-4BD01-0AB0 Digital Input Module (ET 200S).
-
REQUEST A QUOTE
- Number of Inputs: 8 digital inputs.
- Rated Supply Voltage: 24 V DC (provided via a power module).
- Module Width: 15 mm.
- Input Characteristics: Meets IEC 61131, type 1 standards; supports 2-wire sensor connections.
- Isochronous Mode: Supported
- Power Loss: Typically 1.2 W.
- Address Space: Maximum of 1 byte per module.
- Dimensions & Weight: 9.00 x 6.30 x 2.20 cm; weighs approximately 0.042 kg (0.04 lbs).
SIEMENS 6ES7131-4BF00-0AA0 Digital Input Module (ET 200S).
-
- Manufacturer: Siemens
- Model / Part Number: 6ES7214-1BG40-0XB0
- Power Supply: Accepts a wide range of main power from 85 V AC to 264 V AC (at 47–63 Hz).
- Digital Inputs (DI): Includes 14 onboard digital inputs that operate at 24 V DC.
- Digital Outputs (DO): Includes 10 onboard relay outputs rated up to 2 amps each.
- Analog Inputs (AI): Features 2 built-in analog inputs tracking a 0–10 V DC voltage range.
- Memory & Storage: Features 150 KB of integrated program/data memory paired with 4 MB of load memory.
- Communication: Includes an integrated PROFINET port for quick network connections to human-machine interfaces (HMIs), sensors, or other PLCs.
- Programming Languages: Supports Ladder Logic (LAD), Function Block Diagram (FBD), and Structured Control Language (SCL) via Siemens TIA Portal software.
-
REQUEST A QUOTE
- Series: SIMATIC S7-300 (CPU 312)
- Work Memory: 32 KB
- Power Supply: Integrated 24 V DC
- Communication Interface: 1 x MPI (RS-485)
- Required Accessory: A Micro Memory Card (MMC) is mandatory to serve as load memory.
- Dimensions & Weight: 15.1 x 12.9 x 5.1 cm; 0.317 Kg
SIEMENS 6ES7312-1AE13-0AB0 CPU Module (SIMATIC S7-300).
-
- Manufacturer: Siemens
- Model / Part Number: 6ES7901-3DB30-0XA0
- Primary Function: Connects a PC to a SIMATIC S7-200 PLC.
- Interfaces: USB to RS-485 Point-to-point connection.
- Protocols: PPI (10/11 bit) Freeport mode is NOT supported by this specific USB cable.
- Galvanic Isolation: Yes Features optical isolation to protect equipment from large industrial electrical interference.
- Status Indicators: 3 LEDs Tx (green): USB data transmission.
- Rx (green): USB data reception.
- PPI (green): RS-485 data transmission.
- Cable Length: 5.6 meters (~18.4 feet) Provides flexible, long-reach connectivity.
- Weight: Approx. 300 grams Light and portable.
- Required Software: STEP 7 Micro/WIN V3.2 Service Pack 4 (SP4) or higher.
- Drivers: Drivers are built directly into the Micro/WIN software suite, so separate USB driver installation is generally not needed.
-
REQUEST A QUOTE
- Signal & Resolution: RS-422 differential signal / Transistor-Transistor Logic (TTL) with 2,500 pulses per rotation (P/R).
- Electrical Data: 5V DC (±10%) operating voltage with a maximum operating current of 150 mA.
- Mechanical Interface: Synchro-flange design with a 6mm diameter plain, smooth solid shaft.
- Performance: Maximum operating speed of 12,000 RPM mechanically (7,200 RPM electrically) with a 300 kHz maximum frequency response.
- Connection: Pre-wired with a 1-meter universal cable providing a flexible axial or radial outlet terminated with a connector.
- Environmental Rating: Enclosure protected at IP67 overall (IP64 at the shaft input).
SIEMENS 6FX2001-2CC50 Incremental Rotary Encoder (6FX2001).
-
REQUEST A QUOTE
- Resolution: 1,024 pulses per revolution (PPR)
- Signal Level / Interface: TTL (RS 422)
- Operating Voltage: DC 5 V (± 10%)
- Mechanical Connection: Synchro-flange with a 6mm solid shaft
- Electrical Connection: Radial flange connector / socket
- Current Consumption: Max. 150 mA (without load)
- Direct Measuring: Mounts directly onto shafts, motors, or machine axes to ensure precise feedback loops with minimal calculation lag.
- Built-in Safety: Features built-in LED failure monitoring paired with a high-impedance driver to safeguard system operations.
- Industrial Compliance: Built with a robust housing compliant with CE, cULus, and EM-Directive standards for high noise immunity.
SIEMENS 6FX2001-2EB02 Incremental Rotary Encoder (6FX2001).
-
REQUEST A QUOTE
- Cable Length: 5.0 meters.
- Core Structure: 3 x 2 x 0.2 mm² + 2 x 2 x 0.25 mm² conductors.
- Connector Type: Straight M23 connector on the motor side + plugin connector.
- Standards & Certifications: No UL rating; carries EU, UK, and China RoHS approvals.
- Net Weight: 0.420 kg.
SIEMENS 6FX3002-2CT12-1AF0 Signal Cable (MOTION-CONNECT 300).
-
REQUEST A QUOTE
- Type: Pre-assembled signal cordset (10 cores)
- Wire Composition: 3X2X0.2 + 2X2X0.25C
- Length: 15 meters (approx. 49.2 feet)
- Max Outer Diameter: 7.2 mm
- Connector Style: Straight M23 motor-side connector to drive-side plug-in connector (Note: No UL certification for the motor-side connector)
- Voltage & Protection: Rated at 30Vac with an IP65 protection rating
- Material Properties: Flame-retardant PVC jacket
- Net Weight: 1.14 kg (2.51 lbs)
SIEMENS 6FX3002-2CT12-1BF0 Encoder Signal Cable (MOTION-CONNECT 300).
-

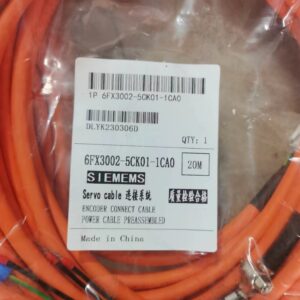

- Manufacturer: SIEMENS
- Model / Part Number: 6FX3002-5CK01-1CA0
- Conductor Size: 4 x 0.75 mm²
- Cable Length: 20 m
- Outer Diameter: 7.1 mm
- Degree of Protection: IP20
- Jacket Material: Flame-retardant, oil-resistant PVC
- Certifications: UL, CSA, CE and RoHS
-
REQUEST A QUOTE
- Product Line: MOTION-CONNECT 500
- Cable Length: 10 meters
- Connection Types: RJ45 DRIVE-CLiQ connectors on both ends
- Protection Rating: IP20 / IP67 compliance
- Jacket Material: Green Polyvinyl Chloride (PVC)
- Rated Voltage: 30 V (Power conductors) / 500 V RMS test voltage
- Outer Diameter: 7.1 mm
- Bending Radius: 5 x outer diameter (fixed installation)
SIEMENS 6FX5002-2DC10-1BA0 DRIVE-CLiQ Signal Cable (SINAMICS).
-
REQUEST A QUOTE
- Interface Type: 32-bit PCI card
- Bus Voltages: 3.3V / 5V compliant
- Bus Frequencies: 33 MHz / 66 MHz
- Supported Protocols: PROFIBUS DP (Master Class 1 & 2, Slave), MPI, S7 Communication, and PG/OP Communication
- Country of Origin: Germany
- Software Constraints: It only has 32-bit driver support when paired with SIMATIC NET V8.2 software. It does not support Windows 9x systems.
- Official Successor: For modern setups (from Windows XP and newer), Siemens officially recommends the successor model: SIEMENS 6GK1561-2AA00.
SIEMENS 6GK1561-1AA01 Communications Processor (SIMATIC NET CP 5611).
