- Interface Type: PCI Card (32-bit, universally keyed 5V/3.3V, 33/66 MHz) with an onboard microprocessor.
- Connection Interface: RS-485 via 9-pin Sub-D interface.
- Transmission Rate: Supports 9.6 kbit/s up to 12 Mbit/s.
- Included Protocols: Includes DP-Base configuration software, DP-RAM interface for DP Master, PG, and FDL protocols.
- Power Draw: 0.8 Amps at 5 VDC backplane.
SIEMENS 6GK1561-3AA01 Communications Processor (SIMATIC NET CP 5613).
-
REQUEST A QUOTE
- Product Series: MICROMASTER 440
- Filter Configuration: Without Filter
- Input Voltage / Phases: 380 … 480 V ±10 % AC (3-Phase)
- Line Frequency: 47 … 63 Hz
- Rated Output Power (HO): 2.20 kW / 3.00 hp
- Rated Input Current (HO): 7.50 A
- Rated Output Current (HO): 5.90 A
- Overload Capability: 150% for 60s, 200% for 3s (High Overload cycle)
- Output Frequency Range: 0 … 650 Hz (limited production-side to 550 Hz)
- Pulse Frequency: 4,000 Hz
SIEMENS 6SE6440-2UD22-2BA1 Variable Frequency Drive (MICROMASTER 440).
-
- Manufacturer: Siemens
- Model / Part Number: 6SL3130-7TE21-6AA3
- Series: SINAMICS S120
- Type: Active Line Module (ALM)
- Form Factor: Booksize (a compact shape designed to line up neatly in electrical cabinets)
- Input Voltage: 3-Phase 380V to 480V AC (at 50/60 Hz frequency)
- Output Voltage: 600V DC
- Current Rating: 27 Amps
- Power Rating: 16 kW
- Cooling System: Internal air cooling
-
REQUEST A QUOTE
- Product Line: SIMATIC NET (PROFINET Type A)
- Cable Structure: 4-core (2×2), rigid copper wire with Polyethylene (PE) insulation
- Shielding Design: Overlapped aluminum-clad foil wrapped in a tinned-plated copper braided screen
- Outer Jacket Material: Green PVC (polyvinyl chloride); non-halogen-free
- Outer Diameter: Nominal 6.5 mm
- Data Performance: Category 5e (Cat5e) for frequencies up to 100 MHz
- Characteristic Impedance: 100 Ω (±15% symmetrical tolerance) at 1–100 MHz
- Max Operating Voltage: 80 V (RMS value)
- Loop Resistance: Max 115 mΩ/m (or 115 Ω/km)
- Single bend / min permissible: 19.5 mm
SIEMENS 6XV1840-2AH10 100METERS Industrial Ethernet Cable (PROFINET).
-
REQUEST A QUOTE
- Torque & Capacity: 25 Nm nominal torque for air damper sizes up to 4 m².
- Control Type: Modulating control via a DC 0…10 V positioning signal with matching DC 0…10 V position feedback.
- Operating Voltage: AC 24 V (50/60 Hz) or DC 24 V.
- Power Consumption: 8 VA / 8 W during operation (efficient 1.1 W standby/quiet power).
- Positioning Time: 150 seconds for a full 90° nominal rotation.
- Environmental Ratings: IP54 protection class; operates in temperatures ranging from -32°C to +55°C (-25.6°F to 131°F).
SIEMENS GBB161.1E Damper Actuator (GBB Series).
-
REQUEST A QUOTE
- Operating Voltage: AC/DC 24 V (50/60 Hz)
- Control & Positioning Signal: DC 0…10 V or 2…10 V (Modulating)
- Position Feedback: DC 0…10 V linear electrical feedback
- Torque Rating: 5 Nm (Nominal torque)
- Positioning Time: 150 seconds for 90° angular rotation
- Power Consumption: 1.0 W (Operating) / 0.7 W (Standby / Quiet power)
- Ingress Protection: IP54 (Dust and splash-resistant)
- Non-Spring Return: This model does not feature an emergency fail-safe spring return. It maintains its position during a localized power interruption.
- Universal Connection: Features a patented, self-centering shaft adapter that accommodates round shafts (8 to 16 mm) and square shafts (6 to 12 mm).
- Manual Override: Includes a manual gear train disengagement button to allow manual positioning during commissioning or maintenance.
SIEMENS GDB161.1E/102 Modulating Damper Actuator (GDB Series).
-
REQUEST A QUOTE
- Operating Voltage: AC/DC 24 V
- Torque / Holding Torque: 4 Nm / 4 Nm
- Positioning Signal: DC 0…10 V
- Position Feedback: DC 0…10 V
- Angular Rotation: 90° (with mechanical limits)
- Positioning Time: Motor (Open): 60 s | Spring (Close): 15 s
- Power Consumption: 4 VA / 2.4 W (Quiet/Holding power: 1.5 W)
- Enclosure Protection: IP54
- Pre-wired Cable: 0.9 m length
- Ambient Operating Temp: -32°C to 55°C (-25.6°F to 131°F)
SIEMENS GPC161.1A Damper Actuator (GPC Series).
-

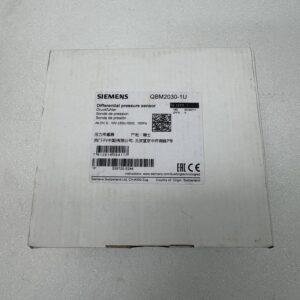

- Manufacturer: SIEMENS
- Model / Part Number: QBM2030-1U
- Supply Voltage: 24 VAC or 13.5 to 33 VDC
- Sensing Element: Pressure diaphragm
- Response Time: 1 second
- Degree of Protection: IP42
-
REQUEST A QUOTE
- Function: Controls the opening angle (0 to 90 degrees) of the burner's air or fuel damper.
- Torque: 1.5 Nm rated torque.
- Running Time: 4 seconds for a 90° rotation.
- Power Supply: AC 230 V.
- Internal Components: Includes 2 auxiliary switches and 2 relays.
- Housing Length: 117 mm.
- Compatibility: Controlled directly by burner control units like the Siemens LME22 series.
- BPZ: SQN72.2A4A20 SQN72.2A4A20 Actuator Actuator, 90°/4 s, 1.5Nm, 2 auxiliary switches, 2 relays, housing 117mm, AC230V.
SIEMENS SQN72.2A4A20 Damper Actuator (SQN Series).
-
REQUEST A QUOTE
- Rotational Direction: Clockwise
- Running Time: 4 seconds for a 90-degree rotation
- Torque: 1.5 Nm rated torque (holding torque of 0.7 Nm)
- Power Supply: 220–240 V AC, 50–60 Hz, 6 VA
- Switching Capacity: 7(1) A, 250 V~
- Features: Equipped with 2 auxiliary switches and 1 relay
- Origin: Made in Germany
SIEMENS SQN75.294A21B Damper Actuator (SQN Series).
