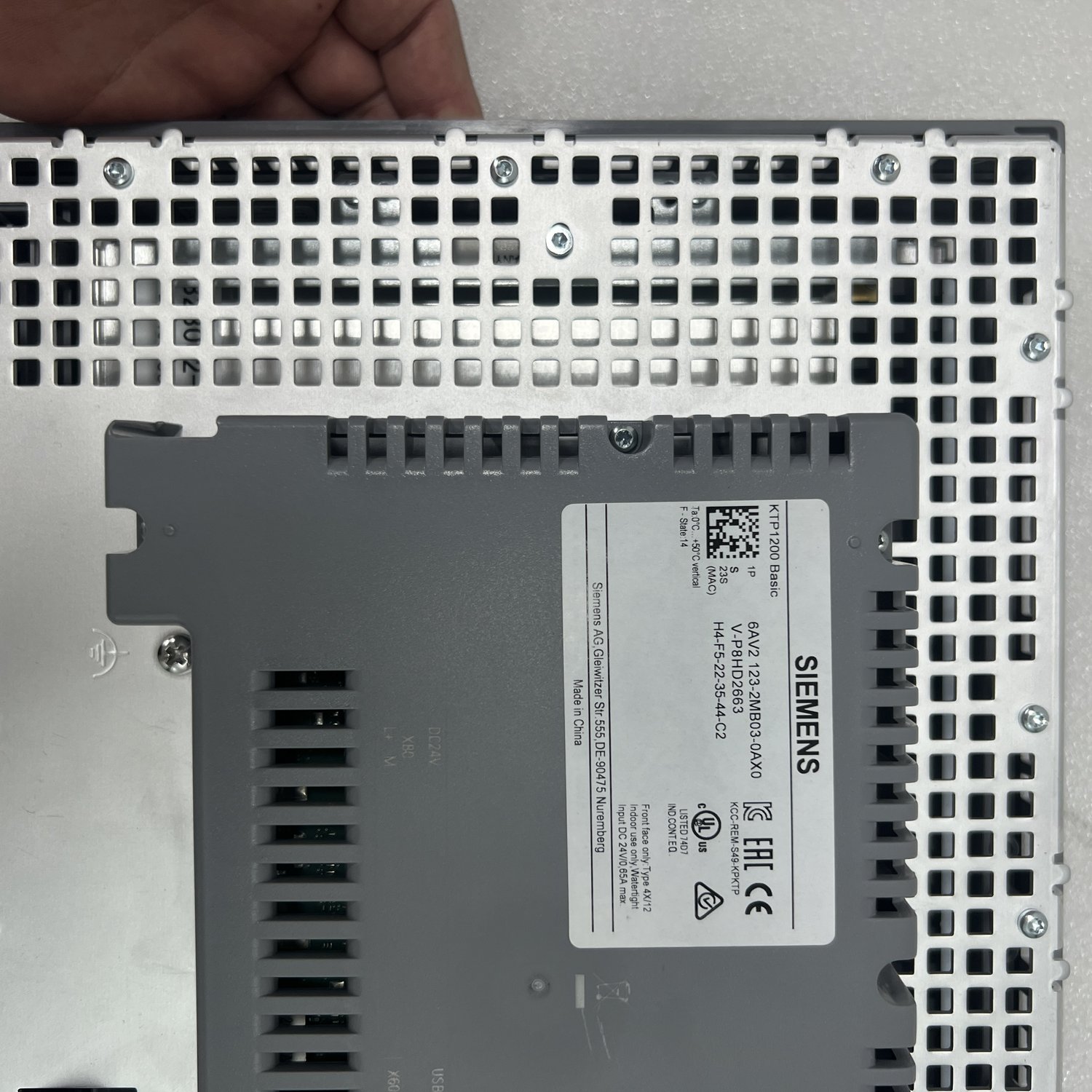

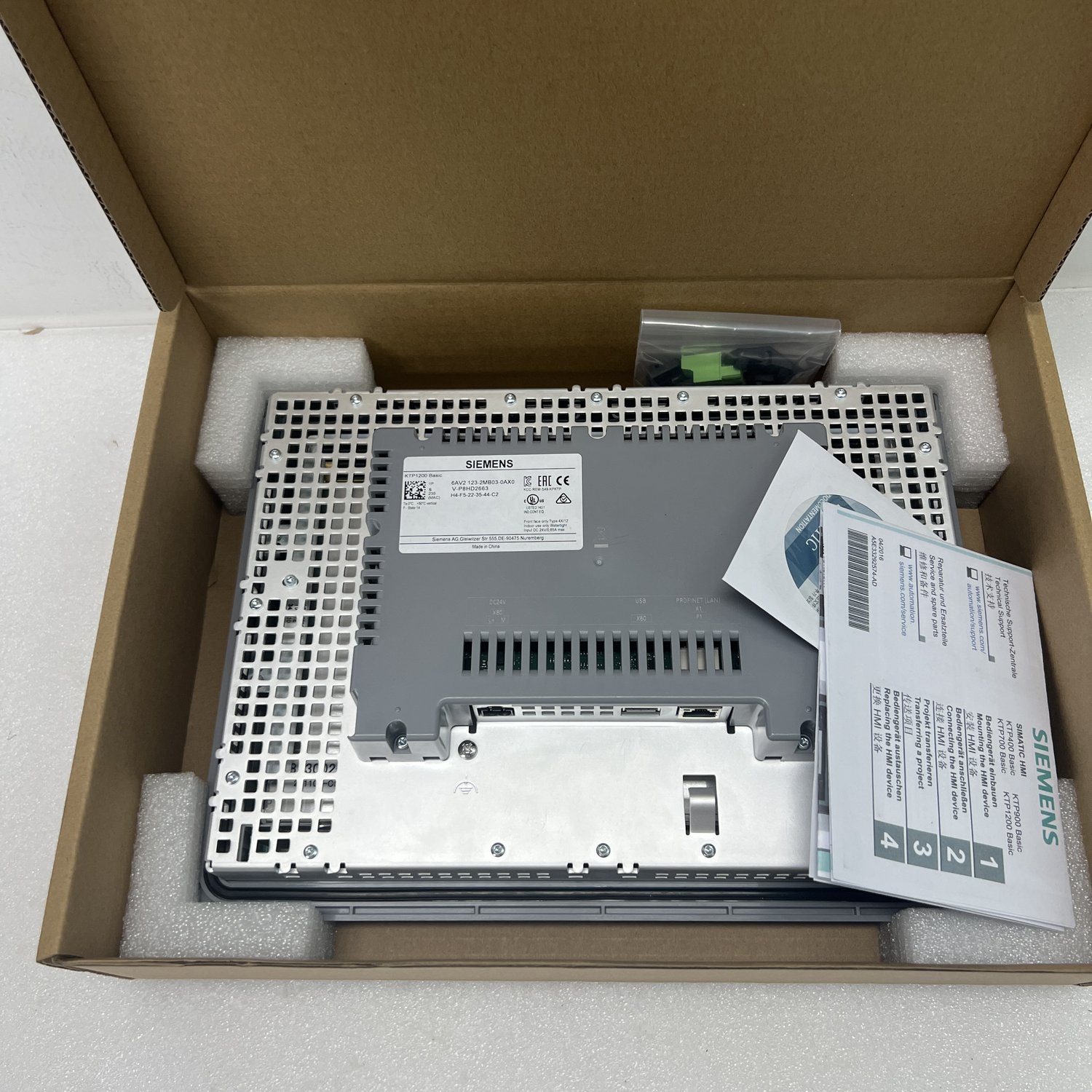

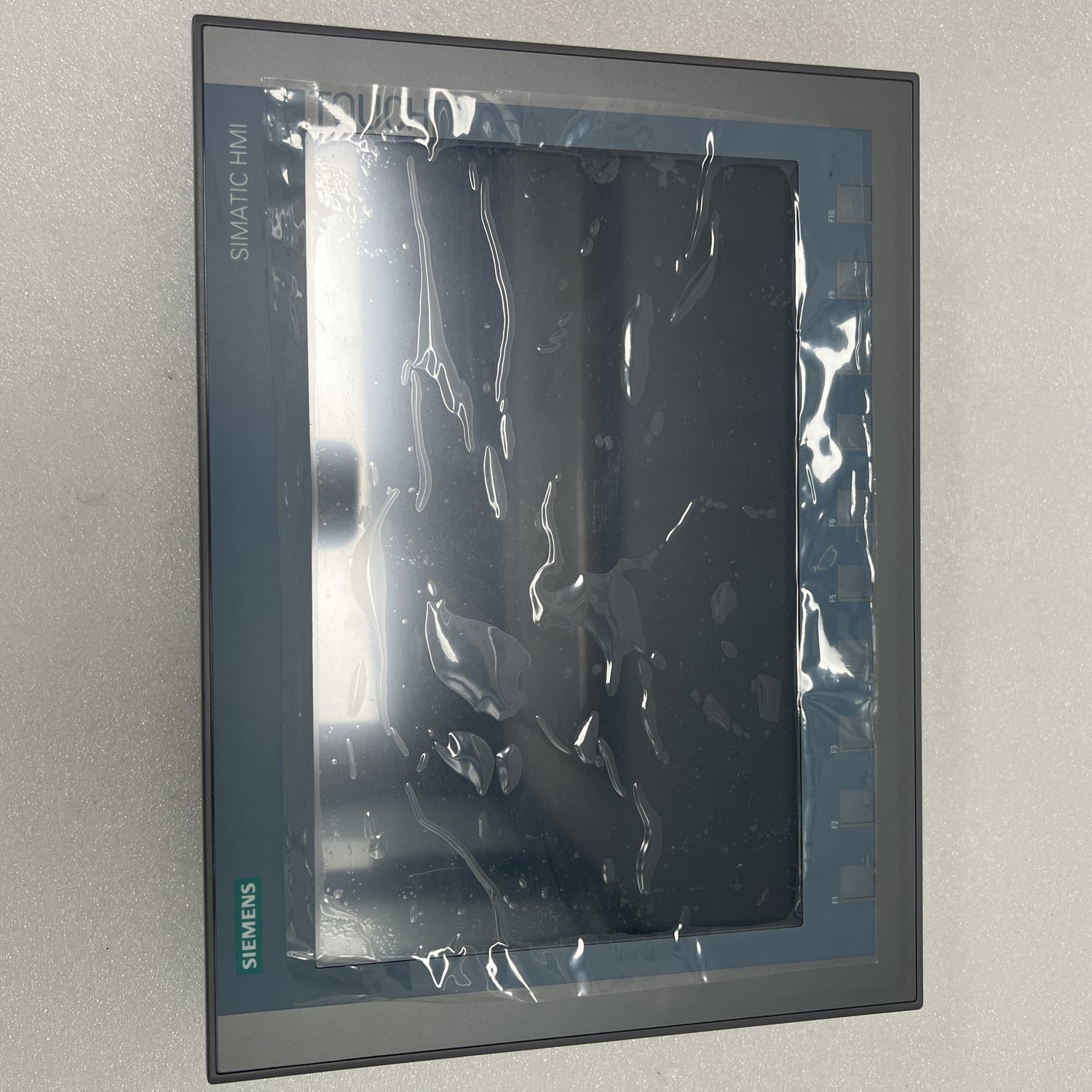

Siemens 6AV2123-2MB03-0AX0 HMI Basic Panel (SIMATIC KTP1200 Series)
- Display Design: TFT widescreen display with LED backlighting
- Screen Diagonal: 12 inches
- Resolution: 1280 x 800 pixels
- Color Depth: 65,536 colors
- Control Elements: Combined tactile keys (10 programmable function keys) and an analog resistive touchscreen
- Backlight Lifespan: 20,000 hours MTBF at 25 °C (100% dimmable)
- Rated Supply Voltage: 24 V DC
- Permissible Range: 19.2 V to 28.8 V DC
- Rated Current Consumption: 510 mA
- Power Consumption: ~12.2 W
- Network Interface: 1 x Industrial Ethernet/PROFINET interface (RJ45 port)
- USB Interface: 1 x USB port (supports system expansion or data archiving up to 16 GB)
- Supported Protocols: PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, MODBUS TCP/IP, and EtherNet/IP
- Configuration Software: WinCC Basic V13 or STEP 7 Basic V13 (TIA Portal) and higher
- Enclosure Material: Durable plastic housing
- Protection Class: IP65 dust/water protection on the front side
- Mounting Positions: Supports both vertical (portrait) and horizontal (landscape) installation layouts
- Dimensions: 330 mm x 245 mm x 60 mm
- Weight: 2.16 kg
Brand New Siemens 6AV2123-2MB03-0AX0 HMI Basic Panel (SIMATIC KTP1200 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
- SKU: 6AV2123-2MB03-0AX0
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
