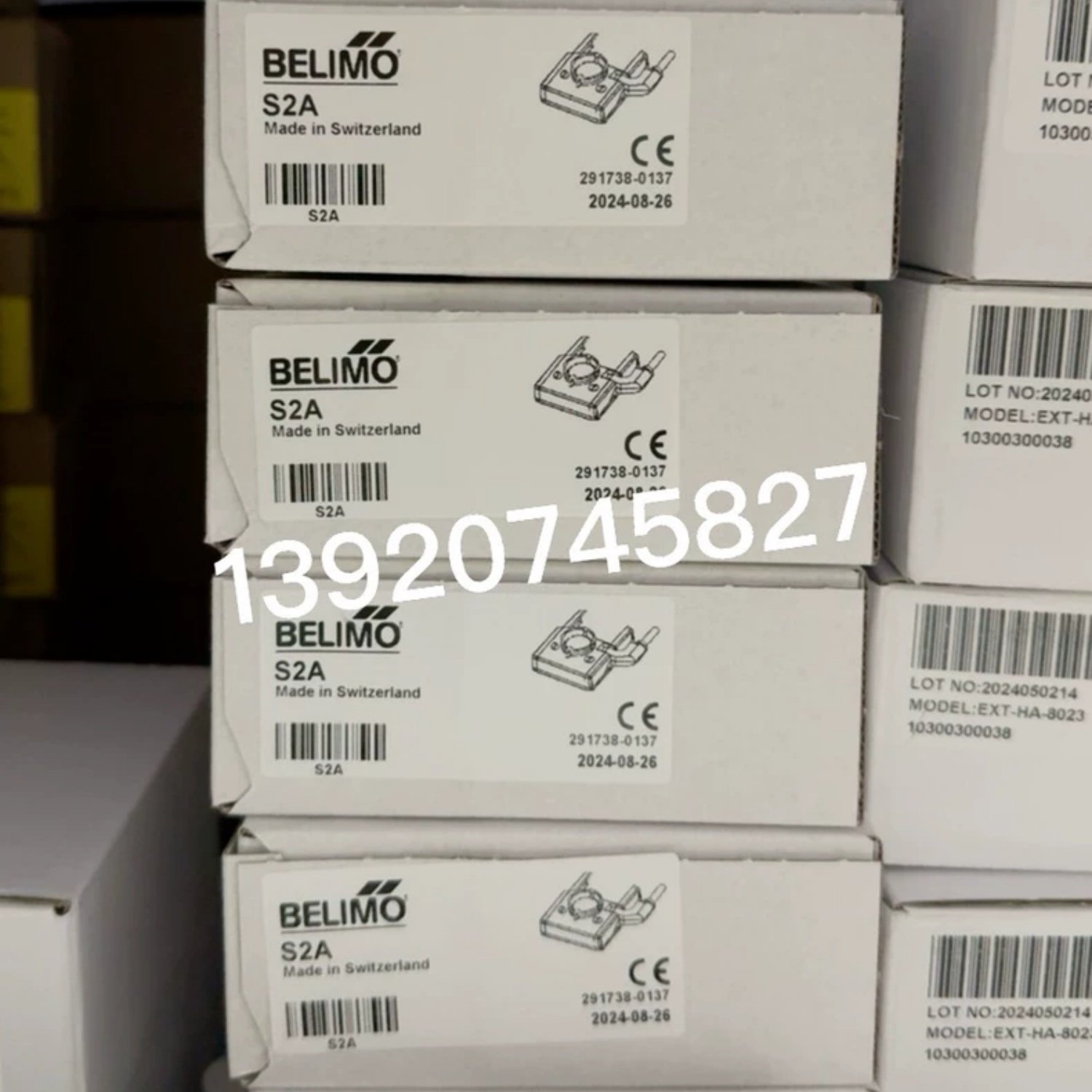

BELIMO S2A Auxiliary Switch (S Series)
- Switching Capacity: 3A (0.5A inductive) at 250 VAC max
- Contacts: 2x SPDT (Single Pole Double Throw)
- Switching Points: 0% to 100% fully adjustable rotation range via internal dials
- Electrical Connection: Pre-wired integrated 1-meter (3 feet) cable, 6 x 0.75 mm²
- Operating Temperature: -30°C to 50°C (-22°F to 122°F)
- Prepare the Actuator: Remove the clear position indicator ring and its underlying black plastic mounting bracket from the face of the actuator.
- Zero the Actuator: Manually press the gear release button and rotate the clamp fully counter-clockwise against the mechanical stop.
- Set Switching Points: Re-attach the driver disk mechanism. Use a flat-head screwdriver to align the indicator arrows on the internal dials to the exact angular points where you want your switches to trip.
- How To: Install the Belimo S2A Auxiliary Switch
Brand New BELIMO S2A Auxiliary Switch. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
- SKU: S2A
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
Availability & Delivery
- Availability shown is for reference only and will be confirmed at the time the order is processed.
- Published quantities may change without prior notice.
- The customer is responsible for verifying part number and specifications before confirming the purchase.
- Certain products may be considered special order items depending on availability.
