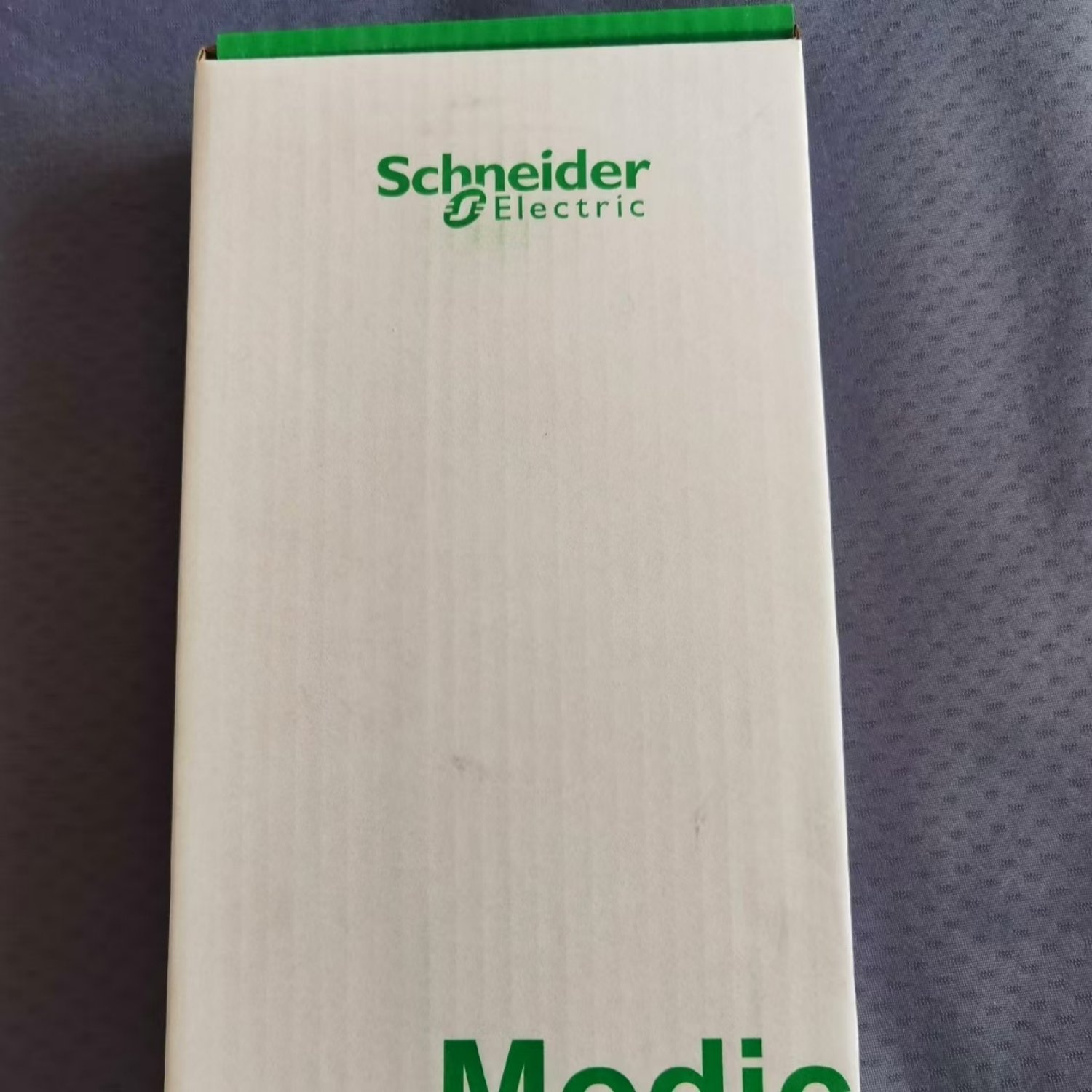

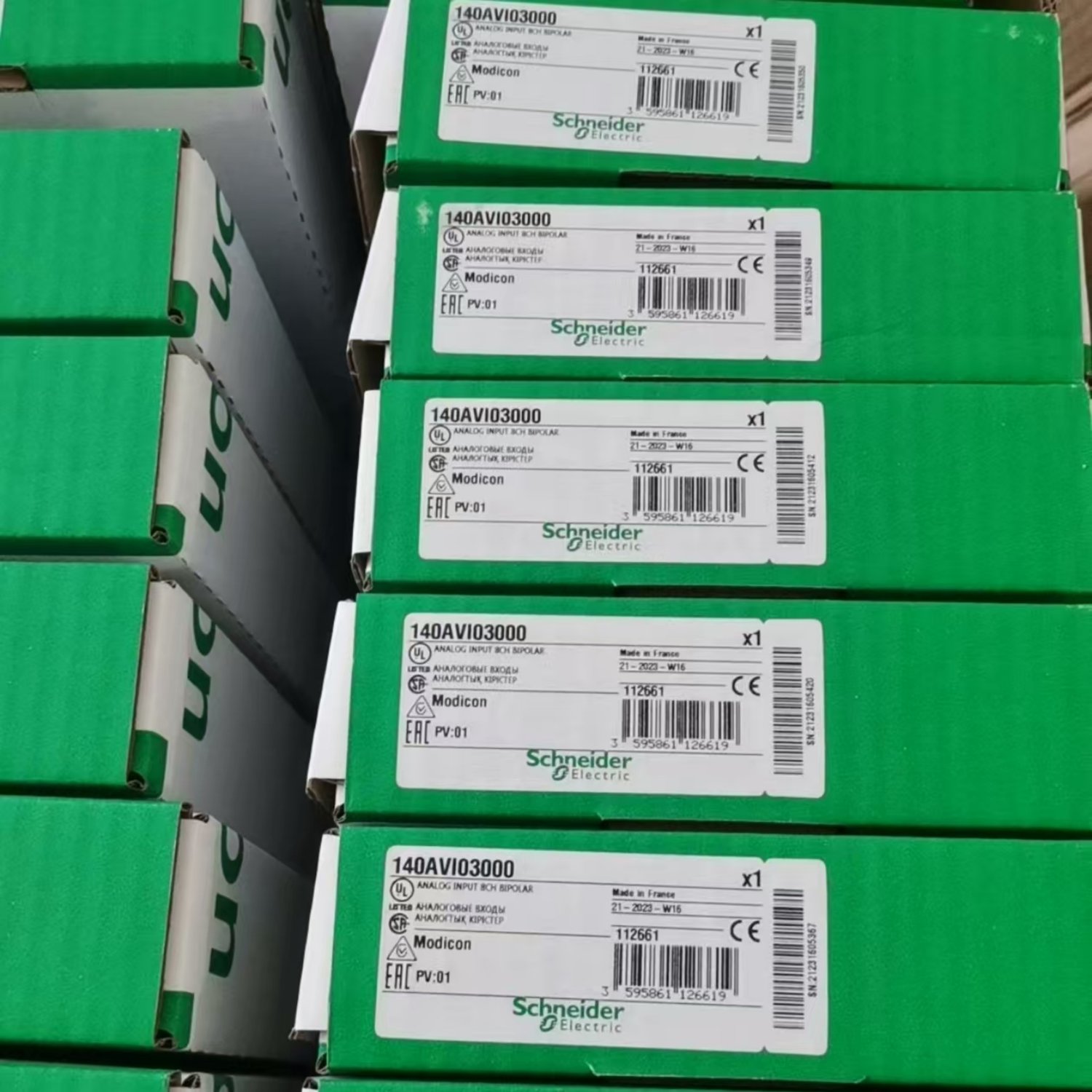

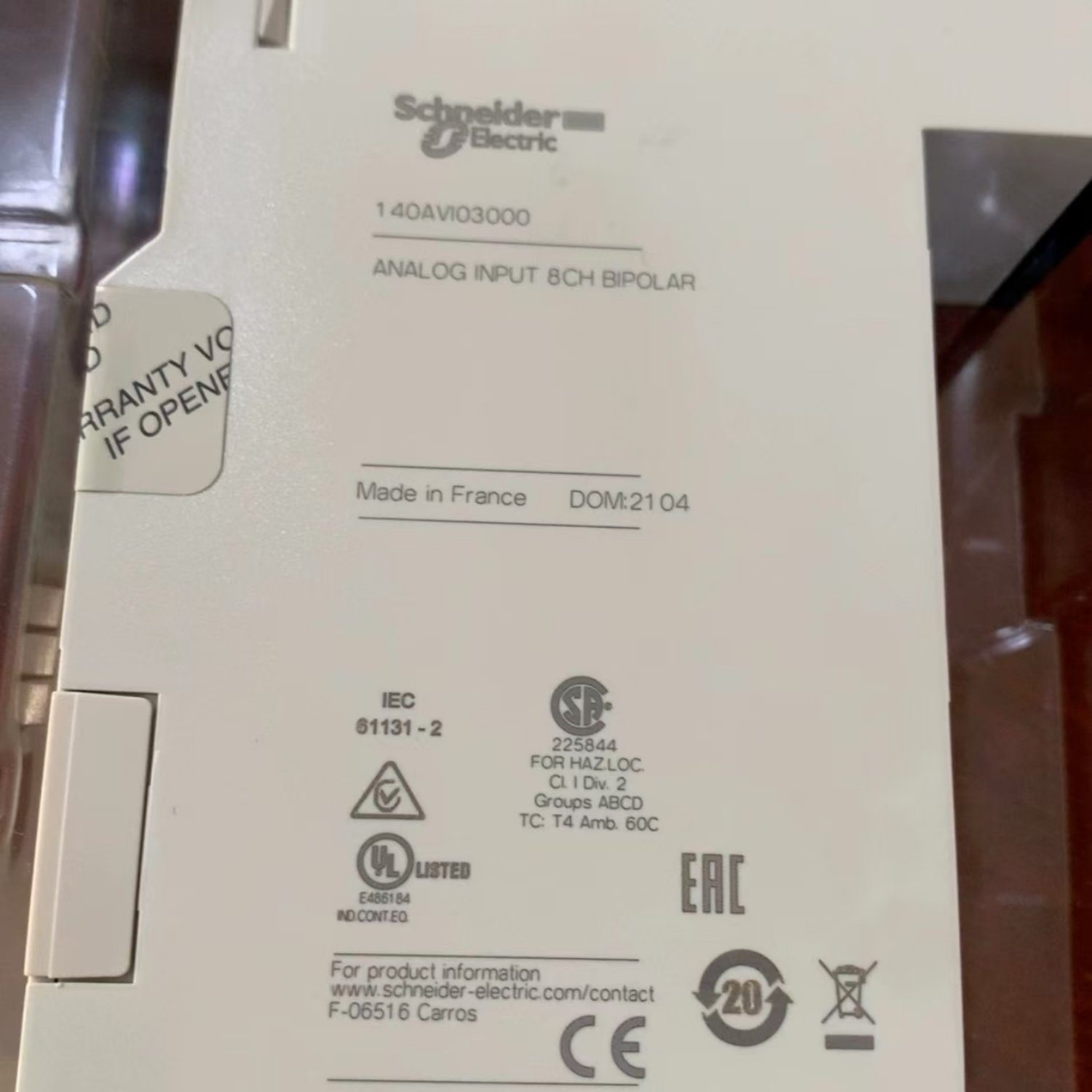

SCHNEIDER 140AVI03000 Analog Input Module (Modicon Quantum)

• Inputs: 8 differential channels.
• Resolution: 16-bit analog-to-digital conversion.
• Unipolar Voltage: 0 to 5 V, 0 to 10 V
• Bipolar Voltage: ±5 V, ±10 V
• Unipolar/Bipolar Current: 0 to 20 mA, ±20 mA
• Addressing: Requires 9 input words in the control system architecture.
• Update Time: 10 ms refresh rate.
• Isolation: 500 Vrms AC between the channels and the bus; 135 Vrms AC between individual channels.
• Power Consumption: 2.2 W power dissipation; 280 mA current draw from the bus.
• Diagnostics: Built-in LED indicators tracking channel status, channel faults, and external faults. It features broken wire detection for 4–20 mA loops.

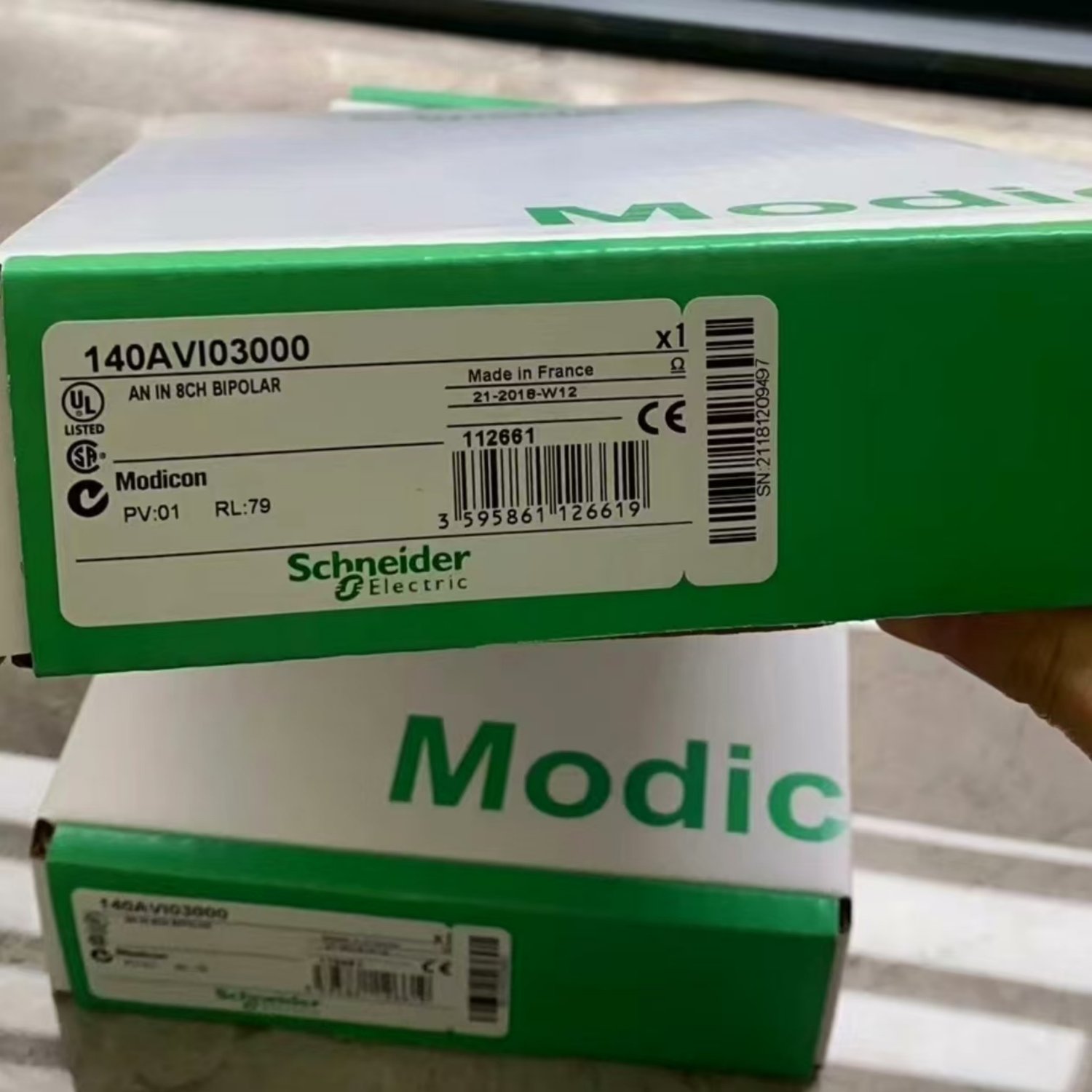

Brand New SCHNEIDER 140AVI03000 PLC Module. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
