Products

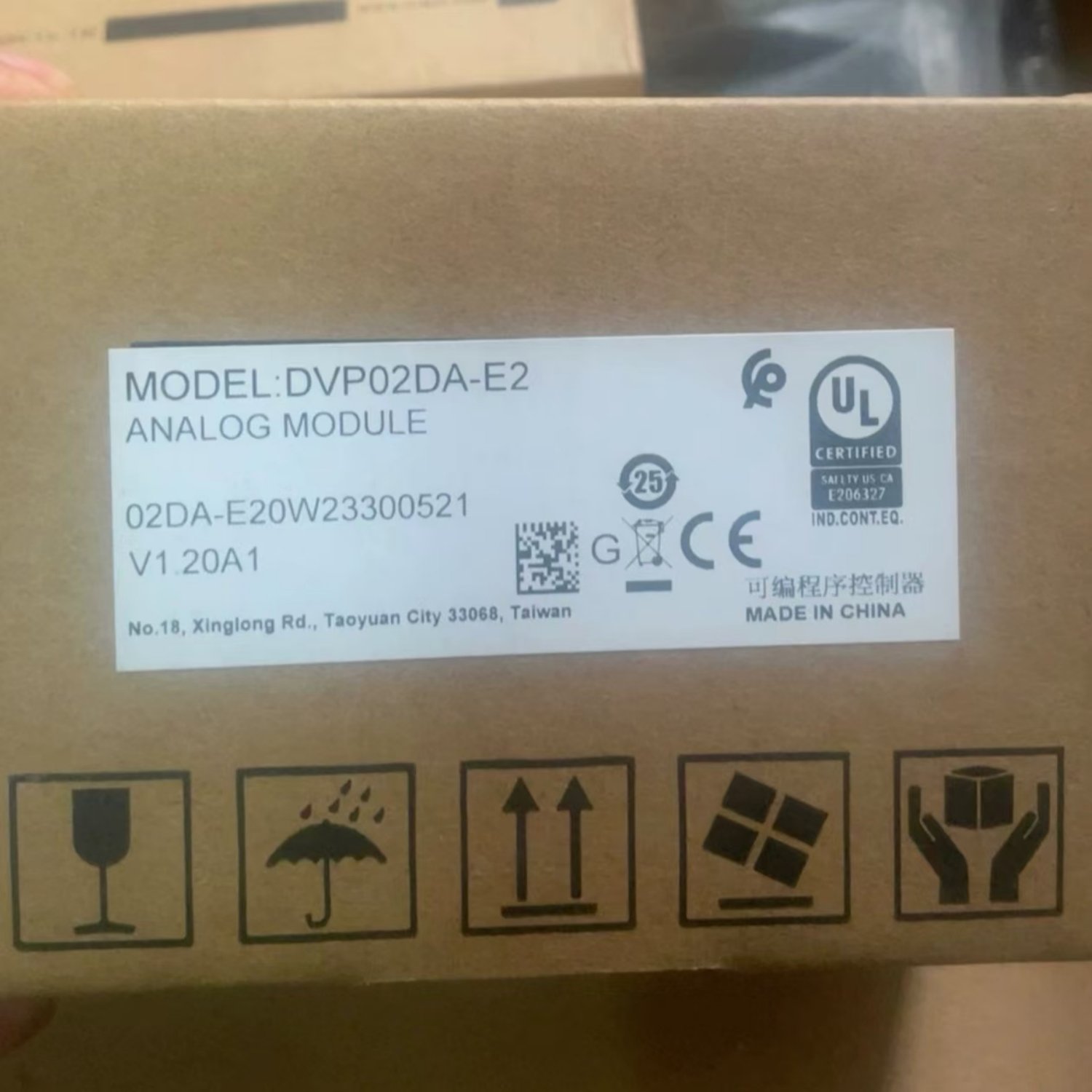

DVP02DA-E2 PLC Module For DELTA

DELTA DVP02DA-E2 Analog Output Module (DVP-ES2)

REQUEST A QUOTE

Output Range: -10V ~ +10V
Digital Conversion Range: -32,000 ~ +32,000
Resolution: 14 bits (20V / 64,000)
Load Impedance / Current: Max output current: 20mA (1kΩ ~ 2MΩ)
Hardware Protection: Short-circuit protection
Power Supply: 24V DC (20.4V DC ~ 28.8V DC) powered via an external source.
Power Consumption: Max rated 1.5W.
Response Time: 3 ms for all channels combined.
Overall Accuracy: ±0.5% at full scale (25°C / 77°F); ±1% within full operating range (0 ~ 55°C).
Connector Type: 5mm pin-pitch European standard fixed/removable terminal block.

Brand New DELTA DVP02DA-E2 PLC Module. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
