- Channels: 16 digital input channels, divided into 2 individually isolated groups (8 channels + 1 voltage supervision input per group)
- Rated Input Voltage: 24 V DC (Sink type input configuration)
- Input Voltage Range: Signal (0): -30 to +5 V
- Input Current / Impedance: 6 mA typical at 24 V / Input Impedance: 3.5 kΩ
- Selectable Filter Times: 2 ms, 4 ms, 8 ms, or 16 ms
- Power Dissipation: 1.8 W (Typical)
- Isolation Rating: 50 V rated insulation voltage; 500 V AC dielectric test voltage
- Compatible Module Termination Units (MTUs): TU810, TU812, TU814, TU818, TU830, TU833, TU838, TU850
- Process Voltage Supervision: Each of the two isolated channel groups incorporates a process voltage supervision input. If the external 24 V process power loop fails or drops, a channel error signal is immediately broadcasted via the ModuleBus for quick diagnostic troubleshooting.
- Robust Signal Protection: Every channel features current-limiting hardware, built-in Electro-Magnetic Compatibility (EMC) protection components, an optical isolation barrier, and an active status indication LED.
Brand New ABB 3BSE008508R1 DI810 PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Model Type: Special Function Extension Card (Internal Plug-in slot)
- Output Channels: 2 Independent Channels (CH0, CH1)
- Analog Voltage Range: 0 to +10 V DC (Digital Resolution: 0 to +4,000)
- Analog Current Range: 0 to +20 mA / 4 to +20 mA (Digital Resolution: 0 to +4,000)
- Resolution: 12-bit
- Terminal Connection: 5-pin European-style (G-type) terminal block
- System Compatibility: Delta DVP-EH2, DVP-EH3, DVP-SV, DVP-SV2, and DVP-PM host MPUs
- AC Motor Drive Speed Control: It converts digital commands from the PLC into a varying 0–10V or 4–20mA signal sent to the input terminals (like the ACI or AVI inputs) of Variable Frequency Drives (VFDs) to dynamically alter motor rotation speeds.
- Proportional Valve Control: It regulates modulating valves, fluid actuators, and dampers in chemical processing or HVAC applications.
- System Registers: When installed, the status and configuration parameters correspond directly to Delta system registers like D1149 (detecting card type index 9 for analog output).
Brand New DELTA DVP-F2DA PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Control Axes: 1 axis (Single-axis servo or stepper control).
- Pulse Output Channels: 2 channels per module.
- Maximum Output Frequency: 200 kHz for high-precision motor movement.
- Positioning Modes: Supports Pulse/Direction (P/D), Clockwise/Counterclockwise (CW/CCW), and A/B phase output signals.
- Communication: Built-in RS-485 communication port.
- Power Supply Requirement: 24VDC operational voltage.
- High-Speed Motion Control: Ideal for machinery requiring fast and accurate positioning, such as labeling machines, packaging systems, cut-to-length applications, and feeder systems.
- System Expansion: Plugs directly into the extension bus of Delta DVP-EH3 series PLCs to offload high-frequency pulse generation from the main CPU, ensuring overall system stability.
Brand New DELTA DVP01PU-H2 PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Control Axis: 1 Axis (Single-axis)
- Max Output Pulse: 200 kPPS (Kilo-pulses per second)
- Output Modes: FP/RP, Pulse/Dir, A/B Phase
- Control Registers: 49 CR (16-bit each)
- Communication: Built-in RS-485
- Form Factor: Slim Open-Type (DIN Rail Mount)
- LSP / LSN: Limit Switch Positive / Negative (prevents over-travel).
- DOG: Near-point home sensor input used during homing routines.
- Wiring Gauge: Use 22–16 AWG (1.5 mm) single-core or multi-core copper wire rated for 60/75°C.
- Terminal Torque: Tighten all terminal screws strictly to 1.90 kg-cm (1.65 lb-in).
Brand New DELTA DVP01PU-S PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Output Range: -10V ~ +10V
- Digital Conversion Range: -32,000 ~ +32,000
- Resolution: 14 bits (20V / 64,000)
- Load Impedance / Current: Max output current: 20mA (1kΩ ~ 2MΩ)
- Hardware Protection: Short-circuit protection
- Power Supply: 24V DC (20.4V DC ~ 28.8V DC) powered via an external source.
- Power Consumption: Max rated 1.5W.
- Response Time: 3 ms for all channels combined.
- Overall Accuracy: ±0.5% at full scale (25°C / 77°F); ±1% within full operating range (0 ~ 55°C).
- Connector Type: 5mm pin-pitch European standard fixed/removable terminal block.
Brand New DELTA DVP02DA-E2 PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE

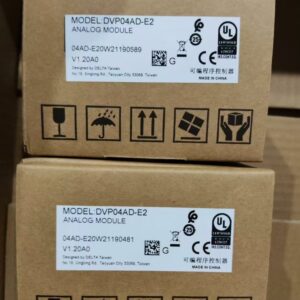

- Compatible CPU Series: Delta DVP-ES2 / DVP-EX2 Series
- Analog Input Channels: 4 distinct points (Channels 1 through 4)
- Voltage Input Range: ± 10V (converts to digital values -32,000 to +32,000)
- Current Input Range: ± 20mA / 0 ~ 20mA (converts to digital values -32,000 to +32,000)
- Digital Conversion Resolution: 16-bit digital signal processing
- Data Access Registers: Control Registers (CR) read/written via FROM / TO instructions or mapped directly via D9900~D9999
- Enclosure Rating: Open-type device (requires a clean, dry, protected control cabinet)
- Signal Customization: Selection between voltage or current modes is achieved via physical wiring configurations at the terminal block and setting the appropriate input mode registers in software.
- Safety Isolation: Never connect AC power to the I/O terminal block as it will permanently destroy the low-voltage electronics.
- Discharge Hazard: Always wait at least one full minute after completely disconnecting power from the system before touching or rewiring any module terminals.
Brand New DELTA DVP04AD-E2 PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Total I/O Points: 10 Points total (Fixed configuration, non-expandable for the 10 I/O base unit)
- Digital Inputs: 6 Points 24VDC digital inputs
- Digital Outputs: 4 Points Transistor Source (PNP type) outputs
- Power Supply: 100 ~ 240VAC wide-range AC power
- Built-in Com Ports: 1x RS-232 communication port (Port 0)
- Clock Feature: Integrated Real-Time Clock (RTC) included
- FBs: Series identifier (FATEK advanced micro-PLC architecture).
- MA: Economy/Basic Main Unit type.
- AC: Powered by 100~240VAC line power (Note: D24 variants utilize 24VDC).
- Software Ecosystem: This unit is programmed using FATEK's proprietary, free utility software WinProladder (Version V3.30 or newer).
Brand New FATEK FBS-10MAJ2-AC PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Model Code: FBs-10MAJ2-D24
- Series: FBs Series (MA Economy Type)
- Total I/O Points: 10 Points
- Digital Inputs: 6 Inputs (24VDC)
- Digital Outputs: 4 Outputs
- Output Type: Transistor Source (PNP)
- Power Supply: 24VDC
- Communication: 1 Built-in RS-232 port (Expandable up to 5 ports total)
- Integrated Features: Real-Time Clock (RTC)
- Software Support: WinProladder V3.30 or higher (Free Download)
Brand New FATEK FBS-10MAJ2-D24 PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Power Supply: 100 ~ 240VAC
- Communication: 1 Built-in Port
- Memory Capacity: 20K words
- Expandability: Fixed Hardware I/O
- Real-Time Clock: Built-in
- Certifications: CE, UL
Brand New FATEK FBS-10MAR2-AC PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer: FATEK Automation Corporation
- Model Code: FBs-10MAR2-D24
- Total I/O Points: 10 Points
- Digital Inputs: 6 points 24V DC (2 points support high-speed up to 100KHz)
- Digital Outputs: 4 points Relay output
- Power Supply: 24V DC (-D24 suffix)
- Communication Ports: 1 Built-in RS-232 port (expandable up to 3 ports via boards)
- Expandability: No (I/O points cannot be expanded further)
- Mounting Type: 35mm DIN Rail
- Programming Software: WinProladder (Windows-based Ladder logic tool)
Brand New FATEK FBS-10MAR2-D24 PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE

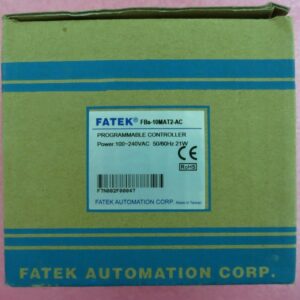

- Model Code: FBs-10MAT2-AC
- Manufacturer: FATEK Automation Corp.
- Power Supply: 100 ~ 240 VAC, 50/60Hz (Wide range 85-265VAC)
- Total I/O Points: 10 Points (6 Input / 4 Output)
- I/O Expandability: No (Fixed I/O configuration)
- Built-in Clock: Real-Time Clock (RTC) included
- Certifications: UL Certified
- High-Speed Inputs: 2 Points supporting up to 100KHz (ideal for high-resolution rotary encoders).
- Medium-Speed Inputs: 2 Points supporting up to 20KHz.
- Low-Speed Inputs: 2 Points supporting up to 5KHz total.
Brand New FATEK FBS-10MAT2-AC PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Total I/O Points: 10 Points
- Digital Inputs: 6 Inputs
- Digital Outputs: 4 Outputs
- Power Supply: 24VDC
- Communication: 1x RS-232
- Real-Time Clock: Integrated
- FBs: FATEK Advanced Slim-line PLC Series.
- MA: Economy / Basic Main Unit.
- Architecture: Utilizes a highly efficient, multi-input/multi-output function block architecture that handles complex sequential or numerical operations in single steps where traditional PLCs might require layered rungs.
Brand New FATEK FBS-10MAT2-D24 PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer: Inovance Technology
- Series: AM400 Series
- Program Storage: 10 MB
- Data Storage: 20 MB
- Built-in Digital Inputs: 16 High-Speed Inputs
- Built-in Digital Outputs: 8 High-Speed Outputs
- Output Circuit Type: Sink (NPN Type)
- Motion Control Capacity: Supports up to 4 axes of synchronized control
- Weight: Approximately 0.27 kg (0.60 lbs)
- Integrated Communication Interfaces: Features a built-in Ethernet port for network programming, data acquisition, and upper-level SCADA/HMI communication, alongside embedded fieldbus capabilities.
Brand New INOVANCE AM401-CPU1608TN PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- TP: High-speed digital outputs are Source (PNP) type. (Note: "TN" signifies Sink/NPN).
- Manufacturer: Inovance Technology
- Motion Axis Control: Up to 4 axes via EtherCAT bus
- Built-in High Speed Inputs: 16 channels (Supports up to 8 AB-phase high-speed counters)
- Built-in High Speed Outputs: 8 channels (PNP / Source type; supports 4 groups of pulse positioning)
- Memory Architecture: 10 MB Data Storage Space / 20 MB Program Storage Space / 512 KB Retain Space
- Programming Environment: CODESYS V3 platform executed via Inovance InoProShop software
- Local Expansion: Supports up to 16 local I/O modules on the main rack (GL10/GR10 series)
- Physical Weight: Approximately 0.27 kg (0.60 lbs)
- USB Port: Mini-USB interface used for local PC connection, program downloading, and diagnostic tracking.
Brand New INOVANCE AM401-CPU1608TP PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
Technical Specifications
- Specification Attribute: Details & Metrics

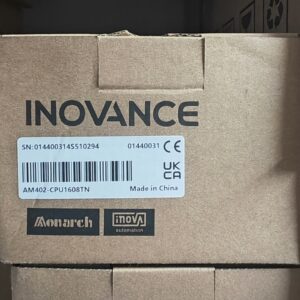

- Manufacturer: Suzhou Inovance (Guangdong, China)
- Controller Platform: AM400 Series Motion Controller / PLC
- Power Supply Requirements: 24V DC
- Built-in Digital Inputs: 16 High-Speed Inputs (Sink/NPN type, up to 202 kHz)
- Built-in Digital Outputs: 8 High-Speed Transistor Outputs (Drain/NPN type, up to 202 kHz)
- Motion Axis Capacity: Supports up to 8 Axes via bus synchronization
- Net Weight: ≈ 0.27 kg to 0.48 kg (standalone); 0.85 kg (packaged assembly)
- Factory-New Units: Brand new, retail-boxed items are available internationally with expedited global carrier options via Alibaba Global Logistics or factory surplus components on inRobots Platform.
Brand New INOVANCE AM402-CPU1608TN PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Specification Attribute: Details & Capabilities
- Manufacturer: Inovance Technology
- Core Controller Platform: Codesys (IEC 61131-3 standard programming)
- Motion Axis Support: 8 Axes controlled via EtherCAT master
- Digital Inputs (DI): 16 High-Speed Inputs
- Digital Outputs (DO): 8 High-Speed Outputs
- Output Transistor Type: Source (PNP) type
- Physical Weight: 0.27 kg (approx. 0.6 lbs)
Brand New INOVANCE AM402-CPU1608TP PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
