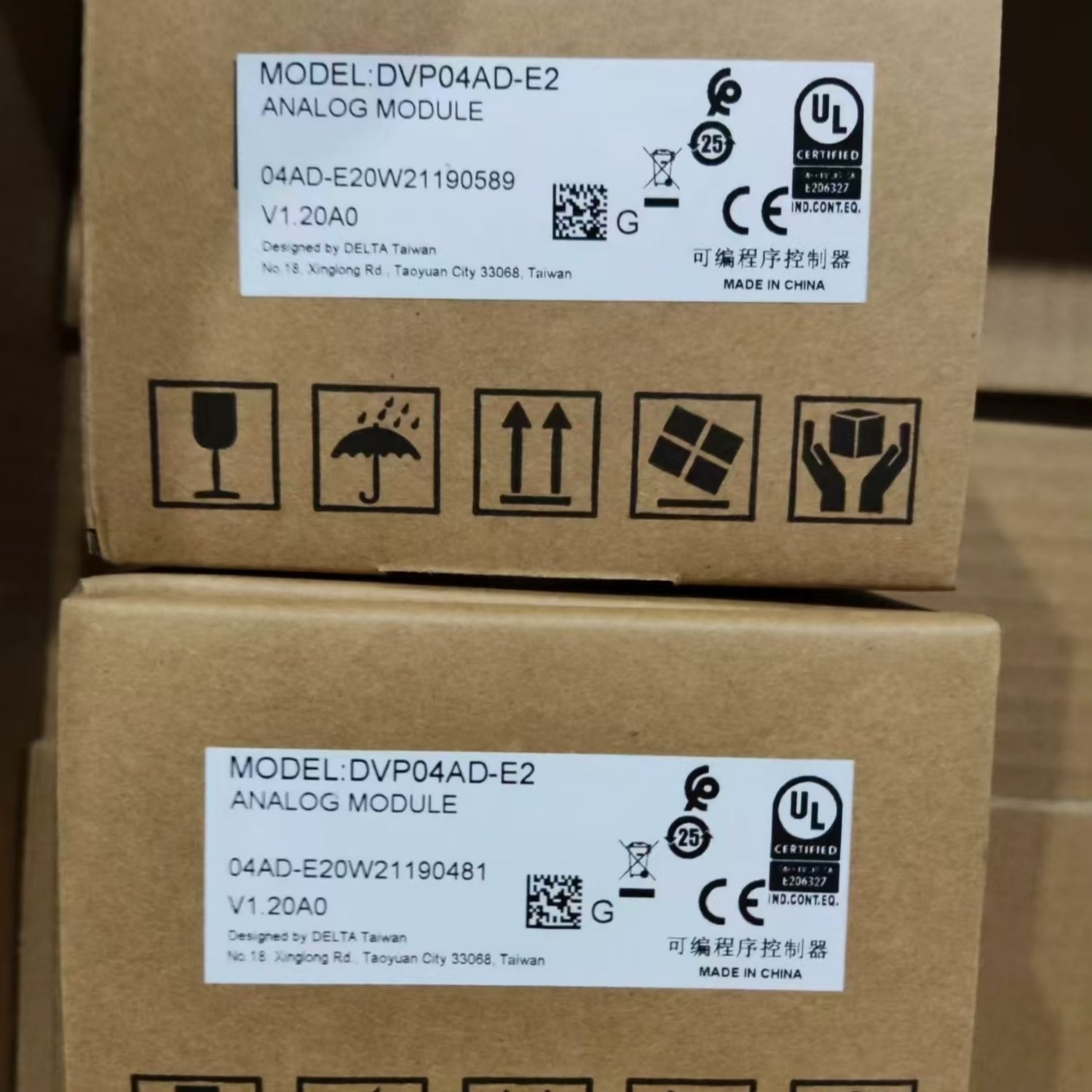

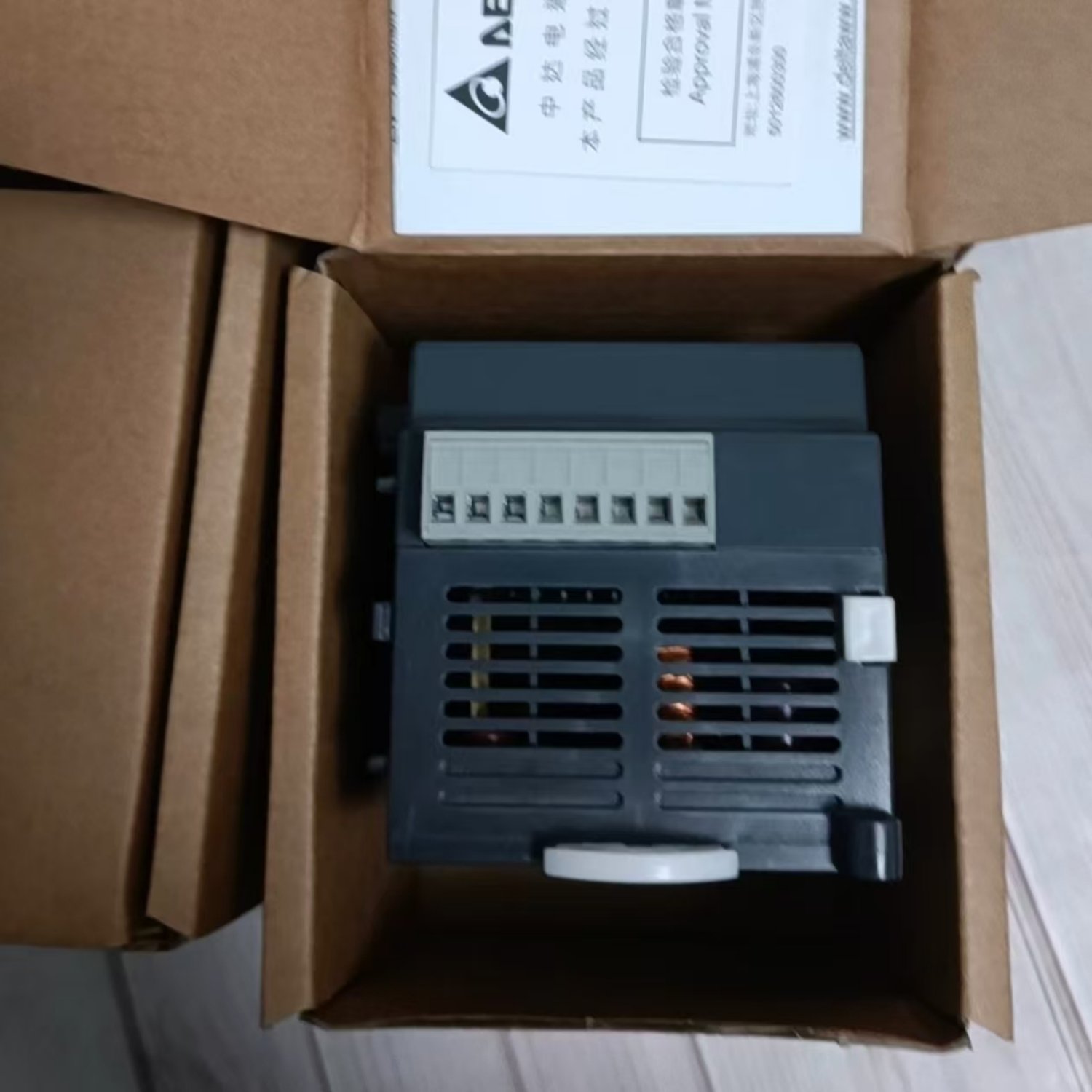

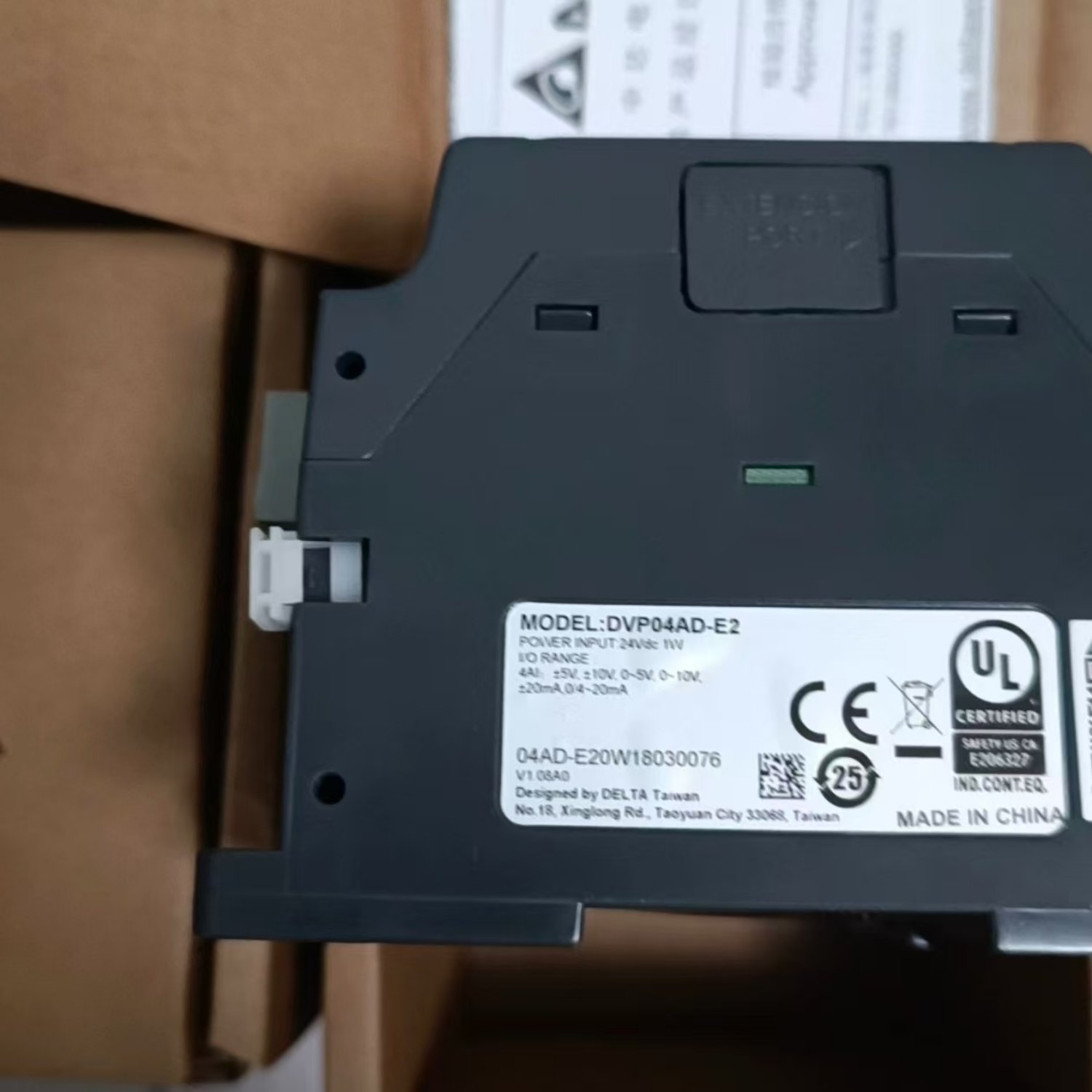

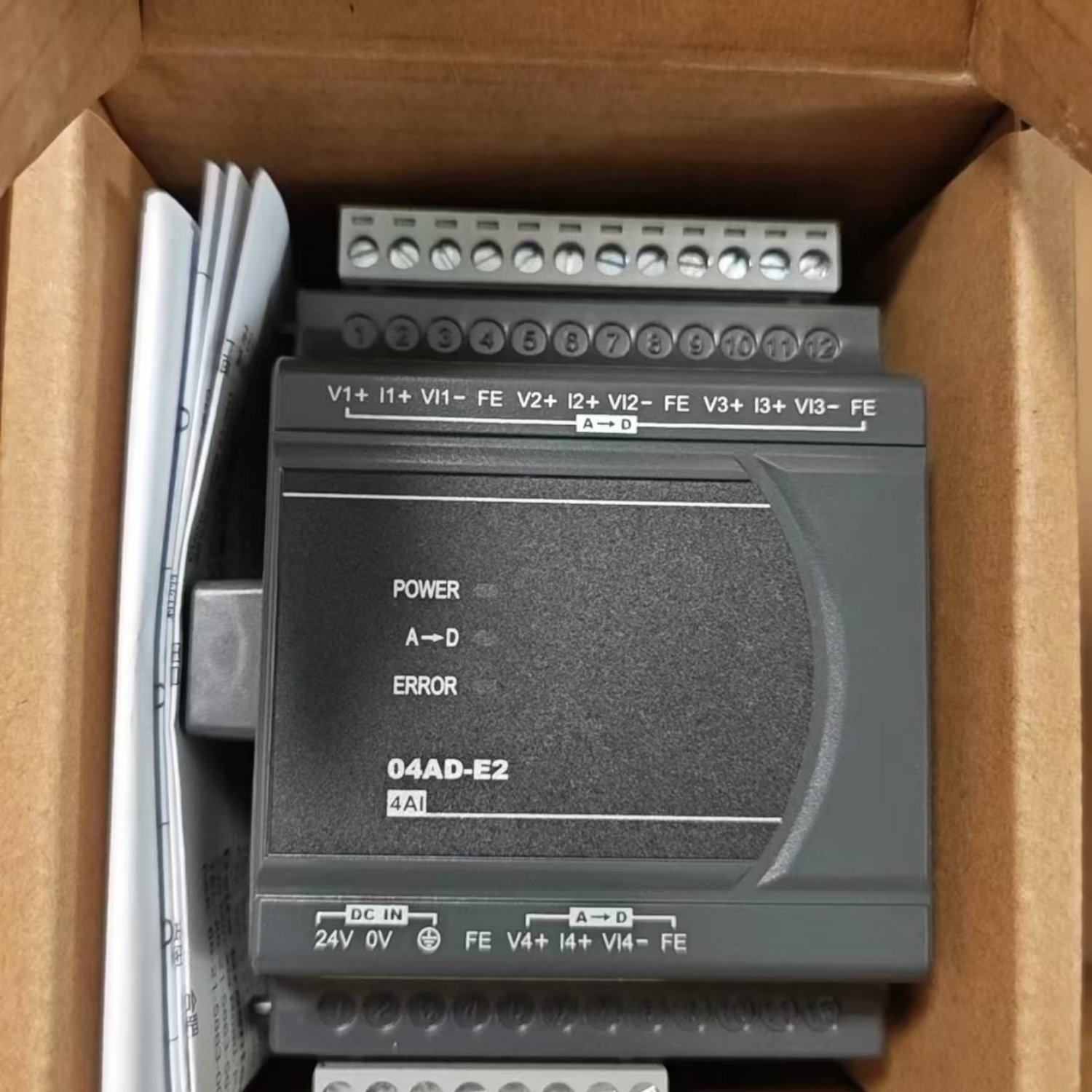

DELTA DVP04AD-E2 Analog Input Module (DVP-ES2)

• Compatible CPU Series: Delta DVP-ES2 / DVP-EX2 Series
• Analog Input Channels: 4 distinct points (Channels 1 through 4)
• Voltage Input Range: ± 10V (converts to digital values -32,000 to +32,000)
• Current Input Range: ± 20mA / 0 ~ 20mA (converts to digital values -32,000 to +32,000)
• Digital Conversion Resolution: 16-bit digital signal processing
• Data Access Registers: Control Registers (CR) read/written via FROM / TO instructions or mapped directly via D9900~D9999
• Enclosure Rating: Open-type device (requires a clean, dry, protected control cabinet)
• Signal Customization: Selection between voltage or current modes is achieved via physical wiring configurations at the terminal block and setting the appropriate input mode registers in software.
• Safety Isolation: Never connect AC power to the I/O terminal block as it will permanently destroy the low-voltage electronics.
• Discharge Hazard: Always wait at least one full minute after completely disconnecting power from the system before touching or rewiring any module terminals.
