- Output Voltage: 5V DC (Adjustable from 4.5V – 5.5V via onboard potentiometer)
- Rated Current: 60A maximum
- Rated Power: 300W
- AC Input Range: 90 ~ 132VAC or 180 ~ 264VAC (Selectable via manual slide switch)
- Efficiency: 83.5%
- Cooling: Forced air cooling via a built-in DC fan (Thermostatically controlled: kicks on at 122°F / 50°C)
- Protections: Short circuit, Overload (110%–140% via Hiccup Mode), Over voltage, Over temperature
- Dimensions: 215mm × 115mm × 30mm (8.46" × 4.53" × 1.18")
- Weight / Mounting: Chassis mount with M4-0.7 screw holes
- Check the Input Voltage Switch: Before plugging the unit in for the first time, check the position of the physical 115V / 230V slide switch. Units frequently ship preset to 230V. Powering a unit switched to 115V with 230V mains will permanently destroy the internal circuitry.
MEAN WELL LRS-350-5 Switching Power Supply (LRS-350).
-

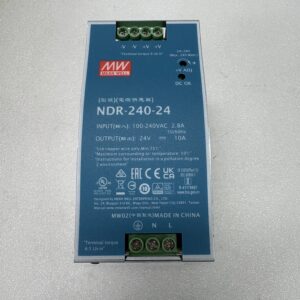

- Manufacturer: Mean Well
- Model / Part Number: NDR-240-24
- Output Voltage: 24V DC
- Output Current: 10A
- Rated Power: 240W
- Input Voltage Range: 90 – 264V AC or 127 – 370V DC
- Frequency Range: 47 – 63 Hz
- Typical Efficiency: 88.5%
- Ripple & Noise: ≤ 150 mVp-p
- Voltage Adjustment Range: 24 – 28V
- Built-in Active PFC: Features active power factor correction to improve energy efficiency.
- Slim Design: At just 63mm wide, it saves valuable space inside control cabinets.
- Convection Cooling: Uses a metal case designed for free air convection cooling with no fans needed.
- DIN Rail Compatible: Snaps easily onto standard TS-35/7.5 or TS-35/15 mounting rails.
- Full Protections: Includes built-in safety features against short circuits, overloads, overvoltage, and overtemperature.
- Overload Handling: Uses constant current mode protection, making it great for inductive or capacitive loads.
- Dimensions: 63mm x 125.2mm x 113.5mm (W x H x D)
- Weight: 1.0 kg (2.2 lbs)
- Working Temperature: -20°C to +70°C (Note: power output starts reduction/derating above 50°C).
-
- Manufacturer: MEAN WELL
- Model / Part Number: NES-350-27
- Output Voltage: 27V DC
- Output Current: 13A
- Rated Power: 351W
- Cooling: Active cooling via a built-in DC fan
- Built-in Protections: Automatically guards against short circuits, overloads, overvoltages, and high temperatures.
-
REQUEST A QUOTE
- Metric: Specification
- DC Output Voltage: 48V DC
- Rated Current: 7.3A
- Current Range: 0 ~ 7.3A
- Rated Power: 350.4W
- Input Voltage Range: 115VAC or 230VAC (Selected by manual slide switch)
- Switching Frequency: 25 KHz
- Cooling: Forced air cooling via built-in DC fan (with automatic ON/OFF control)
- Dimensions: 215mm x 115mm x 50mm (L x W x H)
- Overload: Constant current limiting, which automatically recovers after the fault condition is removed.
MEAN WELL S-350-48 Switching Power Supply (S-350).
