Mean Well NDR-240-24 industrial, slim-designed 240 Watt DIN rail power supply
- Manufacturer: Mean Well
- Model / Part Number: NDR-240-24
- Output Voltage: 24V DC
- Output Current: 10A
- Rated Power: 240W
- Input Voltage Range: 90 – 264V AC or 127 – 370V DC
- Frequency Range: 47 – 63 Hz
- Typical Efficiency: 88.5%
- Ripple & Noise: ≤ 150 mVp-p
- Voltage Adjustment Range: 24 – 28V
- Built-in Active PFC: Features active power factor correction to improve energy efficiency.
- Slim Design: At just 63mm wide, it saves valuable space inside control cabinets.
- Convection Cooling: Uses a metal case designed for free air convection cooling with no fans needed.

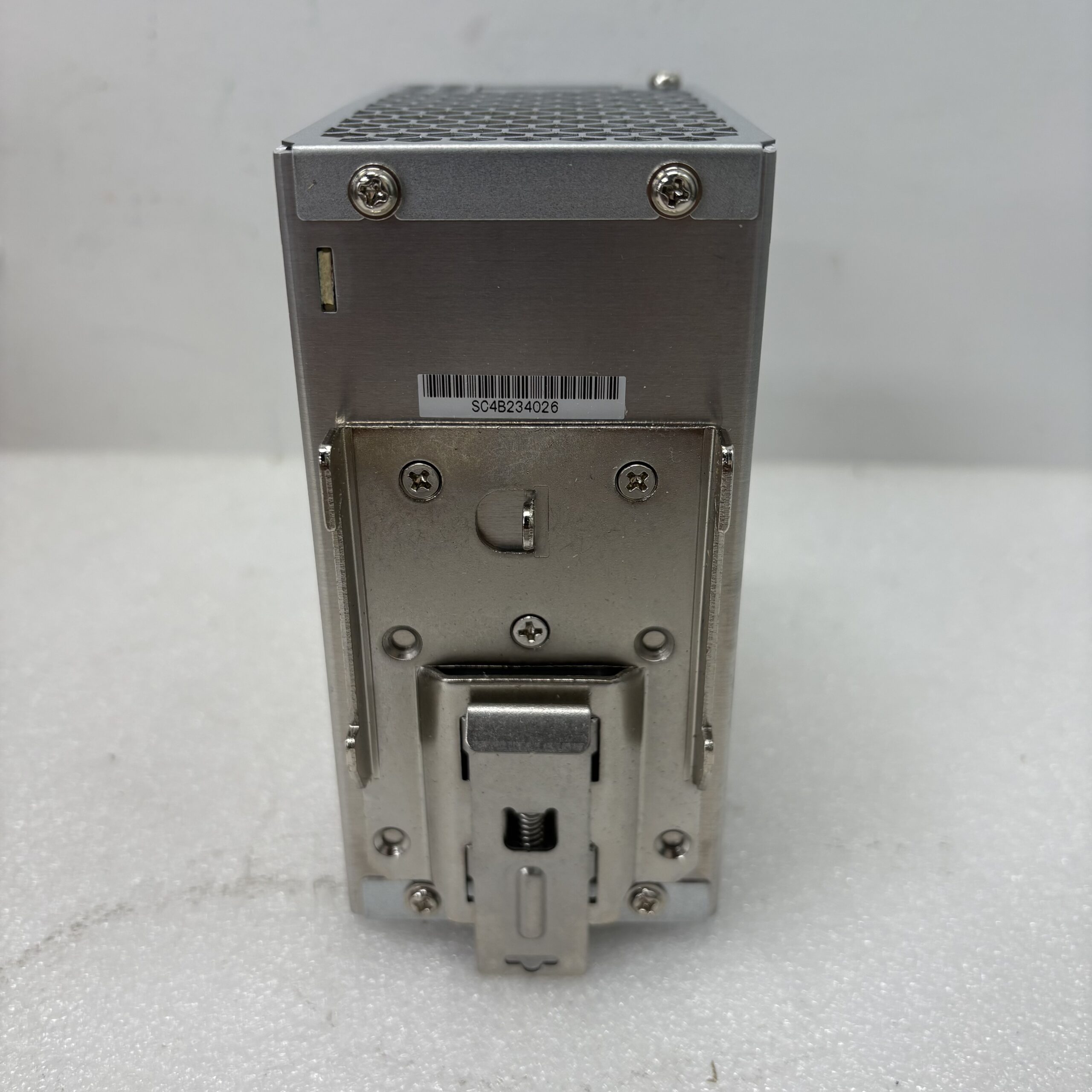

- DIN Rail Compatible: Snaps easily onto standard TS-35/7.5 or TS-35/15 mounting rails.
- Full Protections: Includes built-in safety features against short circuits, overloads, overvoltage, and overtemperature.
- Overload Handling: Uses constant current mode protection, making it great for inductive or capacitive loads.
- Dimensions: 63mm x 125.2mm x 113.5mm (W x H x D)
- Weight: 1.0 kg (2.2 lbs)
- Working Temperature: -20°C to +70°C (Note: power output starts reduction/derating above 50°C).
- SKU: NDR-240-24
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
