- Manufacturer: DELTA
- Model / Part Number: DVP08XN211T
- Function: Output expansion module (it adds extra output plugs but has zero input plugs).
- Number of Outputs: 8 output channels.
- Output Type: Transistor (Solid State). Transistors switch on and off very fast and last a long time because they have no moving parts.
- Operating Voltage: 24V DC (Direct Current).
- Mounting Style: Attaches to a standard DIN rail or chassis mount inside a control panel.
- Wiring Connection: Secure screw terminals to lock wires in place.
- DVP: Delta Main PLC Series.
- XN: Extension output module.
-
- Manufacturer: DELTA
- Model / Part Number: DVP08XP211R
- Total I/O Points: 8 points total (4 inputs and 4 outputs).
- Inputs: 4 Digital Inputs (24V DC, 5mA signal).
- Outputs: 4 Relay Outputs.
- Power Supply: 24V DC with a very low power consumption of about 1W to 1.2W.
- Output Rating: 2.0A per point at 250V AC or 30V DC (for resistive loads).
- Mounting: Supports standard DIN rail or chassis mounting inside electrical boxes.
- Wiring Connection: Uses a screw terminal block to easily secure wires.
-
- Manufacturer: Delta
- Model / Part Number: ECM-B3L-C20401RS1
- Rated Output Power: 0.1 kW (100 Watts)
- Rated Torque: 0.32 N-m
- Speed Range: 3,000 RPM rated speed, reaching up to a max full speed of 6,000 RPM
- Encoder Resolution: 24-bit incremental optical encoder yielding 16,777,216 pulses per revolution for ultra-precise positioning
- Rated Current: 0.857 Arms (with an instant max output current of 3.44 Arms)
- Physical Weight: Lightweight design at roughly 0.5 kg (1.1 lbs)
-
- Manufacturer: Delta
- Model / Part Number: ECM-B3M-C20604RS1
- Output Power: 0.4 kW (400 Watts)
- Rated Torque: 1.27 N-m
- Rated Speed: 3000 RPM (Full range up to 6000 RPM)
- Rated Current: 2.4 Arms
- Max Current: 9.47 Arms (Instant peak)
- Rotor Inertia: Medium Inertia
-
- Manufacturer: DELTA
- Model / Part Number: ECMA-C10807RS
- Series: ECMA Series (ASDA-A2 Compatible)
- Rated Power Output: 750W / 0.75 kW
- Supply Voltage: 220V AC (Single/Three Phase)
- Rotor Inertia: Low Inertia
- Rated Torque: 2.39 Nm
- Rated Speed: 3000 RPM
- Frame Size: 80 mm
- Shaft Diameter: 19 mm
- Encoder Resolution: 20-bit Incremental Encoder (1,280,000 pulses/rev)
- Shaft Features: Keyway with screw hole (Tap)
- Brake Option: No Brake
- Ingress Protection: IP65 (with built-in oil seal)
-
REQUEST A QUOTE
- Type: Encoder Feedback Card / Pulse Generator (PG) Card
- Signal Interface: Line Driver output type (and supports open collector input signals).
- Voltage Supply: 5 VDC output power for encoder operation.
- Phases: Supports 1-phase or 2-phase input signals.
DELTA EMC-PG01L Encoder Interface Card (ASDA Series).
-
REQUEST A QUOTE
- Display Panel: 7-inch TFT-LCD screen (154 × 85 mm) featuring 65,535 colors
- Resolution: High-density 800 × 480 pixels
- Integrated PLC Engine: Core architecture based on Delta's DVP-SS2 Series PLC
- Program Capacity: 8K Steps system memory / 64MB Flash ROM
- I/O Configuration: 16 I/O Points Total (8 Digital Inputs / 8 Relay Outputs)
- High-Speed Input: 2 sets of 10kHz hardware high-speed pulse inputs
- Input Power: Nominal 24 VDC operating voltage
- Physical Form Factor: 8.09 × 5.61 × 1.92 inches (205.5 × 142.5 × 48.8 mm) panel-mount housing
- USB Programming Interface: Includes a built-in USB port for fast program upload/download and diagnostic monitoring.
- Fluid Automation & Logistics: Material handling conveyor routing, pumping controls, and packaging sorters.
DELTA TP70P-16TP1R HMI / PLC Combo Unit (TP Series).
-

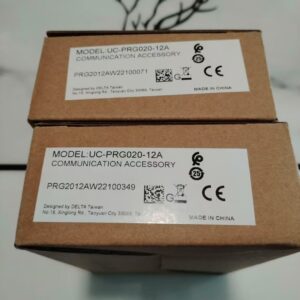

- Brand: Delta
- Model: UC-PRG020-12A
- Series: Delta PLC Programming Cables
- Cable function: PC-to-PLC programming and serial communication
- PC interface: USB
- Device interface 1: DB9 female
- Device interface 2: 8-pin mini-DIN male
- Communication standard: RS-232
- Cable length: 2 m
- Compatible product families: Delta DVP slim PLC and AH500 PLC families
-
REQUEST A QUOTE
- Parameter Category: Specification Details
- Model / Series: VFD037EL43A / VFD-EL Series
- Motor Power Rating: 5 HP / 3.7 kW
- Input Power Supply: 3-Phase, 380V to 480V AC (±10%), 50/60 Hz
- Rated Input Current: 9.0 Amps
- Rated Output Current: 8.2 Amps
- Control Method: V/F (Scalar) Control; 3-points adjustable V/f curve
- Output Frequency Range: 0.1 Hz to 599 / 600 Hz
- Overload Capacity: 150% of rated current for 60 seconds (1 minute)
- Enclosure / Frame Size: IP20 Protection Rating / Frame Size B
DELTA VFD037EL43A Variable Frequency Drive (VFD-EL).
-
REQUEST A QUOTE
- Manufacturer: Delta Electronics / Industrial Automation
- Model Number: VFD750CP43B-21
- Series: CP2000 (Fan & Pump Vector Control)
- Motor Capacity: 75 kW (100 HP)
- Input Voltage / Phase: 3-Phase 380 V to 480 VAC, 50/60 Hz
- Output Frequency Range: 0.01 ~ 599 Hz
- Control Method: Sensorless Vector Control (SVC), V/F Control, FOC+PG
- Part Status: Not For New Designs (Legacy / Active Support)
- Light Duty (LD): 150 A Output Current — Optimized for variable torque loads like centrifugal pumps and fans.
- Normal Duty (ND): 110 A Output Current — Formulated for higher continuous torque requirements.
DELTA VFD750CP43B-21 Variable Frequency Drive (CP2000).
