Showing 17–32 of 42 results
-
REQUEST A QUOTE
- Manufacturer: DELTA
- Model / Part Number: DVP04DA-SL
- Output Channels: 4 independent channels (CH1 to CH4).
- Voltage: -10V to +10V.
- Current: 0 to 20mA / 4 to 20mA.
- Power Supply: +24VDC (-15% to +20%), consuming roughly 3.5W.
- Module Position: It is a Left-Side (SL) High-Speed Module, meaning it mounts to the left of compatible DVP-series PLC CPUs (such as the DVP-SV or DVP-SX2 series) for high-speed data transmission via the parallel bus.
- Wiring Connection: Equipped with a convenient, removable terminal block.
- Instruction: Configurations and data writes are executed using the TO instruction in ladder logic.
- Addressing: Because it connects to the left side of the CPU, its special module position index typically starts at 100 (e.g., 100 for the first left-side module, 101 for the second).
- Registers: Specific registers control the output mode settings (voltage vs. current) and hold the digital values to be converted into analog signals.
-
REQUEST A QUOTE
- Manufacturer: DELTA
- Model / Part Number: DVP04PT-E2
- Compatible Series: Delta DVP-ES2 / DVP-EX2 PLC systems
- Input Channels: 4 independent RTD channels
- Supported Sensors: Pt100, Pt1000, Ni100, Ni1000 (3-wire recommended)
- Digital Resolution: 16-bit digital signal conversion
- Temperature Resolution: 0.1°C (0.18°F)
- Conversion Speed: 200 ms per channel
- Overall Accuracy: ±0.6% across full scale
- Power Supply: 100 to 240 VAC (via the MPU) or external 24 VDC depending on system layout
- Power Consumption: 30 VA Max
- Terminal Type: European standard removable terminal block (5 mm pitch)
- Flexible Communication: Data registers can be read or written directly using FROM / TO PLC instructions, or over an RS-485 network via Modbus ASCII/RTU.
- Built-in PID Loops: Supports localized PID control loops for automated temperature regulation without heavy PLC code overhead.
- Status Indicators: Equipped with built-in LED indicators for POWER, ERROR, and A/D conversion status tracking.
- No I/O Mapping Impact: Up to 8 expansion units can be added to a single MPU without consuming any digital input or output points.
- Sensor Connection: Use 3-wire RTD sensors to compensate for line resistance and prevent measurement errors.
- Noise Mitigation: Keep analog sensor wires isolated from high-voltage AC power cables to prevent electromagnetic interference.
-

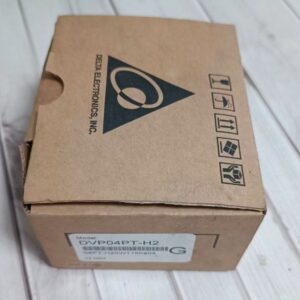

- Manufacturer: Delta
- Model / Part Number: DVP04PT-H2
- Input Channels: 4 independent channels.
- Sensor Types: Platinum (e.g., Pt100, Pt1000) and Nickel (e.g., Ni100, Ni1000) RTD sensors.
- System Series: Advanced DVP-H / DVP-EH series extension unit.
- Data Conversion: Converts analog temperature sensor signals into 14-bit digital values.
- Communication: Built-in RS-485 interface supporting standard Modbus ASCII/RTU protocols.
- Sensor Configuration: Use 3-wire temperature sensors to prevent line resistance from altering measurement results.
-

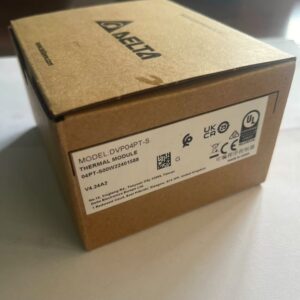

- Manufacturer: Delta
- Model / Part Number: DVP04PT-S
- Inputs: 4 channels
- Sensor Type: PT100 3-wire RTD (100Ω at 0°C)
- Signal Resolution: 14-bit digital signal (reads 0.1°C or 0.18°F steps)
- System Form Factor: Open-type "Slim" expansion module that mounts on a standard DIN rail
- Data Isolation: Built-in isolation between the PLC system and the analog inputs
- With a PLC: When snapped onto the side of a Delta DVP MPU (Main Processing Unit), the PLC reads and writes to the module's 49 internal control registers using FROM and TO instructions in the programming software.
-

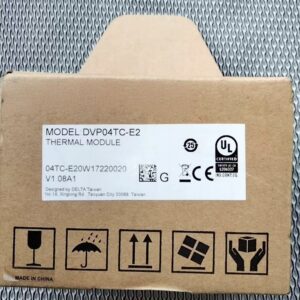

- Manufacturer: Delta
- Model / Part Number: DVP04TC-E2
- Input Channels: 4 points for external thermocouple sensors.
- Sensor Type Compatibility: Supports J, K, R, S, T, E, and N type thermocouples.
- Voltage Input Range: Capable of reading -80mV to +80mV voltage inputs.
- Resolution: High-accuracy 20-bit resolution (converts data into 16-bit digital signals).
- Temperature Units: Configurable to output in Celsius (with a resolution of 0.1°C) or Fahrenheit (with a resolution of 0.1°F).
- Conversion Time: 200ms per channel.
-

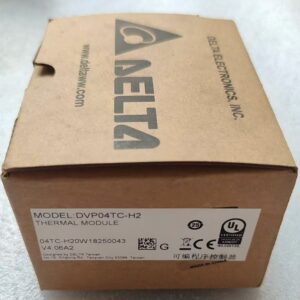

- Manufacturer: DELTA
- Model / Part Number: DVP04TC-H2
- Power Supply: 24 VDC (±10%).
- Input Channels: 4 channels per module.
- Sensor Compatibility: Thermocouple types J, K, R, S, T, E, and N.
- Alternative Input: 0 ~ 150 mV voltage input.
- Digital Resolution: 14-bit digital signals.
- Temperature Scale Resolution: 0.1°C (or 0.18°F).
- Conversion Time: 200ms per channel.
- Overall Accuracy: ±0.6%.
- Built-in Comms: RS-485 interface.
- Data Storage: 49 built-in 16-bit Control Registers (CR) accessible via FROM / TO PLC ladder logic instructions.
- Hardware PID Function: Includes built-in PID capabilities for precise, closed-loop temperature control profiles directly from the module.
- Isolated Design: The main power unit and the processing modules are isolated to minimize signal distortion, electrical shocks, and electromagnetic noise.
- Status Indicators: Built-in LED lights map real-time diagnostics for POWER, ERROR, and A/D conversion states.
- Environment: Must be securely installed inside an enclosed control cabinet that is entirely free of airborne dust, heavy humidity, static shock, or high vibration.
- Grounding: The module and the shielded sensor cables must be properly grounded to maintain signal integrity and avoid erratic temperature fluctuations.
-
- Manufacturer: DELTA
- Model / Part Number: DVP04TC-S
- Sensor Compatibility: Supports J, K, R, S, and T-type thermocouples.
- High Resolution: Converts temperature into a 14-bit digital signal.
- Temperature Units: Readings can be formatted in Celsius (0.1°C resolution) or Fahrenheit (0.18°F resolution).
- Fast Response: Features a quick conversion time of 200ms per channel.
- Data Access: The PLC Main Processing Unit (MPU) communicates with this module using standard FROM and TO code instructions.
- Form Factor: Compact, slim design meant for easy DIN rail mounting alongside the main PLC.
- Delta: Temperature Measurement Module (DVP04TC-S)
-

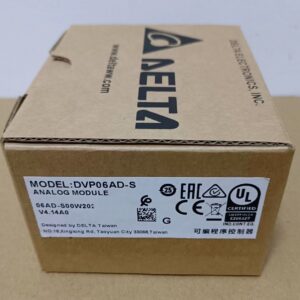

- Manufacturer: DELTA
- Model / Part Number: DVP06AD-S
- Power Supply: 24 VDC (20.4 VDC to 28.8 VDC)
- Analog Inputs: 6 channels (selectable voltage or current via wiring)
- Voltage Input Range: ±10 VDC (Resolution: 1.25mV)
- Current Input Range: ±20 mA (Resolution: 5µA)
- Digital Conversion Range: ±8,000 for Voltage / ±4,000 for Current
- Resolution: 14-bit (Voltage), 13-bit (Current)
- Response Time: ~3 ms
- Power Consumption: 2 W
- Communication: Built-in RS-485 port
- Mounting Type: 35mm DIN Rail (Right-side expansion)
- PLC Communication: The master PLC reads and writes data to the module's 49 control registers (CR) using FROM/TO instructions.
- Isolation: Features optical coupling insulation between the internal PLC digital circuits and the analog inputs.
- Certifications: CE and cULus approved for industrial environments.
- Delta: Analog Input Module (DVP06AD-S) – E-Motion Supply
-

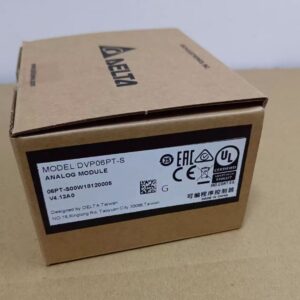

- Manufacturer: DELTA
- Model / Part Number: DVP06PT-S
- Sensor Inputs: 6 channels
- Compatible Sensors: Pt100, Pt1000, Ni100, and Ni1000 RTD sensors.
- Resolution: 0.1 °C or 0.18 °F.
- Overall Accuracy: ±0.6%.
- Conversion Speed: 200ms per channel.
- Form Factor: Slender, space-saving design with a DIN Rail mount and a removable terminal block for easy wiring.
-

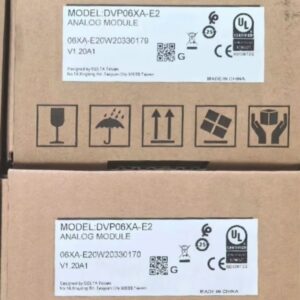

- Manufacturer: DELTA
- Model / Part Number: DVP06XA-E2
- Signal Types: Voltage or Current Voltage or Current
- Voltage Ranges: ±10V, ±5V -10V to +10V
- Current Ranges: 0 to 20mA, 4 to 20mA 0 to 20mA, 4 to 20mA
- Digital Resolution: 14-bit 14-bit
- Digital Conversion Range: -32,000 to +32,000 -32,000 to +32,000 (Voltage)
- Conversion Speed: 400 μs per channel 400 μs per channel
- Impedance / Load: Voltage: 200kΩ
- Current: 250Ω Voltage: 1kΩ to 2MΩ
- Protection: None Voltage output is short-circuit protected
- Programming: You can read and write data to this module using FROM and TO instructions in your PLC code. You can also use the MOV instruction with special registers D9900 to D9999.
- Safety Warning: Never connect AC power to any of the I/O terminals. This will permanently destroy the internal circuits.
- Environment: This is an open-type module. It must be installed inside a clean, dry control cabinet away from dust and heavy vibrations.
-
- Manufacturer: DELTA
- Model / Part Number: DVP06XA-H3
- Series Compatibility: Delta DVP-EH3 Series
- Total Channels: 6 channels (4 inputs and 2 outputs)
- Supply Voltage: 24V DC (acceptable range is 20.4V DC to 28.8V DC)
- Response Time: 1 millisecond (ms)
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Voltage Input Range: ±10V DC
- Resolution: 16-bit (312.5 μV)
- Input Impedance: Above 1M Ohm
- Current Input Range: ±20mA
- Voltage Output Range: ±10V DC
- Current Output Range: 0 to 20mA
- Control Registers: The module features 49 built-in 16-bit control registers.
- PLC Instructions: You must use FROM and TO instructions in your ladder logic program to read data from or write data to the module.
- Programming Tools: This hardware works seamlessly with Delta automation tools like WPLSoft or ISPSoft Programming Software.
-

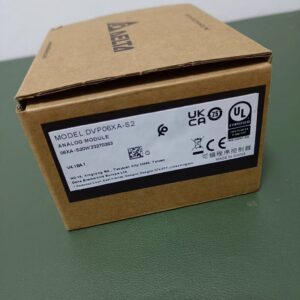

- Manufacturer: DELTA
- Model / Part Number: DVP06XA-S2
- Flexible Signals: It can handle both voltage and current signals on the same unit.
- Input Ranges: Accepts voltage signals from -10V to +10V and current signals from -20mA to +20mA.
- Output Ranges: Sends out voltage signals from 0V to +10V and current signals from 0mA to +20mA.
-
- Manufacturer: DELTA
- Model / Part Number: DVP08SM11N
- Input Capacity: 8 digital input channels (8DI).
- Power Supply: Operates on a 24VDC system with a very low power consumption of about 1 Watt.
- Response Time: Fast 10ms signal response time for quick real-time control.
- Mounting style: Standard DIN Rail mounting, which allows it to easily snap onto a metal rail inside an electrical control box.
- Size and Weight: Extremely slim and lightweight, measuring roughly 25.2 x 90 x 60 mm and weighing around 60 grams.
- Main Controllers: It is designed to plug directly into the right side of Delta’s slim main controller units (MPUs), such as the SS, SA, SX, SC, and SV series.
-

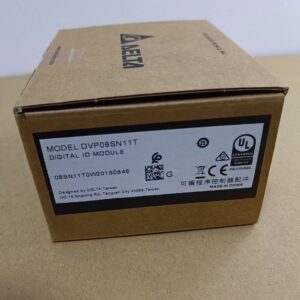

- Manufacturer: DELTA
- Model / Part Number: DVP08SN11T
- Output Type: 8 Transistor NPN (Sinking / Solid State)
- Voltage Rating: 24 VDC (Acceptable range: 20.4 VDC to 28.8 VDC)
- Current Rating: 0.3A per single point / 2A maximum total per common contact
- Maximum Voltage: Outputs are rated up to 30 VDC
- Mounting Type: DIN Rail
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Compatibility: Clips onto the right side of Delta DVP-SS, DVP-SS2, DVP-SA, DVP-SX, or DVP-SC main units.
- No External Data Cable: It clips directly onto the side of your main PLC brain box. It uses a special hidden connection on the side to talk to the main unit.
- Power Share: It draws its power directly from the main unit's internal bus power. This keeps installation neat and fast.
- Sinking Style Output: Because it uses NPN transistor outputs, it acts like a ground switch to turn your devices on and off.
-

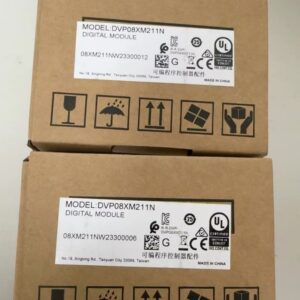

- Manufacturer: DELTA
- Model / Part Number: DVP08XM211N
- Module Type: Digital Input Expansion Module
- Input Points: 8 Inputs (Digital Only, No Outputs)
- Voltage Rating: 24 VDC
- Power Consumption: 0.5W Max (Power is typically derived directly from the main PLC unit)
- Mounting Style: DIN Rail or Chassis Mount
- Termination: Plug-in terminal blocks
- Dimensions: 90 mm (Height) x 60 mm (Depth)
-

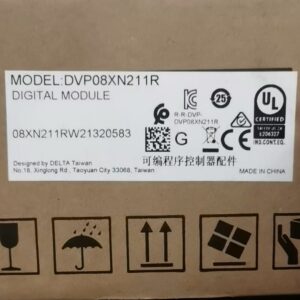

- Manufacturer: DELTA
- Model / Part Number: DVP08XN211R
- Output Type: It features 8 relay channels, allowing it to handle both alternating current (AC) and direct current (DC) loads.
- Electrical Load Capacity: Each relay can handle a maximum resistive load of 2.0 Amps at 250 Volts AC (50/60Hz) or 30 Volts DC.
- Power Supply: The module itself requires a 24VDC power input to function and consumes very little energy (about 1.2 Watts).
- Mounting: It features standard DIN rail mounting for quick assembly inside industrial electrical panels.
