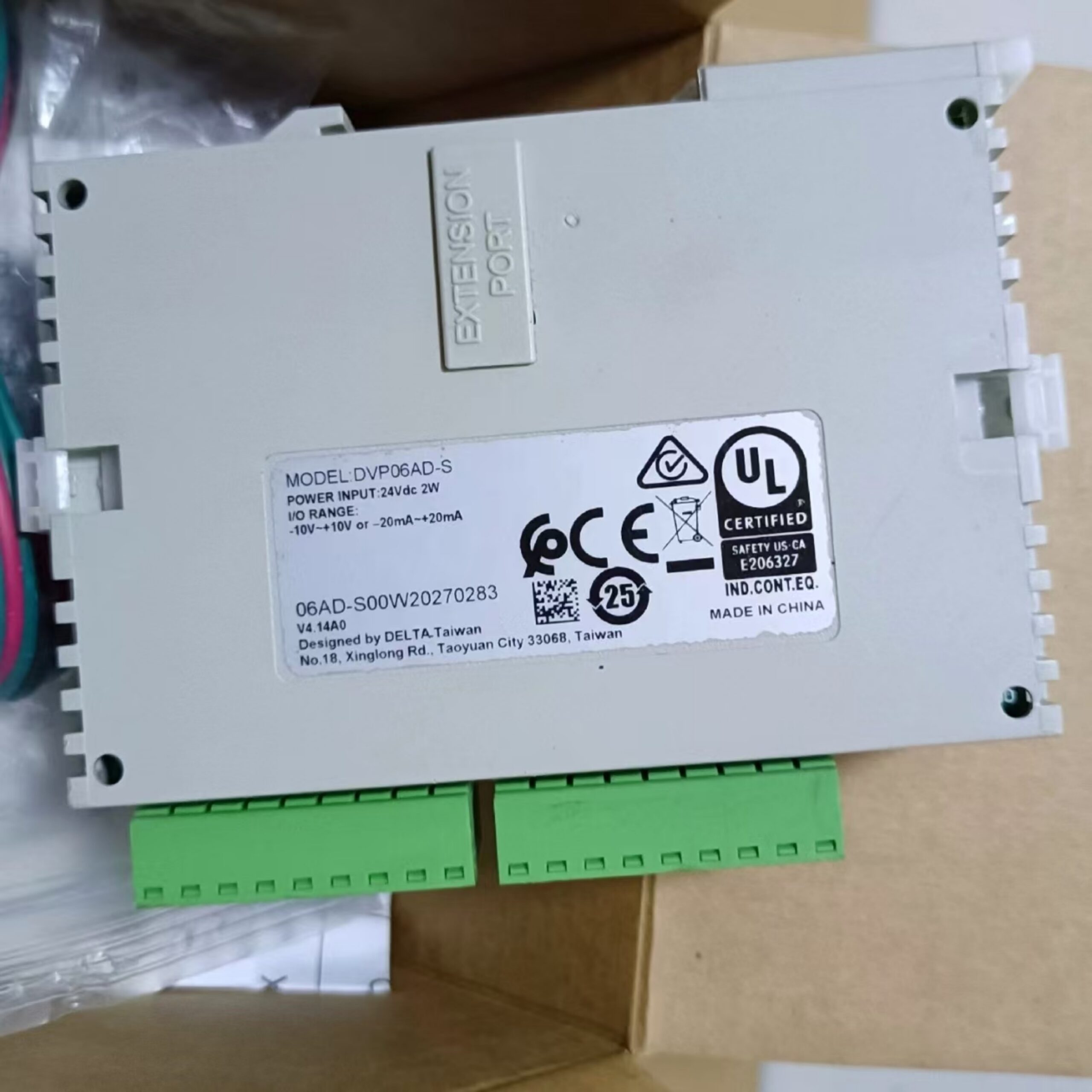

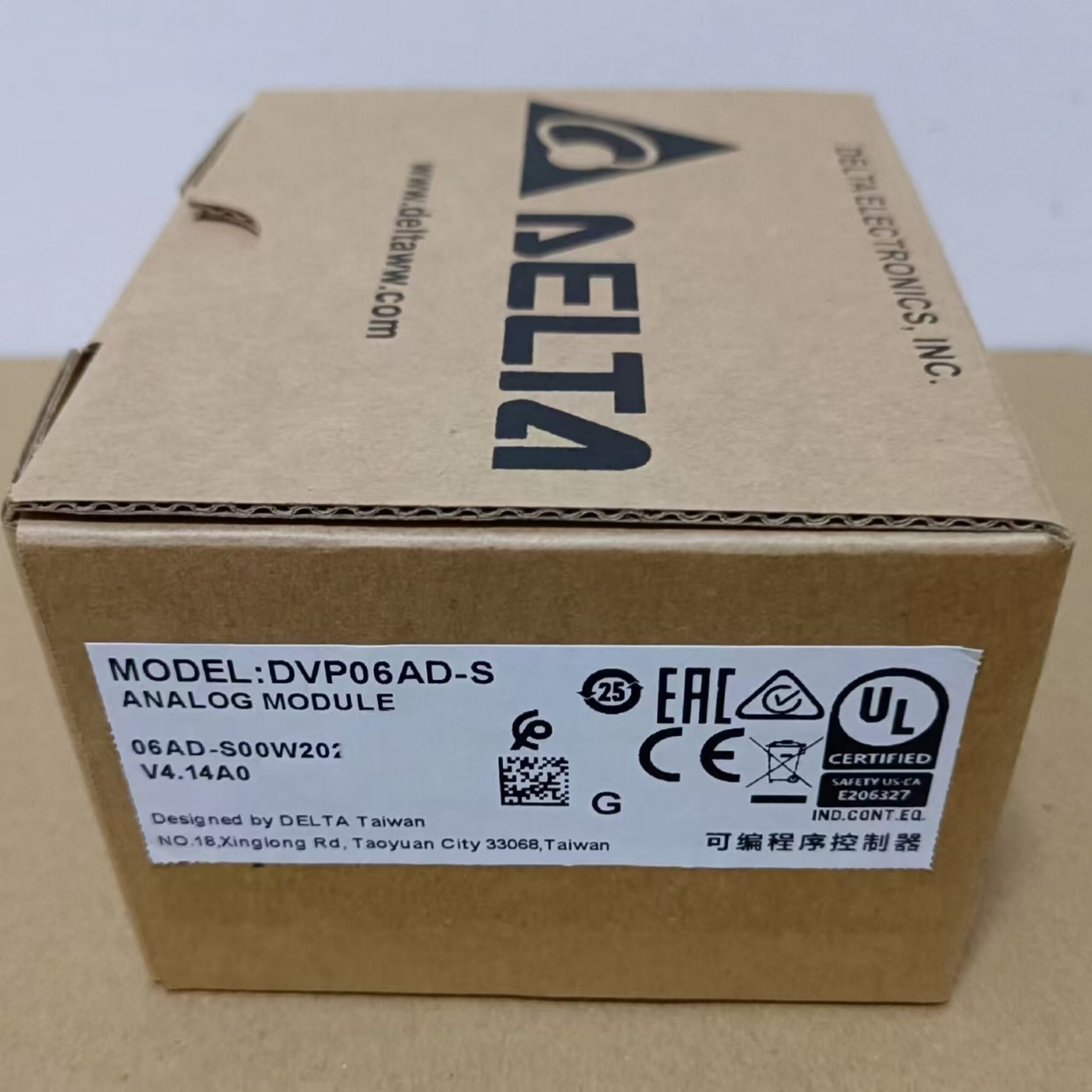

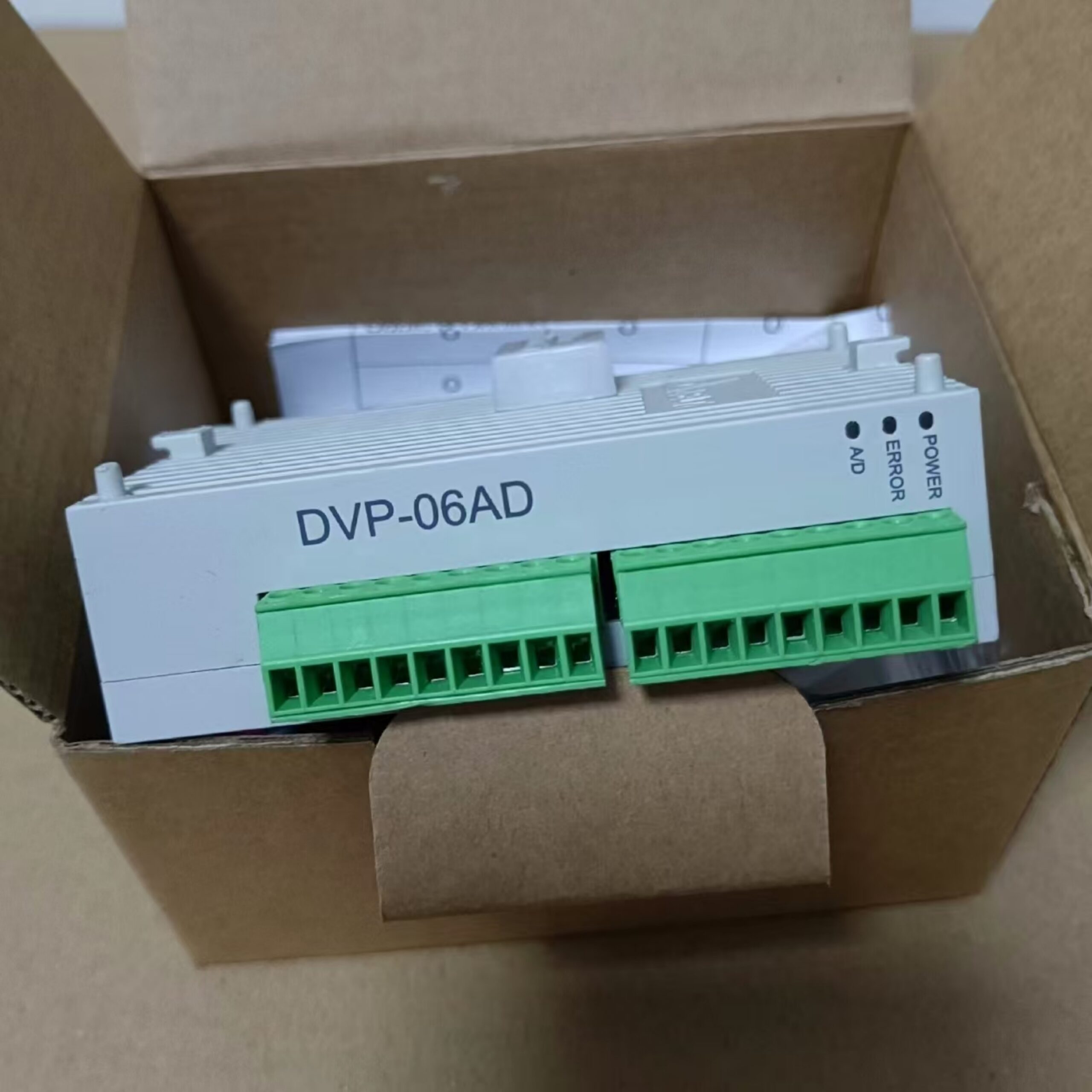

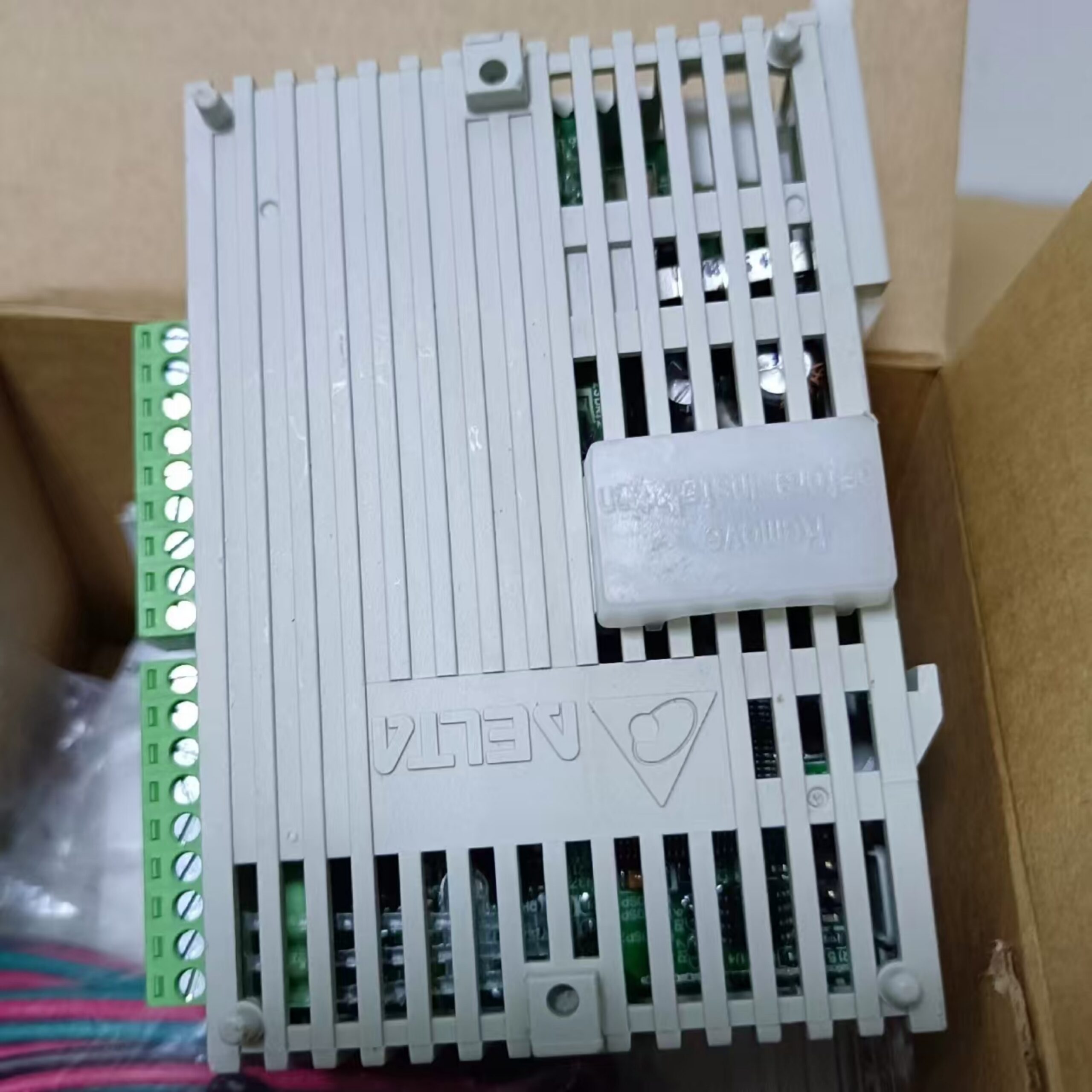

DELTA DVP06AD-S Analog Input Expansion Module
- Manufacturer: DELTA
- Model / Part Number: DVP06AD-S
- Power Supply: 24 VDC (20.4 VDC to 28.8 VDC)
- Analog Inputs: 6 channels (selectable voltage or current via wiring)
- Voltage Input Range: ±10 VDC (Resolution: 1.25mV)
- Current Input Range: ±20 mA (Resolution: 5µA)
- Digital Conversion Range: ±8,000 for Voltage / ±4,000 for Current
- Resolution: 14-bit (Voltage), 13-bit (Current)
- Response Time: ~3 ms
- Power Consumption: 2 W
- Communication: Built-in RS-485 port
- Mounting Type: 35mm DIN Rail (Right-side expansion)
- PLC Communication: The master PLC reads and writes data to the module's 49 control registers (CR) using FROM/TO instructions.
- Isolation: Features optical coupling insulation between the internal PLC digital circuits and the analog inputs.
- Certifications: CE and cULus approved for industrial environments.
- Delta: Analog Input Module (DVP06AD-S) – E-Motion Supply
- SKU: DVP06AD-S
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
