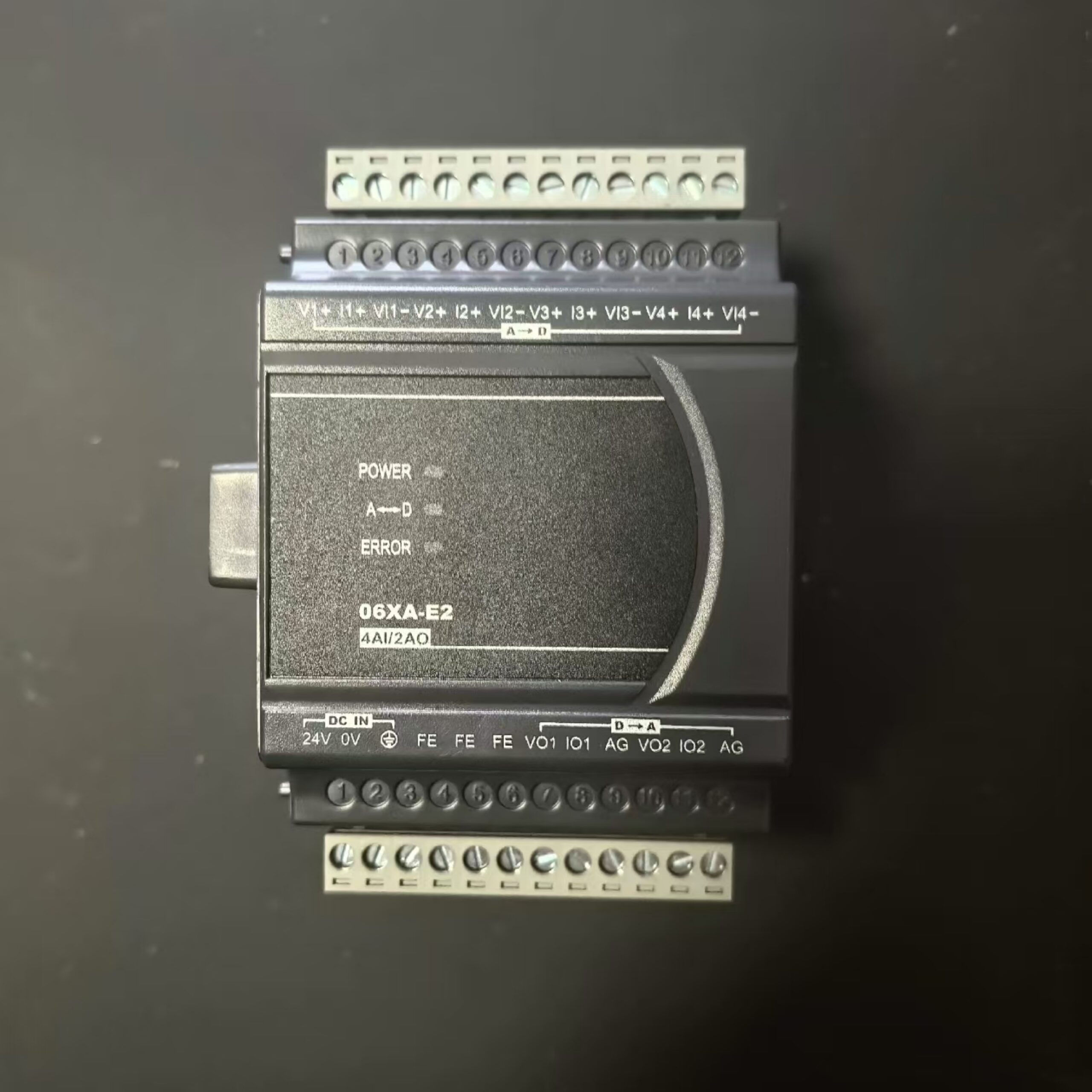

DELTA DVP06XA-E2 Mixed Analog Input/Output Expansion Module
- Manufacturer: DELTA
- Model / Part Number: DVP06XA-E2
- Signal Types: Voltage or Current Voltage or Current
- Voltage Ranges: ±10V, ±5V -10V to +10V
- Current Ranges: 0 to 20mA, 4 to 20mA 0 to 20mA, 4 to 20mA
- Digital Resolution: 14-bit 14-bit
- Digital Conversion Range: -32,000 to +32,000 -32,000 to +32,000 (Voltage)
- Conversion Speed: 400 μs per channel 400 μs per channel
- Impedance / Load: Voltage: 200kΩ
- Current: 250Ω Voltage: 1kΩ to 2MΩ
- Protection: None Voltage output is short-circuit protected
- Programming: You can read and write data to this module using FROM and TO instructions in your PLC code. You can also use the MOV instruction with special registers D9900 to D9999.
- Safety Warning: Never connect AC power to any of the I/O terminals. This will permanently destroy the internal circuits.
- Environment: This is an open-type module. It must be installed inside a clean, dry control cabinet away from dust and heavy vibrations.
- SKU: DVP06XA-E2
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
