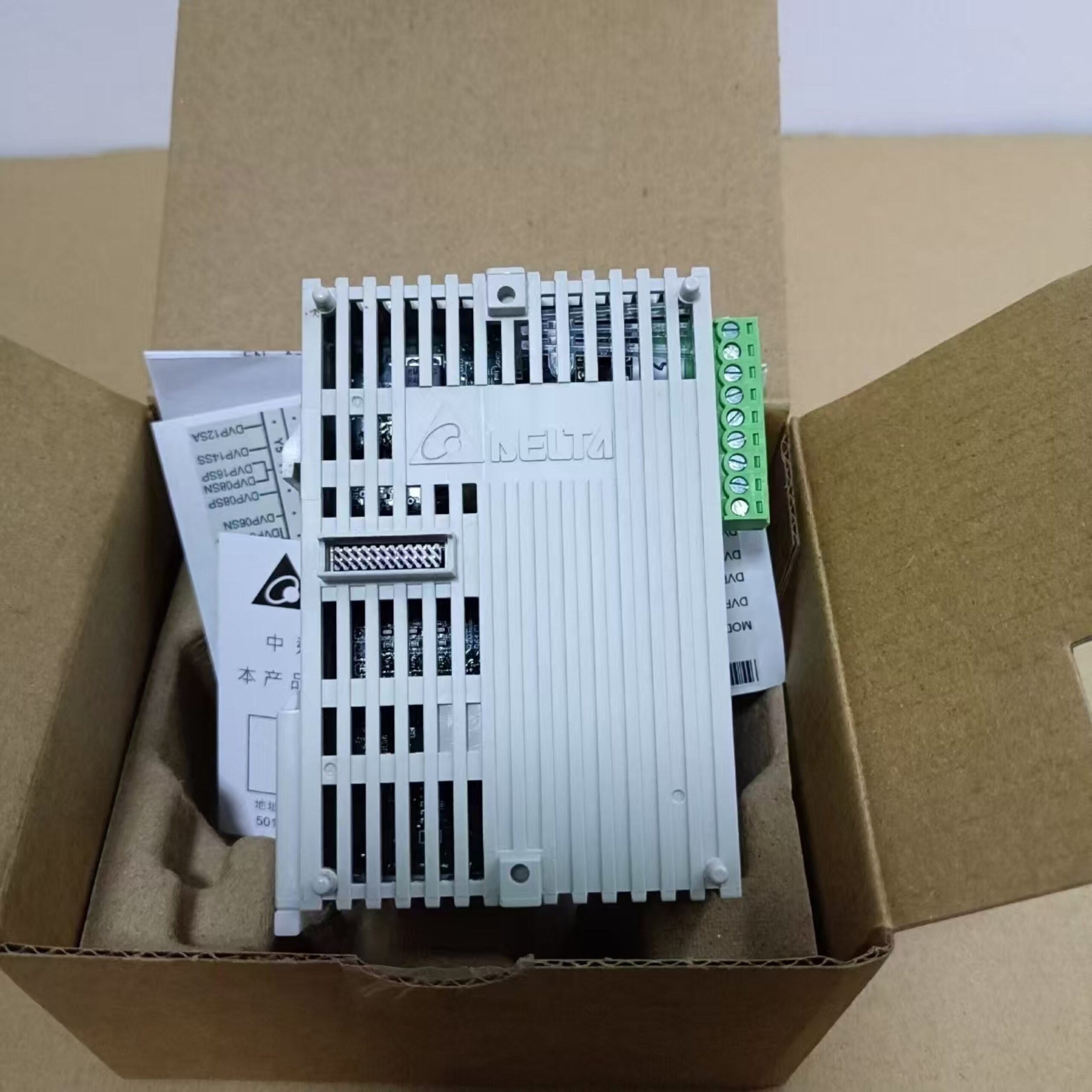

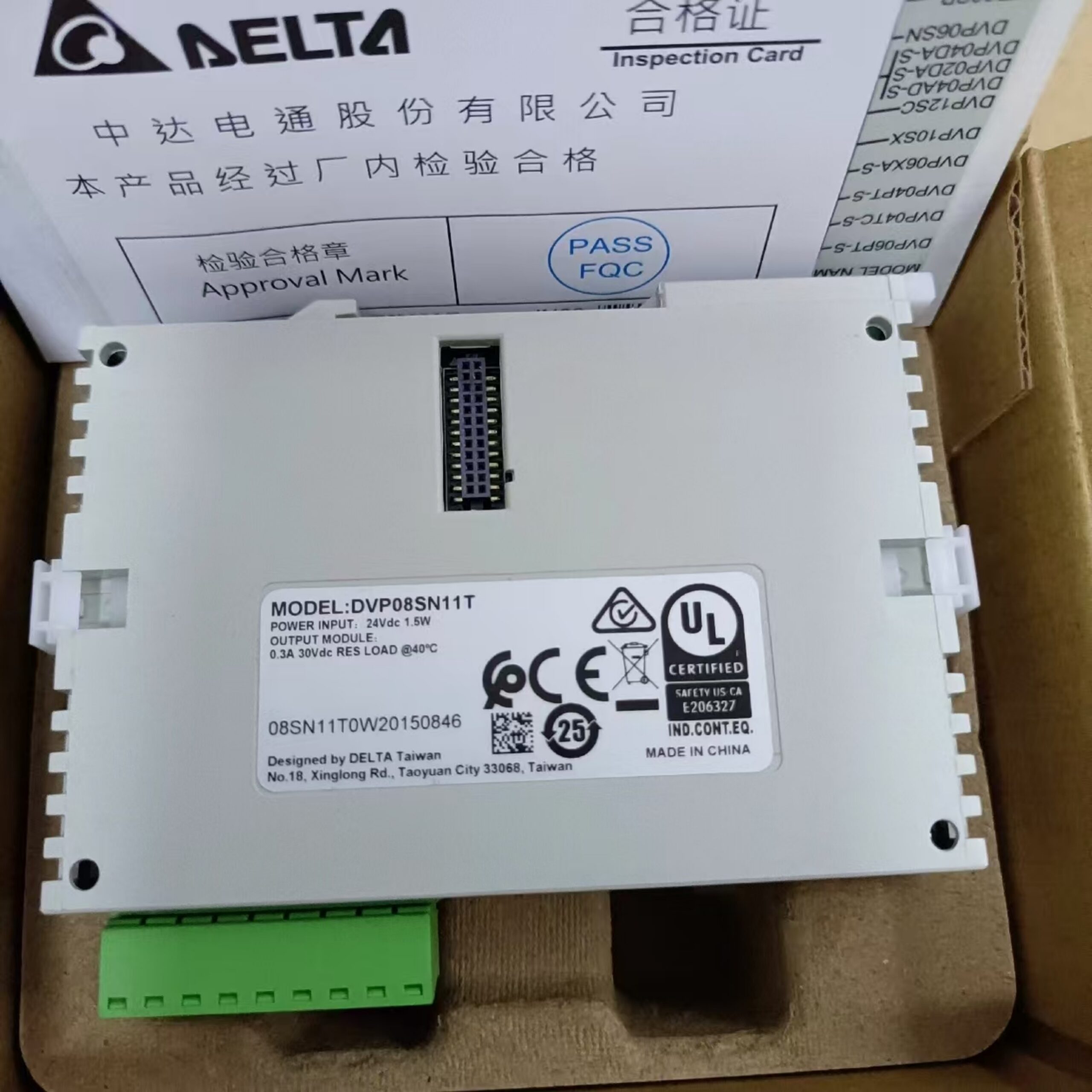

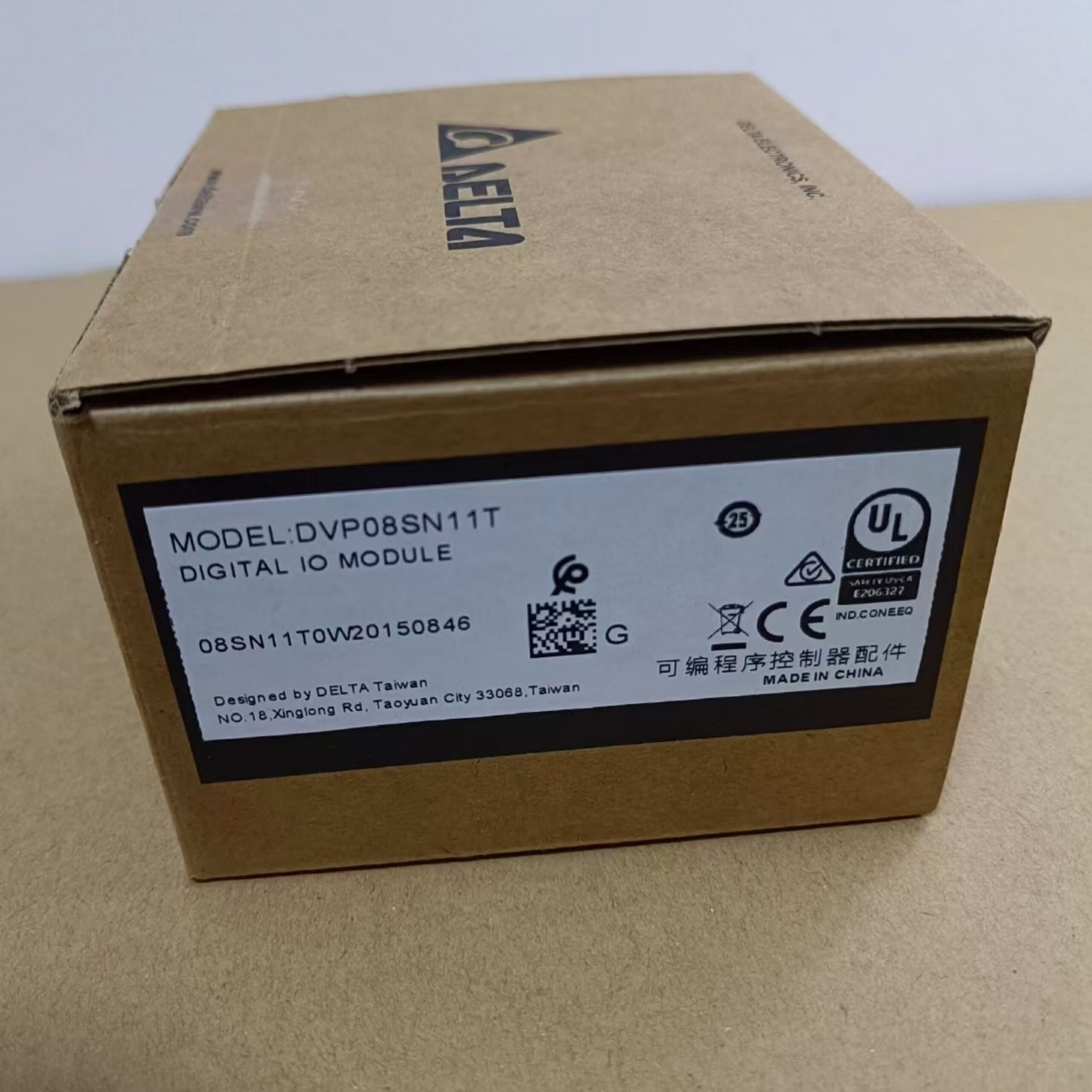

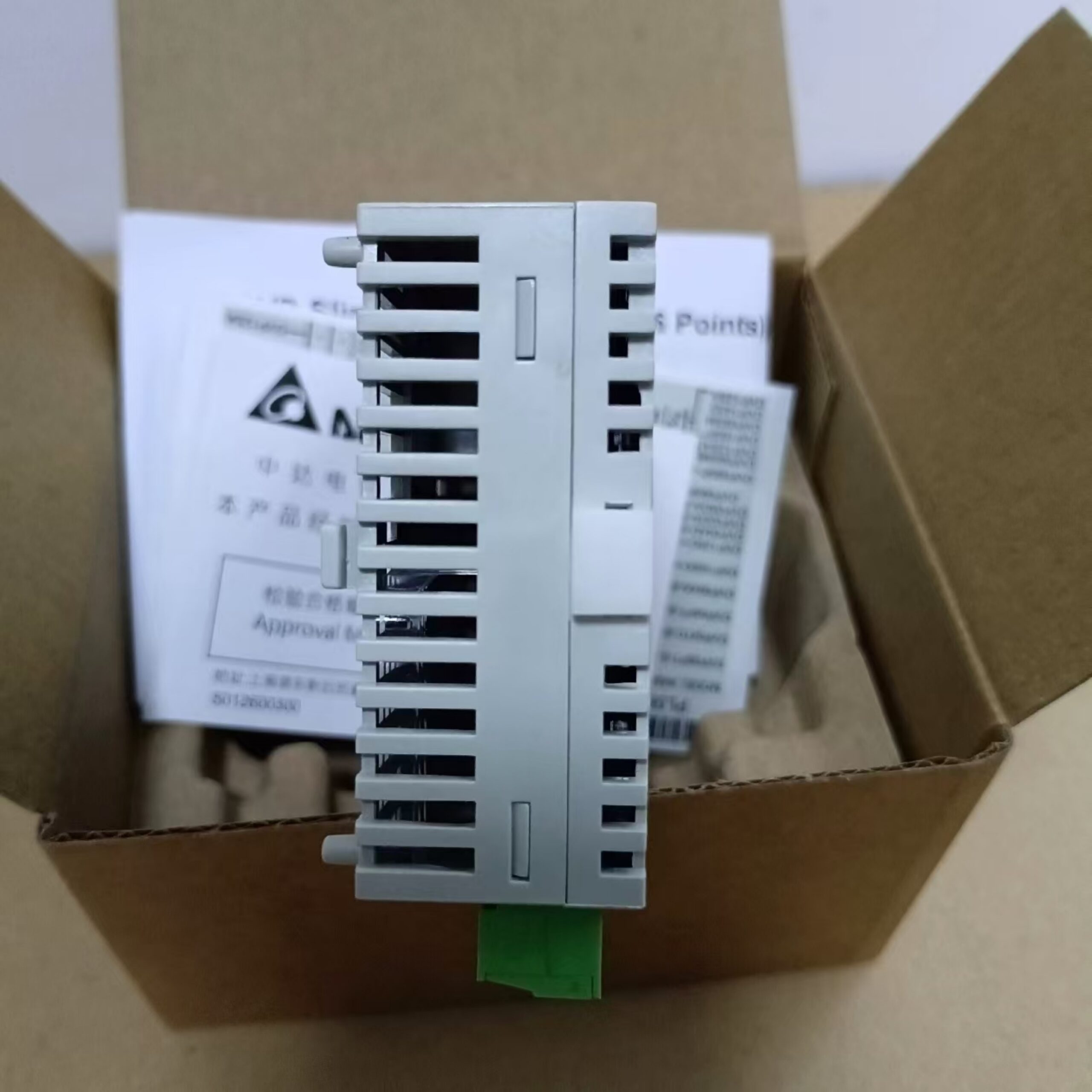

DELTA DVP08SN11T Digital Output Expansion Module
- Manufacturer: DELTA
- Model / Part Number: DVP08SN11T
- Output Type: 8 Transistor NPN (Sinking / Solid State)
- Voltage Rating: 24 VDC (Acceptable range: 20.4 VDC to 28.8 VDC)
- Current Rating: 0.3A per single point / 2A maximum total per common contact
- Maximum Voltage: Outputs are rated up to 30 VDC
- Mounting Type: DIN Rail
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Compatibility: Clips onto the right side of Delta DVP-SS, DVP-SS2, DVP-SA, DVP-SX, or DVP-SC main units.
- No External Data Cable: It clips directly onto the side of your main PLC brain box. It uses a special hidden connection on the side to talk to the main unit.
- Power Share: It draws its power directly from the main unit's internal bus power. This keeps installation neat and fast.
- Sinking Style Output: Because it uses NPN transistor outputs, it acts like a ground switch to turn your devices on and off.
- SKU: DVP08SN11T
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
