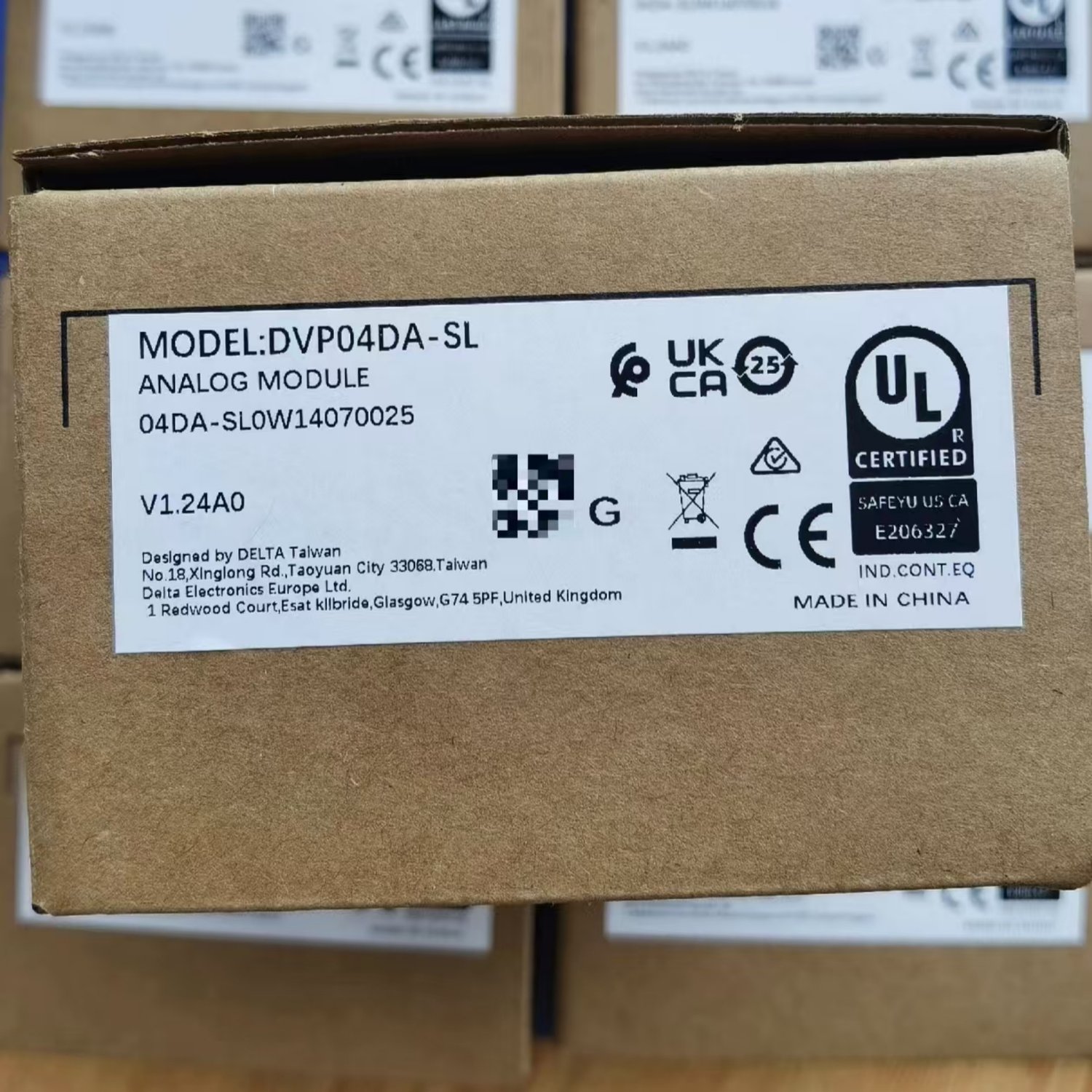

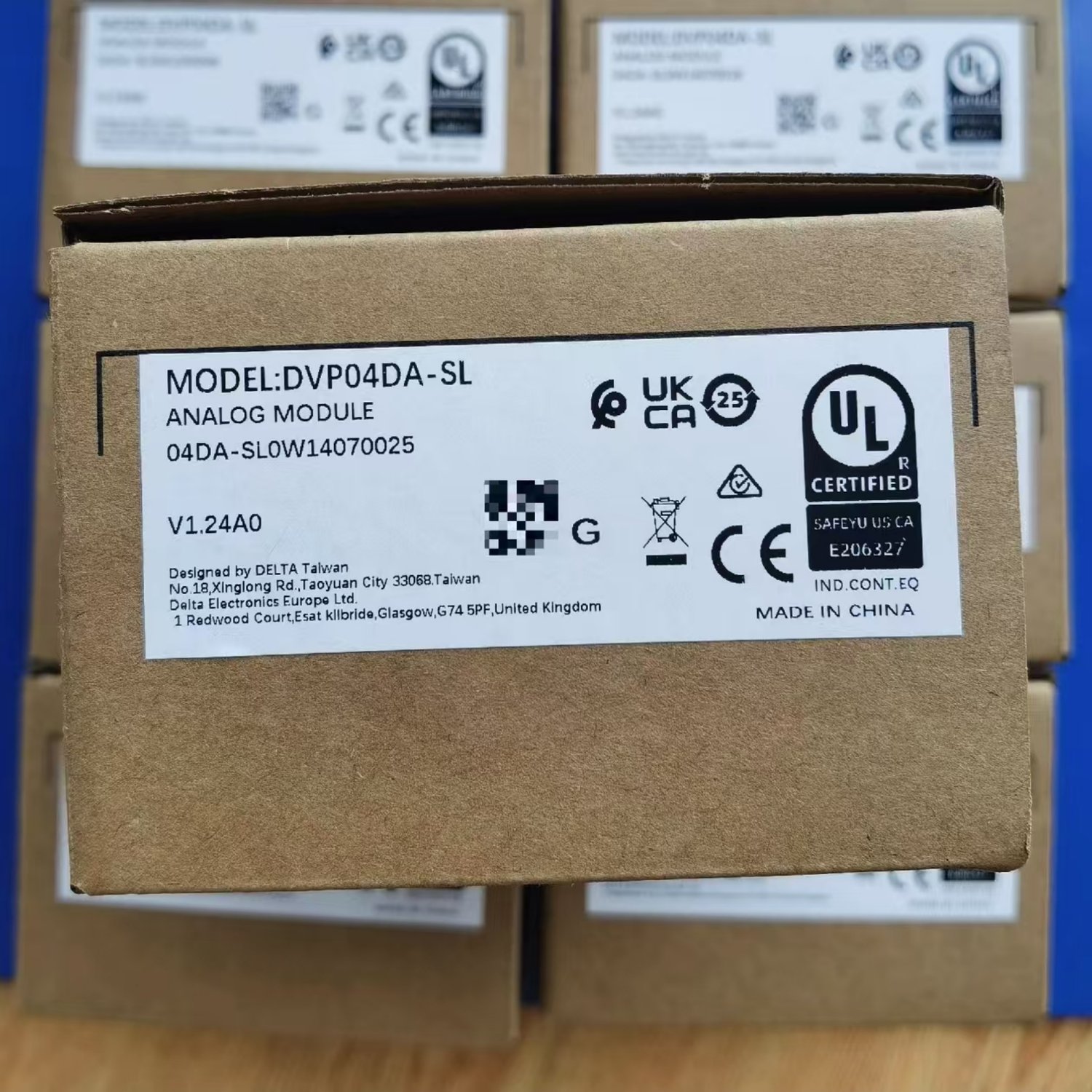

DELTA DVP04DA-SL Analog Output Module
- Manufacturer: DELTA
- Model / Part Number: DVP04DA-SL
- Output Channels: 4 independent channels (CH1 to CH4).
- Voltage: -10V to +10V.
- Current: 0 to 20mA / 4 to 20mA.
- Power Supply: +24VDC (-15% to +20%), consuming roughly 3.5W.
- Module Position: It is a Left-Side (SL) High-Speed Module, meaning it mounts to the left of compatible DVP-series PLC CPUs (such as the DVP-SV or DVP-SX2 series) for high-speed data transmission via the parallel bus.
- Wiring Connection: Equipped with a convenient, removable terminal block.
- Instruction: Configurations and data writes are executed using the TO instruction in ladder logic.
- Addressing: Because it connects to the left side of the CPU, its special module position index typically starts at 100 (e.g., 100 for the first left-side module, 101 for the second).
- Registers: Specific registers control the output mode settings (voltage vs. current) and hold the digital values to be converted into analog signals.
- SKU: DVP04DA-SL
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
