Showing 17–28 of 28 results
-
- Manufacturer: FANUC
- Model / Part Number: A20B-3300-0170
- Component Type: CPU Control Board / Module
- Processor Architecture: MMX-based CPU
- Weight: Approximately 0.98 lbs (0.44 kg)
- Memory Integration: Includes a dedicated slot for a DRAM memory module expansion
- Form Factor: Plug-in printed circuit board (PCB) designed for modular rack slots
- CNC Controllers: It is primarily utilized in FANUC Series 16i, 18i, and 21i (Model A) controller systems.
- Variant Models: Commonly found in F16iS and F18iS configurations.
- Motherboard Pairing: It typically plugs directly into main standalone motherboards like the A16B-3200-042x or A20B-8100-013x series.
-
REQUEST A QUOTE
- Part Number: A660-2004-T411
- Length: 10 Meters (10M)
- Connector Type: 20-pin MR-style male connector to the pendant interface
- Cable Properties: Shielded (to protect against electrical noise/interference), oil-resistant, dust-resistant, and built for heavy handling in high-flex factory environments.
- Compatible Controllers: R-J3 and R-J3iB
- Common Robot Models: Arc Mate 100i, Arc Mate 120i, M-6i, M-16i, M-710i, R-2000i, S-420i, and LR Mate 100i.
- Details: Includes a 30-day return policy and standard factory testing.
- Details: Guarantees OEM-spec industrial shielding and exact 20-pin alignment.
FANUC A660-2004-T411 10M Teach Pendant Cable (A660 Series).
-
REQUEST A QUOTE
- Signal Type: Incremental
- Resolution: 100 pulses per revolution (PPR), outputting standard two-phase quadrature signals (A/B phases)
- Power Supply: DC 5V (standard TTL line-driver level compatible with FANUC controllers)
- Shaft Design: Tapered and keyed shaft configuration for steady, slip-free physical integration without an external mounting flange
- Dimensions: Approximately 4.5 × 3.5 × 2.5 inches (114.3 × 88.9 × 63.5 mm)
- Weight: 1.45 lbs (0.66 kg)
- Direct Legacy Replacements: It directly supersedes model numbers A860-0201-T002, A860-0202-T001, A860-0202-T002, and A860-0202-T003.
- Cross-Brand Equivalent: It functions identically to the industry-standard Tosoku RE46A1 handwheel encoder.
- Pinout Verification: Before replacing an older A860-0202 series wheel, confirm your terminal block arrangements. While the internal 100 PPR A/B quad-phase logic matches, pin designations on legacy wire bundles can differ slightly.
- Voltage Safety: Ensure the terminal board is restricted to a clean 5V DC loop. Do not hook this up to standard 24V I/O power, as overvoltage will permanently blow out the internal line-driver differential chips.
FANUC A860-0203-T001 Manual Pulse Generator (A860 Series).
-

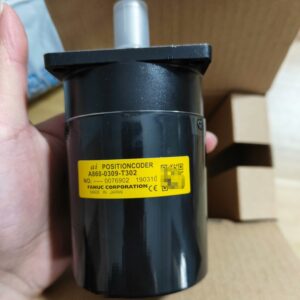

- Manufacturer: FANUC
- Model / Part Number: A860-0309-T302
- Resolution: 1,024 Pulses/Rev (Quadrature Encoder)
- Maximum Speed: 10,000 RPM
- Mounting Type: 68mm Square Flange (50mm center alignment)
- Connection: Integrated 17-pin electrical connector
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Humidity Limits: Up to 80% non-condensing relative humidity
- Weight: Approximately 1.15 lbs (0.6 kg)
-
- Manufacturer: FANUC
- Model / Part Number: A860-2000-T301
- Series Designation: α iA1000 (α1000iA) series.
- Resolution: 1,000,000 divisions per single motor revolution for extreme cutting accuracy.
- Mechanical Interface: Built with an Oldham-type coupling to help handle tiny shaft misalignments.
- Electrical Connection: A keyed 10-pin circular connector (receptacle model JN2AS10UL1-R).
- Position Backup: Uses a built-in capacitor that holds the memory for about 10 minutes. This gives you time to change the main system batteries without losing your position data.
- Environmental Protection: Rated at IP65 to shield internal electronics from heavy workshop dust and liquids.
-

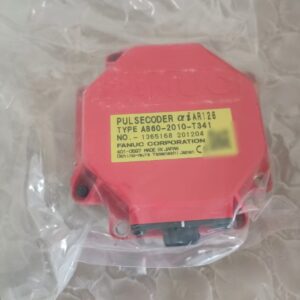

- Manufacturer: FANUC
- Model / Part Number: A860-2010-T341
- Part Number: A860-2010-T341 (also replaces legacy part number A860-2014-T301)
- Model / Technology: Sealed ALPHA i-A 128 / aiAR128
- Component Type: Rotary Absolute Pulse Coder / Encoder
- Resolution: 128 PPR (Pulses Per Revolution) / High-resolution quadrature output
- Operating Voltage: 5 VDC
- Electrical Interface: 8-pin connector
-
REQUEST A QUOTE
- Component Type: Absolute Pulse Coder / Rotary Encoder
- Encoder Model: Beta 128iA (β iA128)
- Environmental Rating: IP67 Waterproofed (Features an integrated O-ring in the flange groove for wet machining environments)
- Connection Interface: 10-Pin Circular Connector
- Physical Weight: Approximately 0.64 lbs / 0.29 kg
FANUC A860-2020-T321 Absolute Pulse Coder (βi Series).
-
REQUEST A QUOTE
- Encoder Type: Absolute Pulse Encoder / Pulse Coder (Beta i A128 / BiSc System)
- Rated Voltage: 5 V
- Rated Current: 0.1 A
- Connector Type: Integrated male plug connection
- Compatibility: Designed for FANUC AC Servo Motor Beta models. The newer flat-profile design variant maintains backward compatibility with older form factors.
- Country of Origin: Japan
FANUC A860-2020-T361 Absolute Pulse Encoder (βi Series).
-
REQUEST A QUOTE
- Manufacturer: FANUC (Japan)
- Model / Part Number: A860-2051-T321 (Also written as A8602051T321)
- Component Type: Electromechanical Rotary Encoder (Pulsecoder)
- Feedback Technology: Optical Sensing
- Encoding Type: Absolute (α i A32000) — retains position data through power cycles
- Application Ecosystem: FANUC α i-B Series Servo Motors & CNC Systems
- Output / Signal Type: Digital
- Termination Type: Integrated Cable
- Mounting & Actuator: Surface Mount / Shaft
- Estimated Weight: ~1.00 to 2.00 lbs (~0.45 to 0.91 kg)
FANUC A860-2051-T321 Absolute Motor Pulsecoder (αi A32000).
-
REQUEST A QUOTE
Technical Specifications
- Model/Type: β iA1000 Absolute Pulse Coder
- Encoding Type: Absolute (retains machine position data via backup battery/system parameters)
- Sensing Technology: Optical
- Mounting/Shaft Type: Tapered shaft mounting
- Output Signal: Digital, differential A/B/Z outputs
- Weight: Approximately 1.54 lbs (0.70 kg)
- Terms: Sold in new condition; explicitly noted as a non-returnable part.
- Standout Feature: Comprehensive coverage and speed.
FANUC A860-2070-T321 Absolute Pulse Coder (βi A1000).
-
- Manufacturer: FANUC
- Model / Part Number: A860-2070-T371
- Manufacturer: FANUC (Made in Japan)
- Part Number: A860-2070-T371
- Component Type: Absolute Pulse Coder / Rotary Encoder
- Series / Feedback Type: Beta iA 1000 (BiA1000)
- Resolution: 1000 to 2048 pulses/counts per revolution (depending on the specific CNC controller system configuration)
- Operating Voltage: 5V DC
- Output Signals: Differential A/B/Z phase signals using FANUC's dedicated serial feedback interface
- Thermal Sensor: None (Built without an integrated thermal sensor)
- Housing Material: Metal casing, usually featuring a distinctive red cover
- Servo Motors: Fits directly onto FANUC Beta i series model B servo motors (specifically from the biS4/3000-B series up through bi4, bi8, bi12, and bi22 motor variants).
-
REQUEST A QUOTE
- Manufacturer: FANUC (Japan)
- Part Number: A860-2150-V001
- Sensor Type: BZI Sensor (Built-in ZI) Head Assembly
- Output Signal: Analog Pulse Transmission
- Gear/Teeth Resolution: 512 Teeth / Pulses
- Cable Length: 1.2 Meters (~3.94 feet)
- Mounting Style: Flange Mount (Direct motor-mounted)
- Physical Weight: ~0.60 lbs / 0.27 kg
- Motor Compatibility: FANUC α i and α iBZ Series AC Spindle Motors
- Harmonized Code (HS): 85030090
FANUC A860-2150-V001 Spindle Encoder (αi BZ).
