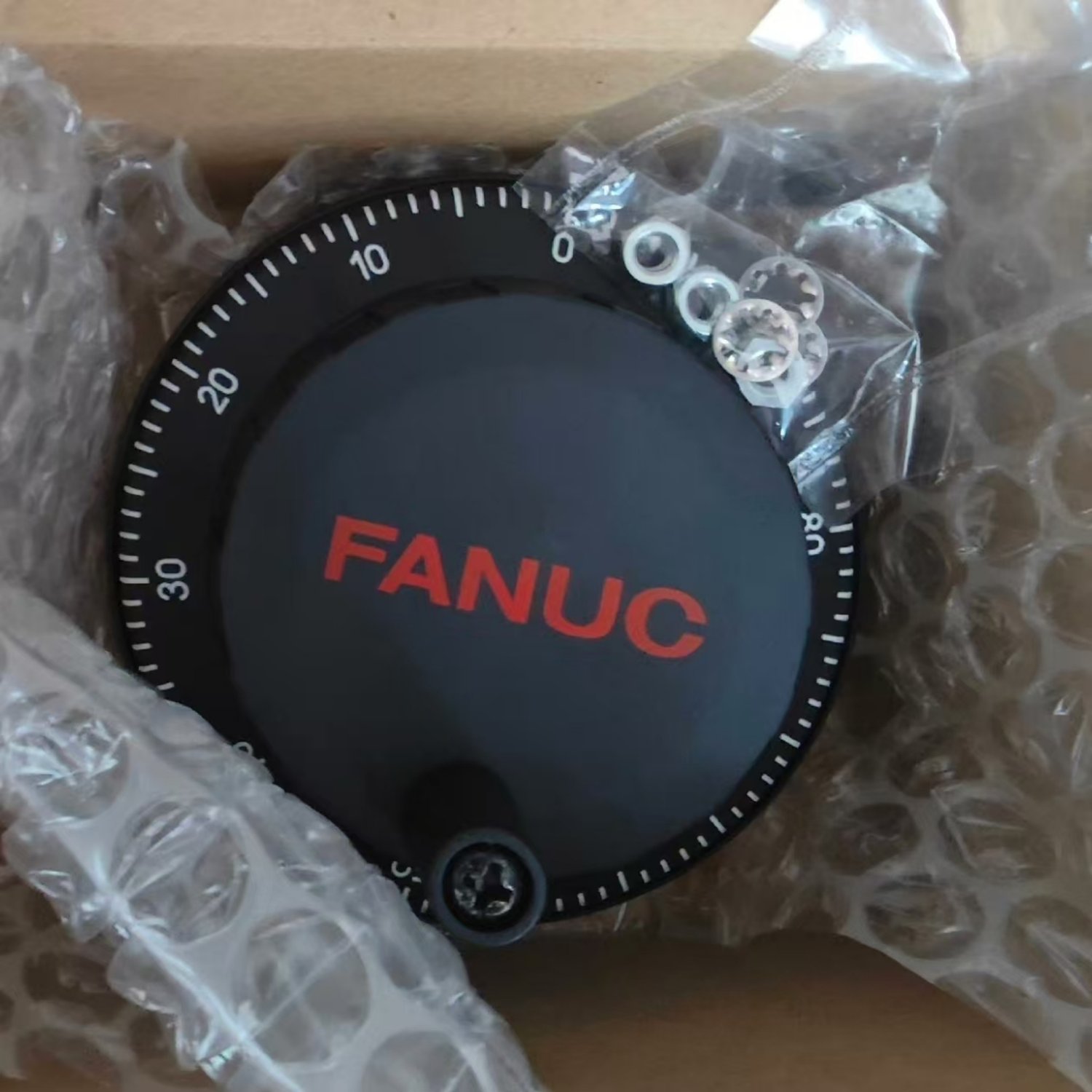

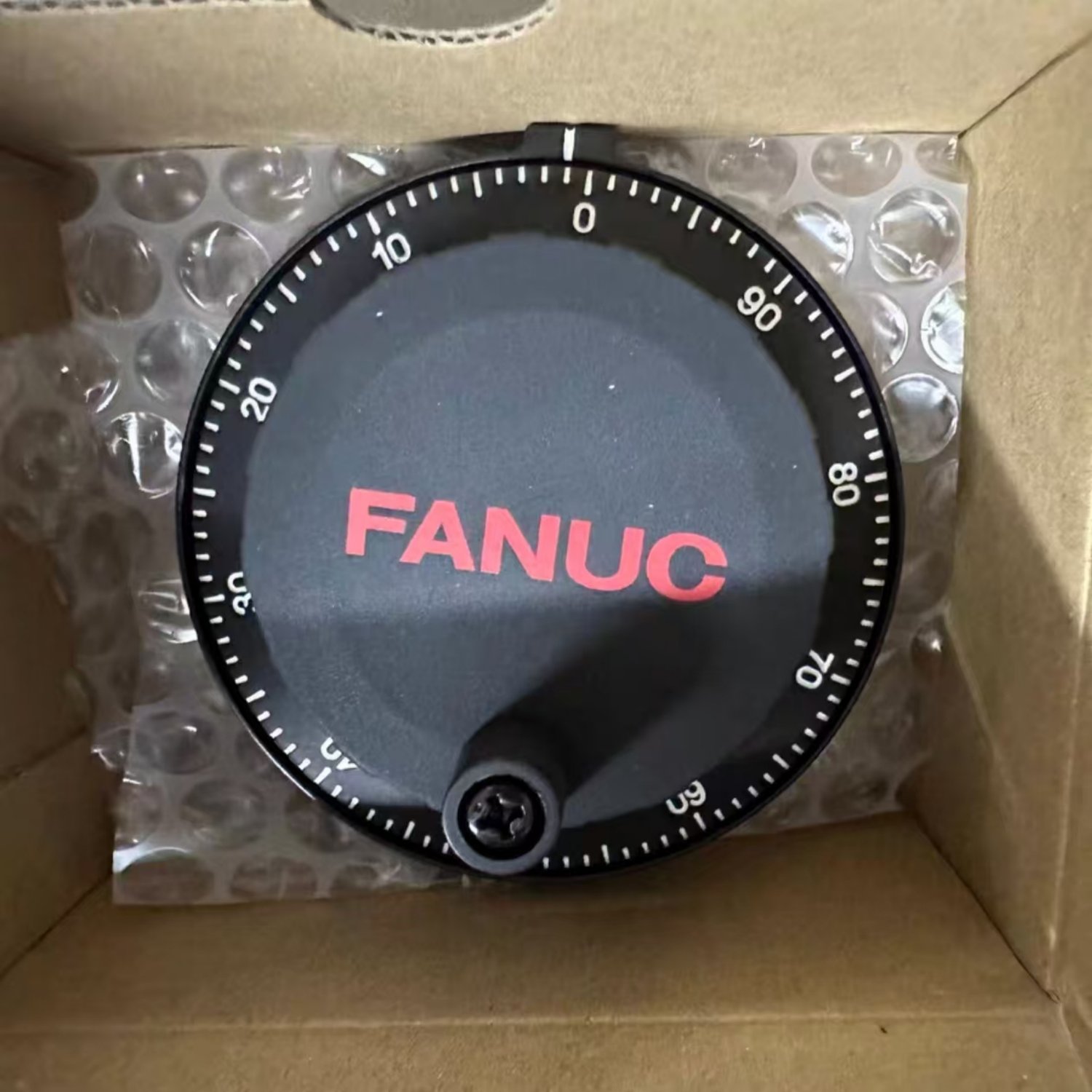

FANUC A860-0203-T001 Manual Pulse Generator (A860 Series)

• Signal Type: Incremental
• Resolution: 100 pulses per revolution (PPR), outputting standard two-phase quadrature signals (A/B phases)
• Power Supply: DC 5V (standard TTL line-driver level compatible with FANUC controllers)
• Shaft Design: Tapered and keyed shaft configuration for steady, slip-free physical integration without an external mounting flange
• Dimensions: Approximately 4.5 × 3.5 × 2.5 inches (114.3 × 88.9 × 63.5 mm)
• Weight: 1.45 lbs (0.66 kg)
• Direct Legacy Replacements: It directly supersedes model numbers A860-0201-T002, A860-0202-T001, A860-0202-T002, and A860-0202-T003.
• Cross-Brand Equivalent: It functions identically to the industry-standard Tosoku RE46A1 handwheel encoder.
• Pinout Verification: Before replacing an older A860-0202 series wheel, confirm your terminal block arrangements. While the internal 100 PPR A/B quad-phase logic matches, pin designations on legacy wire bundles can differ slightly.
• Voltage Safety: Ensure the terminal board is restricted to a clean 5V DC loop. Do not hook this up to standard 24V I/O power, as overvoltage will permanently blow out the internal line-driver differential chips.

Brand New FANUC A860-0203-T001 Handwheel. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
