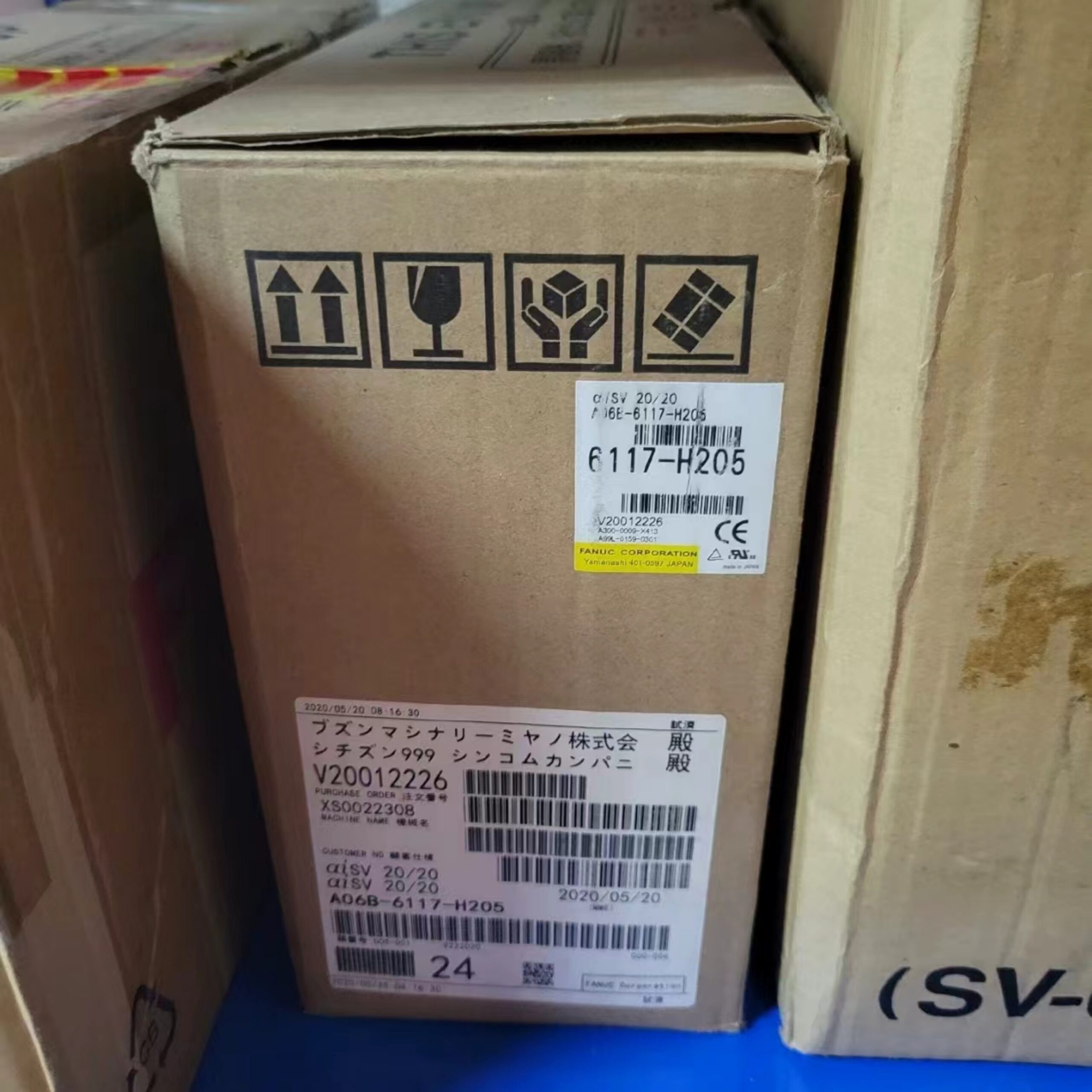

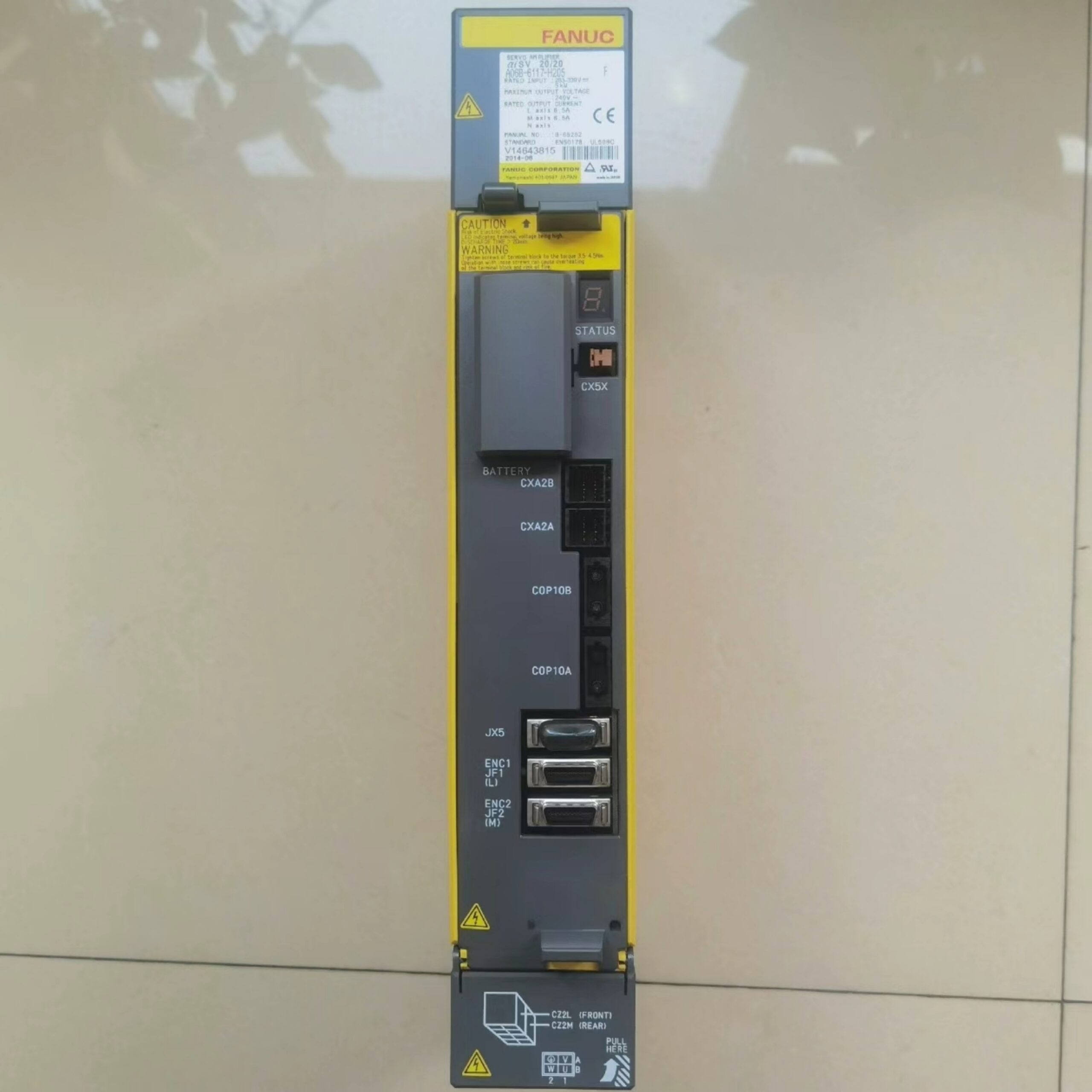

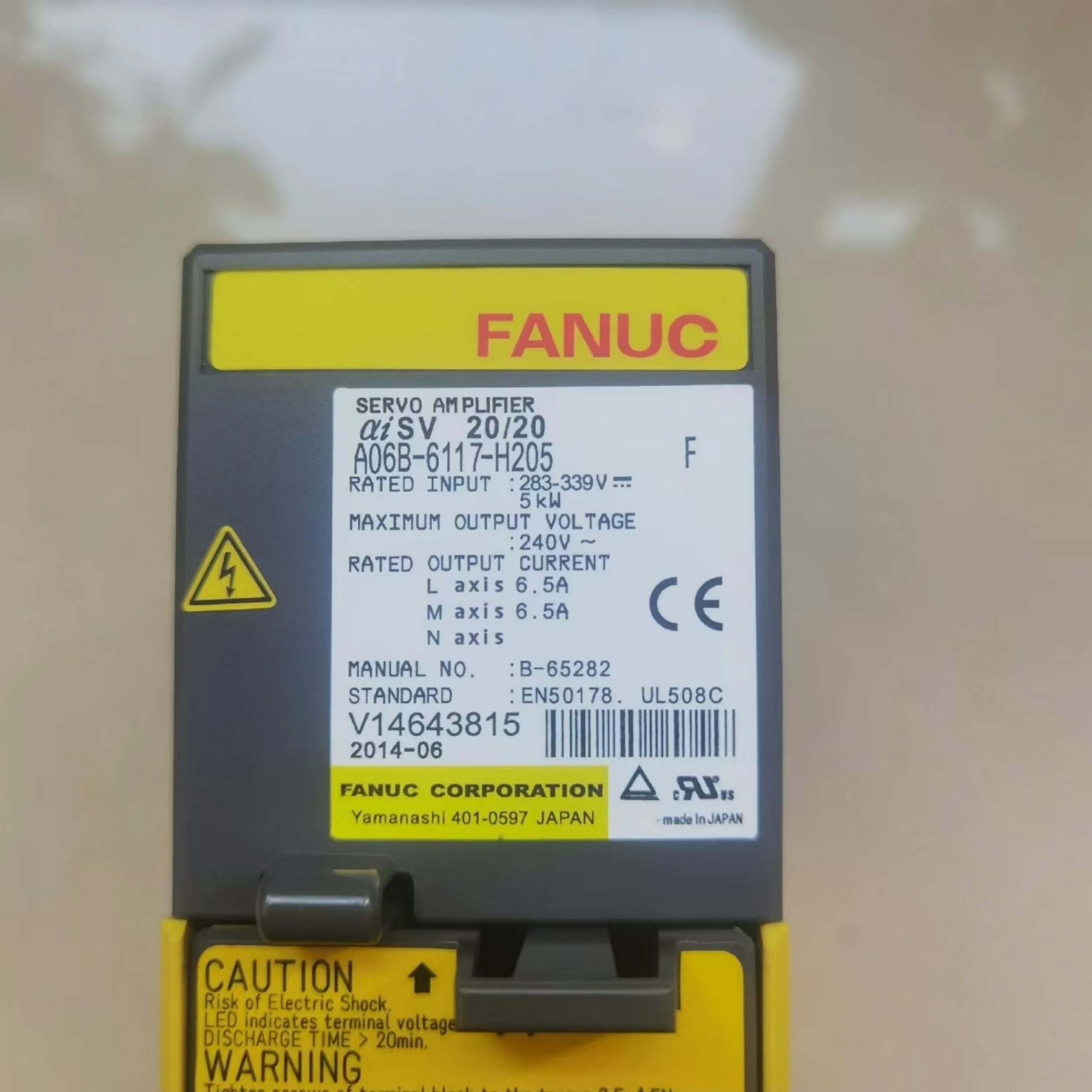

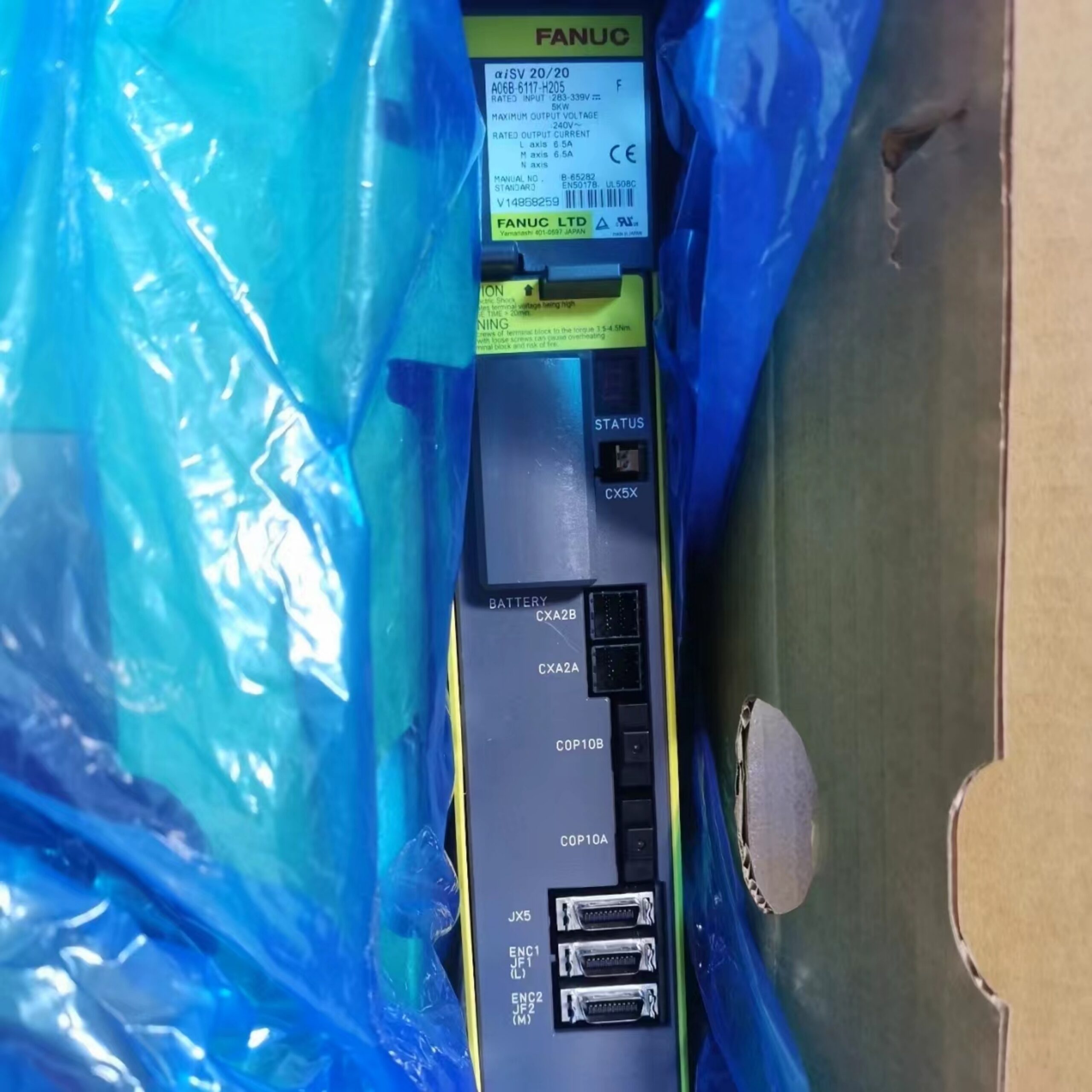

FANUC A06B-6117-H205 Dual-Axis Servo Amplifier Module
- Manufacturer: FANUC
- Model / Part Number: A06B-6117-H205
- Model Line: Alpha i Series (aiSV-20/20)
- Axis Configuration: Dual-axis (Controls 2 axes, labeled L-axis and M-axis)
- Rated Input Power: 5 kW
- Input Voltage: 283V to 325V DC (Supplied via a matching Alpha i power supply module)
- Maximum Output Voltage: 240V AC
- Output Current: 6.5A rated per axis (20 Amp peak current class capacity)
- Interface Type: FSSB (Fanuc Servo Serial Bus) Optical Fiber interface
- Cooling System: Internal cooling fan
- Height: 2.6 inches (approx. 66 mm)
- Width: 7.3 inches (approx. 185 mm)
- Length/Depth: 16 inches (approx. 406 mm)
- Weight: 12 lbs (approx. 5.4 kg)
- Compatible Controls: FANUC 0i-D, 0i-F, 16i/18i/21i Model B, and 30i / 31i / 32i series.
- Compatible Servo Motors: Typically paired with FANUC Alpha i series motors, specifically sizes like the αi2, αi4, or αi12/3000.
- Base Board: A16B-2203-0695
- Control Board: A20B-2101-0041
- Interface Card: A20B-1007-0880
- Internal Fan Part: A90L-0001-0510 (Note: A failure here triggers a "Fanuc Alarm 1" on the drive).
- SKU: A06B-6117-H205
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
