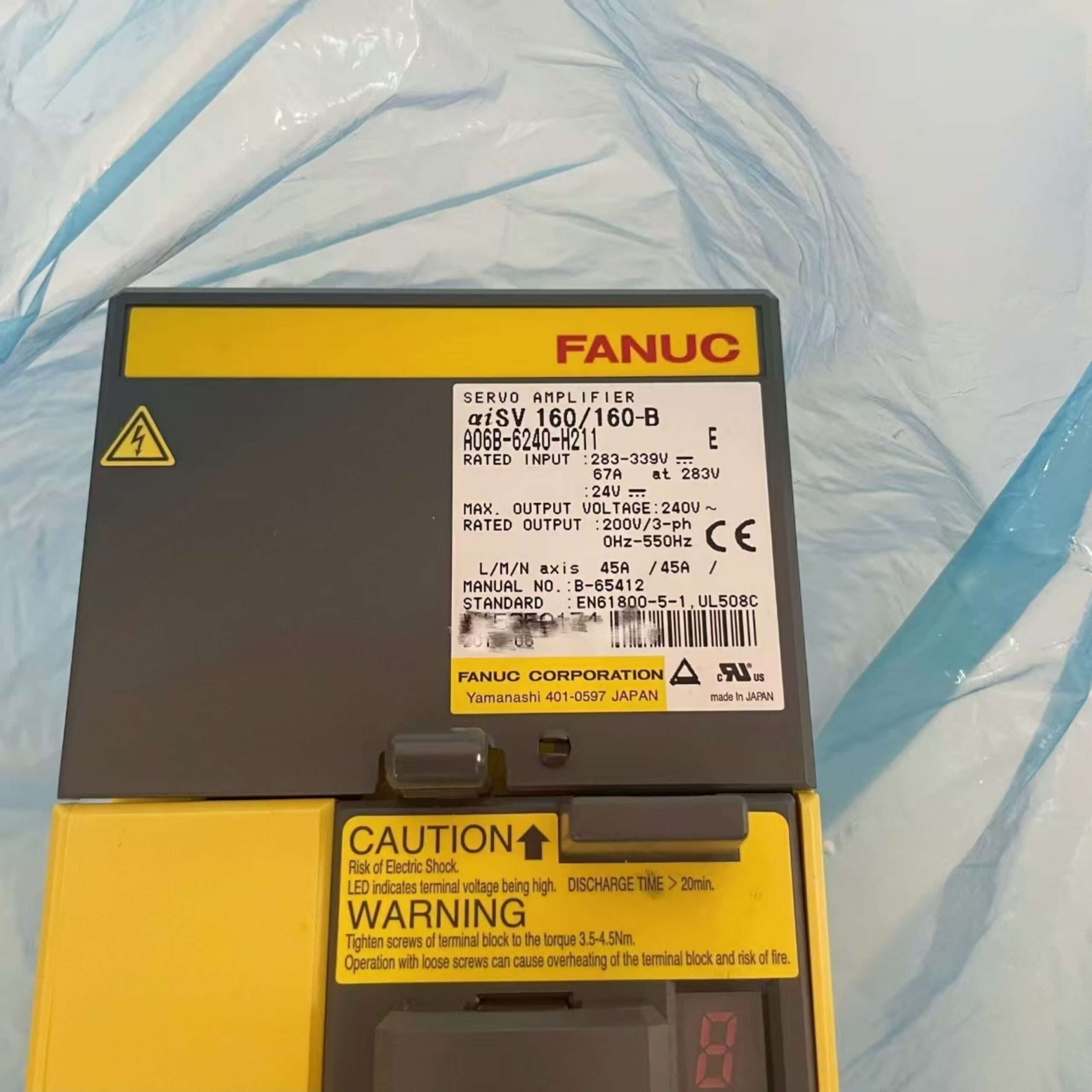

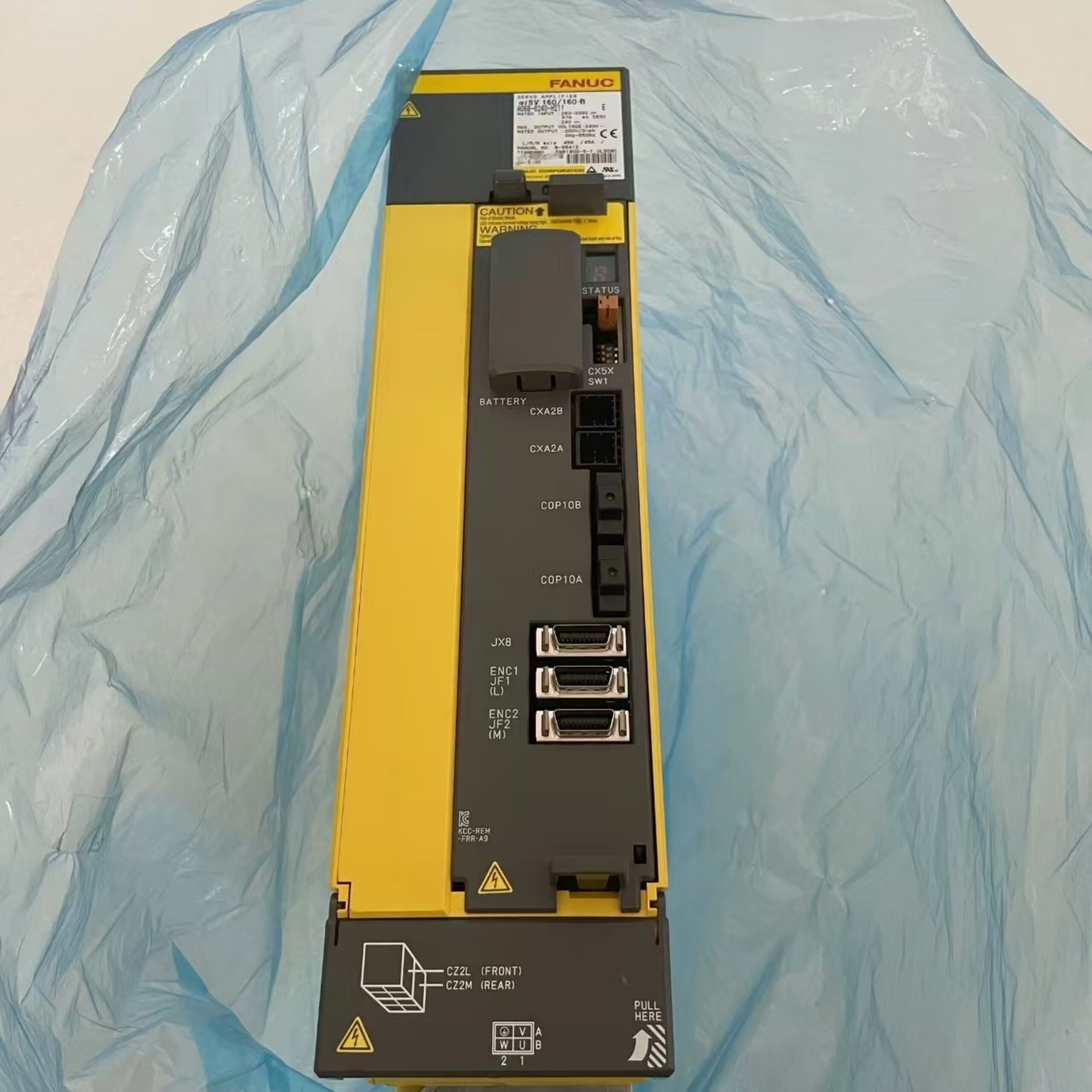

FANUC A06B-6240-H211 Dual-Axis Servo Amplifier Module
- Manufacturer: FANUC
- Model / Part Number: A06B-6240-H211
- Part Number: A06B-6240-H211
- Series: α i-B Series (α iSV 160/160-B)
- Number of Axes: 2-axis control
- Module Width: 90 mm
- Weight: 5.44 kg (approx. 12 lbs)
- Input Voltage (DC Link): 283 V to 339 V DC
- Control Input Voltage: 24 V DC
- Maximum Draw Current: 67 A
- Output Voltage: 240 V AC (3-Phase)
- Output Current: 45 A per axis
- Operating Frequency Range: 0 Hz to 550 Hz
- Cooling Method: Integrated fan cooling
- Compatible Controllers: Works with FANUC R-30iB, R-30iB Plus robotic controllers, and FS 3xi-B / 0iF Plus CNC systems.
- SKU: A06B-6240-H211
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
