Showing 33–40 of 40 results
-

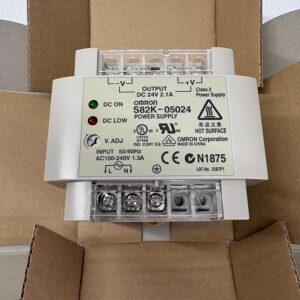

- Manufacturer: OMRON
- Model / Part Number: S82K-05024
- Input Voltage: 100 to 240 Volts AC (Universal input)
- Output Voltage: 24 Volts DC (Adjustable)
- Output Current: 2.1 Amperes
- Power Rating: 50 Watts
- Mounting Style: DIN Rail (it clips onto a standard metal rail inside electrical boxes)
-
- Manufacturer: OMRON
- Model / Part Number: S82K-10024
- Input Voltage: Universal input handling 100–120V AC or 200–240V AC (50/60Hz).
- Output Voltage: 24V DC.
- Output Current: Around 4.2A to 4.5A.
- Total Power: 100W to 108W.
- Mounting Type: Built to snap directly onto a standard DIN rail.
-
REQUEST A QUOTE
- Output Voltage: 12 VDC (Adjustable)
- Output Current: 4.3 A
- Rated Power: 50 W
- Input Voltage (AC): 100 to 240 VAC nominal (Permissible: 85 to 264 VAC)
- Input Voltage (DC): 80 to 370 VDC permissible
- Efficiency: 86% typical
- Number of Outputs: 1 branch
- Isolation Voltage: 3 kV
- MTBF: 135,000 hours
- Physical Housing: Enclosed style featuring a durable metal frame with an integrated DIN-rail mounting bracket.
OMRON S8FS-G05012CD Switching Power Supply (S8FS-G).
-
- Manufacturer: OMRON
- Model / Part Number: S8FS-G10024CD
- Output Voltage: 24 VDC
- Output Current: 4.5 A
- Rated Power: 100 W
- AC Input Voltage: 100 to 240 VAC, single-phase
- DC Input Voltage: 80 to 370 VDC
- Efficiency: Up to 89%
- Mounting: DIN rail or direct panel mounting
- Connection: Screw terminal blocks
- Operating Temperature: -20 to 70 °C
-
REQUEST A QUOTE
- Output Wattage: 60 W
- Output Voltage: 24 VDC (Adjustable from -10% to +15% via front potentiometer)
- Output Current: 2.5 A
- Input Voltage Range: Universal 85 to 264 VAC (100–240 VAC nominal) or 90 to 350 VDC
- Efficiency: 88%
- Operating Temperature: -25°C to +60°C
- Protection & Safety: IP20 rating, overload protection, and certifications for UL508, CSA C22.2, and EN50178.
- Physical Profile: Compact book-type enclosure with an enhanced vibration-resistant DIN rail mounting clip.
OMRON S8VK-C06024 DIN Rail Power Supply (S8VK-C).
-
REQUEST A QUOTE
- Input Voltage Range: Universal 85 to 264 VAC (single-phase) or 90 to 350 VDC
- Output Voltage: 12 VDC (adjustable via a front trimmer potentiometer from -10% to +15%)
- Rated Current: 2.5 A
- Power Boost Function: Supports 120% output current power boost for temporary peak loads
- Efficiency: 82% typical
- Operating Temperature: Extremely wide range from -40°C to 70°C (-40°F to 158°F)
- Safety & Protections: Automatic reset overload protection, overvoltage protection, and UL Class 2 output compliance
OMRON S8VK-G03012 DIN Rail Power Supply (S8VK-G).
-
REQUEST A QUOTE
- Number of Positions / Poles: 40 points
- Rated Voltage: 125 VAC / 24 VDC
- Rated Current: 1 A
- Connector Type (PLC Side): MIL Connector (Plug/Male, XG4A-4031)
- Terminal Block Type: Passive wiring interface with M3 captive screws
- Wiring Polarity: NPN / PNP compatible
- Terminal Pitch: 7 mm
- Insulation Resistance: 100 MΩ minimum (at 500 VDC)
- Dielectric Strength: 500 VAC for 1 minute (leakage current: 1 mA max)
- Operating Temperature: 0°C to +55°C
OMRON XW2D-40G6 Connector-Terminal Block Conversion Unit (XW2D).
-
REQUEST A QUOTE
- Input Channels: 16 Digital Inputs
- Logic Type: NPN (Note: The PNP logic version is variant XWT-ID16-1)
- Input Current: 6 mA
- Process Side Connection: Screw terminal blocks
- Mounting Style: DIN Rail
- Compatibility: Mounts directly to OMRON digital I/O slaves like the CRT1-ID16(-1) or CRT1-OD16(-1).
OMRON XWT-ID16 Digital Input Module (XWT).
