Showing 17–32 of 153 results
-
REQUEST A QUOTE
- Display Resolution: SVGA 800 x 600 pixels (4:3 standard landscape aspect ratio) with a pixel density of 96 PPI.
- Display Technology: TN (Twisted Nematic), Normally White, Transmissive mode.
- Physical Dimensions: 236.0 mm (W) × 176.9 mm (H) × 5.9 mm (D) with an active screen area of 211.2 mm × 158.4 mm.
- Signal Interface: Typically driven via a 1-channel LVDS interface (20-pin configuration supporting 6-bit or 8-bit gray scale, 262K/16.2M colors). Note: Some generic replacement variations or interface modules list Parallel RGB configurations.
- Luminance (Brightness): 300 cd/m² typical constant backlight.
- Contrast Ratio: 800:1 to 1000:1 typical.
- Backlight System: Built-in White LED (WLED) lighting system designed for a 30,000-hour operating lifespan (requires an external backlight driver).
- Touch Screen: Not included natively; it is a display-only module. However, manufacturers like Miqidisplay offer custom upgrades to add capacitive or resistive touch panels.
- Environmental Tolerances: Built to withstand harsh settings, operating reliably from -20°C to 70°C and storable from -30°C to 80°C.
- Surface Treatment: Anti-glare coating (Haze 25%) to combat reflections in bright environments.
BA104S01-200 BOE TFT-LCD Display Module.
-
REQUEST A QUOTE
- Panel Size: 12.1 inches diagonally
- Native Resolution: 800 × 600 pixels (SVGA) with a 4:3 aspect ratio
- Pixel Density: 82 PPI
- Display Mode: TN (Twisted Nematic), Normally White, Transmissive
- Color Depth: Supports 262K or 16.7M colors (55% NTSC color gamut coverage)
- Refresh Rate: 60 Hz
- Response Time: 30 ms (Typical)
- Luminance (Brightness): Generally rated between 350 to 430 cd/m² (Typical value is 400 nits)
- Contrast Ratio: 800:1 (Typical)
- Viewing Angles: 80° left, 80° right, 65° up, and 75° down (with a contrast ratio ≥ 10)
- Backlight Type: White LED (WLED arranged in a 6S4P configuration) with a minimal lifetime of 30,000 hours
- Input Voltage: 3.3V (Typical)
- Signal Interface: 1-channel LVDS (supporting 6-bit or 8-bit data input selection)
- Pin Configuration: 20-pin connector interface
- Physical Outline: 279.0(H) × 209.0(V) × 9.3(D) mm
- Active Display Area: 246.0(H) × 184.5(V) mm
- Environmental Limits: Operating temperature range of -20°C to 70°C; storage temperature range of -30°C to 80°C
BA121S01-200 BOE TFT-LCD Display Module.
-
REQUEST A QUOTE
- Manufacturer: BECKHOFF
- Model / Part Number: CU2919-0000
- Display Size: 19-inch multi-touch display
- Resolution: 1280 × 1024 pixels
- Interfaces: DVI-E and USB-E
- Maximum Connection Distance: 50 m
- Housing: Aluminum housing with glass front
- Front Protection: IP65
- Rear Protection: IP20
- Supply Voltage: 24 V DC
BECKHOFF CU2919-0000 Industrial Control Panel. Contact us for product information and quotation.
-
REQUEST A QUOTE
- Display Type: 7.0-inch TFT LCD touchscreen with a resistive touch overlay.
- Resolution: 800 x 480 pixels (16:9 widescreen format).
- Operating System & Runtime: Powered by Windows Embedded CE 6.0 running the iX runtime environment.
- Memory Capacity: 80 MB of dedicated application storage.
- Power Requirements: +24 VDC input voltage (operating range of 18–32 VDC) with a maximum consumption of 6.0 W.
- Physical Build: Powder-coated aluminum housing measuring 204 x 143 x 52.2 mm and weighing approximately 0.7 kg.
- Runtime Backups: You can backup the compiled project runtime directly from the HMI's hardware service menu without needing the original developer source code. To access this, reboot the HMI and press and hold anywhere on the screen when the hourglass icon appears. This allows you to export the runtime to a USB drive or SD card to facilitate direct replacement on an identical T7A terminal.
Beijer 630000202 Operator Panel HMI (iX T7A Series).
-
REQUEST A QUOTE
- Display Technology: TN, Normally White, Transmissive screen.
- Brightness & Contrast: Offers a high luminance ranging between 350 to 500 cd/m² (nits) depending on the sub-variant, paired with an excellent 800:1 contrast ratio for clean readability.
- Interface Options: Primarily designed with a 20-pin LVDS interface (supporting 6-bit/8-bit grayscale), though standard parallel RGB variants also exist for legacy boards.
- Thermal Endurance: Operates reliably in extreme temperatures ranging from -20°C to 70°C.
- Surface Treatment: Finished with an anti-glare hard coating to drastically reduce reflection in brightly lit environments.
- Touch Capability: Shipped as a display-only module without a built-in touch panel, though aftermarket resistive or PCAP digitizers are often overlaid by system integrators.
BOE BA104S01-100 TFT-LCD Display Module (BA104S01 Series).
-
REQUEST A QUOTE
- Screen Size: 12.1 inches (Diagonal active area)
- Native Resolution: 800 × 600 pixels (SVGA standard)
- Aspect Ratio: 4:3 (Standard Landscape layout)
- Display Technology: TN (Twisted Nematic), Normally White, Transmissive
- Luminance / Brightness: 400 nits (cd/m²) typical (High visibility under strong lighting)
- Contrast Ratio: 700:1 to 800:1 typical
- Color Support: 16.7M colors (Supports 6-bit / 8-bit grayscale)
- Viewing Angles: 80° / 80° (Left/Right), 65° / 75° (Up/Down)
- Signal Interface: LVDS (Low-Voltage Differential Signaling) standard panel connection
- Backlight System: White LED (WLED) with an integrated LED Driver
BOE BA121S01-100 TFT-LCD Display Panel (BA121S01 Series).
-
- Manufacturer: BOE
- Model / Part Number: MV190E0M-N10
- Screen Size: 19.0 inches diagonally.
- Resolution: 1280 × 1024 pixels (SXGA).
- Aspect Ratio: 5:4 square format.
- Display Technology: Advanced Super Dimension Switch (ADS / IPS type) providing deep blacks and wide 89° viewing angles from all directions.
- Brightness: 250 cd/m² (typical).
- Contrast Ratio: 1000:1.
-
REQUEST A QUOTE
- Manufacturer: CAREL
- Model / Part Number: PGD1000NW2
- Display Type: Monochrome graphic LCD
- Resolution: 132 x 64 pixels
- Backlight: White LED
- Keypad: 6 buttons
- Communication Interface: RS-485
- Communication Protocol: pLAN
CAREL PGD1000NW2 is a monochrome graphic operator terminal with a 132 x 64 pixel display, white LED backlighting and a six-button keypad. It communicates through an RS-485 pLAN interface.
-
REQUEST A QUOTE
- Manufacturer: CAREL
- Model / Part Number: PGD1AY0I00
- Series: pGD1
- Display: Backlit graphic display
- Resolution: 132 x 64 pixels
- Keypad: 6 buttons
- Buzzer: Integrated
- Communication: RS-485
CAREL PGD1AY0I00 is a pGD1 graphic operator terminal with a backlit 132 x 64 display, six-button keypad and RS-485 communication.
-
- Brand: CAREL
- Model: PLD00GFP00
- Series: pLDPRO
- Display type: Graphic LCD
- Resolution: 132 × 64 pixels
- User keys: 6 buttons
- Audio indication: Piezoelectric buzzer
- Controller connection: RS-485 using pLAN protocol
- Software compatibility: Compatible with applications developed for the pGD1/pCO platform
- Font support: International fonts in 6 × 8 and 12 × 16 pixel sizes
- Installation: Panel mount
- Panel cut-out: 71 × 29 mm
- Operating temperature: -20 to +60 °C
- Front protection: IP65
-
REQUEST A QUOTE
- Screen Size: 7.0 inches (Diagonal)
- Resolution: 800 × 480 pixels (WVGA) with a 16:9 aspect ratio
- Pixel Density: 134 PPI
- Interface Type: Parallel 8-bit RGB via a 50-pin FPC (Flexible Printed Circuit) connection
- Display Mode: TN, Normally White, Transmissive
- Surface Treatment: Anti-Glare (Fog)
- Refresh Rate: 60 Hz
- Panel Power Consumption: 0.226W (Typical)
- Outline Size: 162.53 mm (W) × 96.62 mm (H)
- Active Area: 154.08 mm (W) × 85.92 mm (H)
CHIMEI AT070TN90 a-Si TFT-LCD Display Panel (AT070TN Series).
-

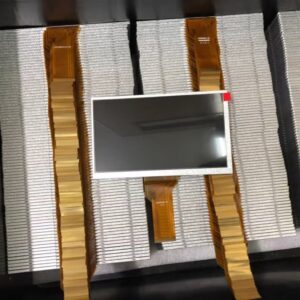

- Manufacturer: CHIMEI
- Model / Part Number: AT070TN94
- Display & Resolution: 7.0-inch diagonal screen with a 16:9 widescreen aspect ratio.
- Brightness & Contrast: Delivers a typical brightness of 400 cd/m² and a typical contrast ratio of 500:1, maximizing indoor and outdoor field visibility.
- Color Capability: Supports up to 262K colors (6-bit) with an optimal viewing angle fixed at the 6 o'clock direction.
- Operating Temperature: Extreme wide industrial range certified for -30°C to +85°C (both operating and storage conditions).
- Physical Dimensions: Outer outline dimensions measure 164.9 mm (H) x 100.0 mm (V) with a slim profile thickness of 5.7 mm.
- Signal Interface: Utilizes a standard 50-pin TTL / Parallel RGB digital interface.
- VCC / VDD: 3.3V (Typical)
- AVDD (Analog Power): 10.4V (Typical)
- VGH (Gate High Voltage): 16.0V (Typical)
- VGL (Gate Low Voltage): -7.0V (Typical)
- Backlight Subsystem: Integrated White LED (WLED) system structured in a 3S9P arrangement.
-
REQUEST A QUOTE
- Panel Brand / Manufacturer: CHIMEI INNOLUX (Chimei / Innolux Corporation)
- Model Number: AT090TN10
- Screen Diagonal Size: 9.0 inch (22.86 cm)
- Panel Type: a-Si TFT-LCD, LCM Module
- Native Resolution: 800 × 480 pixels (WVGA aspect ratio 16:9)
- Pixel Density: 104 PPI (Pixels Per Inch)
- Pixel Configuration: RGB Vertical Stripe
- Interface Type: 50 Pins Parallel TTL
- Display Mode: TN, Normally White, Transmissive
- Surface Treatment: Antiglare (Matte finish)
CHIMEI AT090TN10 TFT-LCD Module (AT090TN Series).
-
REQUEST A QUOTE

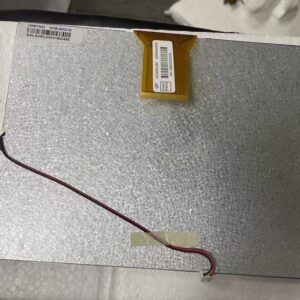

- Manufacturer: Chimei Innolux (Innolux)
- Panel Size: 8.0 inches diagonal
- Resolution: 800 × 600 (SVGA)
- Technology: a-Si TFT-LCD CELL
- Display Mode: TN, Normally White, Transmissive
- Contrast Ratio: 500:1 (Typical)
- Color Depth: 16.7M colors (8-bit)
- Signal Interface: Parallel RGB (1-channel, 8-bit) / TTL
- Surface Treatment: Antiglare
- Refresh Rate: 60 Hz
CHIMEI EE080NA-06A TFT-LCD Cell (EE080NA Series).
-

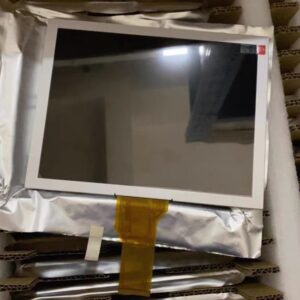

- Manufacturer: CHIMEI
- Model / Part Number: EJ080NA-05A
- Screen Size: 8.0 inches (Diagonal)
- Resolution: 800 × 3(RGB) × 600 [SVGA] @ 125 PPI
- Aspect Ratio: 4:3
- Active Area: 162.0(W) × 121.5(H) mm
- Module Dimensions: 183.0(W) × 141.0(H) × 5.6(D) mm
- Display Mode: TN, Normally White, Transmissive
-

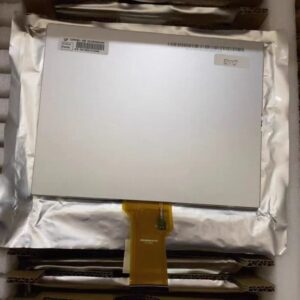

- Manufacturer: CHIMEI
- Model / Part Number: EJ080NA-05B
- Screen Size: 8.0 inches diagonally
- Resolution: 800 (RGB) × 600 pixels (SVGA) with a 4:3 aspect ratio
- Display Technology: TN, Normally White, Transmissive
- Active Area: 162.0 mm × 121.5 mm (H × V)
- Outline Dimensions: 183.0 mm × 141.0 mm × 5.9 mm (H × V × D)
- Brightness: 250 cd/m² (Typical)
- Contrast Ratio: 500:1 (Typical)
- Viewing Angles: 70° left, 70° right, 50° up, 70° down (Typical, at CR ≥ 10)
- Display Colors: 262K (6-bit) or 16.7M (6-bit + Dithering)
- Surface Treatment: Matte, Anti-Glare
- Touch Panel: None (ships without integrated touch, but external modules can be retrofitted)
- Signal Interface: Parallel RGB / TTL (1 channel, 6/8-bit), connected via a 50-pin FPC connector
- Input Voltages: Typical ratings are VCC = 3.3V, AVDD = 10.4V, VGH = 16.0V, VGL = -7.0V
- Backlight System: White LED (WLED) array arranged in a 3s9p configuration.
- Power Consumption: Panel consumes roughly 0.356W, while the backlight uses 1.782W.
- Operating Temperature: -20°C to 70°C
- Storage Temperature: -30°C to 80°C
