Showing 65–80 of 153 results
-

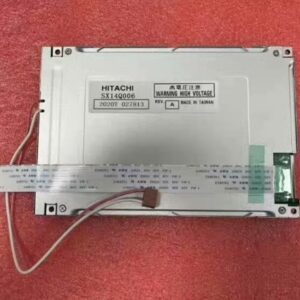

- Manufacturer: HITACHI
- Model / Part Number: SX14Q006
- Screen Size: 5.7 inches (diagonal)
- Resolution: 320 × 240 pixels (QVGA)
- Display Technology: CSTN-LCD (Color Passive Matrix)
- Pixel Configuration: RGB Vertical Stripe
- Active Viewing Area: 115.2 mm (Width) × 86.4 mm (Height)
- Signal Interface: Parallel Data (8-bit)
- Original Backlight: Dual CCFL lamps (Cold Cathode Fluorescent Lamp)
-

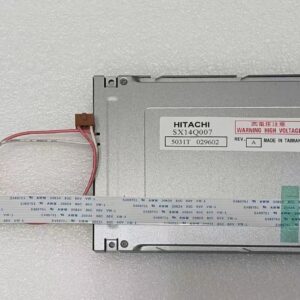

- Manufacturer: HITACHI
- Model / Part Number: SX14Q007
- Screen Size: 5.7 inches diagonally.
- Resolution: 320 × 240 pixels (known as QVGA).
- Display Type: CSTN-LCD (a type of color passive-matrix liquid crystal display).
- Aspect Ratio: 4:3
- Backlight: It uses 1 CCFL (cold cathode fluorescent lamp) tube, which acts as an edge-light to make the screen bright.
- Touchscreen: This module does not include a touchscreen layer built into it.
- Signal Interface: It uses an 8-bit Parallel Data system to receive images from a computer or machine.
-
REQUEST A QUOTE
- Display Size: 5.7 inches diagonal
- Resolution: 320 × 240 pixels (QVGA)
- Technology: Active Matrix TFT-LCD (a-Si)
- Display Mode: TN, Normally White, Transmissive
- Luminance / Brightness: 350 cd/m² (Typical)
- Contrast Ratio: 350:1 (Typical)
- Backlight Type: CCFL / CCFT (Legacy) (LED replacement variants exist)
- Operating Temperature: -20°C to 70°C (-4°F to 158°F)
- Weight: 1.50 lbs (~0.68 kg)
- Industrial Design: Built with high luminance and a wide viewing angle specifically tailored for demanding plant and factory environments.
HITACHI TX14D11VM1CBA TFT-LCD Module (TX14 Series).
-
REQUEST A QUOTE
- Display Type: STN Graphic LCD screen displaying 16 shades of blue.
- Resolution: 240 x 240 pixels.
- Interface: Touchscreen input equipped with an integrated COM port (serial communication) to interface with PLCs and other industrial controllers.
- Product Tier: Belongs to the PWS basic series, which offers core HMI functionalities across multiple interface levels (Standard, Plus, and Network).
HITECH PWS1711-CTN Graphic HMI Operator Panel (PWS Series).
-

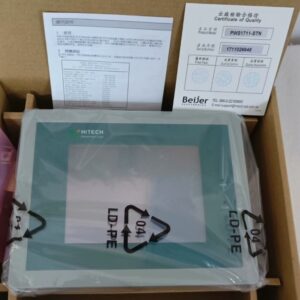

- Manufacturer: HITECH
- Model / Part Number: PWS1711-STN
- Display Type: Monochrome STN LCD (Super-Twisted Nematic)
- Display Size: 5.7 inches (diagonal)
- Resolution: 320 x 240 pixels
- Color Depth: 16 shades of gray
- Backlight: CCFT (Cold Cathode Fluorescent Tube); ~50,000-hour lifespan
- Touchscreen: Analog resistive panel (>1 million activations; hard-coated chemical-resistant glass)
-

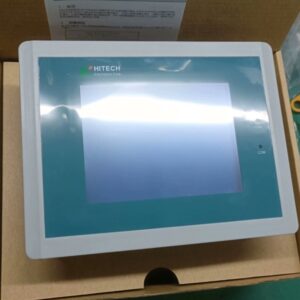

- Manufacturer: HITECH
- Model / Part Number: PWS1760-CTN
- Display Size: 5.7 inches
- Resolution: 320 x 240 pixels
- Power Requirement: 24VDC input voltage
- Communication Interfaces: Built-in ports supporting RS-232, RS-422, and RS-485 serial communication protocols to talk to industrial machines
- Programming Software: The application logic, menus, and graphics for this terminal are managed using the proprietary HITECH ADP (version V3.2 or similar) software suite.
-

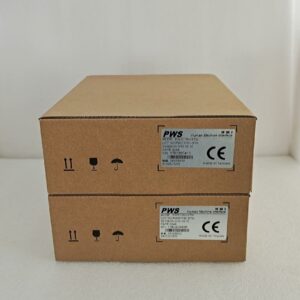

- Manufacturer: HITECH
- Model / Part Number: PWS1760-STN
- Display Type: STN LCD touch screen
- Serial Interfaces: RS-232, RS-422 and RS-485
- Supply Voltage: 24 VDC
- Front Protection: IP65
-

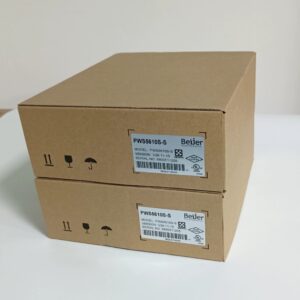

- Manufacturer: HITECH
- Model / Part Number: PWS5610S-S
- Display Type: 5.7-inch Mono STN LCD screen showing 16 shades of blue.
- Resolution: 320 x 240 pixels (some technical variations report 240 x 240).
- Touch Interface: Analog resistive touch screen.
- Processor & Memory: 32-bit RISC processor with 2MB of flash memory for applications and 512KB of RAM.
- Communication: One 9-pin female COM1 port supporting serial communication standards like RS232, RS422, and RS485.
- Power Supply: 24V DC operating voltage.
- Protection: IP65-rated front panel, meaning it is protected from dust and water splashes.
-

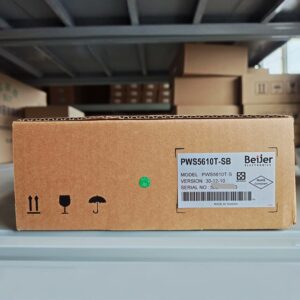

- Manufacturer: HITECH
- Model / Part Number: PWS5610T-S
- Series: PWS
- Display: 5.7-inch TFT touch screen
- Serial Interfaces: RS-232, RS-422 and RS-485
- Supply Voltage: 24 VDC
- Front Protection: IP65
-

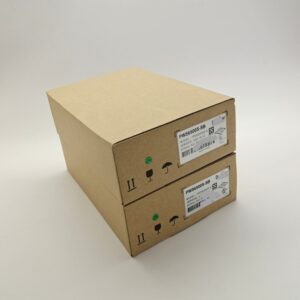

- Manufacturer: HITECH
- Model / Part Number: PWS6500S-S
- Screen Size: 4.7 inches diagonally
- Display Type: Mono STN LCD screen showing 16 shades of blue
- Resolution: 240 x 128 pixels
- Processor: 32-bit RISC high-speed processor
- Memory: 4 MB Application Flash ROM and 512 KB RAM
- Power Supply: Requires 24V DC power
- Built-in Interfaces: It features two communication ports:
- Front Protection: Rated IP65, meaning the front face resists dust and water splashes.
-

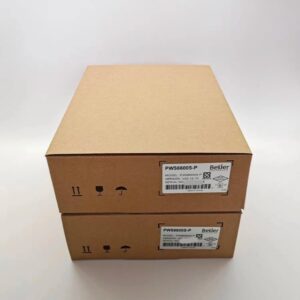

- Manufacturer: HITECH
- Model / Part Number: PWS6600S-P
- Screen Size: 5.7 inches diagonal
- Display Type: Mono STN LCD
- Resolution: 320 x 240 pixels
- Colors: 16 shades of blue
- Brightness: 160 cd/m²
- Contrast Adjustment: Controlled via the touch panel
- Touch Panel: Analog resistive
- Processor: 32-bit RISC CPU
- Application Storage: 4 MB Flash ROM
- System Memory: 512 KB RAM
- Real-Time Clock (RTC): Built-in with a rechargeable lithium battery
- Configuration Software: Programmed using Hitech ADP (Application Development Package)
- Multi-functional Port: 26-pin connector primarily dedicated to printer outputs or specialized data processing
- Input Voltage: 24V DC ±15%
- Power Consumption: Less than 20 Watts (< 20W)
- Dimensions: 195.0 mm (W) x 145.0 mm (H) x 59.1 mm (D)
- Weight: 0.81 kg
- Front Panel Sealing: IP65 / NEMA 4 rated (water and dust resistant)
- Operating Temperature: -10°C to +60°C
- Vibration Resistance: 0.5 mm displacement, 10–55 Hz for 2 hours per X, Y, and Z axis
- Shock Resistance: 10 G, 11 ms pulses (3 times per axis)
-

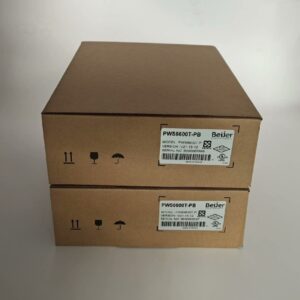

- Manufacturer: HITECH
- Model / Part Number: PWS6600T-P
- Screen Size & Type: It features a 5.7-inch Color TFT LCD screen.
- Resolution: The display resolution is 320 x 240 pixels, which makes text and basic machine graphics easy to read.
- Touchscreen: It uses an analog touch screen panel for user input.
- Memory: It comes built with 4MB of Application Flash ROM and 512KB of RAM to store machine screens and pathways.
- Power Requirements: It runs on 24V DC power and consumes less than 20 watts.
- Durability: It has an IP65 rated front panel, meaning it is protected against dust and low-pressure water splashes commonly found in factory environments.
-

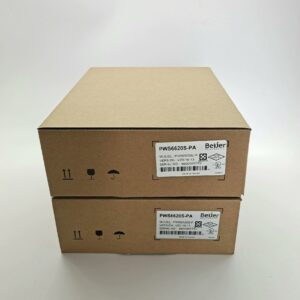

- Manufacturer: HITECH
- Model / Part Number: PWS6620S-P
- Display Size: 5.7 inches
- Display Type: STN LCD
- Resolution: 320 x 240 pixels
- Hardware Keys: 1 menu key and 5 function keys
- Serial Interfaces: RS-232, RS-422 and RS-485
- Front Protection: IP65
- Configuration Software: ADP6
-

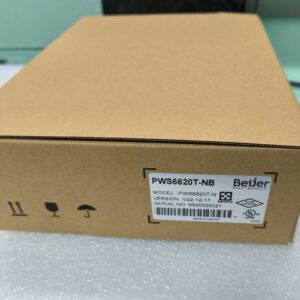

- Manufacturer: HITECH
- Model / Part Number: PWS6620T-N
- Display Type: 5.7-inch TFT color touch screen display.
- Resolution: 320 x 240 pixels.
- Color Depth: 64,000 colors.
- Input Interface: Analog resistive touch screen.
- Communication Ports: 2 Serial COM ports supporting RS232, RS422, and RS485 communication protocols.
- Protection Rating: IP65 rated front panel, making it dust-tight and resistant to water splashes in tough factory environments.
- Software: This panel is traditionally programmed using ADP software (often ADP6), which is the standard software suite for the older Hitech PWS series.
-

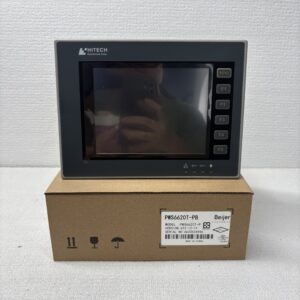

- Manufacturer: HITECH
- Model / Part Number: PWS6620T-P
- Screen Size: 5.7 inches diagonally.
- Display Type: Color TFT LCD with 64,000 colors.
- Resolution: 320 x 240 pixels (QVGA).
- Backlight: Long-lasting LED backlight (lasts up to 50,000 hours).
- Front Protection: IP65 rated, meaning it is dust-tight and protected against water splashes.
-

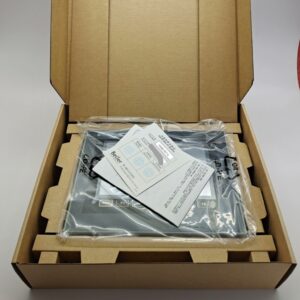

- Manufacturer: HITECH
- Model / Part Number: PWS6700T-N
- Display: 7-inch color TFT LCD screen.
- Resolution: 800 x 480 pixels.
- Colors: 64K colors.
- Control Layout: Analog resistive touch screen along with 1 Menu key and 6 user-defined function keys (F1–F6).
- Power Supply: 24V DC (±15%), consuming under 24 Watts.
- Memory: 8 MB Flash ROM, 16 MB RAM, and 512 KB battery-backed memory for data/recipes.
- Data Expansion: Includes a CompactFlash (CF) card slot.
- Hardware Control: 32-bit RISC processor.
- Dimensions: External physical size is 231.0 x 176.0 x 46.8 mm, with a panel installation cutout size of 220.8 x 165.8 mm.
- USB: Features 2 USB Host ports and 1 USB Device port.
