Showing 97–112 of 153 results
-
- Manufacturer: KINCO
- Model / Part Number: G070E-CAN
- Display Size: 7 inches TFT widescreen
- Resolution: 800 × 480 pixels
- Colors: 16.77 million colors for a rich, sharp image
- Processor: ARM RISC 32-bit 800MHz industrial-grade CPU
- Memory: 256MB Flash Memory + 128MB RAM
- Touch Panel: 4-wire precision resistance network (4H surface hardness)
- Protection Rating: IP65-rated front panel (dustproof and water-resistant)
- Power Requirement: DC 12V to DC 28V input
- Software: Programmed using Kinco's Dtools configuration software
- CANbus Port: Multiplexed on the COM1 D-SUB connector for bus-style control.
- Ethernet Port: Built-in RJ45 port for connecting to local factory networks, online simulations, PC software downloads, or network-capable PLCs.
- USB Host/Slave: For uploading/downloading programs or attaching external storage devices.
-
- Manufacturer: KINCO
- Model / Part Number: G100
- Display: 10.1-inch TFT screen featuring 1024×600 pixel resolution and 16.7 million true colors.
- Processor: Powerful 800MHz ARM RISC 32-bit CPU for snappy response times.
- Memory: 128MB Flash storage paired with 128MB DDR3 RAM.
- Power Supply: Runs on standard industrial DC 24V.
- Enclosure: Built with an IP65-rated waterproof front panel and a durable engineering plastic shell.
- Software: Programmed and designed using Kinco DTools configuration software.
- Outer Panel Dimensions: 280 mm × 193 mm × 36 mm.
- Panel Cutout Size: Requires a 261 mm × 180 mm hole for secure mounting.
- USB Host: Allows you to plug in a USB flash drive (up to 16GB) to upload programs or download logged data.
-
- Manufacturer: KINCO
- Model / Part Number: GL043
- Screen Size: 4.3 inches (Diagonal)
- Display Area: 95.04 mm (Width) x 53.86 mm (Height)
- Resolution: 480 x 272 pixels
- Colors: 16.77 million True Color (24-bit)
- Backlight: LED with over 30,000 hours of life
- Brightness / Luminance: 450 cd/m²
- Touchscreen Type: 4-wire high-precision resistive network (Surface hardness of 4H)
- Processor (CPU): 32-Bit ARM RISC Cortex-A7 architecture, running at 800 MHz
- Storage Memory (Flash): 128 MB NAND Flash (Used for storing your programs and data)
- System Memory (RAM): 128 MB DDR3 RAM
- Real-Time Clock (RTC): Built-in.
- Serial Ports: 2 Physical COM Ports
- USB Port: 1 x Micro USB Slave port (Used for downloading your screen designs from a computer)
- Input Voltage: Supports a wide range from 10V DC to 28V DC (Nominal 24V DC)
- Power Consumption: Very low power usage, around 2 Watts
- Insulation Resistance: Greater than 50MΩ at 500V DC
- Operating Temperature: Works safely between 32°F and 122°F (0°C to 50°C)
- Front Protection: The front panel is rated IP65 (Dust-tight and protected against water jets when mounted correctly in a panel wall).
- Outer Size: 132 mm x 102 mm x 33 mm
- Weight: 0.21 Kg (Super lightweight)
- Programming Software: Designed and programmed using the free Kinco DTools configuration software.
-
REQUEST A QUOTE
- Manufacturer: KINCO
- Model / Part Number: MT4414TE V1
- Display: 7-inch TFT LCD, 16:9
- Resolution: 800 x 480 pixels
- Display Colors: 65,536
- Touch Panel: 4-wire analog resistive
- Processor: 32-bit RISC, 800 MHz
- Memory: 128 MB Flash and 64 MB SDRAM
- Recipe Memory: 512 KB
- Real-Time Clock: Built-in
- Ethernet: 10/100 Base-T
- USB Ports: 1 USB Host and 1 USB Slave
- Serial Ports: COM0: RS-232, RS-422 and RS-485; COM2: RS-232
- Supply Voltage: 24 VDC nominal; 12 to 28 VDC range
- Power Consumption: 4 W
- Front Protection: IP65
KINCO MT4414TE V1 is a 7-inch touchscreen HMI with Ethernet, USB and serial interfaces. It has an 800 x 480 display and operates from a nominal 24 VDC supply.
-
REQUEST A QUOTE
- Display Size & Type: 7” (16:9 Aspect Ratio) TFT LCD
- Resolution: 800 × 480 Pixels
- Color Depth: 65,536 Colors (16-bit)
- Touch Panel: 4-Wire Precision Resistive Network
- Processor: 32-bit RISC CPU @ 800 MHz
- Memory: 128 MB Flash + 64 MB DDR2
- Expandable Memory: 1x USB Host, 1x SD Card slot
- Recipe Memory & RTC: 512 KB + Built-in Real-Time Clock (RTC)
- Input Power: 24 VDC
- Programming Software: Kinco DTools / Kinco HMIware
KINCO MT4424TE Human-Machine Interface (HMI) (KINCO).
-
REQUEST A QUOTE
- Manufacturer: KINCO
- Model / Part Number: MT4523TE
- Display: 10.4-inch TFT LED backlit display with 65,536 colors.
- Resolution: 800 x 600 pixels.
- Processor: 32-bit RISC CPU (800 MHz).
- Touch Panel: 4-wire precision resistance network.
- Ethernet: 1 RJ45 port for networked communication.
- Serial: COM0 (RS232/RS485-2/RS485-4) and COM1 (RS232/RS485-2/RS485-4) supporting multi-protocol attachments.
- USB: USB Slave port for program downloads and USB Host for data peripherals.
- Power Supply: DC 24V (operating range DC 12V to DC 28V).
- Dimensions: 310 x 230 x 55 mm with a panel cutout size of 298 x 218 mm.
- Industrial Protection: Features an IP65-rated front panel to protect the display assembly against dust and moisture in harsh plant environments.
KINCO MT4523TE HMI Touch Panel. Key specifications include Display: 10.4-inch TFT LED backlit display with 65,536 colors; Resolution: 800 x 600 pixels; Processor: 32-bit RISC CPU (800 MHz); Touch Panel: 4-wire precision resistance network.
-

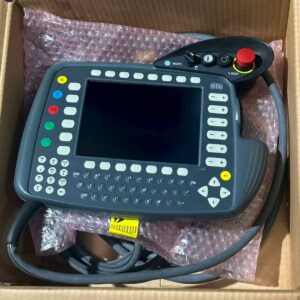

- Manufacturer: KUKA
- Model / Part Number: 00-130-547
- Display: 8-inch class color TFT
- Resolution: 640 x 480 pixels
- Integrated Cable: 10 m
- Supply Voltage: 24 VDC
- Maximum Current: 2.0 A
- Keyboard: Membrane keyboard with function and drive-control keys
- Safety Controls: Emergency stop, enabling switches and keyed mode selector
-
REQUEST A QUOTE
- Compatibility: All KUKA KRC4 Controllers
- Display Type: 8.4-inch capacitive touch screen with high luminosity
- Interface Elements: Touch keypad, physical jog keys, and an ergonomic 6D mouse
- Electrical Rating: 24 VDC @ 1 Amp
- Cable Length: 10 meters (approx. 33 feet) tethered cable
- Data Transmission: 2 USB ports for direct loading/saving of application programs
- Physical Safety: Integrated drop-protectors & physical Emergency Stop (E-Stop) button
- Maintenance-Friendly: The hardware features a rear service flap designed for straightforward cable replacement, reducing downtime if the 10m tether gets damaged.
- Multi-Robot Support: It is used across various small-to-large payload KUKA families running KRC4, including popular compact arms like the KR6 (R700, R900) and KR10 (R900, R1100) series.
KUKA 00-168-334 Teach Pendant Controller (smartPAD) (KCP4 Series).
-

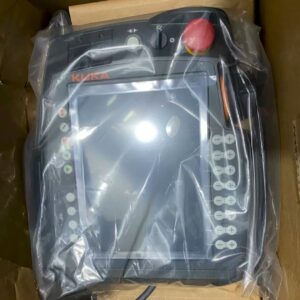

- Manufacturer: KUKA
- Model / Part Number: 00-291-556
- Supply: 24 VDC, 1 A
- Display Resolution: 800 x 600 pixels
- Integrated Cable: 10 m
- Weight: Approximately 1.1 kg
-

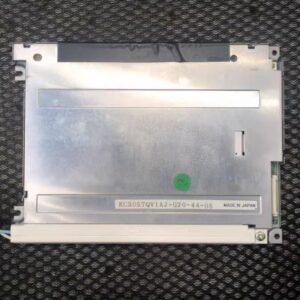

- Manufacturer: KYOCERA
- Model / Part Number: KCS057QV1AJ-G20
- Screen Size: 5.7 inches diagonally.
- Resolution: 320 x 240 pixels (QVGA resolution).
- Display Type: CSTN (Color Super-Twist Nematic) passive matrix color LCD.
- Brightness: 200 cd/m² (nits).
- Contrast Ratio: 40:1.
- Backlight: CCFL (Cold Cathode Fluorescent Lamp) single tube.
- Operating Temperature: 0°C to 60°C (32°F to 140°F).
- Dimensions: 154.6 mm wide x 114.8 mm high x 8.5 mm thick.
- FRM: Frame synchronous signal (vertical sync)
- LOAD: Data latch clock
- CP: Data shift clock
- DISP: Display control signal
- VDD: Power supply for logic (usually 3.3V or 5V)
- VSS: Ground (GND)
- VEE: Power supply for the LCD panel itself
-
REQUEST A QUOTE
- Manufacturer: Kyocera Display Corporation
- Model Number: KCS057QV1AJ-G32
- Screen Size / Type: 5.7 inches (14.48 cm) diagonal / CSTN-LCD
- Native Resolution: 320 × 240 (QVGA) pixels
- Aspect Ratio / Format: 4:3 / RGB vertical stripe
- Luminance (Brightness): 200 cd/m² (Typical)
- Contrast Ratio: 40:1 (Typical)
- Viewing Angles: Horizontal: 50°/50° (Left/Right) | Vertical: 40°/50° (Up/Down)
- Backlight Type: Cold Cathode Fluorescent Lamp (CCFL)
- Backlight Lifespan: 40,000 operational hours (Typical)
KYOCERA KCS057QV1AJ-G32 CSTN-LCD Module (KCS Series).
-
- Manufacturer: KYOCERA
- Model / Part Number: KG057QV1CA-G00
- Screen Size: 5.7 inches diagonally
- Resolution: 320 × 240 pixels (QVGA)
- Display Type: FSTN-LCD, Monochrome (Black and White)
- Backlight: Single CCFL tube light (Cold Cathode Fluorescent Lamp)
- Signal Interface: 20-pin parallel data connector (4-bit)
- Brightness: 220 cd/m²
- Voltage Supply: 3.3V to 5.0V
- Industrial HMI Panels: It is the exact display panel used inside several Siemens Simatic HMI systems (like the 6AV6647 series).
- Testing Equipment: Portable measurement tools used by field engineers.
- Kiosks & Ticket Machines: Public-facing machines that require simple, highly durable screens.
-

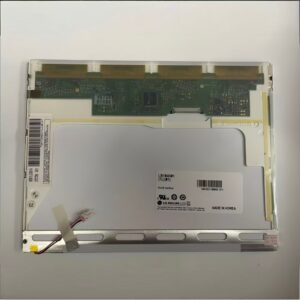

- Manufacturer: LG
- Model / Part Number: LB104S01(TL)(01)
- Screen Size: 10.4 inches measured diagonally
- Resolution: 800 × 600 pixels (SVGA standard)
- Aspect Ratio: 4:3 (traditional square-ish screen layout)
- Display Type: Active-Matrix TFT-LCD (a-Si)
- Backlight: Cold Cathode Fluorescent Lamp (CCFL)
- Signal Interface: LVDS connector type
- Touchscreen: None (it is a display panel only; any touch glass is a separate layer)
-
REQUEST A QUOTE
- Screen Diagonal: 10.4 inches (26.4 cm)
- Resolution: 800 × 600 (SVGA)
- Interface Type: LVDS (1 channel, 6-bit) via 20 pins
- Display Mode: TN, Normally White, Transmissive
- Brightness: 230 to 250 cd/m² (Typical)
- Contrast Ratio: 400:1 (Typical)
- Active Display Area: 211.2 (W) × 158.4 (H) mm
- Outline Dimensions: 224.5 (W) × 172.0 (H) × 6.0 (D) mm
- Operating Temperature: -10°C to 70°C
- Surface Treatment: Anti-glare, Hard Coating (3H)
LG LB104S01(TL)(02) TFT-LCD Module (LB Series).
-
REQUEST A QUOTE
- Screen Size: 10.4 inches (diagonal)
- Resolution: 640 × 480 pixels (VGA format with a 4:3 aspect ratio)
- Signal Interface: Parallel RGB, 30 pins, 1-channel, 6-bit
- Input Voltage: 3.3V (Typical)
- Brightness: 400 cd/m² (Typical)
- Contrast Ratio: 300:1 (Typical)
- Original Backlight: Dual CCFL (Cold Cathode Fluorescent Lamp) tubes
LG LB104V03（A1） a-Si TFT-LCD Display Panel (LB104V03 Series).
-

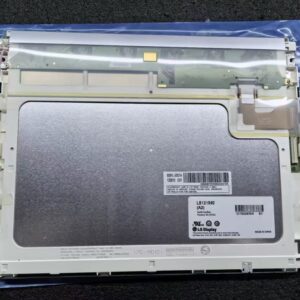

- Manufacturer: LG
- Model / Part Number: LB121S02(A2)
- Screen Size: 12.1 inches diagonally.
- Resolution: 800 x 600 pixels (known as SVGA quality) with a standard 4:3 square-ish screen shape.
- Screen Type: Active Matrix TFT-LCD, which helps show clear images on older systems.
- Surface: It features an anti-glare hard coating to reduce reflections in bright workspaces.
- Touch Screen: No, this is a display panel only and does not have built-in touch capabilities.
