Showing 81–96 of 153 results
-

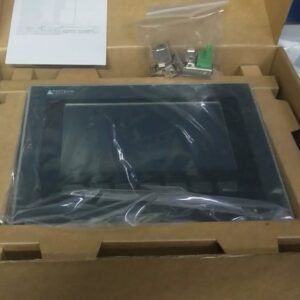

- Manufacturer: HITECH
- Model / Part Number: PWS6710T-N
- Display: A 7-inch Color TFT LCD screen.
- Resolution: 800 x 480 pixels for crisp screen details.
- Colors: Supports up to 64,000 colors.
- Network Interface: The "-N" at the end of the model name stands for the Network tier level.
- Communication Ports: Includes 3 COM communication ports, 2 USB Host ports, 1 USB Device port, and a CF (CompactFlash) memory card slot.
- Front Protection: The front screen panel has an IP65 protection rating.
-
REQUEST A QUOTE
- Specification Attribute: Details & Metrics
- Display Size: 7.5 inches
- Display Type: Color STN LCD
- Resolution: 640 x 480 pixels (VGA)
- Color Support: 64K Colors
- Processor: 32-bit RISC CPU
- Backlight Type & Life: CCFT Backlight / ~58,000 Operating Hours
- Memory Capacity: 8MB Application Flash ROM / 512KB Data/Recipe Storage
- Expansion Storage: CompactFlash (CF) Card Slot
- Physical Interfaces: 1x Menu Key, 6x User-Defined Function Keys (F1-F6)
HITECH PWS6800C-P Human-Machine Interface (HMI) (PWS Series).
-

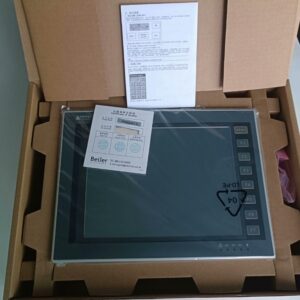

- Manufacturer: HITECH
- Model / Part Number: PWS6A00T-N
- Display Type: Color TFT LCD
- Housing Size: 10.4 inches (diagonal)
- Resolution: 640 x 480 pixels
- Colors: 64K colors
- Brightness: 450 cd/m²
- Backlight: LED (with a lifetime of around 50,000 hours)
- Touchscreen: Analog resistive
- Processor: 32-bit RISC CPU
- Flash Memory: 8 MB
- System RAM: 512 KB
- Operating Software: Configured via H-Designer software
- Peripherals: Features USB host and device ports for data transfers
-
REQUEST A QUOTE
- Resolution: 800 (RGB) × 480 pixels (WVGA) with a 16:9 widescreen aspect ratio.
- Physical Dimensions: Outline size of 164.9(W) × 100(H) × 5.7(D) mm with an active display area of 153.6 × 86.64 mm.
- Signal Interface: Uses a 60-pin TTL parallel RGB interface via a flexible printed circuit (FPC) connection.
- Display Technology: TN, normally white, transmissive display mode supporting up to 262K/16.2M colors.
- Optical Performance: Typ. brightness of 450 cd/m² and a 500:1 contrast ratio for enhanced daylight visibility.
- Backlight: Integrated white LED (WLED) lighting matrix with a standard JST BHSR-02VS-1 backlight connector.
- Touch Screen: The base factory part does not include built-in touch overlay hardware, though some replacement bundles include an aftermarket touch digitized glass layer pre-attached.
HSD070IDW1-E13 HannStar TFT LCD Display Module.
-
REQUEST A QUOTE
- Display Size: 7.0 inches (Aspect Ratio 16:9)
- Display Type: TFT LCD Panel
- Resolution: 800 × 480 pixels
- Color Support: 262,144 colors (or up to 16.77 million in updated hardware variants)
- Touch Panel Type: 4-wire resistive touch tablet (high precision, extended operational life)
- Processor (CPU): ARM Cortex-A8 low-power processor
- User Memory: 12 MB Flash (Expandable to 128 MB on later revisions)
- Serial Ports (COM): 2 COM ports (Supporting RS232, RS422, and RS485 communication protocols)
- Ethernet Port: 1 Port (integrated for network communication and PLC linking)
- USB Host: 1 Port
- USB Client: 1 Port
- PLC Compatibility: Features seamless, direct integration with mainstream industrial PLCs without needing extra standalone middleware.
- Industrial Hardening: Features advanced built-in anti-jamming, anti-hypertension, and anti-lightning circuit protection designs.
HT8701TE Hollysys HMI Touch Screen.
-
REQUEST A QUOTE
- Screen Size: 5.6 inches diagonal
- Resolution: 640 × 480 pixels (VGA) with a 4:3 aspect ratio
- Display Technology: a-Si TFT-LCD, TN Mode (Normally White, Transmissive)
- Brightness: 200 cd/m² (Nits)
- Contrast Ratio: 500:1
- Signal Interface: Parallel RGB (typically a 50-pin connector)
- Backlight: White LED (WLED)
- Response Time: 10 to 15 ms
- Operating Voltage: 3.3V (Typical logic power supply)

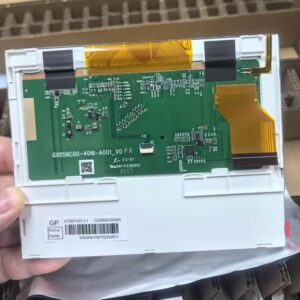

INNOLUX AT056TN52 V.3 Industrial TFT-LCD Display Panel (AT056TN52 Series).
-
- Manufacturer: INNOLUX
- Model / Part Number: AT056TN53 V.1
- Screen Size: 5.6 inches measured diagonally.
- Native Resolution: 640 × 480 pixels (VGA quality).
- Aspect Ratio: 4:3 standard landscape format.
- Display Technology: TN (Twisted Nematic), normally white, transmissive mode.
- Interface Type: Parallel RGB channel using a 40-pin FPC (Flexible Printed Circuit) connector.
- Backlight System: White LED (WLED) with an integrated driver circuit.
-
REQUEST A QUOTE
- Screen Size: 7.0 inches (Diagonal)
- Resolution: 800 × 480 pixels (WVGA)
- Aspect Ratio: 15:9 (Landscape orientation)
- Interface Type: Parallel RGB / TTL (1-channel, 6-bit) via 40-pin connector
- Display Mode: TN, Normally White, Transmissive (Anti-Glare surface treatment)
- Brightness: 300 cd/m² (Typical)
- Contrast Ratio: 500:1 (Typical)
- Viewing Angles: 70° / 70° (Left/Right) & 50° / 70° (Up/Down)
- Backlight Type: White LED (WLED) with integrated LED Driver (≥ 20,000 hours lifespan)
- Supply Voltage: 3.3 V (Typical VCC)
INNOLUX AT070TN83 V.1 TFT-LCD Module (AT Series).
-
REQUEST A QUOTE
- Panel Size & Type: 8.0 inches, a-Si TFT-LCD
- Resolution & Aspect Ratio: 800 (RGB) × 600 pixels (SVGA); 4:3 aspect ratio
- Display Mode: TN, Normally White, Transmissive
- Brightness: 250 cd/m² (Typical)
- Contrast Ratio: 500:1 (Typical)
- Response Time: 10 ms (Rise) / 15 ms (Decay) (Typical)
- Viewing Angles: 70° Left, 70° Right, 50° Up, 70° Down
- Interface: Parallel RGB (1-channel, 6/8-bit), 50-pin FPC connector
- Backlight Type: White LED (WLED)
- Input Voltages: 3.3V (VCC), 10.4V (AVDD), 16.0V (VGH), -7.0V (VGL)
INNOLUX AT080TN52 V.1 TFT-LCD Module (AT Series).
-
- Manufacturer: Inovance
- Model / Part Number: IT7070E
- Display Screen: A 7.0-inch LCD screen featuring 800 x 480 pixel resolution and 24-bit true color for clear, sharp imagery.
- Power Supply: Runs on a standard 24V DC power setup commonly used in industrial environments.
- Connectivity Ports: Built with rich physical communication channels including 2 x RS485 channels, 1 x RS232 port, 1 x USB mini B, 1 x USB type A, and 1 x Ethernet port.
- External Storage: Includes a dedicated SD card slot to easily handle data logging, backups, and recipe management.
- Internal Clock: Equipped with a built-in Real-Time Clock (RTC) to monitor and stamp time-sensitive process schedules.
-
REQUEST A QUOTE
- Display Type: 5.7" TFT color LCD
- Resolution: 640 × 480 (VGA)
- Backlight: White LED (approx. 50,000-hour operational lifespan)
- Touch Panel Type: Analog resistive (supports gloved operation; actuating force ≤ 0.8 N)
- Input Voltage: 24 VDC ± 10%
- Current Consumption: 0.3 A or less
- Enclosure Rating: IP40 (Protected against solid objects > 1mm; not protected against liquids)
- Operating Temp: 0 to +50 °C (32 to 122 °F) with strict relative humidity management over 40 °C
- Weight: ~450 g (main unit only) / ~485 g (with wall mounting adapter and stylus)
- Ethernet Communication: Utilizes a rugged M12 4-pin female connector supporting 100BASE-TX/10BASE-T networking directly to the sensor head or network switches.
KEYENCE IV2-CP50 Vision System Controller (IV2 Series).
-
REQUEST A QUOTE
- Specification Category: Attribute
- Display Panel: Screen Size
- Display Element: TFT LCD
- Resolution: XGA (1024 × 768 dots)
- Display Colors: 16 million colors
- Backlight System: White LED (Non-replaceable, ~50,000 hrs life)
- Touch Interface: Touch System
- Operating Force: 0.98 N or less
- Actuation Lifespan: 1 million operations or more
- Memory & Storage: Internal Screen Data
KEYENCE VT5-X10 Controller (VT5 Series).
-
REQUEST A QUOTE
- Display Size: 4.3 inches
- Resolution: 480 × 272 pixels (Note: Some baseline configurations share the processing architecture of the larger 800 × 480 ET070 series).
- Touch Panel Type: 4-wire precision analog resistor network with a 4H surface hardness protective layer.
- Processor (CPU): 400MHz RISC high-speed processor.
- Memory Capacity: 128MB Flash Storage + 64MB SDRAM.
- Onboard Storage: Real-Time Clock (RTC) + 512KB dedicated recipe memory.
- Programming & Expansion: Features a dedicated USB Slave port alongside serial interface options for uploading or downloading logic programs.
- PLC Compatibility: Broadly deployed alongside controllers such as the Inovance H0U/H1U/H2U/H3U series using specialized interface cables.
KINCO ET050 HMI Touch Screen Panel (eView Series).
-
- Manufacturer: KINCO
- Model / Part Number: ET070
- Display: 7-inch TFT LED backlit screen
- Resolution: 800 x 480 pixels
- Colors: 65,536 colors
- Touch Panel: 4-wire high-precision electric resistance touch screen
- Memory: 128MB Flash memory + 64MB SDRAM
- Power Input: DC 24V (runs safely between DC 12V and DC 28V)
- Ports: Serial ports (COM0 supporting RS232/RS485, and COM2 supporting RS232) and a USB Slave interface for downloading programs. Note: This model does not have an Ethernet port.
-
- Manufacturer: KINCO
- Model / Part Number: G070
- Display: 7-inch TFT screen with an 800×480 pixel resolution and a rich 16.7 million color display.
- Processor: Powered by a 32-bit ARM RISC 800MHz industrial-grade CPU.
- Memory: Equipped with 128MB of NAND Flash Storage and 128MB of DDR3 RAM.
- Hardware Port Features: Includes a built-in Real-Time Clock (RTC), 1 USB Host port, and 1 Micro USB programming download port.
- Software: Programmed using Kinco's standard DTools configuration software.
-
- Manufacturer: KINCO
- Model / Part Number: G070E
- Display Size: 7 inches TFT widescreen
- Resolution: 800 × 480 pixels
- Colors: 16.77 million true colors
- Memory: 128 MB NAND Flash memory + 128 MB DDR3 RAM
- Power Supply: 24V DC input voltage
- Built-in Ethernet: Features a 10/100M self-adaptive Ethernet port to connect to local networks and PLCs.
- Serial Ports: Includes 3 COM ports supporting RS232, RS485, and RS422 communication styles simultaneously.
- Expansion: Contains a USB Host port for uploading/downloading software programs via USB flash drives.
- Programming Software: Programmed using Kinco's free Dtools configuration software.
- External Size: Approximately 20.4 cm × 15.0 cm × 3.7 cm
- Front Panel Rating: IP65-rated waterproof and dustproof front boundary.
