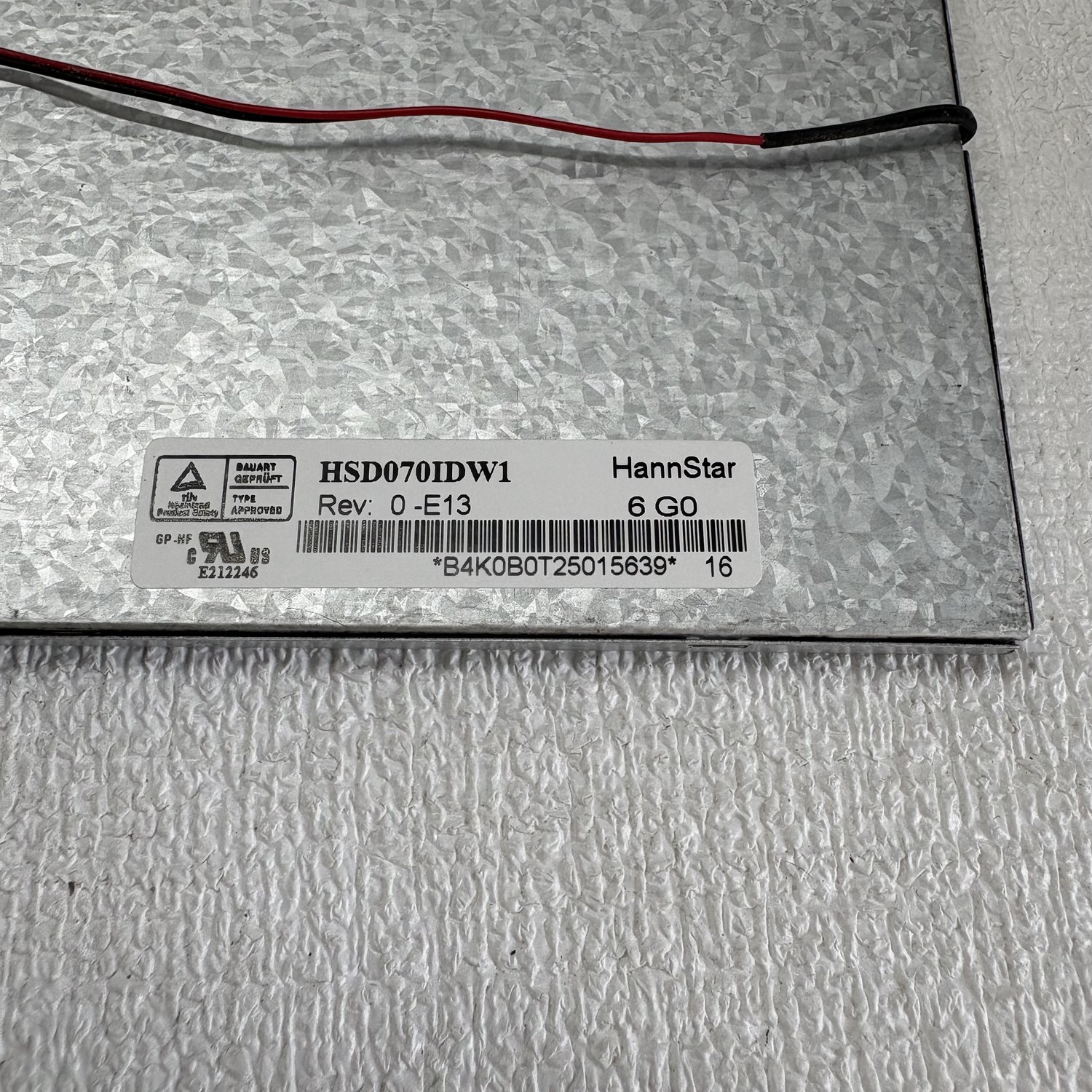

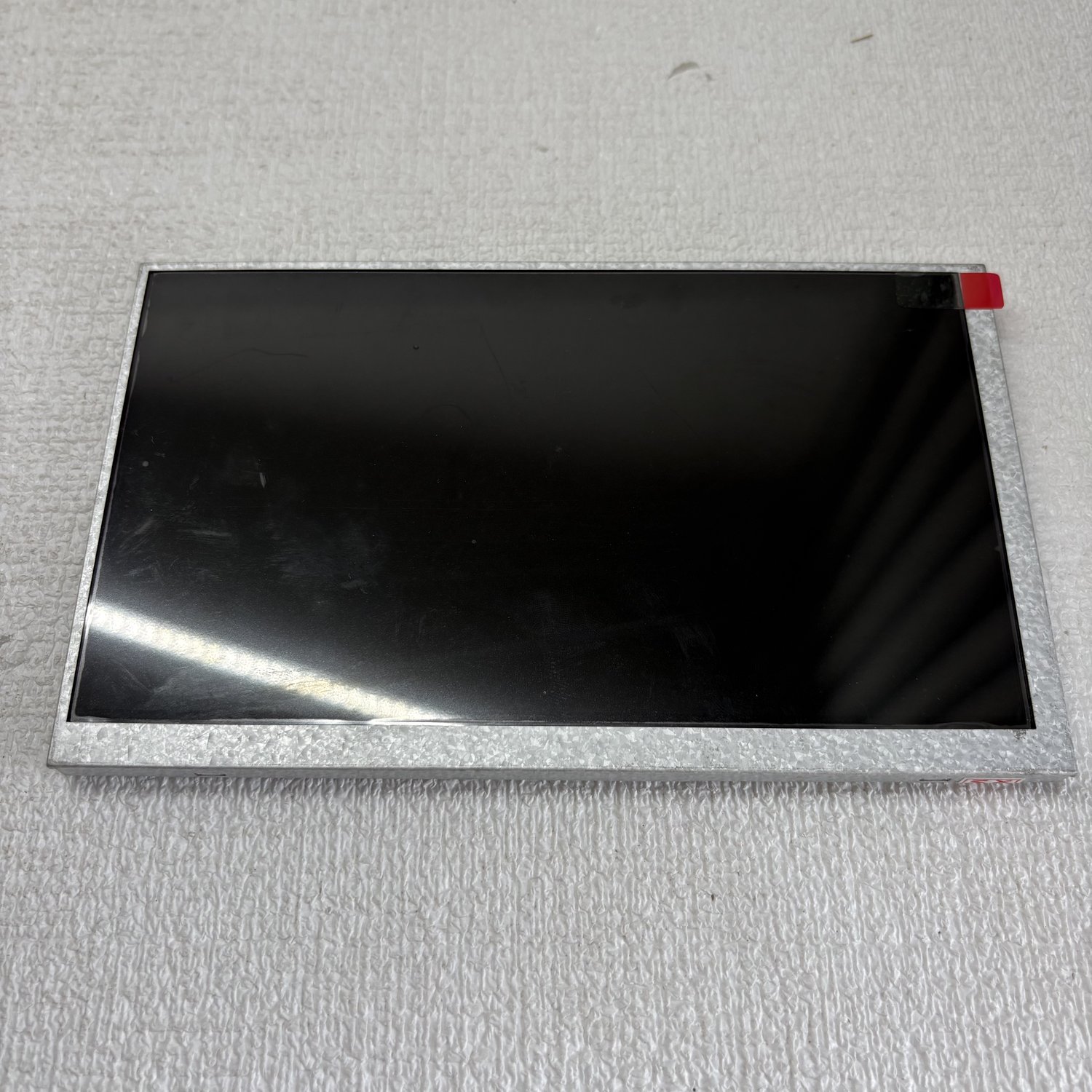

HSD070IDW1-E13 HannStar TFT LCD Display Module
- Resolution: 800 (RGB) × 480 pixels (WVGA) with a 16:9 widescreen aspect ratio.
- Physical Dimensions: Outline size of 164.9(W) × 100(H) × 5.7(D) mm with an active display area of 153.6 × 86.64 mm.
- Signal Interface: Uses a 60-pin TTL parallel RGB interface via a flexible printed circuit (FPC) connection.
- Display Technology: TN, normally white, transmissive display mode supporting up to 262K/16.2M colors.
- Optical Performance: Typ. brightness of 450 cd/m² and a 500:1 contrast ratio for enhanced daylight visibility.

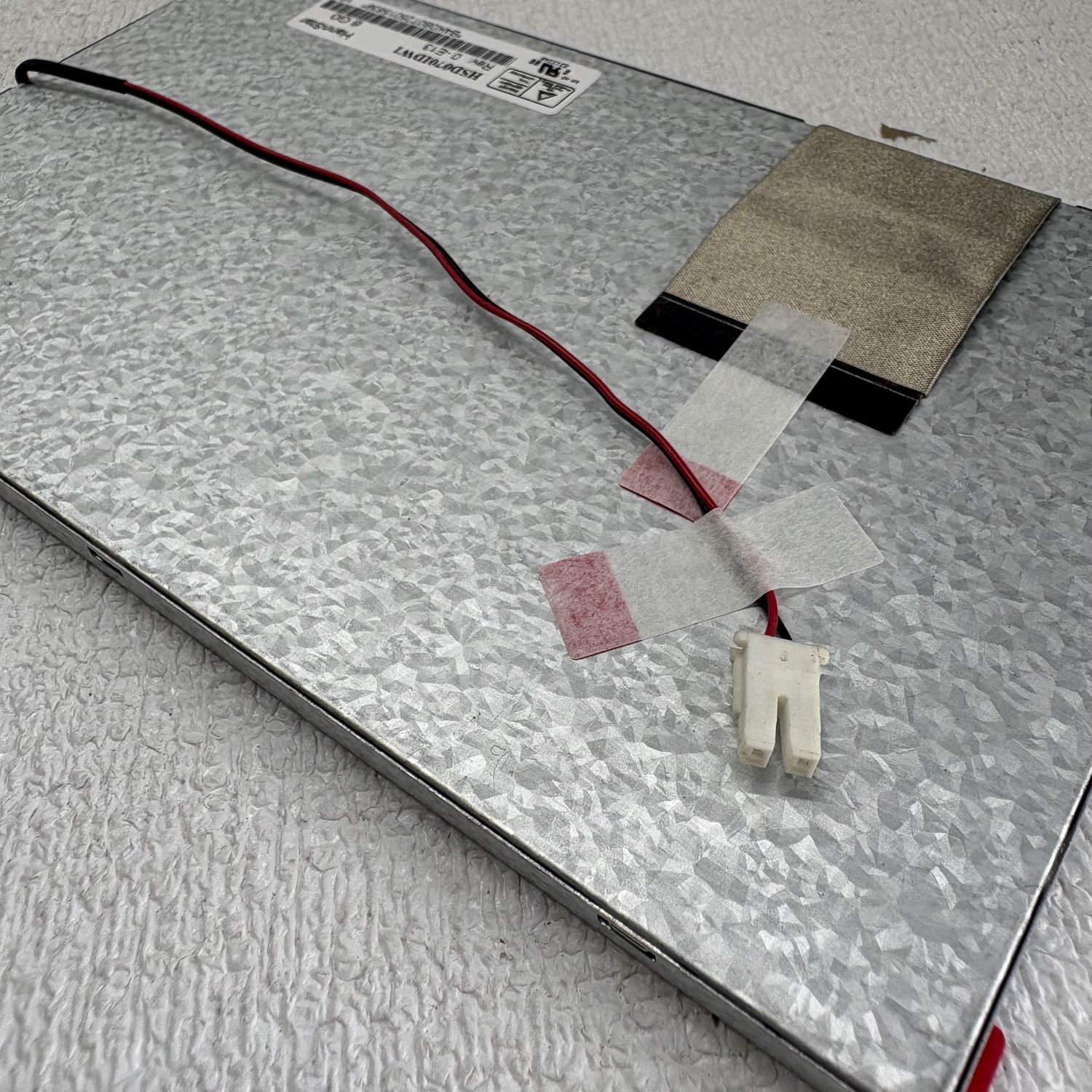

- Backlight: Integrated white LED (WLED) lighting matrix with a standard JST BHSR-02VS-1 backlight connector.
- Touch Screen: The base factory part does not include built-in touch overlay hardware, though some replacement bundles include an aftermarket touch digitized glass layer pre-attached.
Brand New HannStar HSD070IDW1-E13 TFT LCD Display Module (HSD070 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
- SKU: HSD070IDW1-E13
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
Availability & Delivery
- Availability shown is for reference only and will be confirmed at the time the order is processed.
- Published quantities may change without prior notice.
- The customer is responsible for verifying part number and specifications before confirming the purchase.
- Certain products may be considered special order items depending on availability.
