Showing 113–128 of 153 results
-

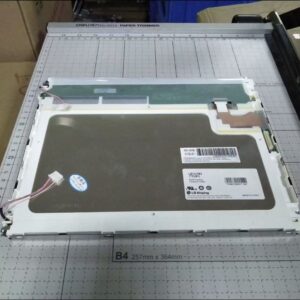

- Manufacturer: LG
- Model / Part Number: LB121S03-TD01
- Screen Size: 12.1 inches diagonally
- Resolution: 800 x 600 pixels (SVGA)
- Aspect Ratio: 4:3 (the standard boxy shape)
- Brightness: 400 to 450 nits (bright enough to read clearly under bright factory lights)
- Contrast Ratio: 500:1 to 700:1 (helps text and buttons stand out)
- Backlight System: Cold Cathode Fluorescent Lamp (CCFL)
- Connection Type: LVDS (1 channel, 6-bit), which is a common plug style for industrial computers
-
REQUEST A QUOTE
- Manufacturer: LG
- Model / Part Number: LB121S03-TL01
- Screen Size: 12.1 in
- Resolution: 800 × 600 (SVGA)
- Brightness: 400 cd/m²
- Contrast Ratio: 500:1
- Interface: 20-pin LVDS, 1-channel, 6-bit
- Backlight: 2 CCFL lamps
- Surface: Anti-glare coating
- Power Input: 3.3 V
LG LB121S03-TL01 LCD Display. Contact us for product information and quotation.
-
- Manufacturer: LG
- Model / Part Number: LB121S03-TL02
- Screen Size: 12.1 inches diagonally
- Resolution: 800 × 600 pixels (SVGA aspect ratio of 4:3)
- Panel Type: a-Si TFT-LCD (Active Matrix Liquid Crystal Display)
- Backlight: Dual CCFL lamps (Cold Cathode Fluorescent Lamp)
- Brightness: 400 cd/m² (suitable for bright indoor industrial areas)
- Contrast Ratio: 500:1 to 600:1
- Working Voltage: 3.3V
- Touchscreen: None (it is just the display panel; touch overlays are separate)
- Power Requirements: This panel requires two power sources.
-
REQUEST A QUOTE
- Manufacturer: LS Electric (LSIS)
- Series / Platform: XGT-Panel Series (Micro HMI)
- Display Type: 4.1" Graphic STN grayscale monochrome LCD with LED backlight
- Resolution: 192 x 64 pixels
- Supply Voltage: 24Vdc (Current consumption ≤ 200mA)
- Memory Capacity: 256 KBytes Flash memory (Project data) & 1,000 words System RAM
- Physical Interface: Operator dialogue keypad
- Panel Cutout Size: 141 mm (W) x 87 mm (H) (Note: Some documentation lists an 85 mm height cutout)
- Certifications: CE, cULus Listed, KC
- Supported Protocols: Fully compatible with Master/Slave topologies, Modbus (RTU and ASCII), and LS Electric proprietary frameworks such as MASTER-K Loader/Link (CNET) and GLOFA-GM Loader/Link (CNET).
LS XP10BKB-DC Human-Machine Interface (HMI) (XP Series).
-
REQUEST A QUOTE
- Display Size: 5.7 inches
- Resolution: 320 × 240 pixels (VGA / QVGA orientation)
- Panel Type: CSTN-LCD / TFT color display module
- Backlight Type: 1-piece CCFL (Cold Cathode Fluorescent Lamp)
MATRIX 8906-CCFL-A-A161 Industrial LCD Display Panel (8906 Series).
-
REQUEST A QUOTE
- Type: 5-Port, Single Solenoid Valve
- Voltage Requirement: 24V DC
- Port Size: 1/8 PT (Pipe Thread)
- Pilot Configuration: Internal Pilot
- Electrical Entry: Horizontal Type ("H")
MCGS DV3120-5H-01-TH Pilot Solenoid Valve (DV3120 Series).
-

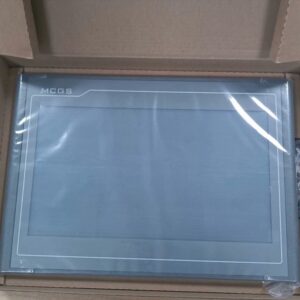

- Manufacturer: MCGS
- Model / Part Number: TPC1021ET
- Screen Size: 10.1 inches TFT LCD
- Resolution: 1024 x 600 pixels
- Display Colors: 65,536 colors
- Backlight: Long-lasting LED
- Touch Type: Four-wire resistive touch
- Processor: Cortex-A7 (running at 800MHz)
- Memory: 64 MB / 128 MB RAM (depending on the specific production batch)
- Data Storage: 8 MB flash memory
- Software Platform: Programmed using McgsPro configuration software
- Serial Ports: Features multiple communication setups like COM1 (RS232), COM2 (RS485), and COM3 (RS485)
- Ethernet: 1x 10/100M adaptive network port for internet/network connections
- USB: 1x USB Host/Slave port for data transfer via flash drives
- Power Input: 24V DC (allows a range of ±20%)
- Power Consumption: 6 Watts
- Front Protection: IP65 rated (dust-tight and protected against water jets)
- Panel Cutout Size: 261mm x 180mm
- Overall Size: 274mm x 193mm
-
REQUEST A QUOTE
- Screen Size: 15.3 inches
- Resolution: 1280 × 768 pixels (WXGA format)
- Aspect Ratio: 15:9
- Brightness: 470 cd/m² (NITS)
- Contrast Ratio: 700:1
- Display Mode: SA-SFT, Normally Black, Transmissive
- Viewing Angle: Ultra-wide 88°/88°/88°/88° (Left/Right/Up/Down)
- Color Depth: Supports 262K or 16.7M colors (6-bit / 6-bit + Hi-FRC)
- Surface Treatment: Antiglare with a 3H hard coating
- Operating Temperature: Wide operational window of -10°C to +70°C
- Lamp Type: Edge-lit LED string system (4 strings total)
- Lamp Life: Rated for an extensive 70,000 hours of continuous use
- Input Voltage: Typical 28.4V (ranges from 25.7V minimum to 31.5V maximum)
- Interface Configuration: Utilizes a 10-pin connector system (SM10B-SHLS-TF)
NEC NL12876BC26-32D Industrial-Grade TFT-LCD Display Panel (NL12876 Series).
-
REQUEST A QUOTE
- Panel Size / Type: 10.4 inches (26.4 cm) diagonal / a-Si TFT-LCD, LCM
- Resolution / Aspect Ratio: 640 × 480 (VGA) / 4:3
- Surface Treatment: Clear or Antiglare, Hard coating (3H)
- Brightness (Typical): 450 cd/m² (Nits)
- Contrast Ratio: 600:1 (Typical)
- Display Colors: 262K (43% NTSC coverage)
- Signal Interface: CMOS (1 ch, 6-bit), 31 pins connector
- Input Voltage: 3.3V / 5.0V (Typical)
- Operating Temperature: -10°C to 70°C (14°F to 158°F)
- Storage Temperature: -20°C to 80°C (-4°F to 176°F)
NEC NL6448BC33-59D TFT-LCD Module (NL Series).
-
REQUEST A QUOTE
- Feature / Attribute: Specification Profile
- Panel Size & Type: 15.0 inches diagonal / a-Si TFT-LCD
- Native Resolution: 1024 × 768 pixels (XGA format, 4:3 aspect ratio)
- Pixel Arrangement: RGB Vertical Stripe
- Active Display Area: 304.128 (W) × 228.096 (H) mm
- Outline Dimensions: 326.5 (W) × 253.5 (H) × 14.6 (D) mm (Variant dependent)
- Luminance (Brightness): 400 cd/m² (Typical)
- Contrast Ratio: 600:1 (Typical, Transmissive mode)
- Display Colors: 262K (6-bit) or 16.7M (6-bit + Hi-FRC)
- Viewing Angles: 80° / 80° / 80° / 80° (Left/Right/Up/Down, Typical @ CR ≥ 10)
NLT NLB150XG01L-01 TFT-LCD Module (NLB Series).
-
REQUEST A QUOTE
- Display Type: 9-inch wide TFT LCD screen with a black frame.
- Resolution: 800 × 480 pixels supporting over 16.7 million colors.
- Touch Technology: Resistive touch interface.
- Storage / Memory: Features built-in SD card and USB peripheral support.
- Environmental Protection: Front side IP65 and NEMA 4X rated enclosure for protection against dust and fluid spray.
- Dimensions: 290 mm width × 190 mm height, requiring a 260 mm × 165 mm panel cutout.
OMRON NA5-9W001B-V1 Human-Machine Interface (HMI) (Sysmac NA).
-
REQUEST A QUOTE
- Display Type: 10.4-inch TFT Active Matrix Screen
- Resolution: 640 × 480 dots (VGA)
- Touch Panel: Analog resistive type (operable with gloves)
- Backlight: Long-life LED backlight
- Power Consumption: 25 W
- Input Voltage: 24 VDC
- Enclosure Color: Black case
- Software Support: Programmed using CX-Designer software
OMRON NS10-TV00B-ECV2 Human-Machine Interface (HMI) (NS Series).
-
REQUEST A QUOTE
- Display: 5.7-inch Color TFT LCD with LED backlight, 320 x 240 pixel (QVGA) resolution, supporting up to 256/32k colors.
- Safety Features: Integrated Red Emergency Stop Button (DPST-NO output configuration) and 10 built-in function buttons.
- Memory & Storage: 60 MB internal application memory alongside a CompactFlash (CF) card slot.
- Enclosure & Protection: Rugged black case with an IP65 protection rating against water and dust ingress.
- Power Supply: Standard industrial 24 VDC (allowable range: 20.4 to 27.6 VDC) with a maximum consumption of 10W.
- Connectivity: 9-pin D-sub connector and 1 USB port for programming/maintenance. This specific model does not include a built-in Ethernet port.
OMRON NSH5-SQR10B-V2 Handheld Programmable Terminal (NS Series).
-
REQUEST A QUOTE
- Display Type: 5.7" Monochrome STN LCD with backlight
- Resolution: 320 × 240 pixels
- Frame Color: Black (indicated by the "B" in the part number; the beige counterpart is NT31-ST123-EV3)
- Power Supply: 24 VDC
- Power Consumption: 15 Watts
- Enclosure Rating: IP65 front panel protection
- Communication Interfaces: Built-in RS-232C, RS-422A, and RS-485 ports supporting Host Link and high-speed NT Link
- Software: Configuration requires the NT Support Tool.
- No USB Support: This model does not feature a USB port. Data backup and uploads must be performed via serial communication using an RS-232C interface or a compatible USB-to-Serial adapter.
- System Menu Access: To force the unit into transmit mode, press and hold any two corners of the touchscreen simultaneously for 2 to 3 seconds. The touch areas are notoriously small, so multiple attempts may be necessary.
OMRON NT31-ST123B-EV3 Programmable Terminal (NT31).
-
REQUEST A QUOTE
- Display Type & Size: 5.7-inch TFT Color LCD with White LED Backlight
- Resolution & Colors: 320 x 240 pixels (QVGA); 4,096 colors
- Brightness: 600 cd/m²
- Input Voltage: 24V DC
- Power Consumption: 10W or less
- Memory Capacity: 12MB RAM
- Interfaces / Ports: RS-232C, USB Type-B (programming port)
- Expansion Slot: SD / SDHC Memory Card Slot
- Frame Color: Black
- IP Rating: IP67 rated front panel, offering superior dust-proof and drip-proof protection when panel-mounted.
PANASONIC AIG32TQ02DR Human-Machine Interface (HMI) (AIG32).
-
REQUEST A QUOTE
- Display Type: 10.4-inch TFT Color LCD, supporting up to 64 colors.
- Resolution: 640 x 480 pixels (VGA).
- Power Supply: 24V DC input (allowable range ±20%).
- Power Consumption: 50W or less (typically around 20W).
- Dimensions: 317mm x 243mm x 85mm.
- Environmental Protection: Meets NEMA 4X/12 and IP65f ratings, providing excellent protection against water and dust in harsh factory environments.
- Configuration Software: Programmed using standard Pro-face legacy software, specifically GP-Pro/PBIII.
- Same Cutout Size: For a drop-in physical replacement without cutting into your cabinet panel, use the SP5000 Series combined base and panel modules (e.g., PFXSP5600TPD paired with PFXSP5B10).
- Different Cutout Size: The GP4000 Series (PFXGP4501TMD) acts as a highly functional software replacement but features alternative physical dimensions.
- Product Description P/N: GP577R-TC41-24VP * Description. The GP577R-TC41-24VP is a 10.4-inch operator interface from Pro-Face. It …
PRO-FACE GP577R-TC41-24VP Human-Machine Interface (HMI) (GP577R).
