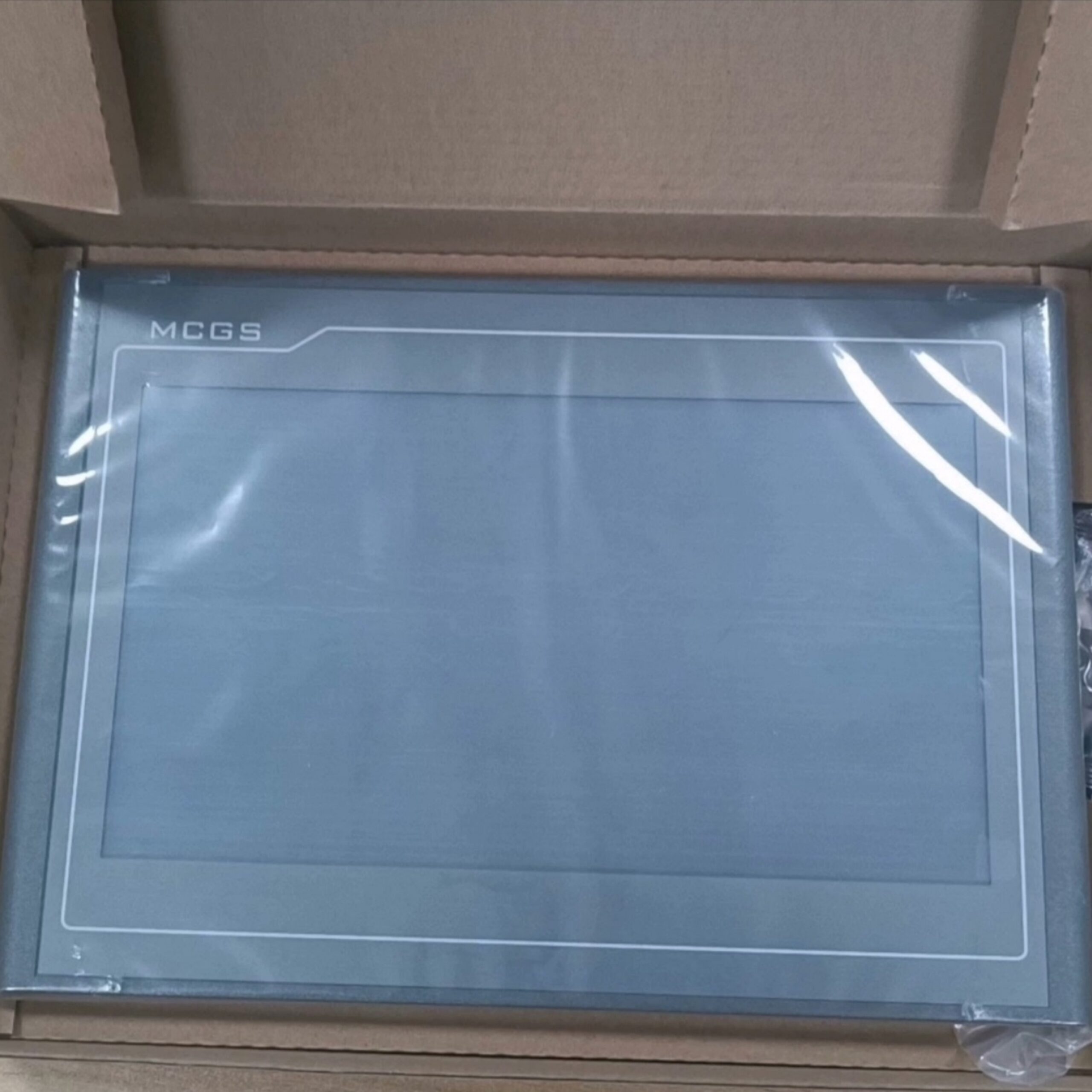

MCGS TPC1021ET HMI Touch Panel
- Manufacturer: MCGS
- Model / Part Number: TPC1021ET
- Screen Size: 10.1 inches TFT LCD
- Resolution: 1024 x 600 pixels
- Display Colors: 65,536 colors
- Backlight: Long-lasting LED
- Touch Type: Four-wire resistive touch
- Processor: Cortex-A7 (running at 800MHz)
- Memory: 64 MB / 128 MB RAM (depending on the specific production batch)
- Data Storage: 8 MB flash memory
- Software Platform: Programmed using McgsPro configuration software
- Serial Ports: Features multiple communication setups like COM1 (RS232), COM2 (RS485), and COM3 (RS485)
- Ethernet: 1x 10/100M adaptive network port for internet/network connections
- USB: 1x USB Host/Slave port for data transfer via flash drives
- Power Input: 24V DC (allows a range of ±20%)
- Power Consumption: 6 Watts
- Front Protection: IP65 rated (dust-tight and protected against water jets)
- Panel Cutout Size: 261mm x 180mm
- Overall Size: 274mm x 193mm
- SKU: TPC1021ET
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
