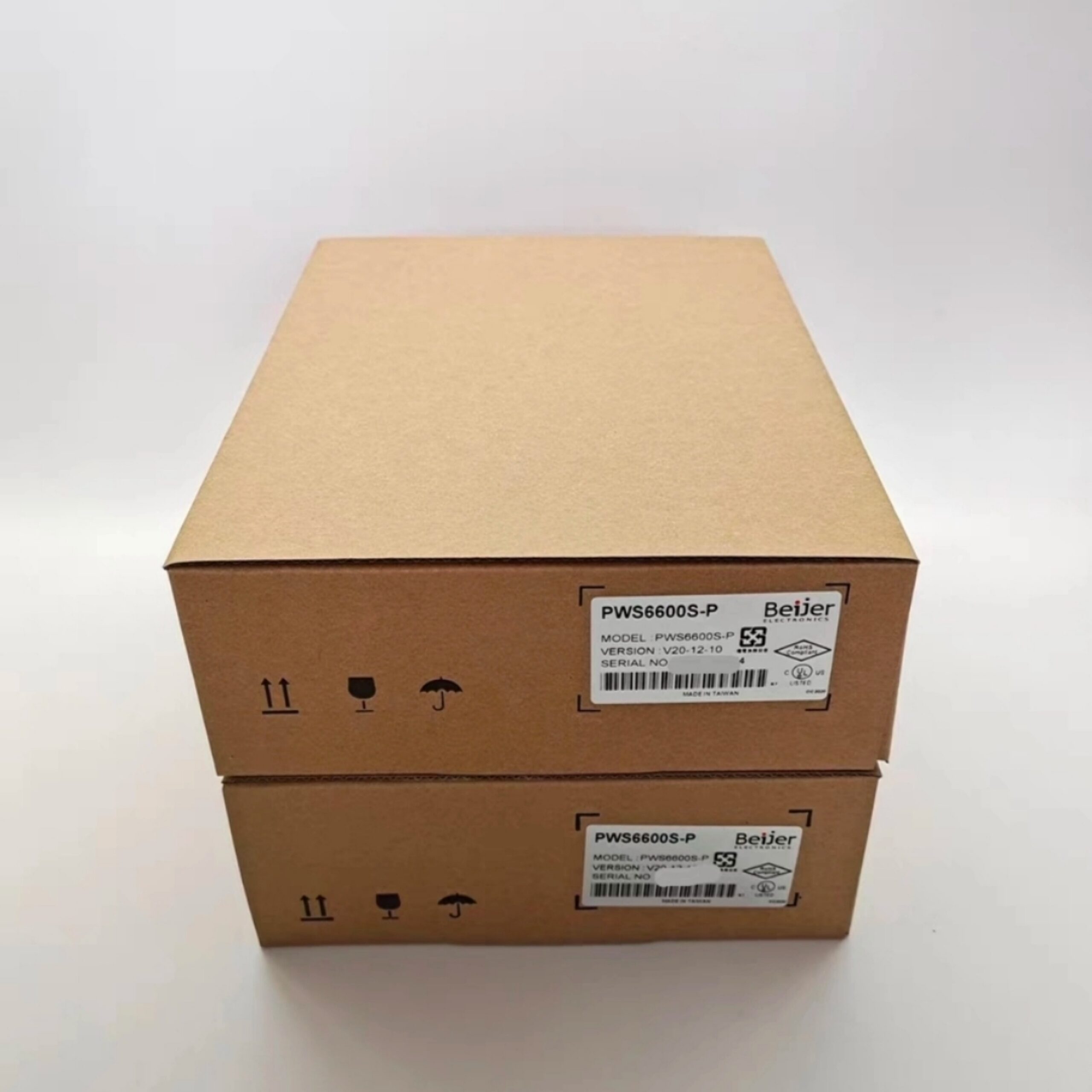

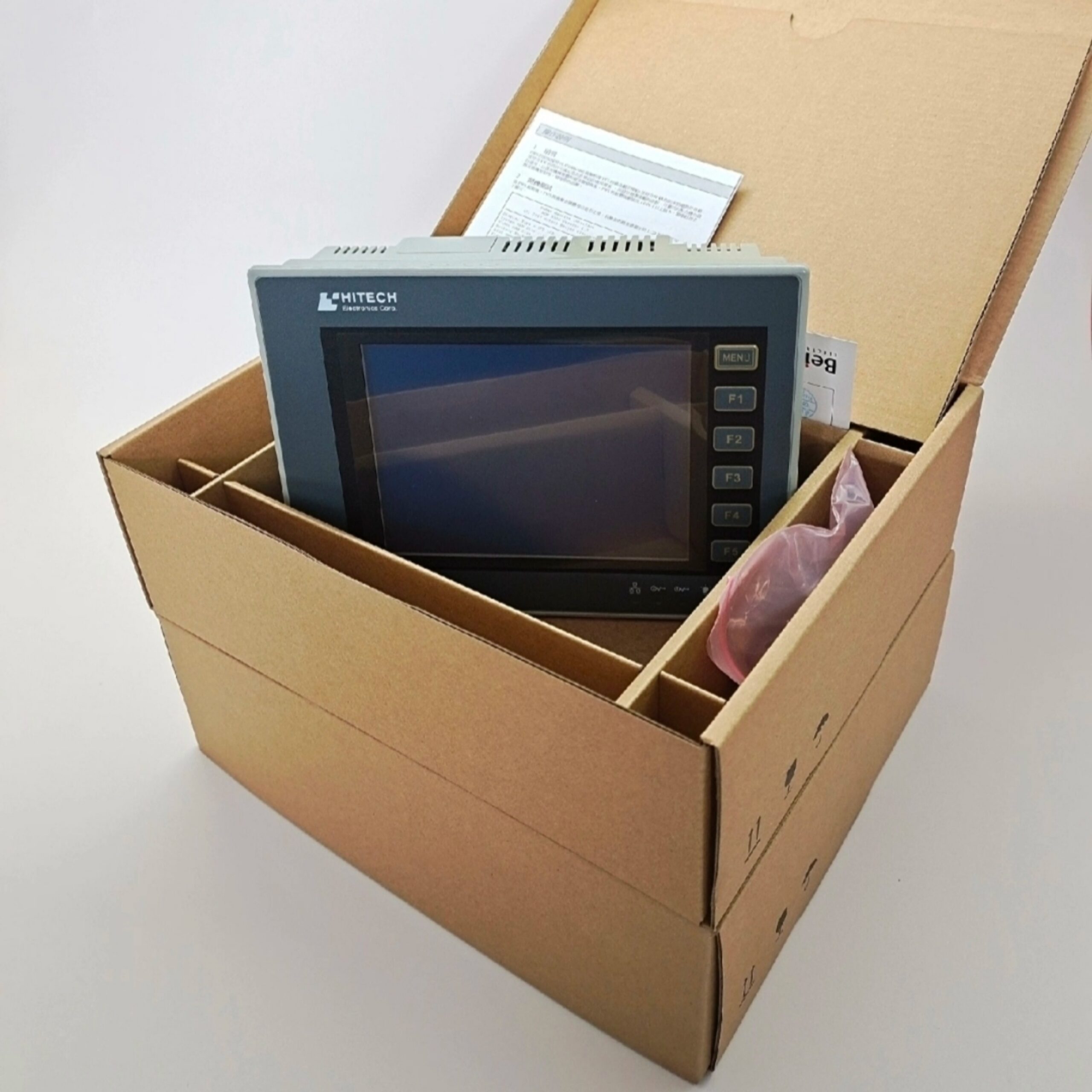

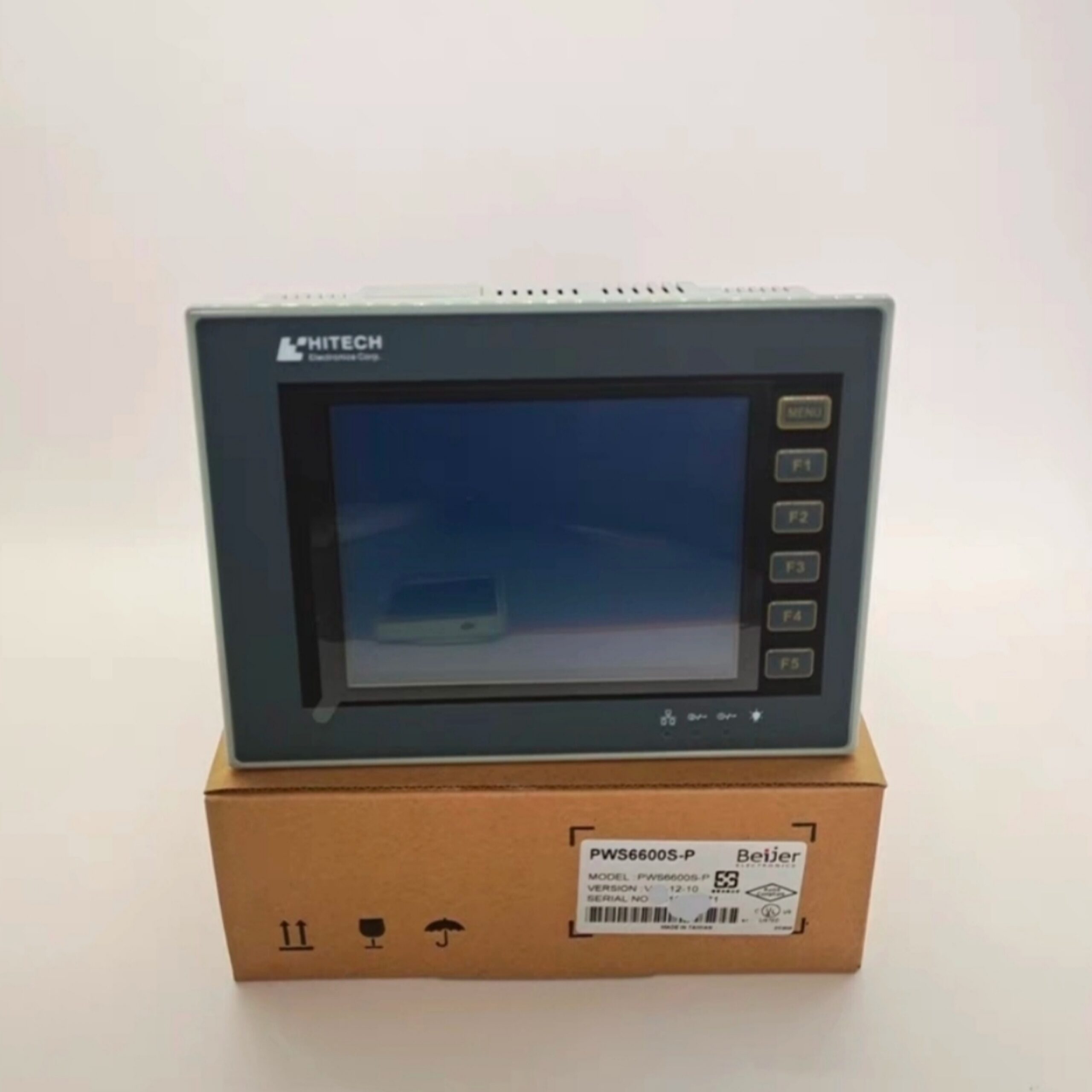

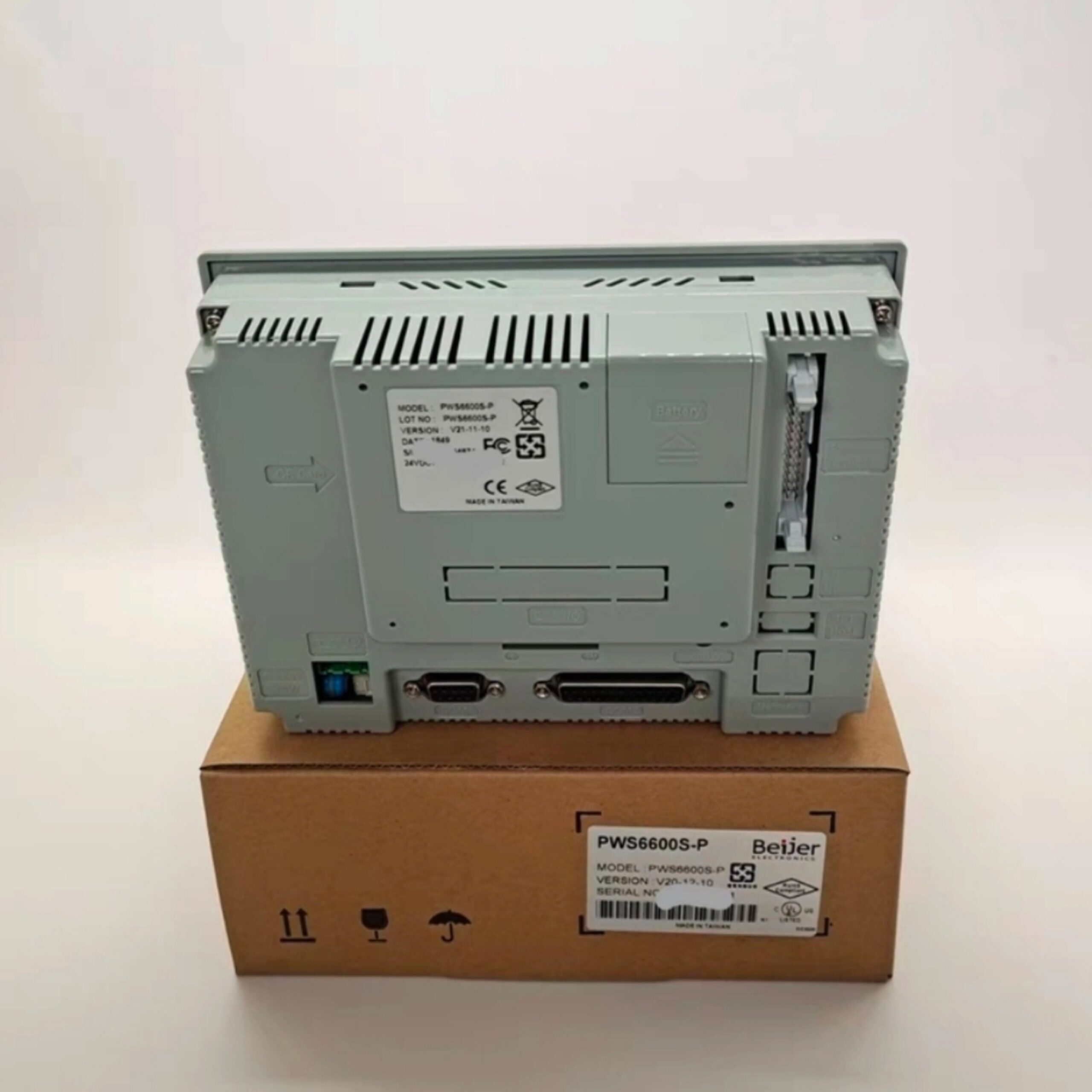

HITECH PWS6600S-P HMI Display
- Manufacturer: HITECH
- Model / Part Number: PWS6600S-P
- Screen Size: 5.7 inches diagonal
- Display Type: Mono STN LCD
- Resolution: 320 x 240 pixels
- Colors: 16 shades of blue
- Brightness: 160 cd/m²
- Contrast Adjustment: Controlled via the touch panel
- Touch Panel: Analog resistive
- Processor: 32-bit RISC CPU
- Application Storage: 4 MB Flash ROM
- System Memory: 512 KB RAM
- Real-Time Clock (RTC): Built-in with a rechargeable lithium battery
- Configuration Software: Programmed using Hitech ADP (Application Development Package)
- Multi-functional Port: 26-pin connector primarily dedicated to printer outputs or specialized data processing
- Input Voltage: 24V DC ±15%
- Power Consumption: Less than 20 Watts (< 20W)
- Dimensions: 195.0 mm (W) x 145.0 mm (H) x 59.1 mm (D)
- Weight: 0.81 kg
- Front Panel Sealing: IP65 / NEMA 4 rated (water and dust resistant)
- Operating Temperature: -10°C to +60°C
- Vibration Resistance: 0.5 mm displacement, 10–55 Hz for 2 hours per X, Y, and Z axis
- Shock Resistance: 10 G, 11 ms pulses (3 times per axis)
- SKU: PWS6600S-P
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
