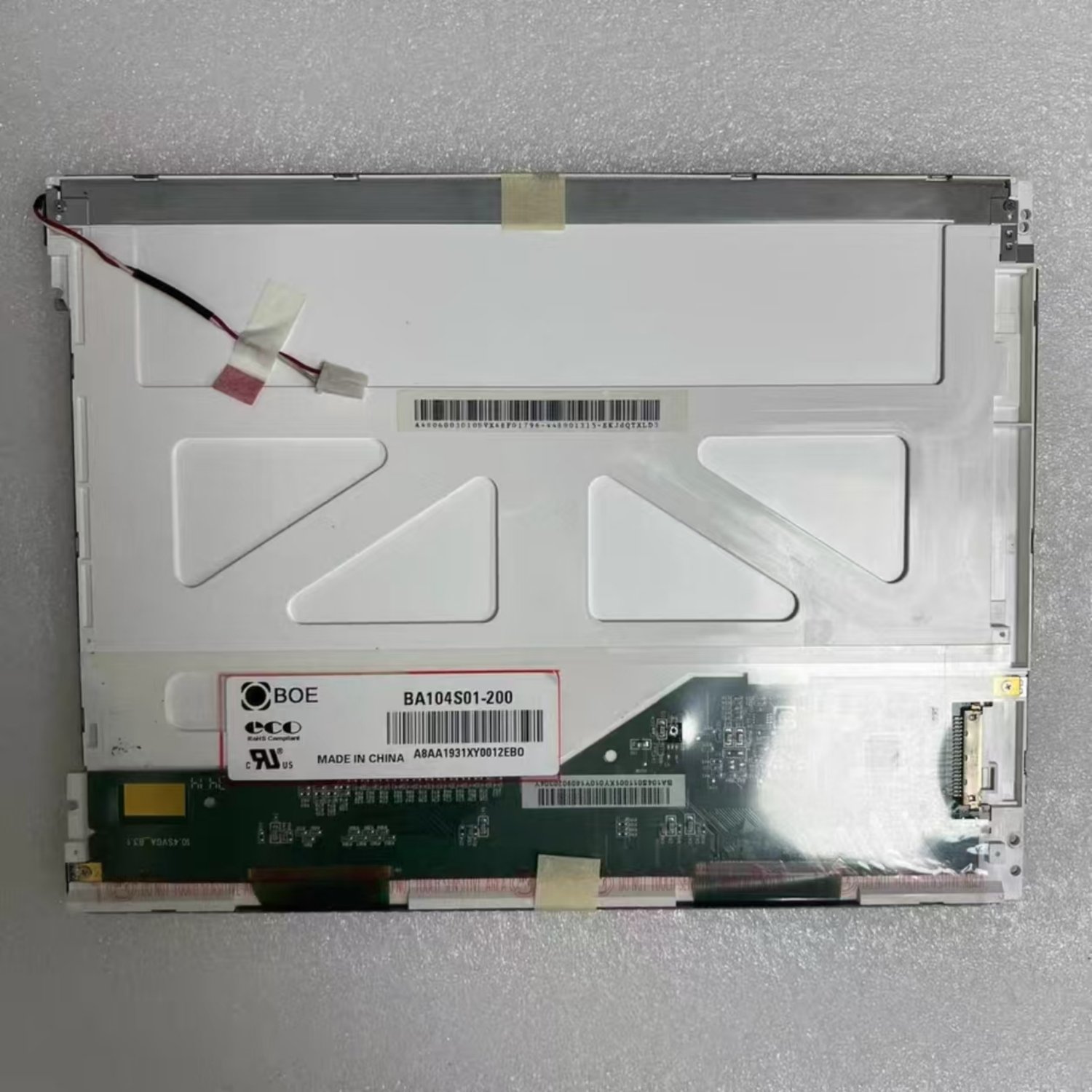

BA104S01-200 BOE TFT-LCD Display Module

• Display Resolution: SVGA 800 x 600 pixels (4:3 standard landscape aspect ratio) with a pixel density of 96 PPI.
• Display Technology: TN (Twisted Nematic), Normally White, Transmissive mode.
• Physical Dimensions: 236.0 mm (W) × 176.9 mm (H) × 5.9 mm (D) with an active screen area of 211.2 mm × 158.4 mm.
• Signal Interface: Typically driven via a 1-channel LVDS interface (20-pin configuration supporting 6-bit or 8-bit gray scale, 262K/16.2M colors). Note: Some generic replacement variations or interface modules list Parallel RGB configurations.
• Luminance (Brightness): 300 cd/m² typical constant backlight.
• Contrast Ratio: 800:1 to 1000:1 typical.
• Backlight System: Built-in White LED (WLED) lighting system designed for a 30,000-hour operating lifespan (requires an external backlight driver).
• Touch Screen: Not included natively; it is a display-only module. However, manufacturers like Miqidisplay offer custom upgrades to add capacitive or resistive touch panels.
• Environmental Tolerances: Built to withstand harsh settings, operating reliably from -20°C to 70°C and storable from -30°C to 80°C.
• Surface Treatment: Anti-glare coating (Haze 25%) to combat reflections in bright environments.

Brand New BOE BA104S01-200 TFT-LCD Display Module (BA104 Series). In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
