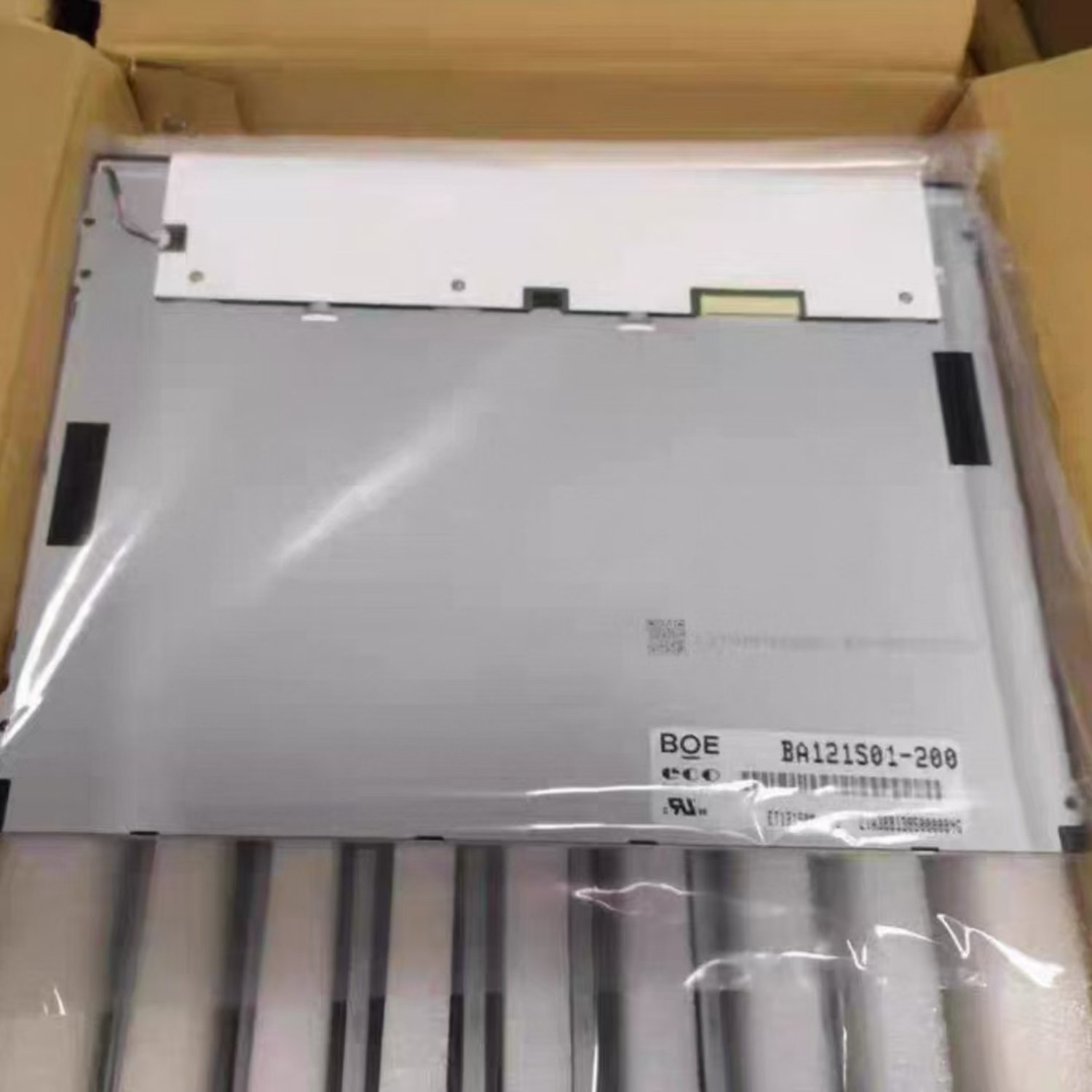

BA121S01-200 BOE TFT-LCD Display Module

Panel Size: 12.1 inches diagonally
Native Resolution: 800 × 600 pixels (SVGA) with a 4:3 aspect ratio
Pixel Density: 82 PPI
Display Mode: TN (Twisted Nematic), Normally White, Transmissive
Color Depth: Supports 262K or 16.7M colors (55% NTSC color gamut coverage)
Refresh Rate: 60 Hz
Response Time: 30 ms (Typical)
Luminance (Brightness): Generally rated between 350 to 430 cd/m² (Typical value is 400 nits)
Contrast Ratio: 800:1 (Typical)
Viewing Angles: 80° left, 80° right, 65° up, and 75° down (with a contrast ratio ≥ 10)
Backlight Type: White LED (WLED arranged in a 6S4P configuration) with a minimal lifetime of 30,000 hours
Input Voltage: 3.3V (Typical)
Signal Interface: 1-channel LVDS (supporting 6-bit or 8-bit data input selection)
Pin Configuration: 20-pin connector interface
Physical Outline: 279.0(H) × 209.0(V) × 9.3(D) mm
Active Display Area: 246.0(H) × 184.5(V) mm
Environmental Limits: Operating temperature range of -20°C to 70°C; storage temperature range of -30°C to 80°C

Brand New BOE BA121S01-200 TFT-LCD Display Module (BA121 Series). In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
