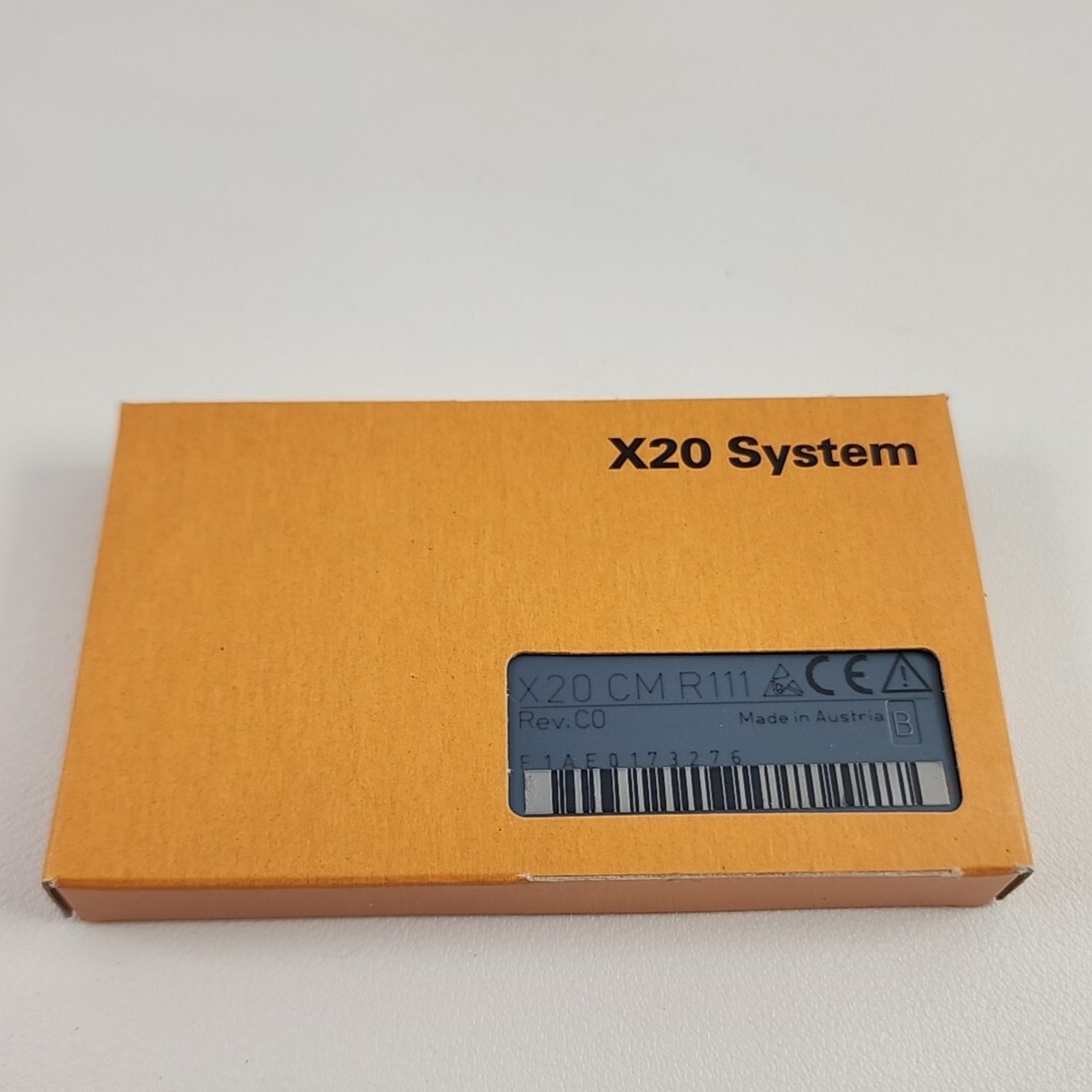

B&R X20CMR111 Cabinet Monitoring Module (X20 System)

• Ambient Temperature: Integrated internal sensor to measure module and surrounding panel temperature.
• Relative Humidity: Onboard moisture sensor for environmental evaluation inside the enclosure.
• Inertial Features: Built-in accelerometer to detect vibration, mechanical shock, and mounting position.
• Temperature Inputs: 2 channels configured for external PT1000 temperature sensors.
• Digital Inputs: 2 channels, 24 VDC.
• Digital Output: 1 channel, 24 VDC, rated at 0.5 A.
• User Storage: 512 kB flash memory designated for storing persistent user data directly on the module.
• Data Recording: Tracks total operating hours and cumulative power-on cycles.
• Technology Guarding: Functions as a physical dongle platform directly on the module to handle software license validation.
• Blackout Mode: Supported feature allowing operation during brief system power drops.

Brand New B&R X20CMR111 PLC Module. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
