- Nominal Stem Force: 1800 N (405 lbf) for heavy-duty applications.
- Stroke Length: 38 mm (1-1/2 inches).
- Power Input: 24 Vac (+10%, -15%), 50/60 Hz.
- Power Consumption: Maximum 11 VA to 16 VA depending on operational frequency.
- Run Time: Approximately 175–210 seconds for a full 38 mm stroke.
- Control Input Signals: Selectable 0…10 Vdc, 2…10 Vdc, 0…20 mA, or 4…20 mA.
- Feedback Signal: 2…10 Vdc position feedback.
- Materials: ABS plastic cover with a rugged die-cast aluminum yoke and base.
- Direct Valve Coupling: Mounts directly onto compatible Honeywell globe valves (such as V5011, V5013, V5015, V5016, and VGF series) without requiring separate linkages or adjustments.
- System Target: Optimally used for larger valves (typically 4 inches and above) due to its high 1800 N force capability.
HONEYWELL ML7421B8012-E Linear Valve Actuator (ML7421 Series).
-
REQUEST A QUOTE
- Actuator Type: Side Rotary, Adjustable Roller Lever
- Circuit Configuration: SPDT-DB/DM (Single Pole Double Throw, Double Break/Double Make)
- Switch Function: On-Mom (On-Momentary / Spring Return)
- Current Rating: 10 A (AC)
- Voltage Ratings: 125 VAC / 480 VAC
- Ingress Protection: IP67 (Dust-tight and protected against temporary water submersion)
- Termination Style: Screw Terminals (4 Terminals total)
- Adjustable Actuator Positioning: The side rotary lever is equipped with an adjustable roller. This allows you to scale the length or change the contact angle of the lever arm to precisely fit your machine's mechanical trip mechanics.
- Double Break Circuitry: The SPDT (DB/DM) contact architecture features double break mechanisms. This configuration breaks the circuit in two places simultaneously, which helps extinguish electrical arcs more efficiently and extends the electrical operating life under heavy 10A current loads.
- Environmental Sealing: Its IP67 rating ensures the switch operates reliably in demanding, wet, dusty, or dirty indoor/outdoor environments. It can withstand industrial equipment washdowns.
HONEYWELL SZL-WLC-B Limit Switch (MICRO SWITCH SZL).
-
REQUEST A QUOTE
- Control Action: Proportional plus Integral (P+I) or basic On/Off control for stable temperature management.
- Power Supply: 24 Vac.
- Analog: Modulating 2 to 10 Vdc or 4 to 20 mA (reversible) to drive valve or damper actuators.
- Digital: 2A On/Off relay output for secondary sequence control, changeovers, or alarms.
- Temperature Range: Broad reach from -20°C to 110°C when utilizing an external sensor, making it robust enough for steam or chilled water systems.
- Enclosure & Wiring: IP30-rated compact housing that supports wall, panel, or standard DIN rail mounting with plug-in screw terminals.
HONEYWELL T9275A1002 Temperature Controller (T9275 Series).
-
REQUEST A QUOTE
- Power Supply: 220/230VAC, 50/60Hz.
- Temperature Setting Range: 10°C to 32°C.
- Operating Ambient Limits: 0°C to 49°C.
- Enclosure Protection: IP20 rating against solid particles.
- Built-in Protections: Integrated low-temperature freeze protection and four distinct keypad locking options.
HONEYWELL TF428WN/U Fan Coil Thermostat (TF428 Series).
-

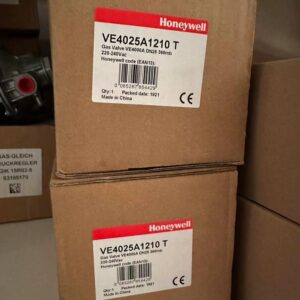

- Manufacturer: HONEYWELL
- Model / Part Number: VE4025A1210T
- Valve Function: Normally closed
- Control: On/off
- Nominal Size: DN25 (1 inch)
- Supply Voltage: 220–240 VAC
- Maximum Inlet Pressure: 360 mbar
- Opening and Closing Time: Less than 1 second
- Degree of Protection: IP65
- Maximum Cycle Rate: 20 cycles per minute
- Pressure Tappings: Two 1/4-inch connections on the inlet side
