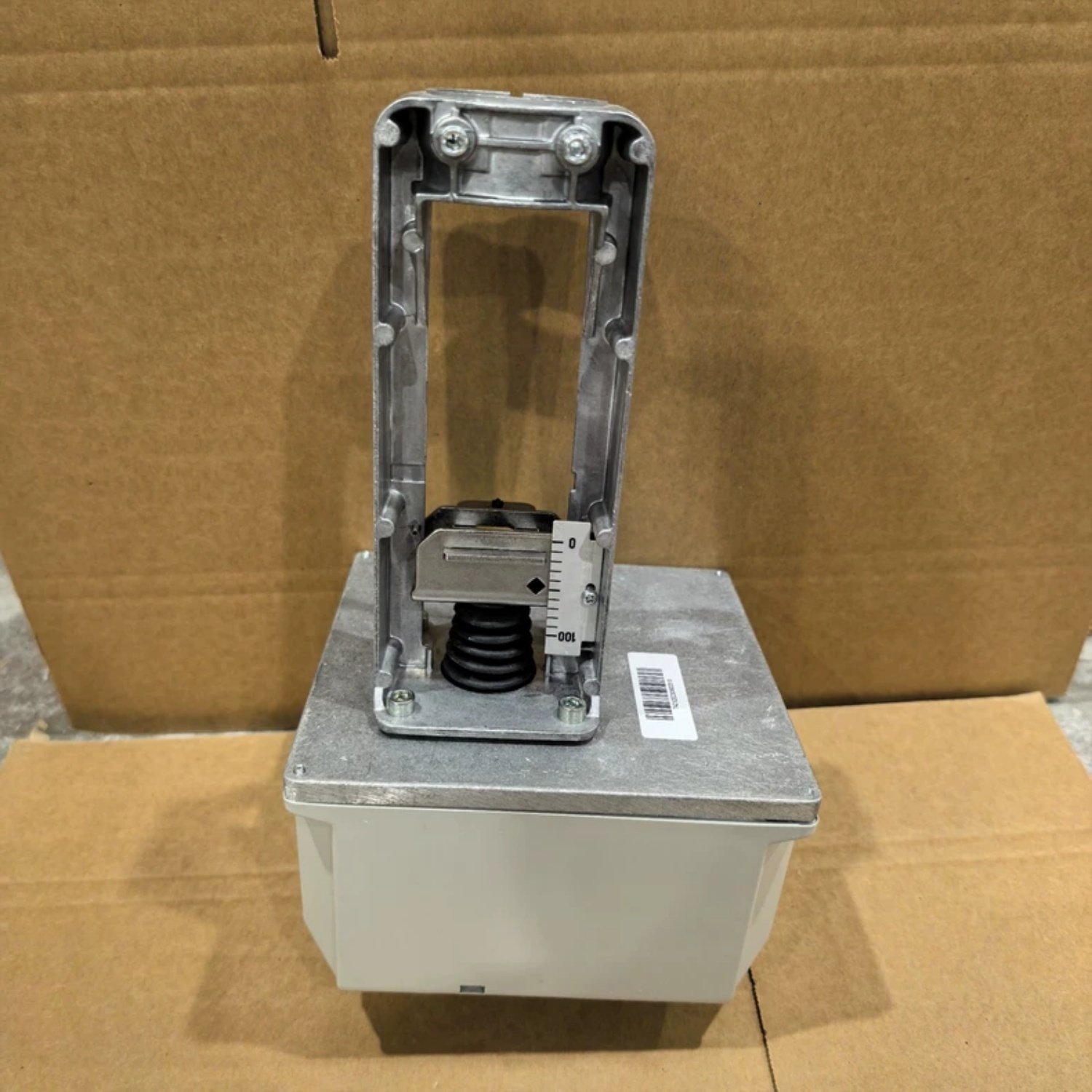

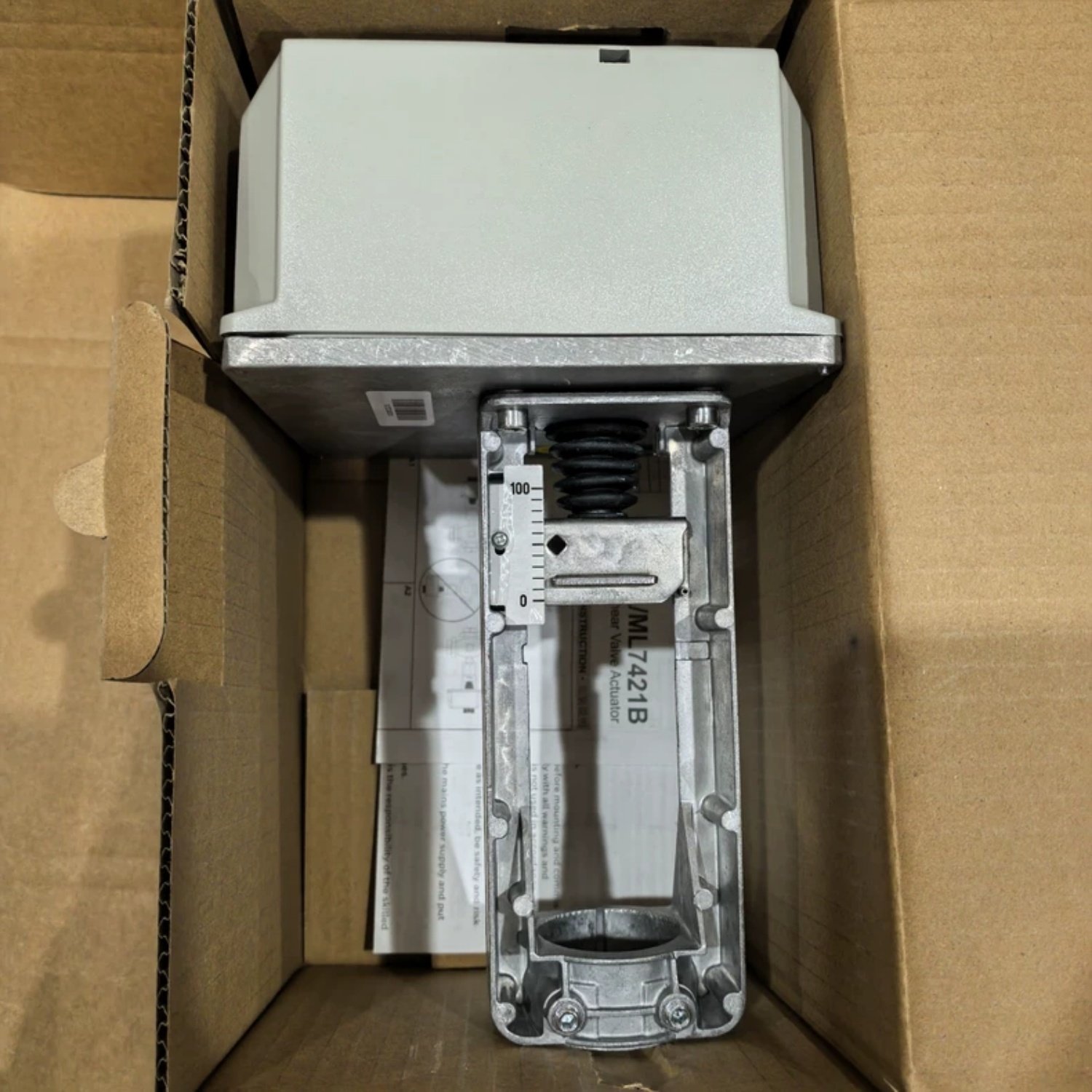

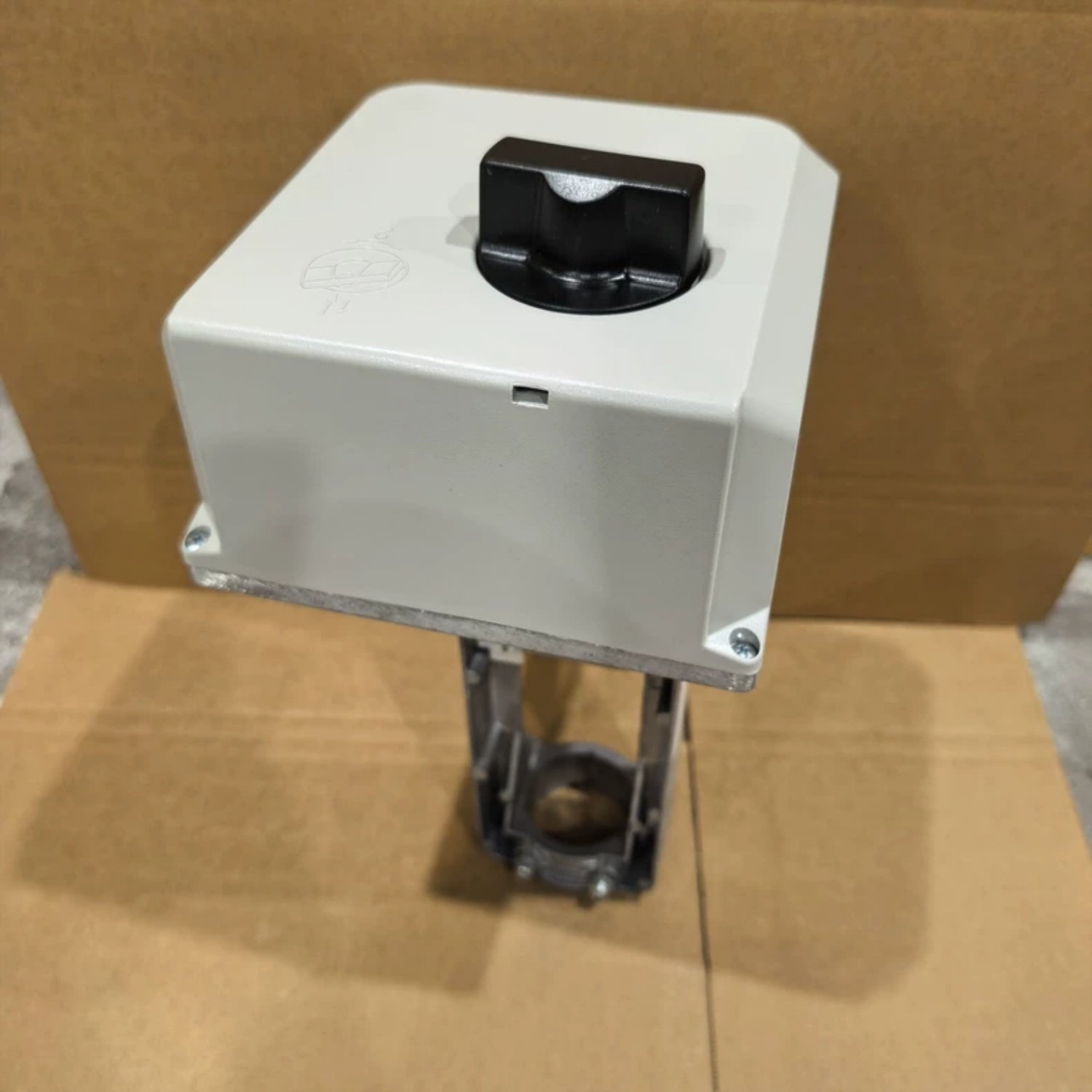

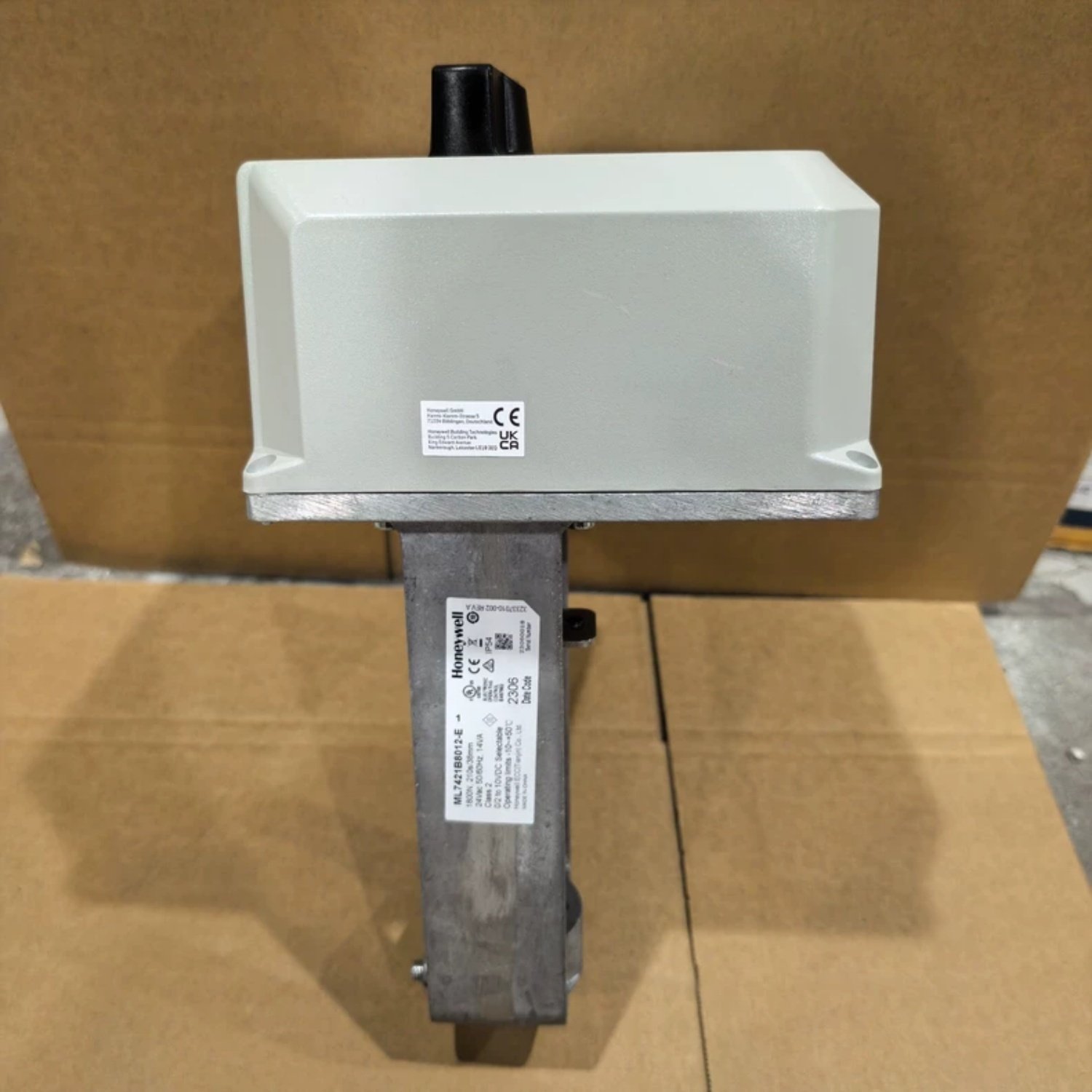

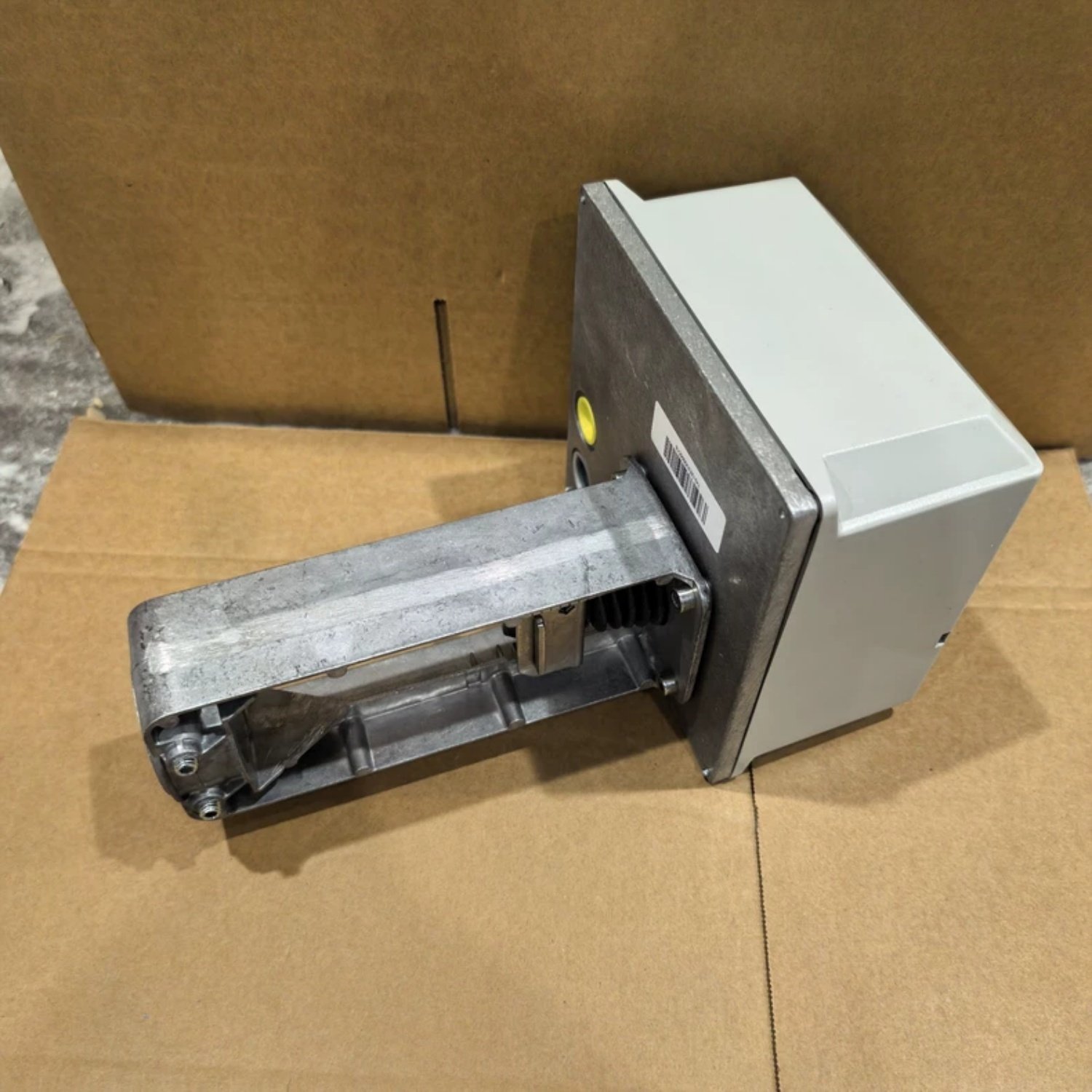

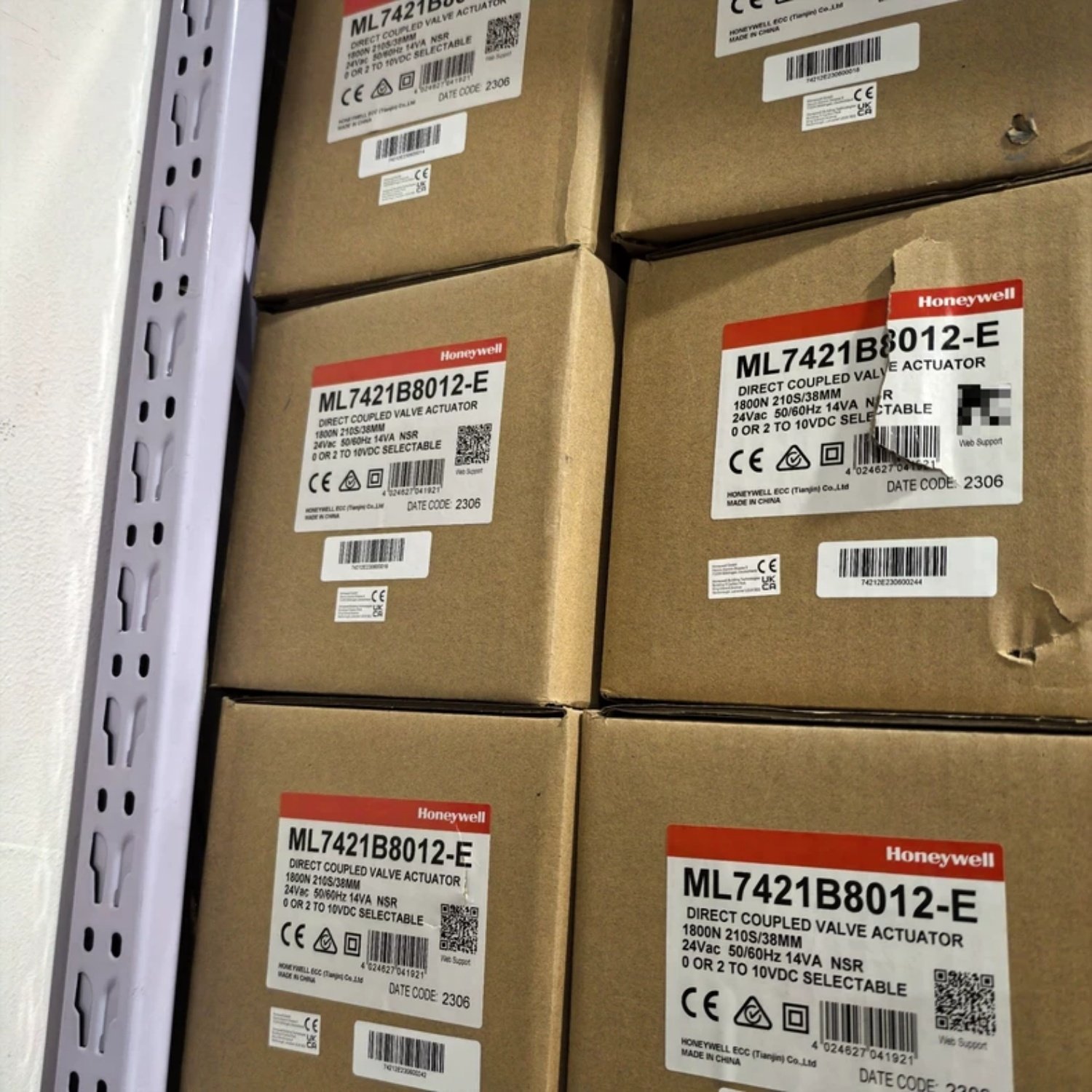

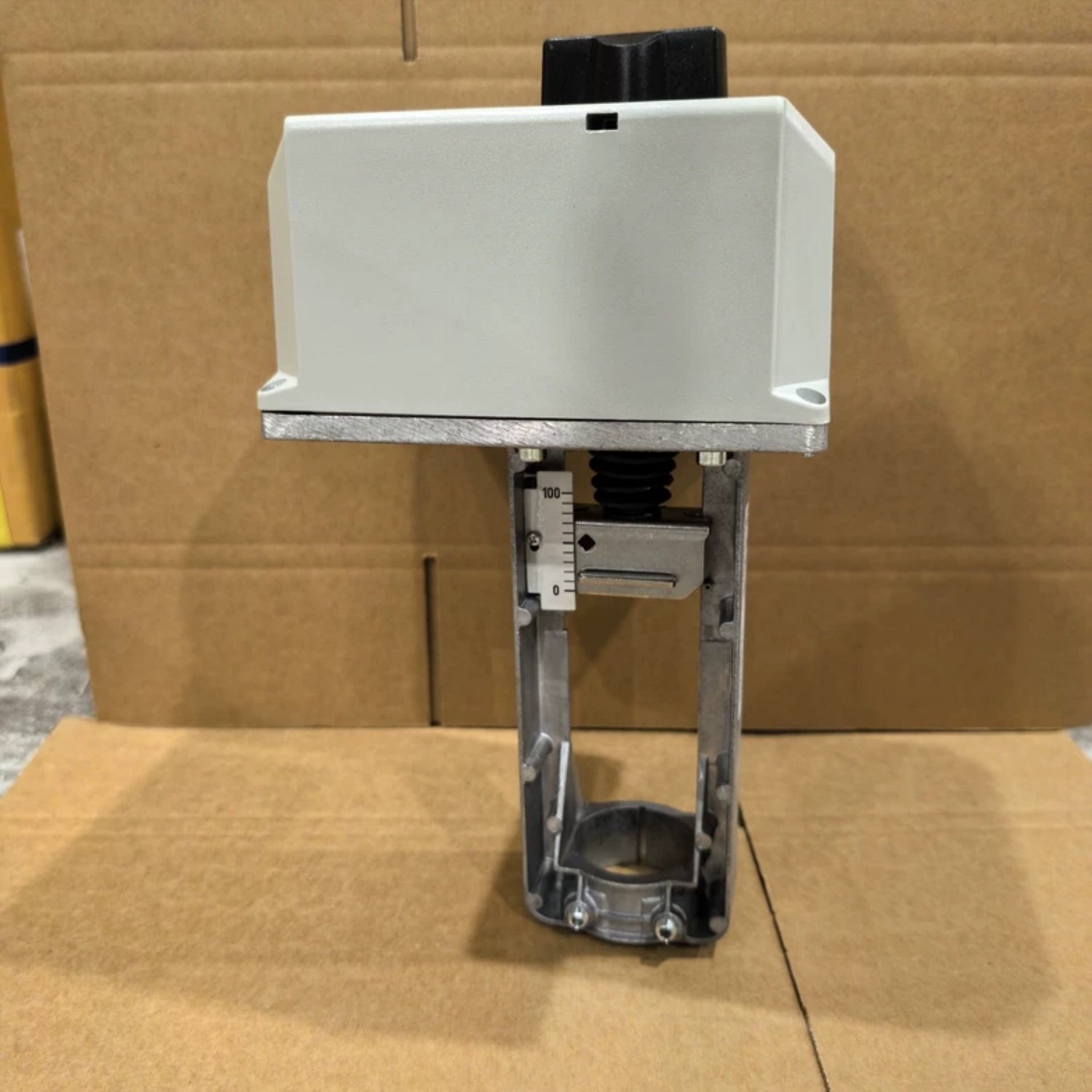

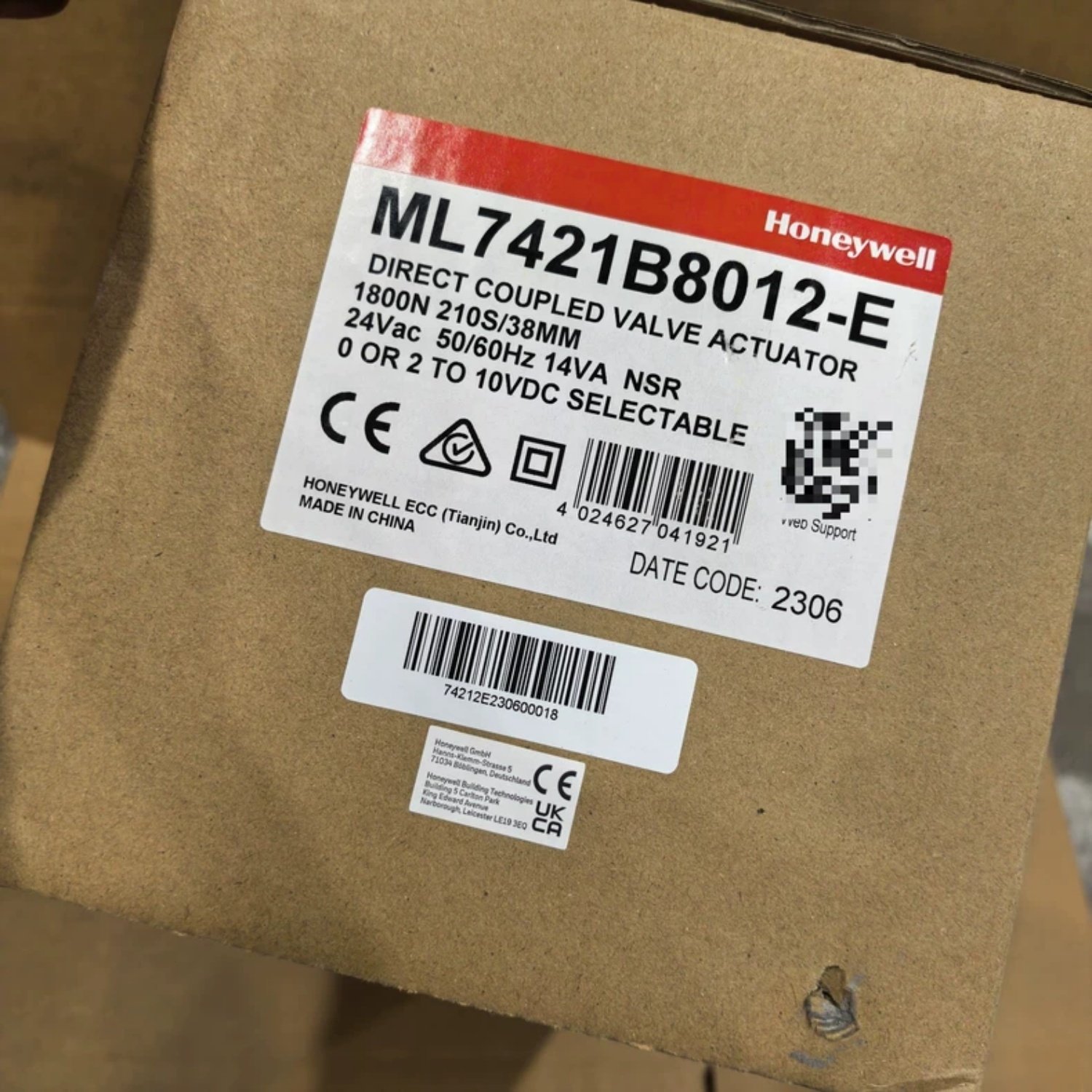

HONEYWELL ML7421B8012-E Linear Valve Actuator (ML7421 Series)
- Nominal Stem Force: 1800 N (405 lbf) for heavy-duty applications.
- Stroke Length: 38 mm (1-1/2 inches).
- Power Input: 24 Vac (+10%, -15%), 50/60 Hz.
- Power Consumption: Maximum 11 VA to 16 VA depending on operational frequency.
- Run Time: Approximately 175–210 seconds for a full 38 mm stroke.
- Control Input Signals: Selectable 0…10 Vdc, 2…10 Vdc, 0…20 mA, or 4…20 mA.
- Feedback Signal: 2…10 Vdc position feedback.
- Materials: ABS plastic cover with a rugged die-cast aluminum yoke and base.
- Direct Valve Coupling: Mounts directly onto compatible Honeywell globe valves (such as V5011, V5013, V5015, V5016, and VGF series) without requiring separate linkages or adjustments.
- System Target: Optimally used for larger valves (typically 4 inches and above) due to its high 1800 N force capability.
Brand New HONEYWELL ML7421B8012-E Actuator. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
- SKU: ML7421B8012-E
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
