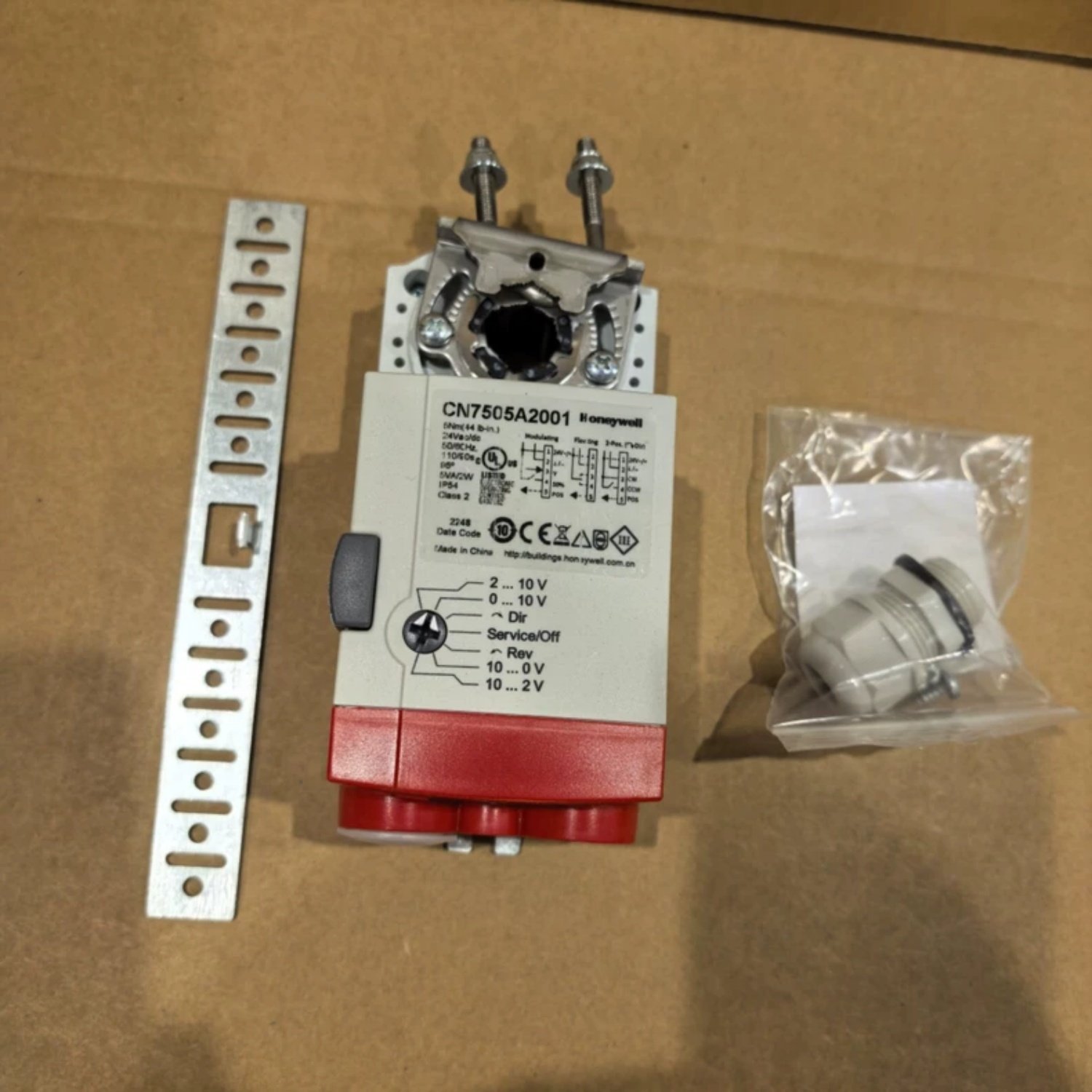

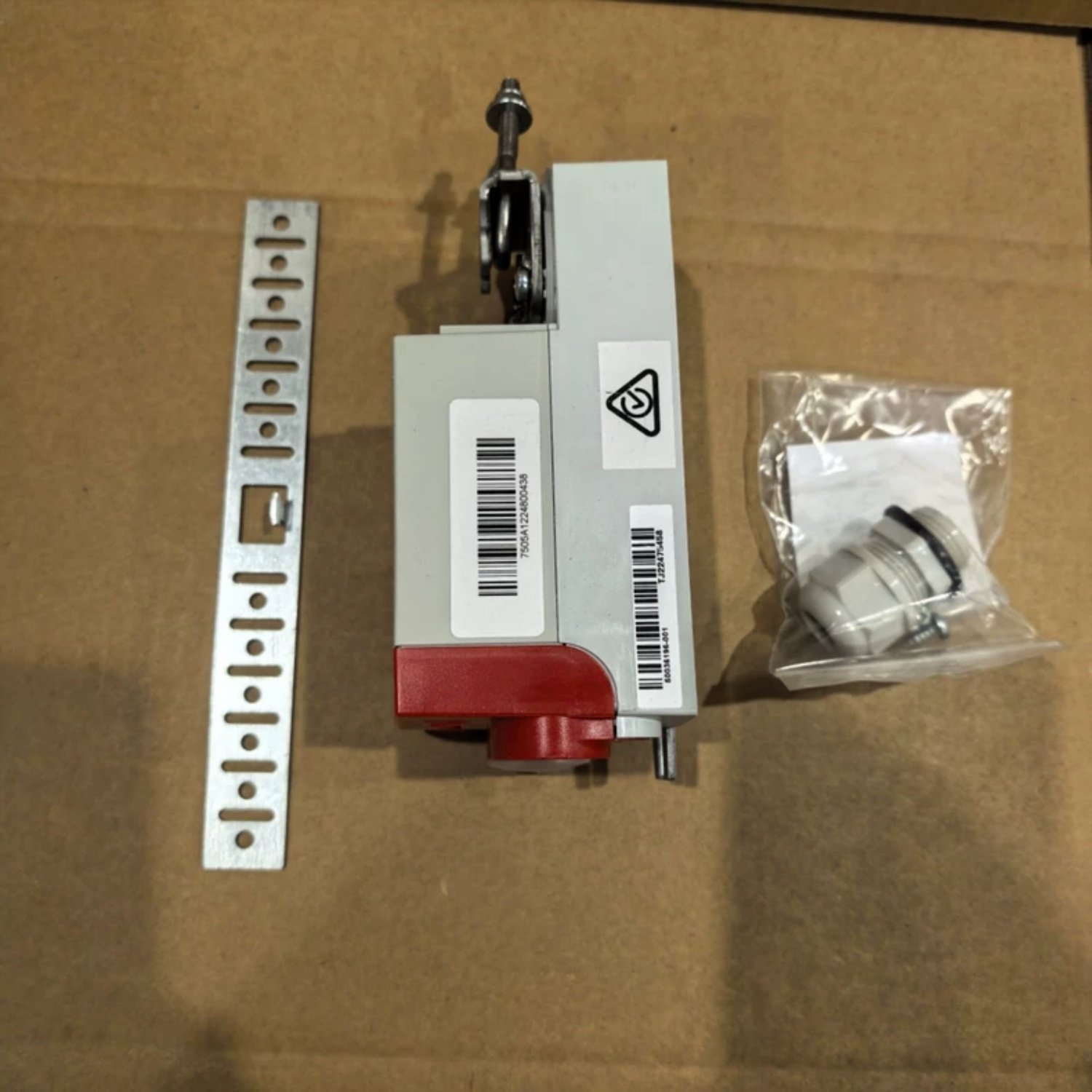

HONEYWELL CN7505A2001 Direct Coupled Damper Actuator (CN7505 Series)

• Torque Rating: 5 Nm (44 lb-in), suitable for managing smooth, seal-less air damper applications up to approximately 10 sq. ft.
• Control Signal Types: Versatile triple-mode support including Modulating (analog signal), Floating (3-point), and ON/OFF (2-position).
• Nominal Voltage: 24 Vac/dc, 50/60 Hz.
• Rotation Stroke: 95° with a built-in rotation limiter and adjustable mechanical end limits.
• Runtime: 110 seconds at 50Hz or 90 seconds at 60Hz.
• Power Consumption: 5VA / 2W.
• Protection Class: IP54 rated for dust and splash protection.

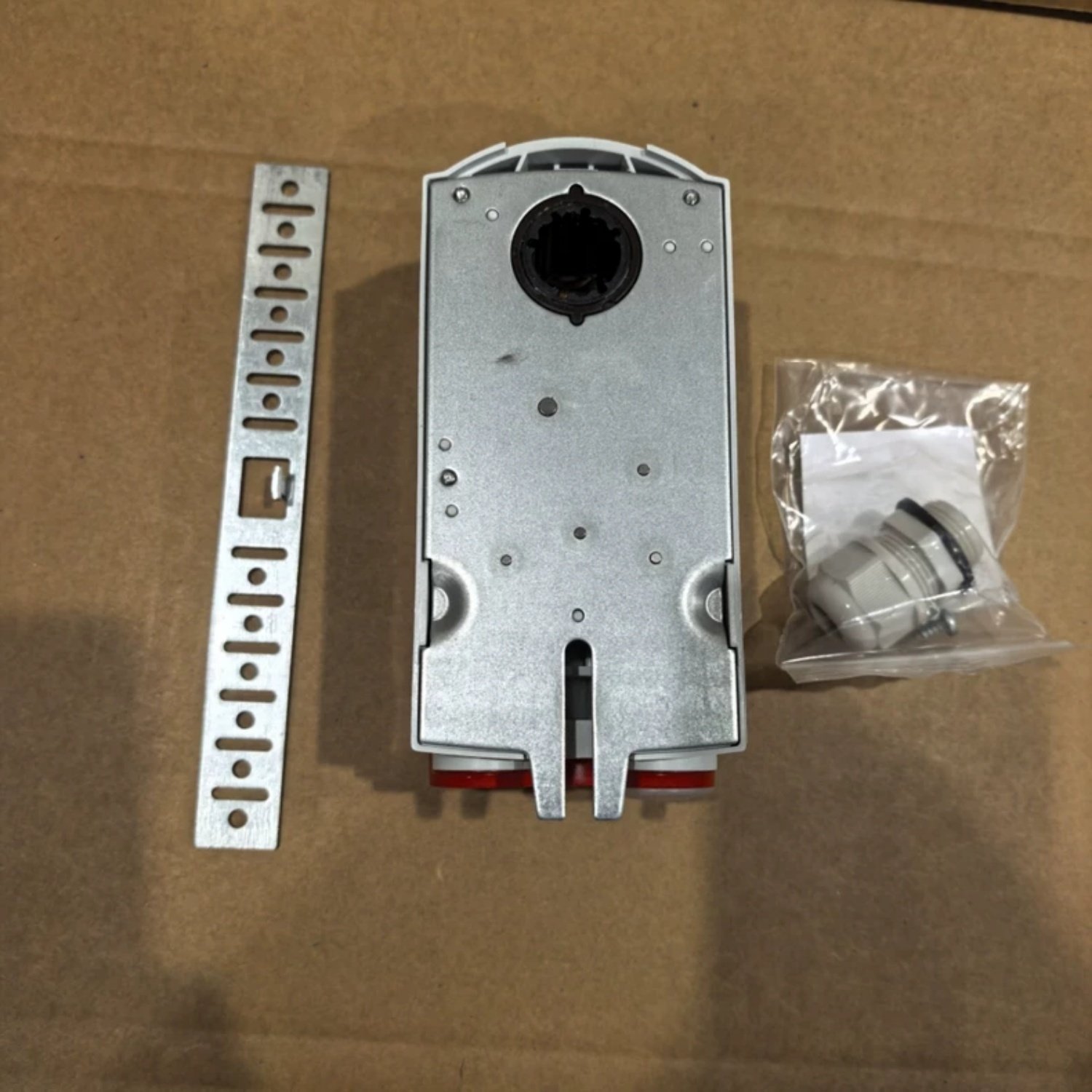

• Shaft Mounting: Direct coupling for round shafts (8 to 16 mm) and square shafts (6 to 13 mm).
• Integrated Feedback: Provides a continuous voltage position feedback signal directly to the building automation system or PLC for real-time tracking of the exact damper angle.
• Auto-Calibration: Automatically runs an auto-calibration sequence upon power-cycling to map the mechanical limits before aligning to the control signal.

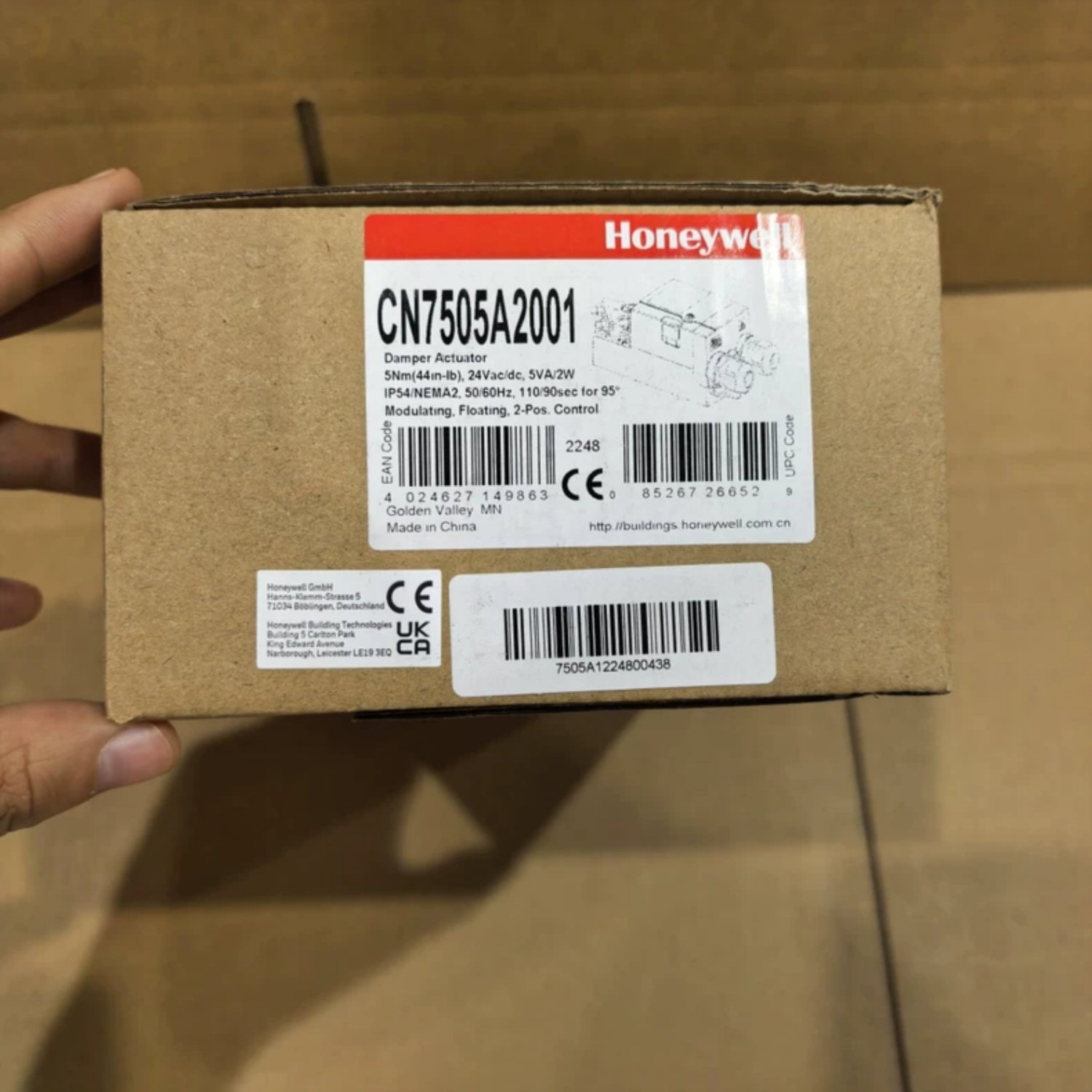

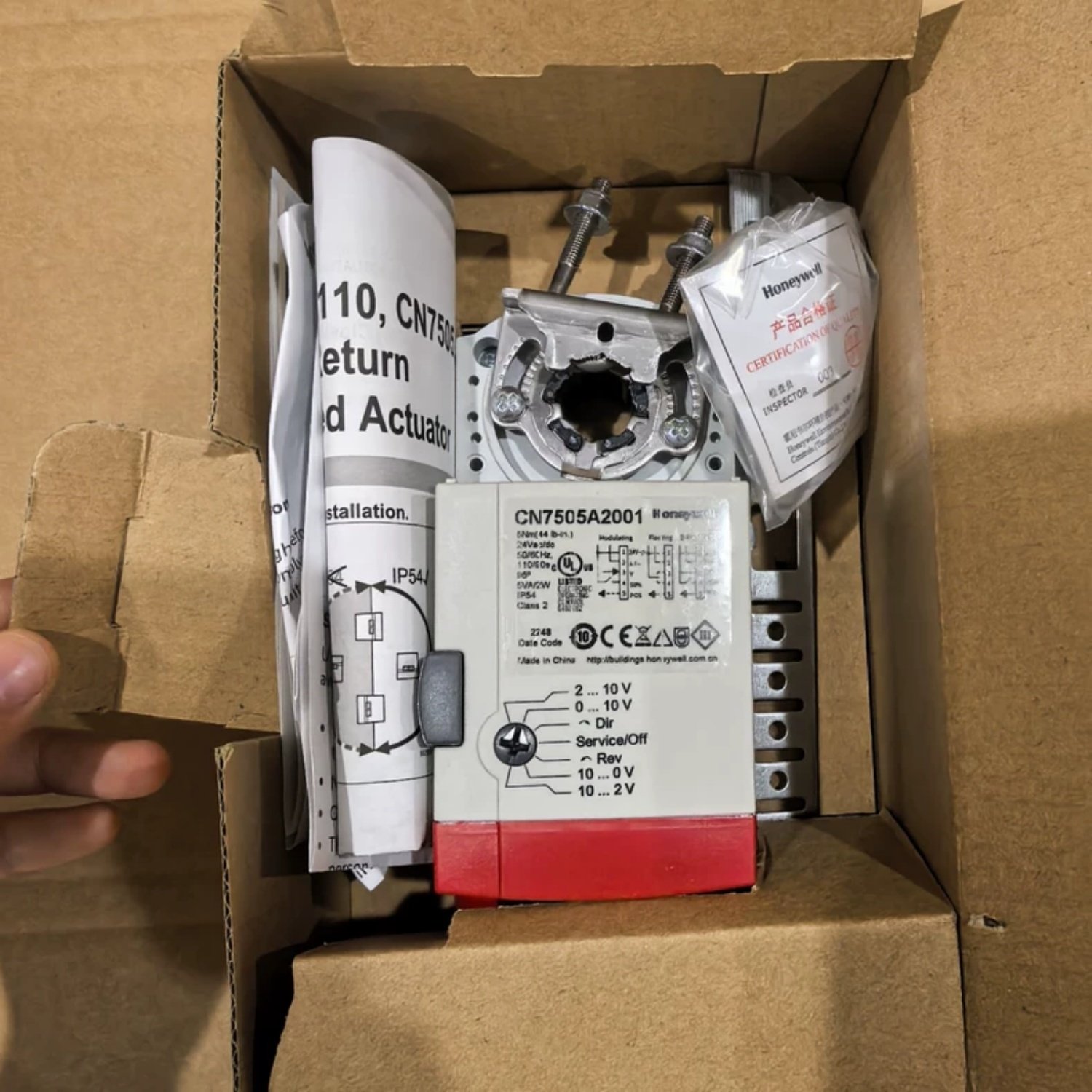

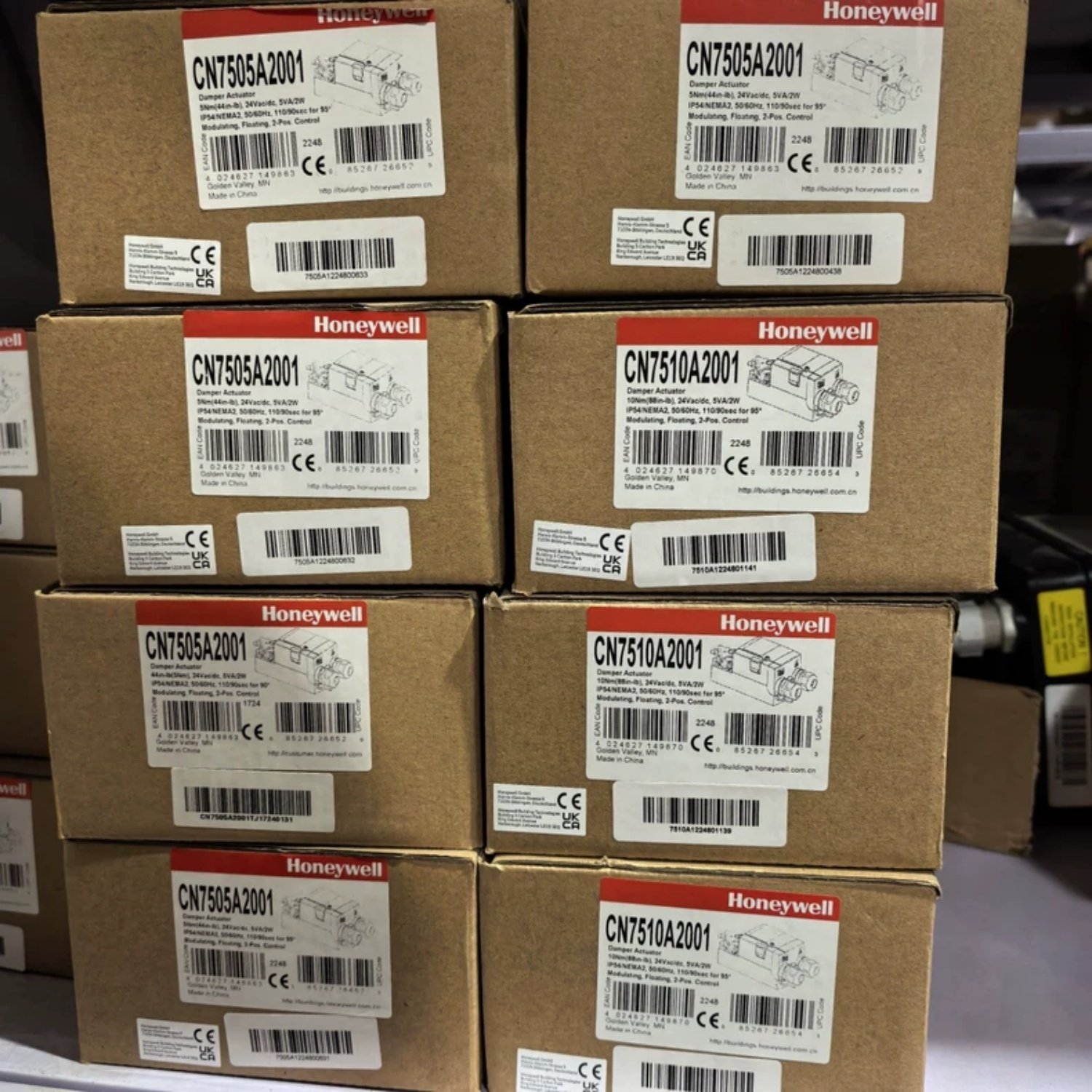

Brand New HONEYWELL CN7505A2001 Actuator. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
