Showing 257–272 of 2131 resultsSorted by latest
-
- Manufacturer: HITECH
- Model / Part Number: PWS6710T-N
- Display: A 7-inch Color TFT LCD screen.
- Resolution: 800 x 480 pixels for crisp screen details.
- Colors: Supports up to 64,000 colors.
- Network Interface: The "-N" at the end of the model name stands for the Network tier level.
- Communication Ports: Includes 3 COM communication ports, 2 USB Host ports, 1 USB Device port, and a CF (CompactFlash) memory card slot.
- Front Protection: The front screen panel has an IP65 protection rating.
-
- Manufacturer: FATEK
- Model / Part Number: FBS-16YR
- Output Count: 16 digital output points.
- Output Type: Mechanical Relay.
- Electrical Rating: Supports up to 250VAC or 30VDC at a maximum of 2A per point.
- Installation: Attaches as a Right-Side Expansion Unit and mounts onto standard DIN rails.
- Physical Size: Measures 90mm (H) x 60mm (W) x 80mm (D).
- FBs: Points to FATEK's high-performance micro PLC series.
-
- Manufacturer: B&R
- Model / Part Number: 7IF787.9
- Module Type: aPCI industrial interface module
- Host Interface: aPCI slot
- Electrical Isolation: Galvanically isolated interface
- Required Terminal Block: TB704
-
- Manufacturer: WEINTEK
- Model / Part Number: MT506MV
- Display: A 5.6-inch color display with 320×234 pixel resolution.
- Processor and Memory: It runs on a 32-bit RISC processor (200MHz) and has 2 megabytes of flash memory to hold your machine's custom screens and buttons.
- Communication Ports: It has two serial communication ports.
- Supply Voltage: Runs on standard industrial 24V DC power.
- Front Protection: The front panel is IP65 rated.
- Dimensions and Panel Cutout: The physical box is 204 x 150 mm, but the hole you need to cut out in your panel is 192 x 138 mm.
-
- Manufacturer: INOVANCE
- Model / Part Number: IS620NS7R6I
- Device Type: AC servo drive
- Rated Power: 1 kW
- Output Current: 7.6 A
- Input Voltage: 200 to 240 VAC
- Communication: EtherCAT
-
- Manufacturer: NORGREN
- Model / Part Number: 8020750
- Valve Function: 3/2-way, single-solenoid operation
- Port Connection: G 1/4 or 1/4 NPT
- Operating Pressure: 1 to 10 bar
- Nominal Flow Rate: 1200 L/min
- Body Material: Anodized aluminium
-
- Manufacturer: PEPPERL+FUCHS
- Model / Part Number: KFD2-STC4-Ex1.2O
- Intrinsic Safety: It acts as a safety barrier.
- Signal Splitting: It takes 1 input from the hazardous area and splits it into 2 separate outputs in the safe area.
- Power Supply: It supplies power to field devices like 2-wire or 3-wire SMART transmitters.
- Two-Way Communication: It transfers regular 4–20 mA analog signals.
- Channels: 1-channel input.
- Input Signal: 0/4 mA to 20 mA.
- Dual Output: Two separate 0/4 mA to 20 mA signals.
- Safety Rating: Up to SIL 3 (Safety Integrity Level) according to IEC/EN 61508.
- Connection: Terminal blocks built with special test sockets for easy troubleshooting.
-
- Manufacturer: MEAN WELL
- Model / Part Number: NES-350-27
- Output Voltage: 27V DC
- Output Current: 13A
- Rated Power: 351W
- Cooling: Active cooling via a built-in DC fan
- Built-in Protections: Automatically guards against short circuits, overloads, overvoltages, and high temperatures.
-

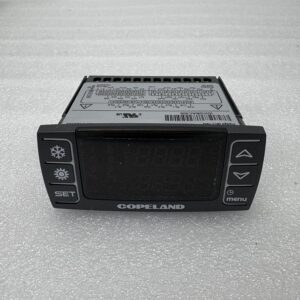

- Manufacturer: DIXELL
- Model / Part Number: IC208CX-11000
- Dual Displays: Features top and bottom LED screens to show current temperatures and active system settings at the same time.
- Eight Relay Outputs: Allows the system to turn eight separate heavy-duty components on or off independently.
- Configurable Inputs: Accepts multiple temperature probes (NTC or PTC styles) and flexible voltage-free digital inputs to monitor system pressure and health.
- EEPROM Safe Storage: Includes built-in non-volatile memory.
- Power Supply: 12 to 24 VAC/DC (highly flexible for different control panels)
- Inputs: 6 probe inputs, 11 digital inputs
- Outputs: 8 SPDT Relays (5A, 250Vac max each)
- Front Protection: IP65 waterproof rating (withstands dust and water splashes)
- Temperature Range: Reads -50°C up to 150°C depending on the probe used
- Switching Units: You can toggle between Celsius and Fahrenheit by pressing the Set and Arrow Down buttons together, diving into the programming level 2 parameters, and changing the CF setting.
-
- Manufacturer: MITSUBISHI
- Model / Part Number: MR-J2S-10A
- Rated Power: 100 Watts (0.1 kW) output power.
- Input Voltage: Can run on 3-phase AC 200–230V or Single-phase AC 230V (at 50/60 Hz).
- Control Modes: Position, Speed, and Torque.
- Control Interface: Uses universal analog inputs or digital pulse trains to tell the motor where to go and how fast to spin.
- Communication: Built-in RS-232C and RS-422 serial ports for connecting to a PC or programming software.
- Weight: Super light at only 0.7 kg.
-
REQUEST A QUOTE
- Manufacturer: SIEMENS
- Model / Part Number: QBM2030-1U
- Measuring Ranges: −50 to 50 Pa; −100 to 100 Pa; 0 to 100 Pa, selectable
- Output Signal: Pressure-linear 0–10 V DC
- Supply Voltage: 24 V AC or 13.5–33 V DC
- Sensing Element: Pressure diaphragm
- Response Time: 1 s time constant
- Degree of Protection: IP42
- Measured Media: Air and non-aggressive gases
The Siemens QBM2030-1U is a differential pressure sensor for measuring air and non-aggressive gases in HVAC systems. It provides a pressure-linear 0–10 V DC output. The measuring range is selected from three ranges: −50 to 50 Pa, −100 to 100 Pa, or 0 to 100 Pa. Typical uses include monitoring air-filter pressure drop and supporting airflow control.
-
- Manufacturer: EATON
- Model / Part Number: EMR6-W500-D-1
- Monitoring Range: 300 to 500 V AC.
- Frequency Range: 50 to 60 Hz (compatible with both US and European power grids).
- Output Contacts: DPDT (2 Change-Over contacts) rated up to 4 Amps.
- Time Delay: Adjustable built-in delay between 0.1 and 30 seconds to prevent false alarms from temporary power dips.
- Mounting: Snaps easily onto standard standard 35mm DIN rails (IEC/EN 60715).
- Size: Slim profile measuring 22.5 mm wide, 85.6 mm high, and 103.7 mm deep.
-
- Manufacturer: LS
- Model / Part Number: XEC-DR60SU
- XEC Series: Programmed using IEC 61131-3 standard languages, like Structured Text (ST) or IEC-style Ladder Diagram (LD).
- Total Channel I/O Count: 60 points total, providing wide connectivity for a compact brick controller.
- Inputs: 36 points, DC 24V.
- Outputs: 24 points, Relay type (great for switching different voltage types safely).
- Power Supply: Runs on standard 100–240V AC wall power.
- Form Factor: "SU Type" (Standard Unit).
- Expansion Capabilities: You can snap on up to 7 extra expansion modules if you run out of input/output pins.
- Built-in Comms: Comes with RS-232C and RS-485 ports to talk to computers, screens, or other machines.
-
- Manufacturer: FSP
- Model / Part Number: FSP150-10GSV
- Maximum Power Output: 150W
- Input Voltage Compatibility: 100V to 240V AC (Auto-switching)
- Input Current: 4A – 2A
- Frequency: 50 – 60 Hz
- Form Factor Type: Internal Server Power Module
-

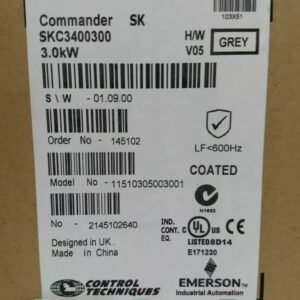

- Manufacturer: EMERSON
- Model / Part Number: SKC3400300
- Rated Power: 3 kW / 3 HP (Normal Duty)
- Input Supply Voltage: 380 V to 480 V AC (±10%), 3-Phase, 50/60 Hz
- Continuous Output Current: 7.2 A
- Overload Capacity: 10.8 A for up to 60 seconds
- Control Methods: Open Loop Vector Control or V/Hz Control
- Enclosure Rating: IP20
- Physical Footprint: Dimensions measure 100 mm x 240 mm x 173 mm, weighing approximately 2.1 kg.
- Vertical Space: Minimum of 100 mm of ventilation clearance directly above and below the drive chassis.
- Horizontal Space: Side clearance of 10 mm, which must be extended to 50 mm if multiple drives are positioned adjacently in a row.
- Mounting Configuration: Secured via 4 rear mounting holes tailored for M4 screws, configured on 70.7 mm x 240 mm hole centers.
-
- Manufacturer: DEUBLIN
- Model / Part Number: 1109-010-165
- Rotor Connection: 5/8"-18 UNF Left Hand (LH) thread with a 0.655" pilot.
- Housing Connection (B Port): 3/8"-18 NPT thread.
- Maximum Speed: 20,000 RPM.
- Coolant Limits: Maximum pressure of 103.4 bar (1,500 psi) and max flow rate of 81.8 liters per minute (21.6 GPM).
- MQL Limits: Maximum pressure of 10 bar (150 psi) and max flow rate of 2,040 liters per minute (72.1 CFM).
- Maximum Temperature: 71°C (160°F).
- Dry-Run Capability: Pop-Off™ seals close only under pressure, preventing wear during dry machining.
- Full-Flow Internal Design: Smooth inner channels lack obstructions, which stops metal chips and debris from getting trapped.
- Premium Bearings: It uses dual ABEC 7 (ISO class P4) angular contact ball bearings for stable, vibration-free rotation at high speeds.
- Rugged Materials: Built with a corrosion-resistant anodized aluminum housing, a stainless steel rotor, and rugged silicon carbide mechanical seals.
- Bearing Protection: A specialized labyrinth shield and large vents keep coolant from leaking into and ruining the ball bearings.
