Showing 209–224 of 2131 resultsSorted by latest
-
- Manufacturer: TR ELECTRONIC
- Model / Part Number: CMV582M-00009
- Encoder Type: Absolute Rotary Encoder
- Housing Size: 58 mm diameter housing (a standard compact size for industrial machinery)
- Shaft Type: Solid shaft (V-type)
- Scanning Type: Magnetic sensing system
- Resolution: Up to 13-bit for single-turn tracking, capable of recording up to 8,192,000 total steps across its full measurement range.
-
- Manufacturer: PILZ
- Model / Part Number: 475695
- Model Identifier: PNOZ 1 24VDC 3S1O (3S10)
- Operating Voltage: 24V DC
- Power Consumption: 3.5W (2W maximum)
- Output Contacts: 3 N/O (Normally Open) safety contacts + 1 N/C (Normally Closed) auxiliary contact
- Switching Capacity: 5A at 230V AC / 7A at 24V DC
- Response Time: Very fast release time of 20 milliseconds
- Mounting Style: Standard DIN rail mount
-
- Manufacturer: NORGREN
- Model / Part Number: 11-018-146
- Port Size: 1/4" NPT / PTF
- Outlet Pressure Range: 0.4 to 10 psig (0.03 to 0.69 bar)
- Maximum Inlet Pressure: 150 to 200 psi depending on system configuration
- Flow Rate: 12 scfm (5.66 dm³/s)
- Construction: Durable zinc alloy body and bonnet with polyurethane elastomers
- Constant Bleed: Provides continuous internal air exhaust, giving the unit extreme sensitivity to tiny upstream or downstream pressure changes.
- Relieving Diaphragm: Allows the operator to manually or automatically reduce downstream pressure safely even when the system line is completely closed (dead-ended).
- Norgren Compressed Air Regulator: 1/4" NPT, 150 Max psi, Precision Constant Bleed 12 CFM MSC # 01724863 Mfr # 11-018-146
-

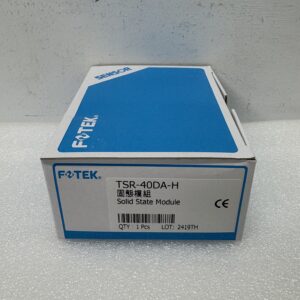

- Manufacturer: FOTEK
- Model / Part Number: TSR-40DA-H
- Rated Load Current: 40 Amps
- Operating Load Voltage: 90 ~ 480 VAC
- Input Control Voltage: 4 ~ 32 VDC
- Control Method: Zero Cross Trigger (turns on at zero volts to prevent sudden electrical noise)
- Peak Voltage: Over 1200 Volts
- Response Time: Fast switching under 20 milliseconds
-
- Manufacturer: MOXA
- Model / Part Number: EDS-308
- Ethernet Ports: 8 x 10/100BaseT(X) RJ45 ports
- Alarm Output: Relay output for power failure and port break alarms
- Operating Temperature: -10 to 60 °C
- Installation: DIN rail mounting
- Network Type: Unmanaged industrial Ethernet switch
-
- Manufacturer: PANASONIC
- Model / Part Number: MCDDT3520
- Series: MINAS A4 Series (Standard Model)
- Rated Power: 750 Watts (0.75 kW)
- Frame Size: C-Frame
- Input Voltage: 200V to 240V AC (Works with either 1-phase or 3-phase power)
- Output Current: 30A maximum
- Frequency Response: 1.0 kHz
- Weight: About 3.3 to 3.6 lbs (1.5 to 1.6 kg)
-
- Manufacturer: SMC
- Model / Part Number: CXSM15-60
- Bore Diameter: 15 mm
- Stroke Length: 60 mm
- Action: Double-acting (uses air to push and pull)
- Bearing Type: Slide bearing
- Non-Rotating Accuracy: ±0.1°
- Port Size: M5 x 0.8
- Cushioning: Rubber bumper
-
- Manufacturer: SHARP
- Model / Part Number: LQ150X1LGB1
- Screen Size: 15.0 inches diagonally.
- Resolution: 1024 x 768 pixels (XGA quality) with a 4:3 square-ish shape.
- Screen Type: TFT-LCD, which stands for Thin-Film Transistor Liquid Crystal Display.
- Brightness: 600 cd/m² (very high brightness for easy reading under bright factory lights).
- Connection Type: 20-pin LVDS interface (Low-Voltage Differential Signaling) to send video data.
- Backlight: Built with 4 traditional CCFL (Cold Cathode Fluorescent Lamp) light tubes.
-
- Manufacturer: FUJI
- Model / Part Number: FRN15G1S-4J
- Product Series: FRENIC-MEGA High-Performance Series.
- Motor Capacity: 15 kW (approximately 20 Horsepower).
- Input Voltage: Three-phase 380V to 480V AC at 50/60 Hz.
- Output Voltage: Three-phase 380V to 480V (equipped with Automatic Voltage Regulation).
- Overload Capability: 150% for 1 minute and 200% for 3 seconds under High Duty (HD) specifications.
- Degree of Protection: IP20 closed type / UL open type.
-
- Manufacturer: EMERSON
- Model / Part Number: IC121CX-11200
- System Capabilities: It is optimized for systems featuring 1 refrigerant circuit and up to 2 compressors.
- Power Supply: Runs on a 12V to 24V AC/DC low-voltage power connection.
- Sensor Inputs: It supports up to 4 temperature probe inputs:
- Relay Outputs: Includes 5 built-in 8-amp relay outputs to switch on compressors, fans, and alarms.
- Fan Speed Control: Equipped with a PWM (Pulse Width Modulation) signal output to control variable-speed condenser fans directly without needing extra hardware.
- User Interface: Features a dual-line digital icon display to show temperatures and working status simultaneously.
-
- Manufacturer: IFM
- Model / Part Number: PN3001
- Measuring Range: 0 to 250 bar (0 to 3,625 psi).
- Overload Protection: Handles pressure spikes up to 400 bar (5,800 psi) without breaking.
- Outputs: Features programmable switching outputs and one analog output (gives flexibility for control systems).
- Connection Size: G ¼ internal thread process connection.
- Electrical Connection: Standard M12 connector.
- Operating Voltage: 18 to 36 V DC.
-
- Manufacturer: LS
- Model / Part Number: XEC-DR40SU
- Built-in I/O Points: It has 40 total local I/O points.
- Inputs: 24 channels (DC 24V).
- Outputs: 16 channels (Relay outputs).
- Power Supply: Operates on standard AC 100V – 240V power.
- Expandability: It can expand up to 284 total I/O points using additional modules.
- High-Speed Counter: Includes built-in support for reading rapid signals (like rotary encoders) with 8 channels for 1-phase configurations.
-
- Manufacturer: PHOENIX CONTACT
- Model / Part Number: 1085219
- Ports: 16 RJ45 ports.
- Speed: Gigabit Ethernet (10/100/1000 Mbps) across all ports.
- Design: Slim, narrow housing (40mm width) for saving space on a DIN rail.
- Protection: IP30 rated metal housing.
- Power Supply: 9V DC to 32V DC input.
-
- Manufacturer: LENZE
- Model / Part Number: EVF9323-EVV100
- Manufacturer: Lenze
- Model / Part Number: EVF9323-EVV100 (9300 Vector Series)
- Device Type: Panel-mounted single-axis frequency inverter
- Rated Power: 1.5 kW (Kilowatts)
- Input Voltage: 3-Phase 400V AC to 480V AC (50/60 Hz)
- Output Current: 3.9 Amps
- Degree of Protection: IP20 (Protected against solid objects up to 12mm, no water protection)
-
- Manufacturer: KYOCERA
- Model / Part Number: KG057QV1CA-G00
- Screen Size: 5.7 inches diagonally
- Resolution: 320 × 240 pixels (QVGA)
- Display Type: FSTN-LCD, Monochrome (Black and White)
- Backlight: Single CCFL tube light (Cold Cathode Fluorescent Lamp)
- Signal Interface: 20-pin parallel data connector (4-bit)
- Brightness: 220 cd/m²
- Voltage Supply: 3.3V to 5.0V
- Industrial HMI Panels: It is the exact display panel used inside several Siemens Simatic HMI systems (like the 6AV6647 series).
- Testing Equipment: Portable measurement tools used by field engineers.
- Kiosks & Ticket Machines: Public-facing machines that require simple, highly durable screens.
-
- Manufacturer: FATEK
- Model / Part Number: FBS-1LC
- Input Channels: 1 channel for a load cell.
- Internal Resolution: 20-bit (very precise).
- Output Data: 16-bit signed integer format.
- Excitation Voltage: 5V DC.
- Sensor Sensitivity: Works with 2 mV/V, 5 mV/V, 10 mV/V, and 20 mV/V sensors.
- Sampling Rates: Adjustable between 5 Hz to 80 Hz.
- Set the Zero Point (Tare): Clear out any existing weight from the scale bed.
- Apply a Known Weight: Place a heavy, exact weight onto the scale.
- Set the Max Reference: Enter that known weight value into register R2 and flip a specific setting bit to lock it in.
- Software: You need WinProLadder V3.22 or newer to access the easy I/O configuration screens.
- PLC Firmware: The main PLC unit should run OS V4.71 or newer for seamless multi-module tracking.
