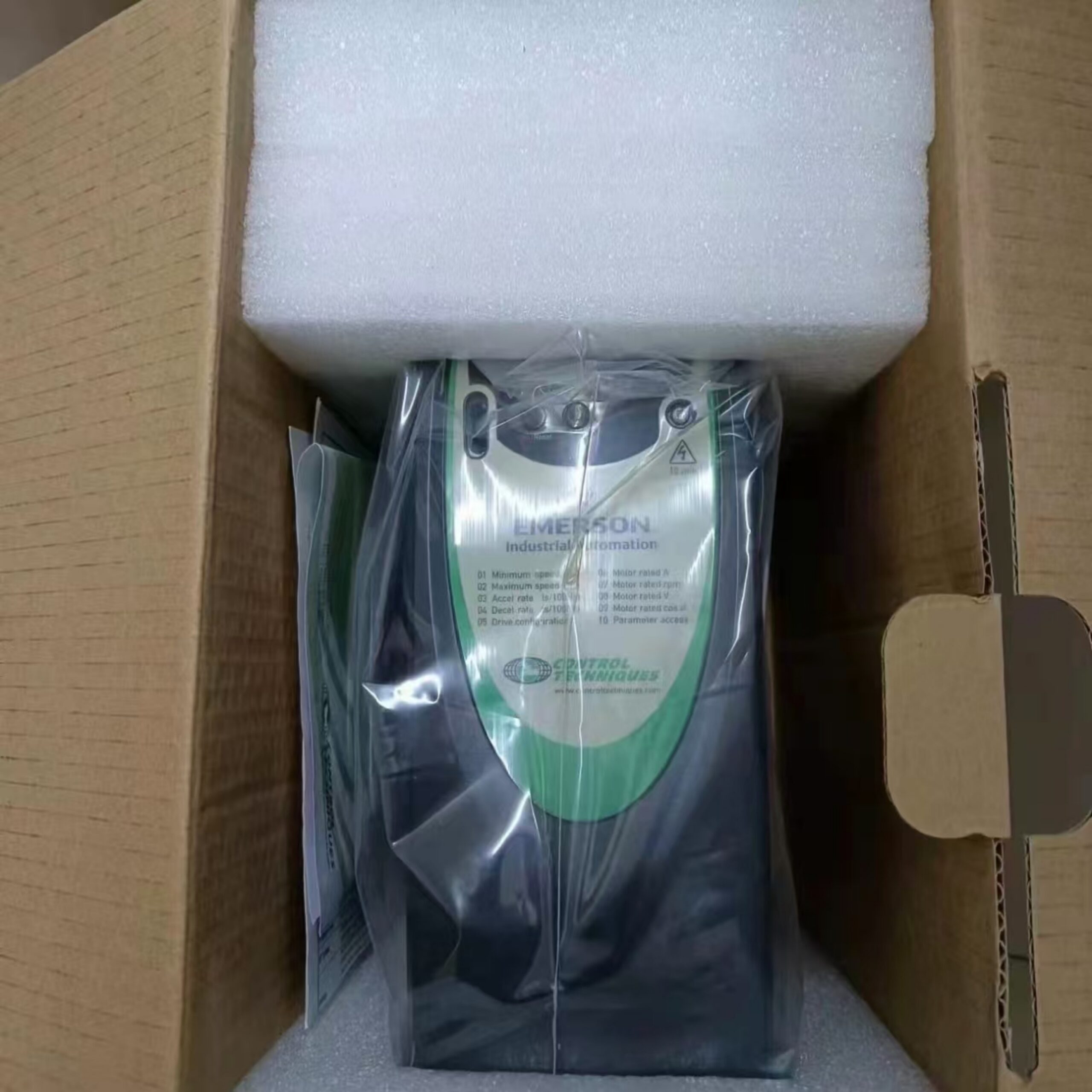

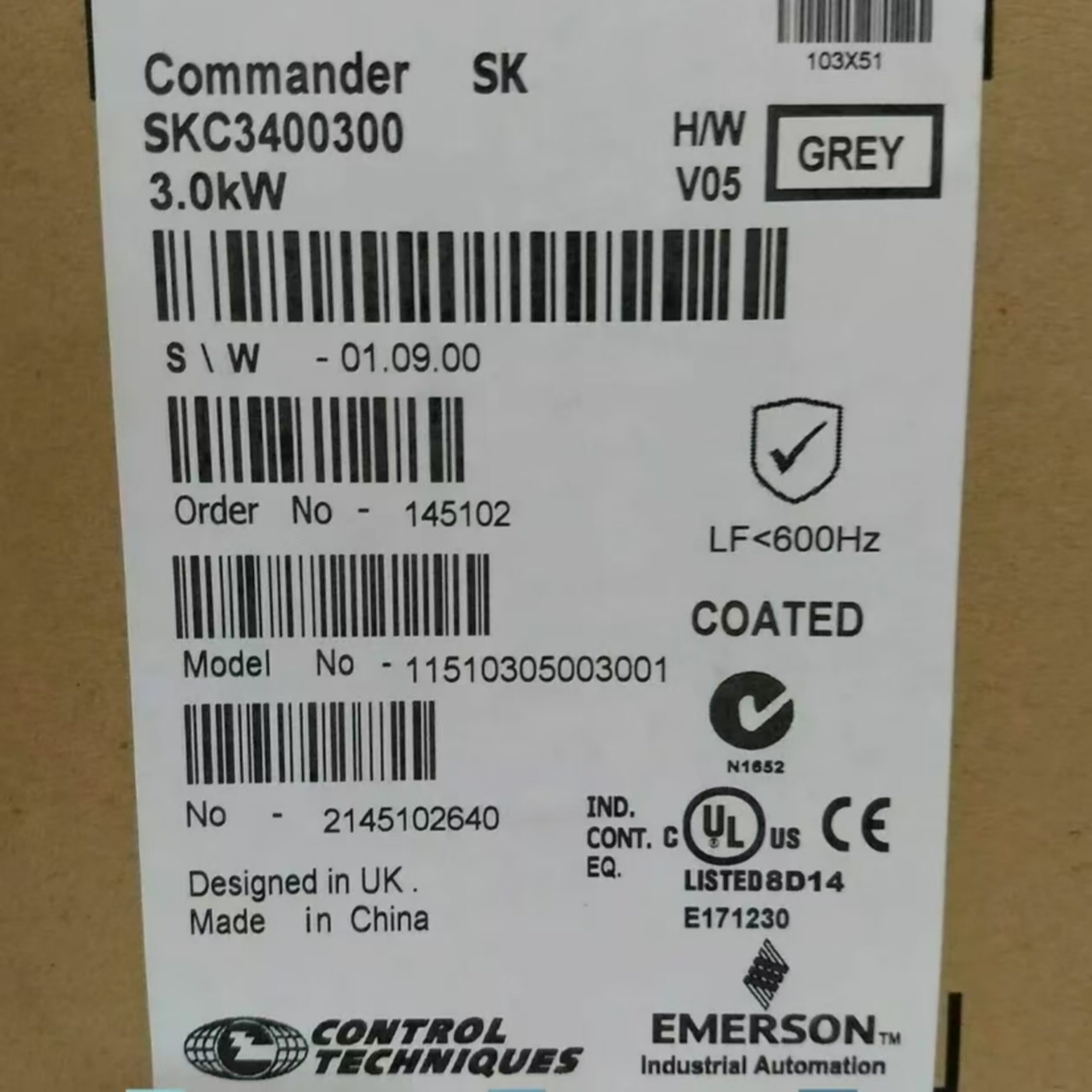

EMERSON SKC3400300 Variable Frequency Drive
EMERSON SKC3400300 Variable Frequency Drive - Image 2

EMERSON SKC3400300 Variable Frequency Drive

  • Manufacturer: EMERSON
  • Model / Part Number: SKC3400300
  • Rated Power: 3 kW / 3 HP (Normal Duty)
  • Input Supply Voltage: 380 V to 480 V AC (±10%), 3-Phase, 50/60 Hz
  • Continuous Output Current: 7.2 A
  • Overload Capacity: 10.8 A for up to 60 seconds
  • Control Methods: Open Loop Vector Control or V/Hz Control
  • Enclosure Rating: IP20
  • Physical Footprint: Dimensions measure 100 mm x 240 mm x 173 mm, weighing approximately 2.1 kg.
  • Vertical Space: Minimum of 100 mm of ventilation clearance directly above and below the drive chassis.
  • Horizontal Space: Side clearance of 10 mm, which must be extended to 50 mm if multiple drives are positioned adjacently in a row.
  • Mounting Configuration: Secured via 4 rear mounting holes tailored for M4 screws, configured on 70.7 mm x 240 mm hole centers.
  • SKU: SKC3400300
  • New Original In Stock
  • 6 Months Warranty
  • shipping by DHL or UPS
  • Availability shown is for reference only and will be confirmed at the time the order is processed.
  • Published quantities may change without prior notice.
  • The customer is responsible for verifying part number and specifications before confirming the purchase.
  • Certain products may be considered special order items depending on availability.
  • Extensive experience in industrial automation.
  • We source hard-to-find or discontinued parts.
  • Network of international manufacturers and distributors.
  • Personalized support for urgent requirements.
