Products

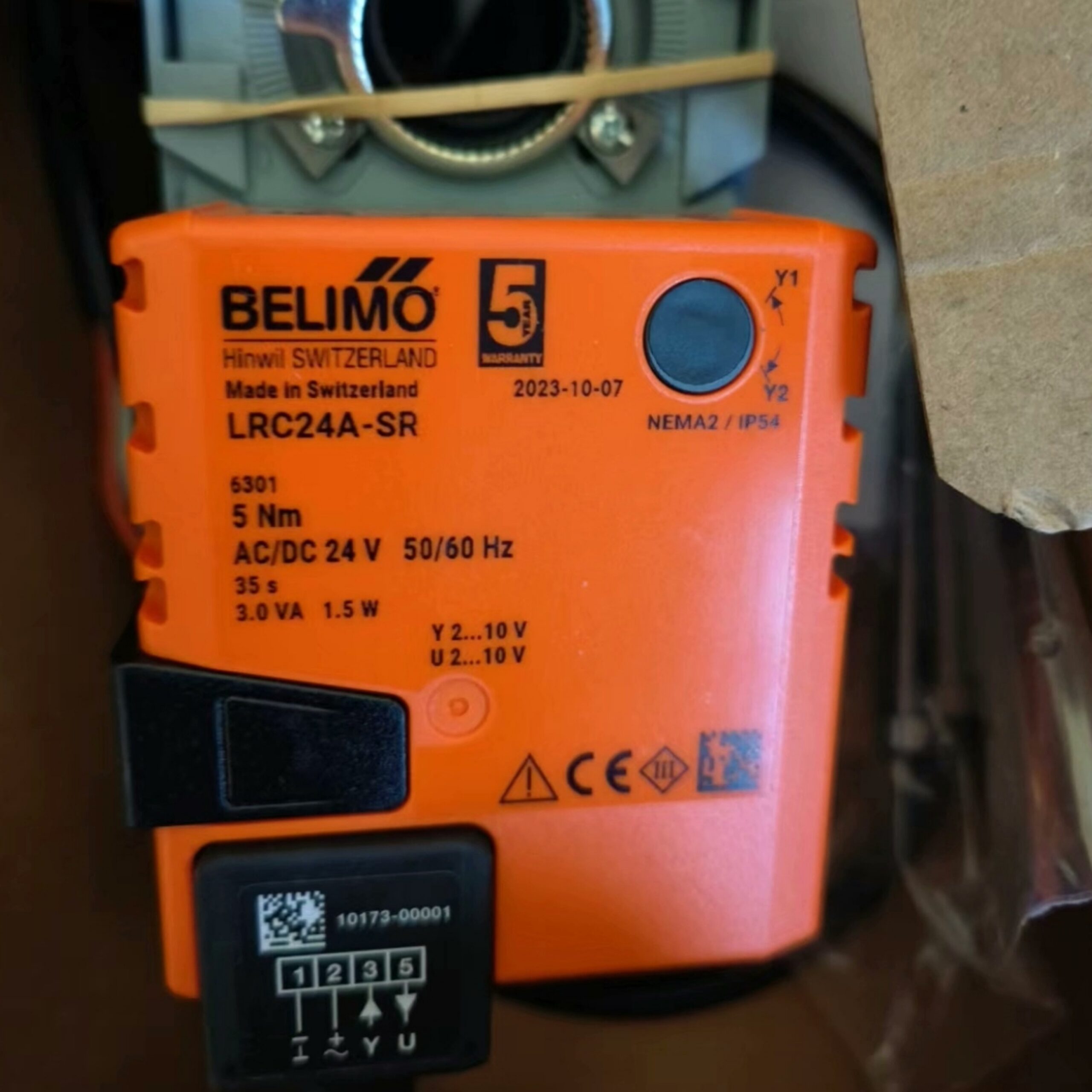

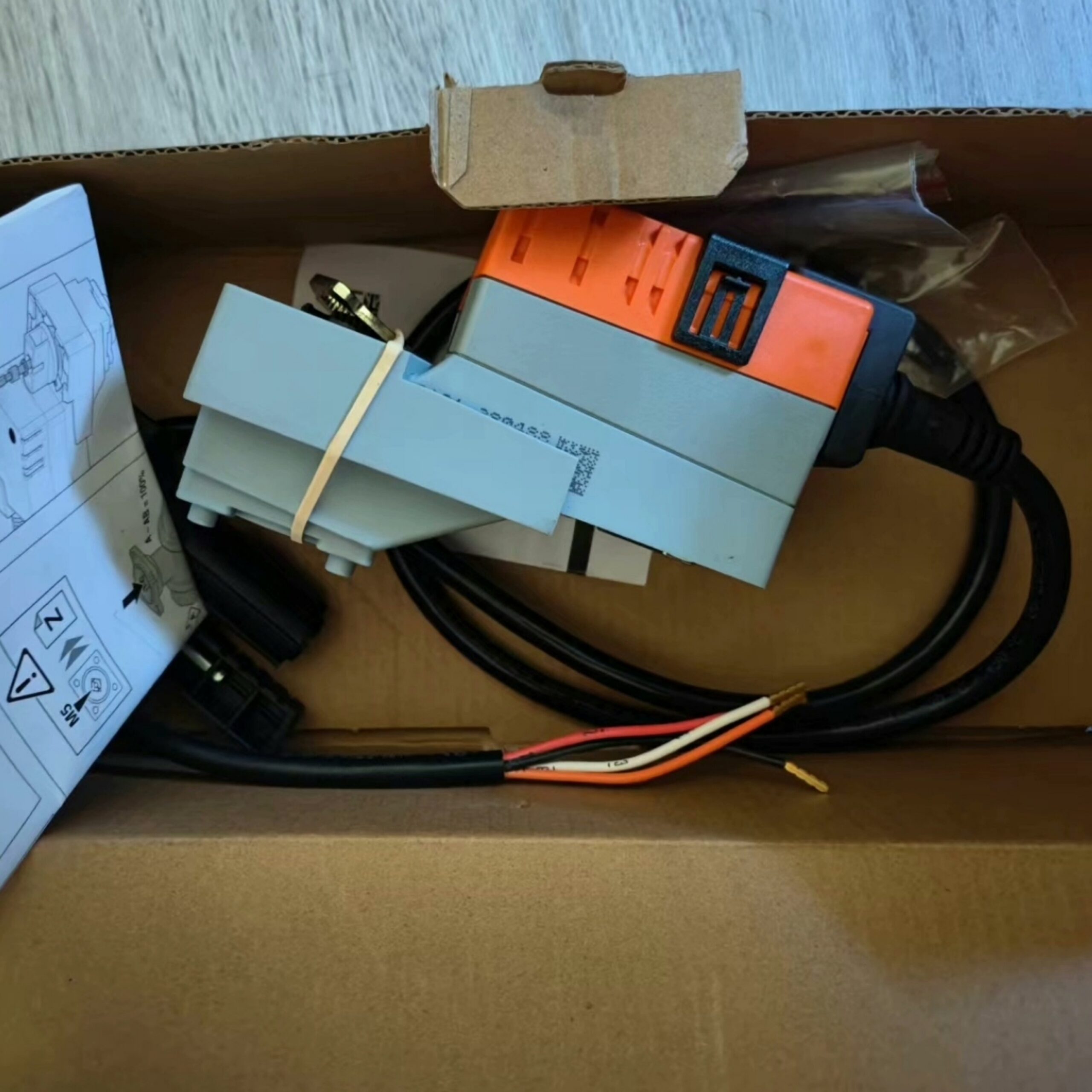

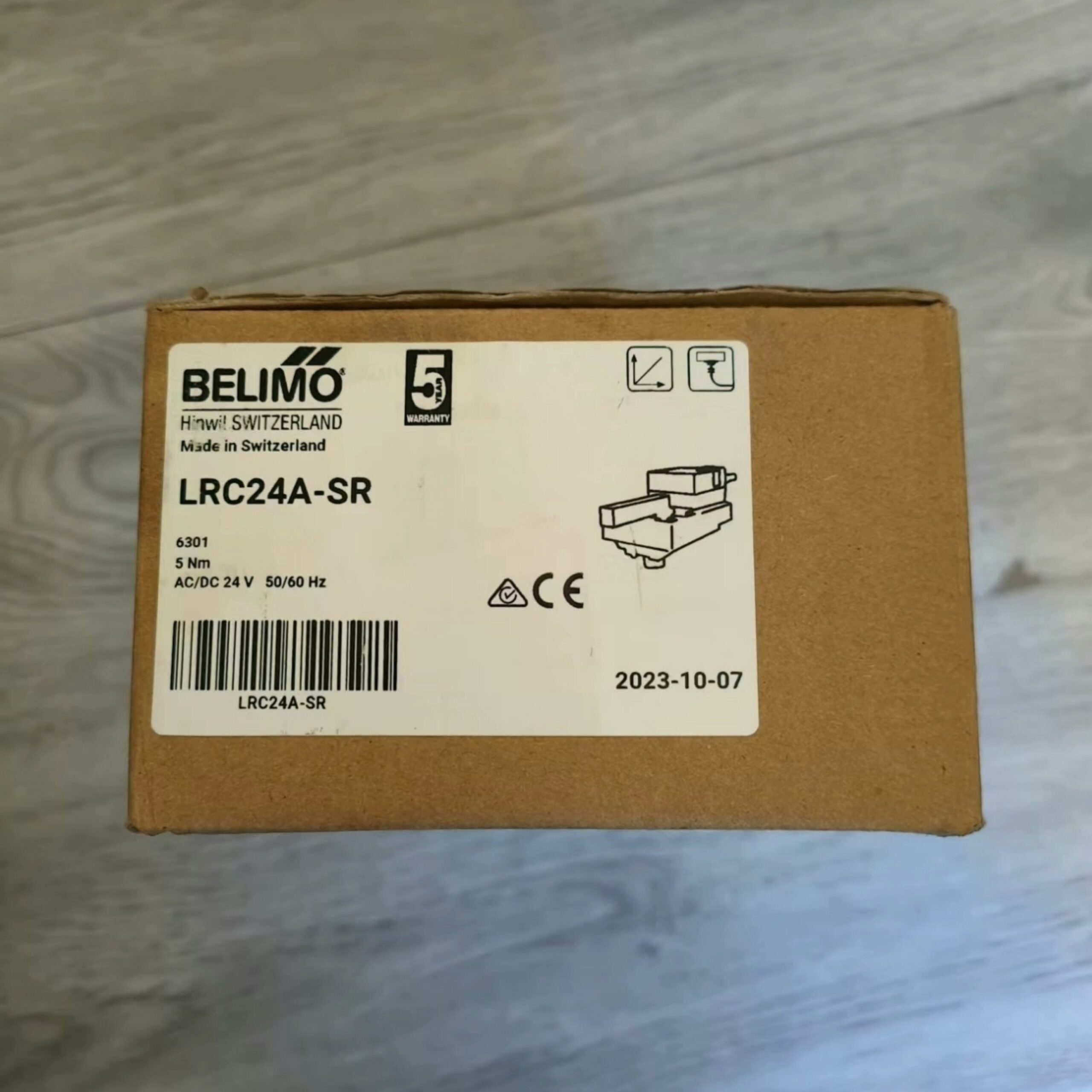

BELIMO LRC24A-SR Rotary Valve Actuator
- Manufacturer: BELIMO
- Model / Part Number: LRC24A-SR
- Nominal Voltage: AC/DC 24 V (50/60 Hz) Operating range of 19.2 to 28.8 V.
- Torque: 5 Nm Minimum torque at nominal voltage.
- Running Time: 35 seconds Complete motor travel time.
- Power Consumption: 1.5 W (Operating) / 0.4 W (At Rest) Wire sizing capacity is rated at 2 to 3 VA.
- Protection Class: IP54 / NEMA 2 Protection against dust and splashing water.
- Parallel Operation: Multiple actuators can be wired together to work at the same time.
- Built-in Cable: Comes equipped with a 1-meter, 4-wire connection cable (4 × 0.75 mm²).
- SKU: LRC24A-SR
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
